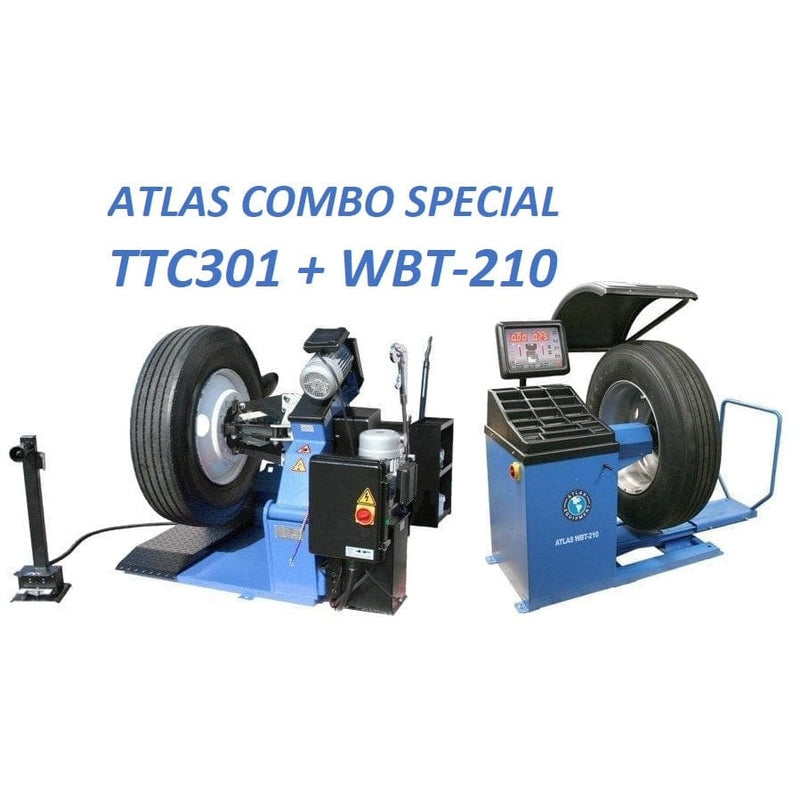

Atlas TTC301 Truck Tire Changer + WBT-210 Heavy Duty Wheel Balancer Combo

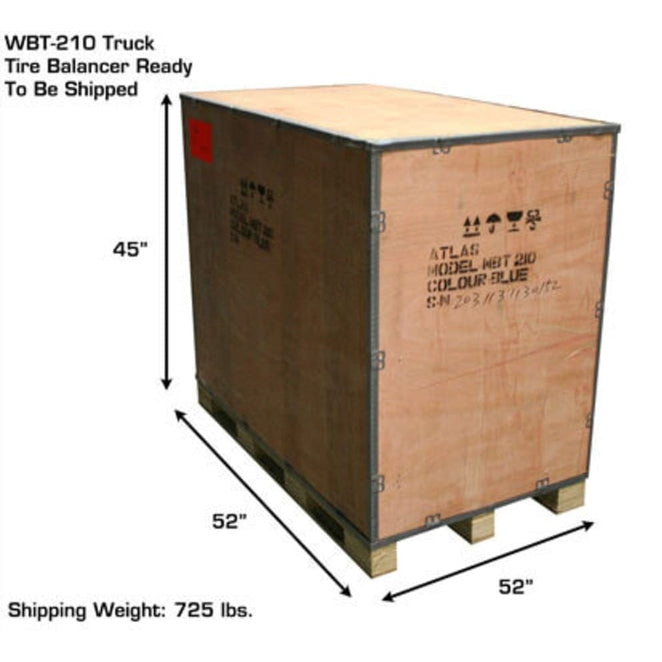

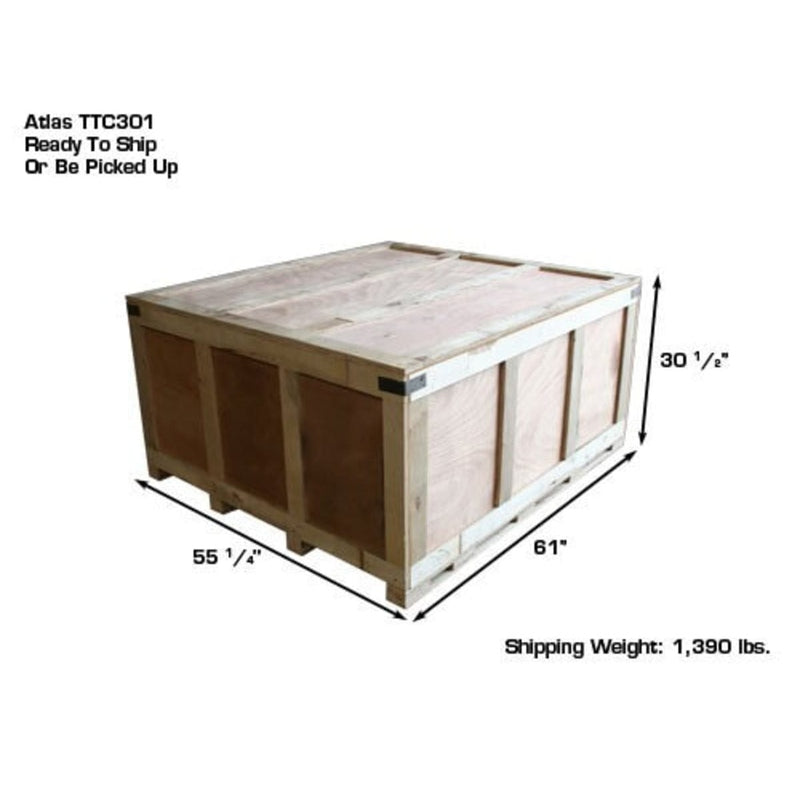

The Atlas TTC301 and WBT-210 is a matched standard-duty truck tire changer and balancer combo built for shops that service medium commercial tires — semi tires, 19.5 tires, and bus and transit wheels — without needing the larger footprint and capacity of the TTC303 or TTC306. The TTC301 handles rim sizes from 13" to 27" and tire diameters in excess of 63" with a maximum tire width of 30.5 inches, covering the standard over-the-road commercial range without stepping up to agricultural or earthmover capacity. The WBT-210 balances the full range from 14-inch passenger car rims through 300-lb semi-truck tires, matching the TTC301's vehicle range on the balancing side. Both carry a 1-year parts warranty. Delivery requires access for a 53-foot truck.

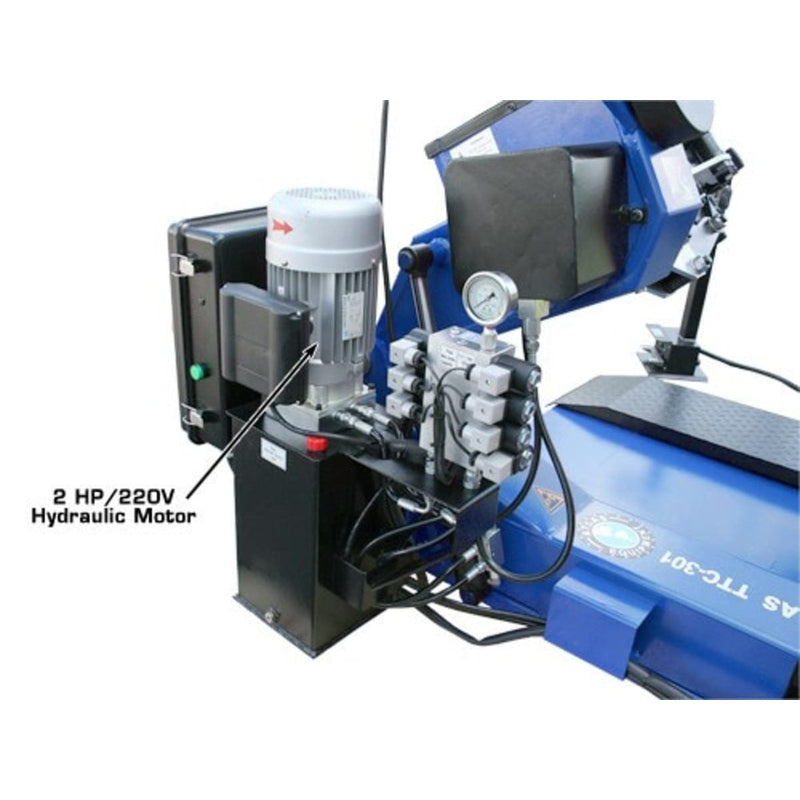

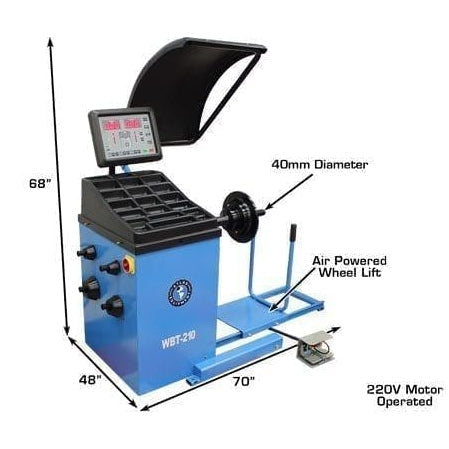

The TTC301's wired mobile control unit keeps the operator positioned at the tire during bead tool and chuck arm operation rather than at a fixed panel. The electric/hydraulic self-centering four-jaw chuck with 5 rim locking positions handles consistent clamping across the 13"–27" rim range, and included tooling covers the full size range without additional purchases: heavy-duty tire tool, rim clamps for steel and alloy wheels, and alloy rim adapter set with plastic inserts. The WBT-210's 40mm heavy-duty shaft handles standard car and truck cones, the included BUDD-style truck adapter set covers most commercial wheel configurations, and a pneumatic wheel lift (external air supply required) manages loading on heavy assemblies. Self-diagnosis with error code display keeps both machines serviceable in-shop without a service call.

This combo is built for commercial tire centers and fleet service operations that handle standard over-the-road semi, bus, and medium commercial tires at volume, and for shops stepping up from a passenger tire changer that need dedicated commercial truck capability without the size and cost of a large-format agricultural machine.

Features

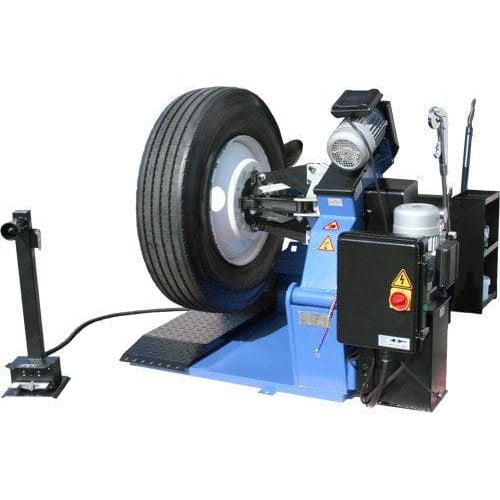

TTC301 Truck Tire Changer

• Standard truck tire changer

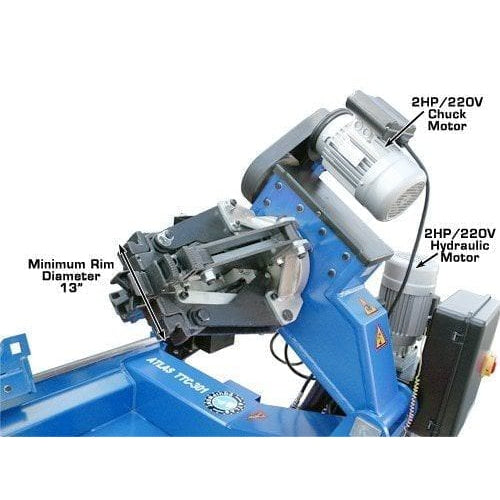

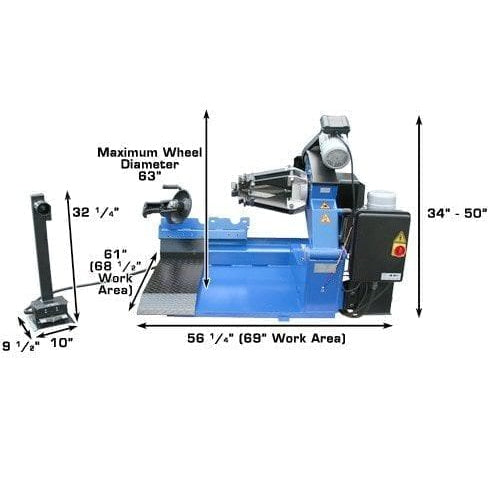

• Handles rims from 13" to 27" and tire diameters in excess of 63"
• Accommodates tires with a maximum width of up to 30½"

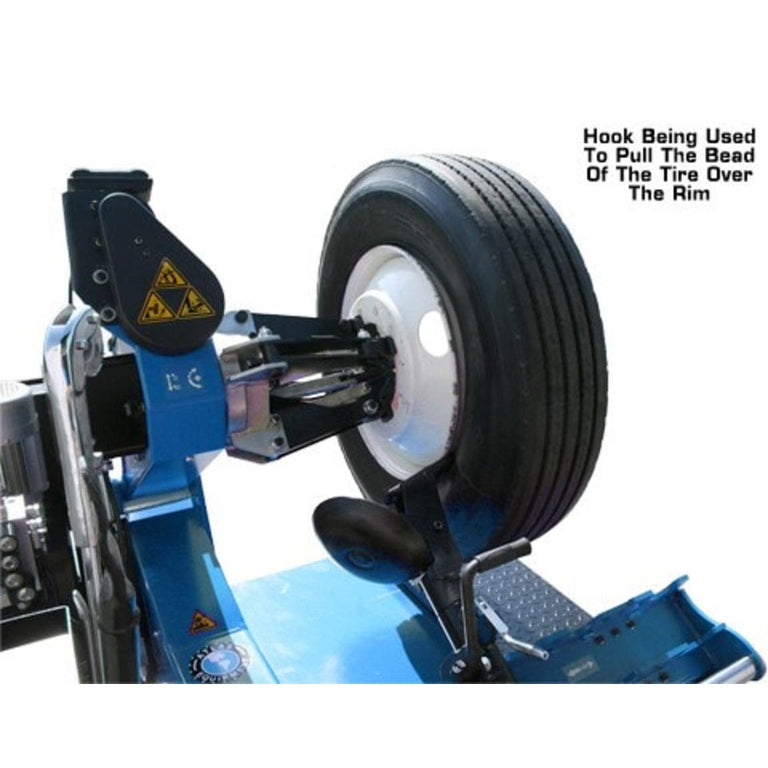

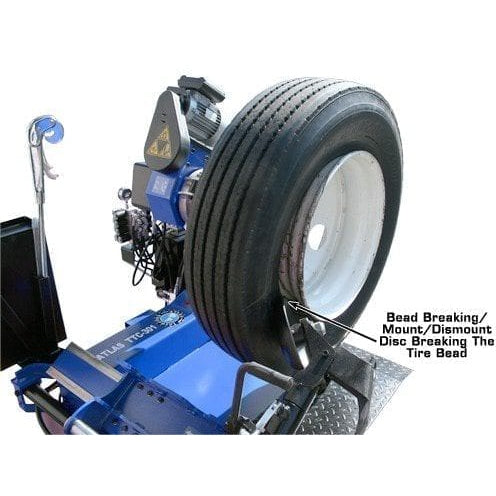

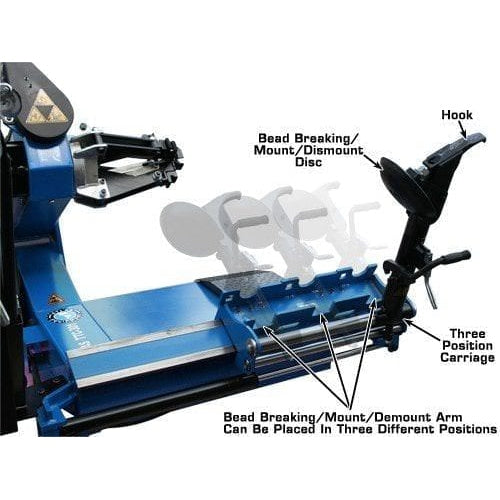

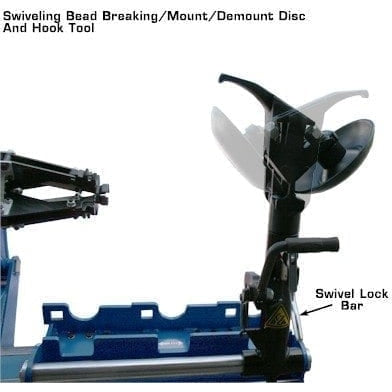

• Bead breaker and mount/demount head included

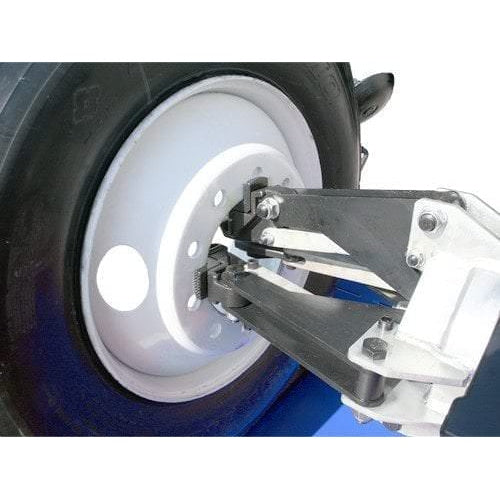

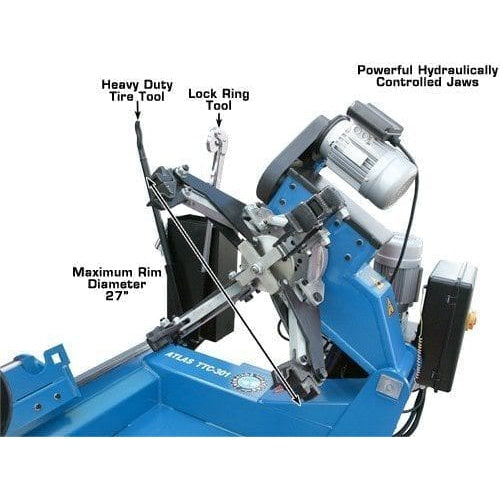

• Electric/hydraulic self-centering four-jaw chuck
• 5 rim locking positions

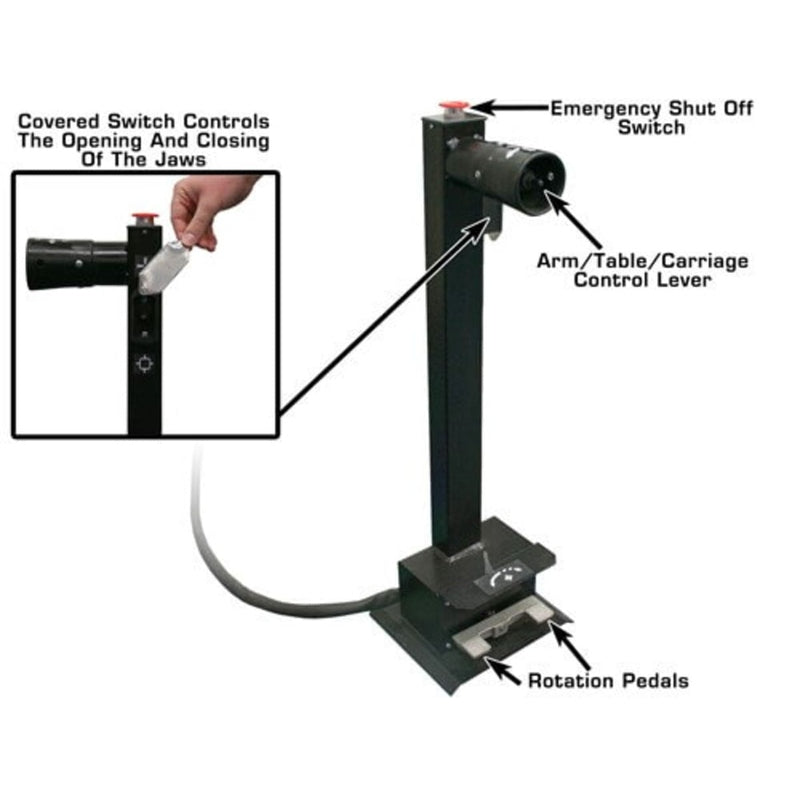

• Wired mobile control unit included

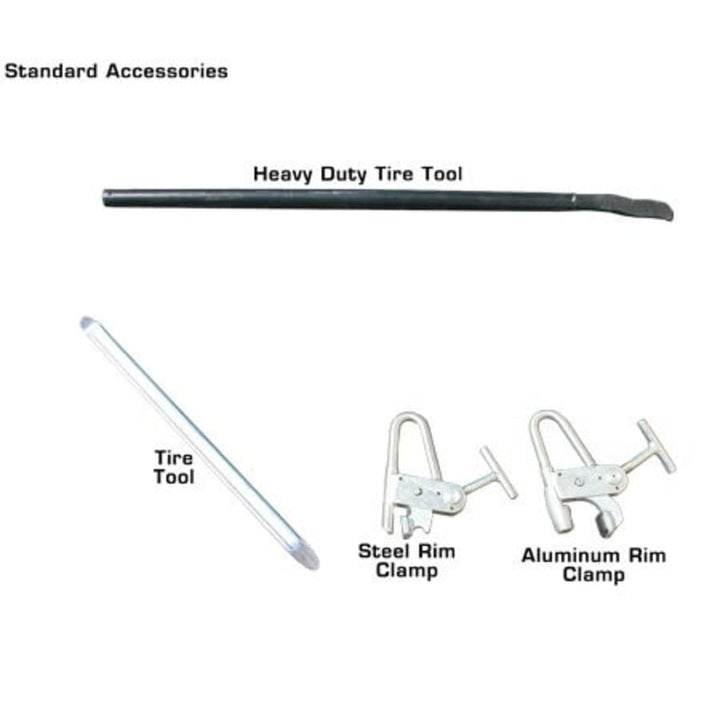

• Heavy-duty tire tool included

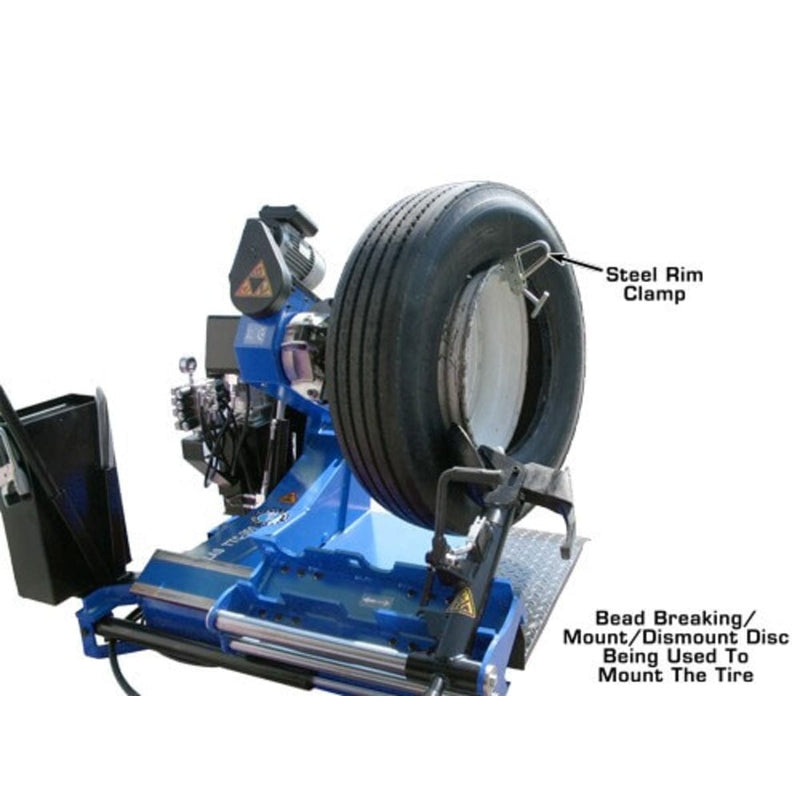

• Rim clamps for steel and alloy wheels included

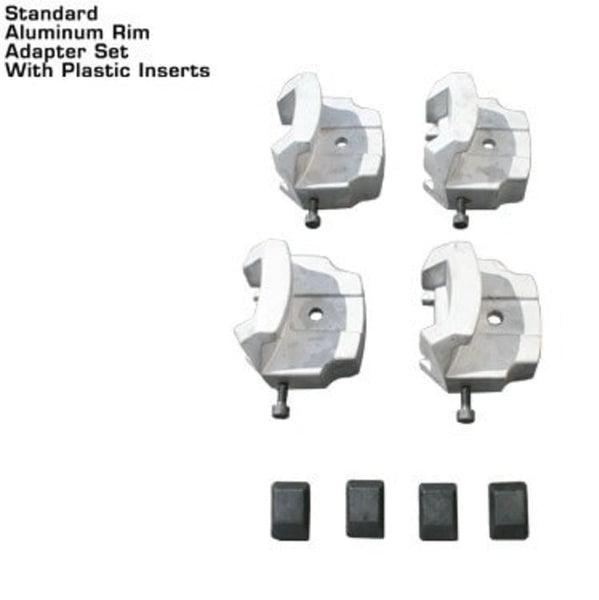

• Alloy rim adapter set with plastic inserts included
• 1-year parts-only warranty

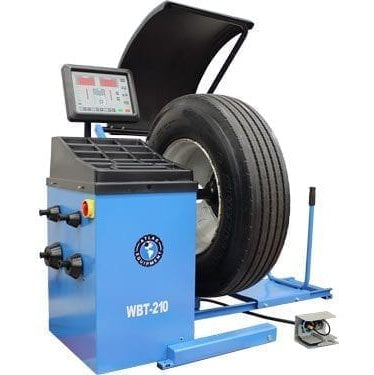

WBT-210 Wheel Balancer

• Computer-controlled heavy-duty spin balancer

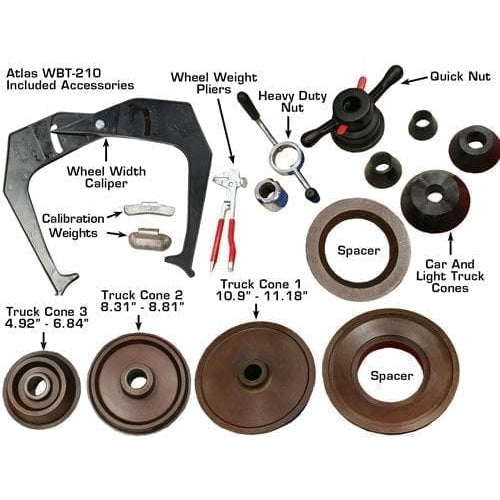

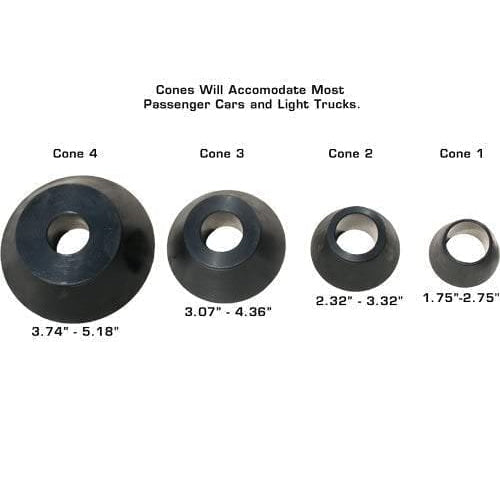

• Cone sets included for car and light truck tires

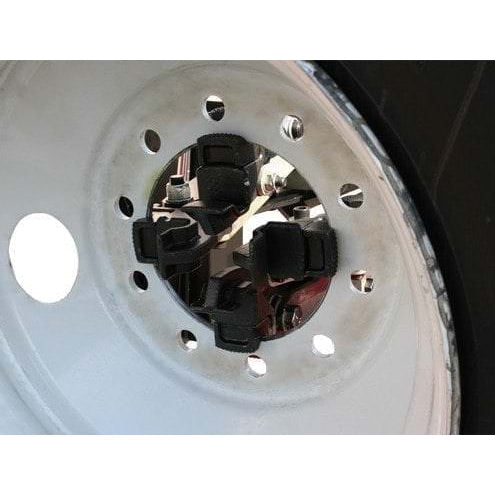

• Cone and spacer set included for truck, bus, and implement tires
• Plastic quick-release nut included
• Heavy-duty steel wing nut included

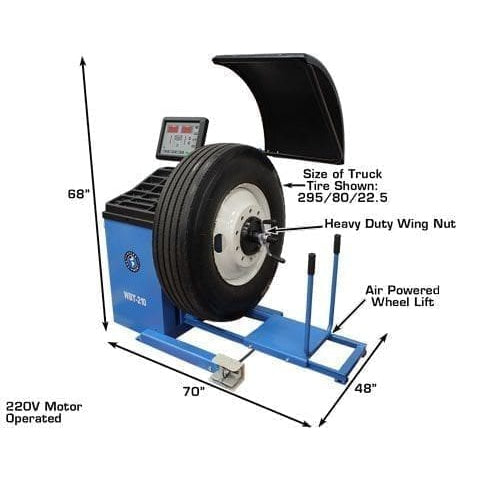

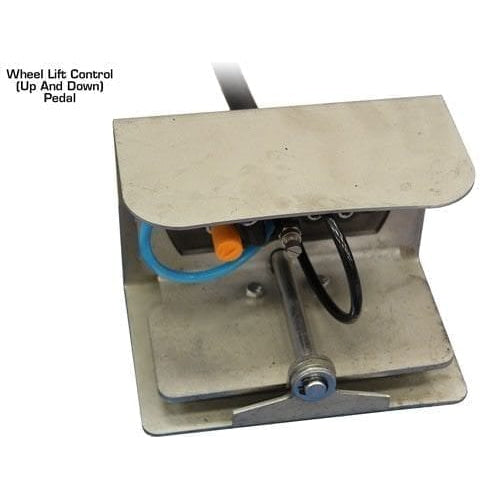

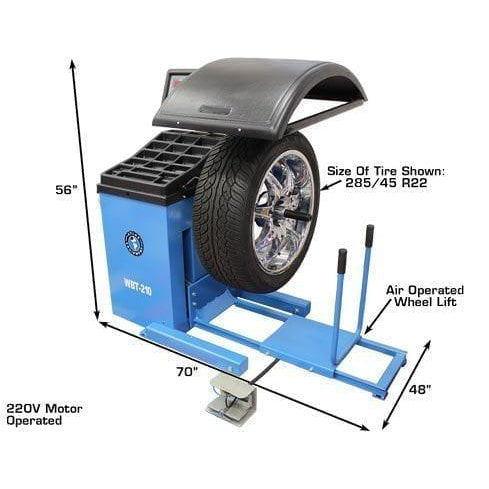

• Pneumatic wheel lift for effortless loading (external air supply required)
• Automatic start/stop triggered by hood position for streamlined operation

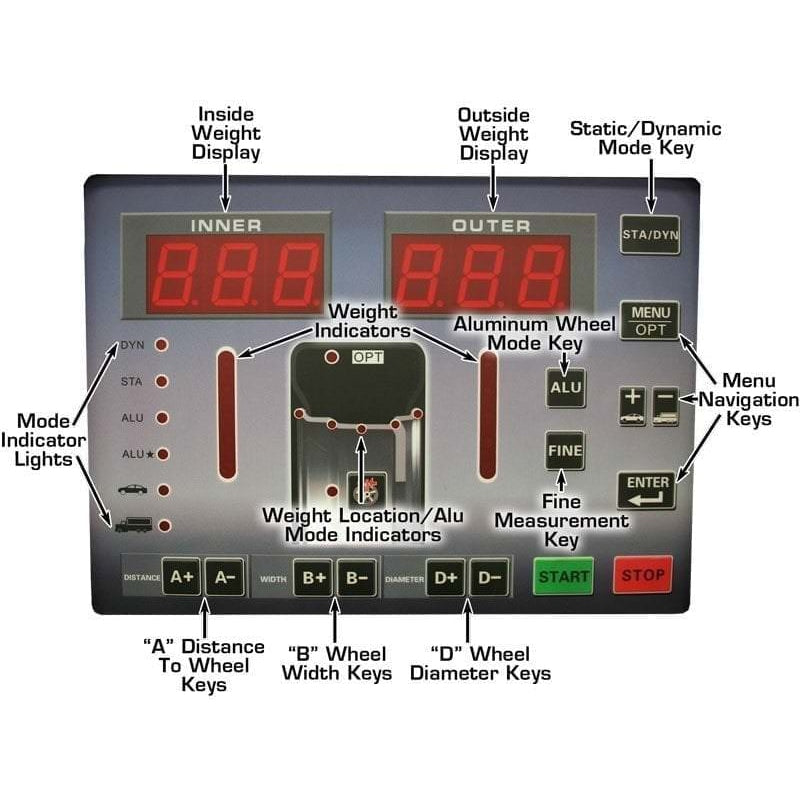

• Static and dynamic balancing modes
• Rapid optimization (OPT) function for fast, precise results
• Self-diagnosis and self-calibration for consistent, long-term accuracy
• Exceptional stability in reading unbalance between planes
• Selectable display units: grams or ounces, and mm or inches
• Wheel weight pliers included
• Wheel width calipers included
• Replacement parts and wear items kept in stock
• 1-year parts-only warranty

Specifications

Atlas® TTC301

Atlas® WBT-210

Documents

Atlas® TTC301 Truck Tire Changer Manual

Atlas® WBT-210 Manual
