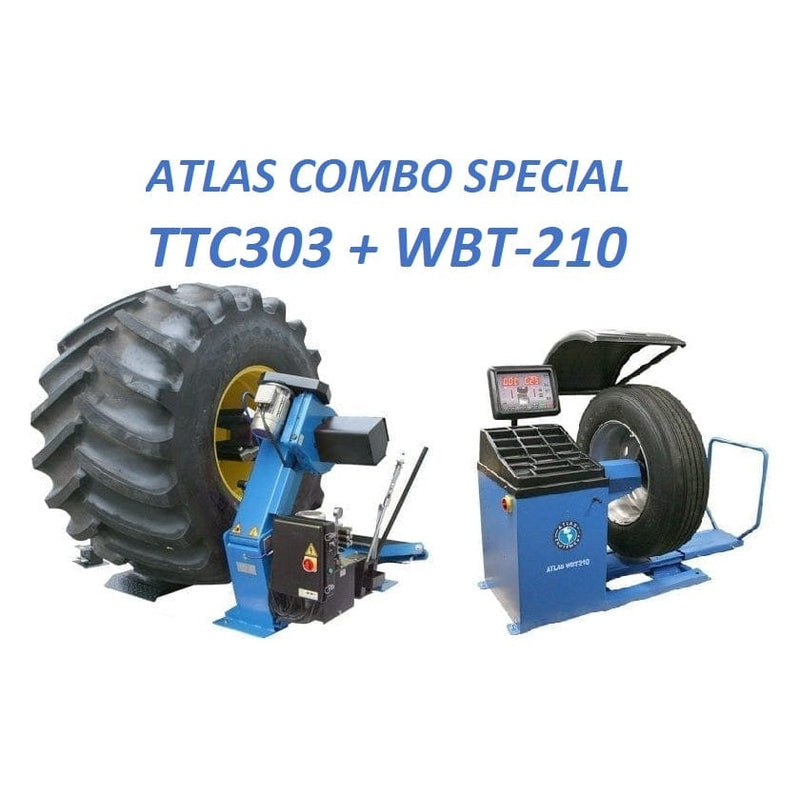

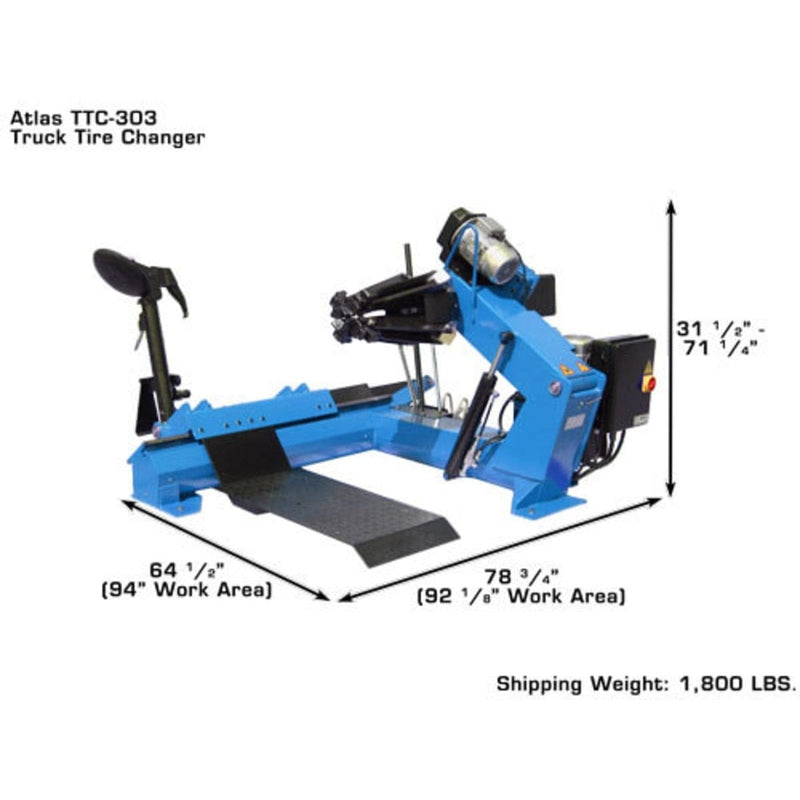

Atlas TTC303 Truck Tire Changer + WBT-210 Heavy Duty Wheel Balancer Combo

The Atlas TTC303 and WBT-210 is a matched super-duty truck tire changer and balancer combo built for operations that service the largest commercial, agricultural, and earthmover tires. The TTC303 handles rim sizes from 14" to 56" and tire diameters in excess of 90" with a maximum tire width of 42 inches — a size range that covers virtually every over-the-road, agricultural, and off-road tire in commercial service. Critically, it runs on 220V single-phase power, not 3-phase — the same capacity as the TTC306 in a power configuration that fits shops without 3-phase service. The WBT-210 balances the full range from 14-inch passenger car rims through 300-lb semi-truck tires on the same machine. Both carry a 1-year parts warranty. Delivery requires access for a 53-foot truck.

The TTC303's wired mobile control unit positions the operator at the tire during bead tool and chuck arm operation rather than at a fixed panel — the working arrangement that matters on a 90-inch agricultural tire where the operator needs full positional access throughout the cycle. The electric/hydraulic self-centering four-jaw chuck with 5 rim locking positions handles consistent clamping across the 14"–56" rim range, and included tooling covers the full size range without additional purchases: heavy-duty tire tool, rim clamps for steel and alloy wheels, and alloy rim adapter set with plastic inserts. The WBT-210's 40mm heavy-duty shaft handles standard car and truck cones, the included BUDD-style truck adapter set covers most commercial configurations, and a pneumatic wheel lift (external air supply required) manages loading on heavy assemblies.

This combo is built for commercial tire centers, agricultural equipment dealers, and large-format tire operations that need earthmover and agricultural tire capability on single-phase power, and for shops comparing the TTC303 against the TTC306 who need the same large-format capacity without a 3-phase electrical service upgrade.

Features

TTC303 Truck Tire Changer

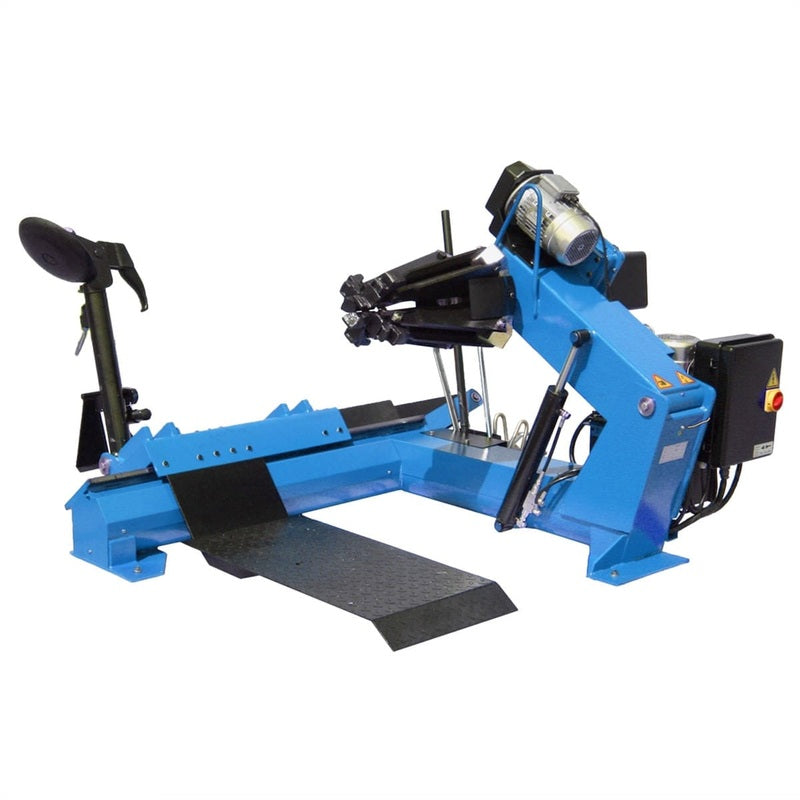

• Super-duty truck tire changer

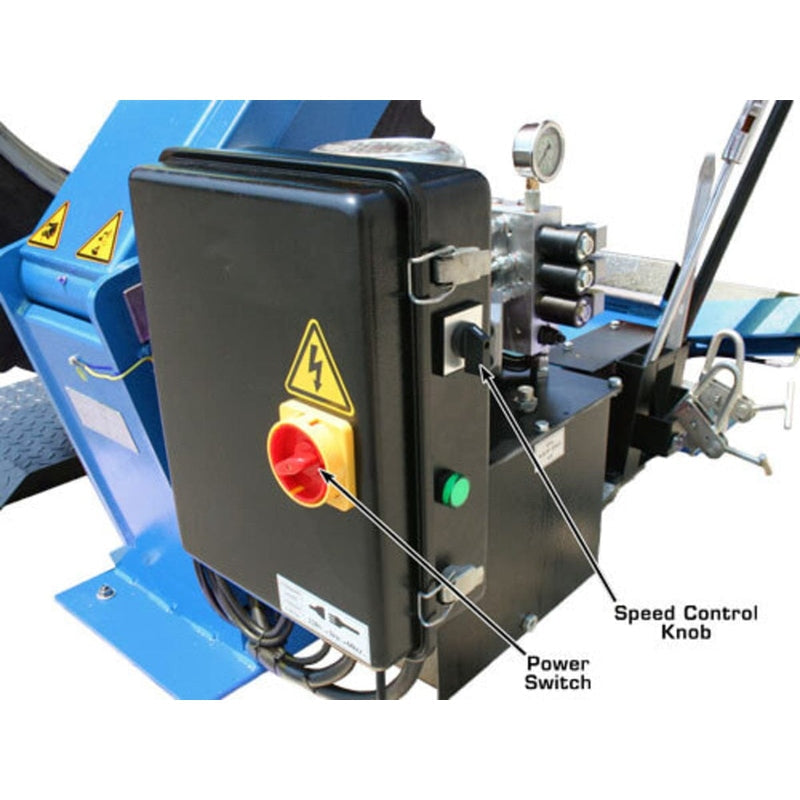

• 220V / 1-phase electric operation
• Handles rims from 14" to 56" and tire diameters in excess of 90"
• Accommodates tires with a maximum width of up to 42"

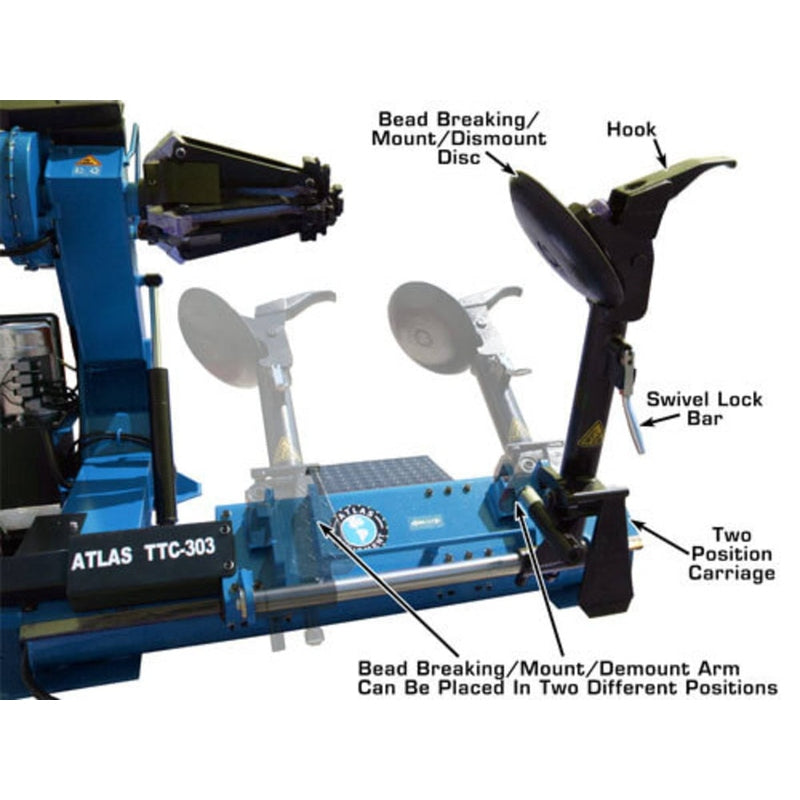

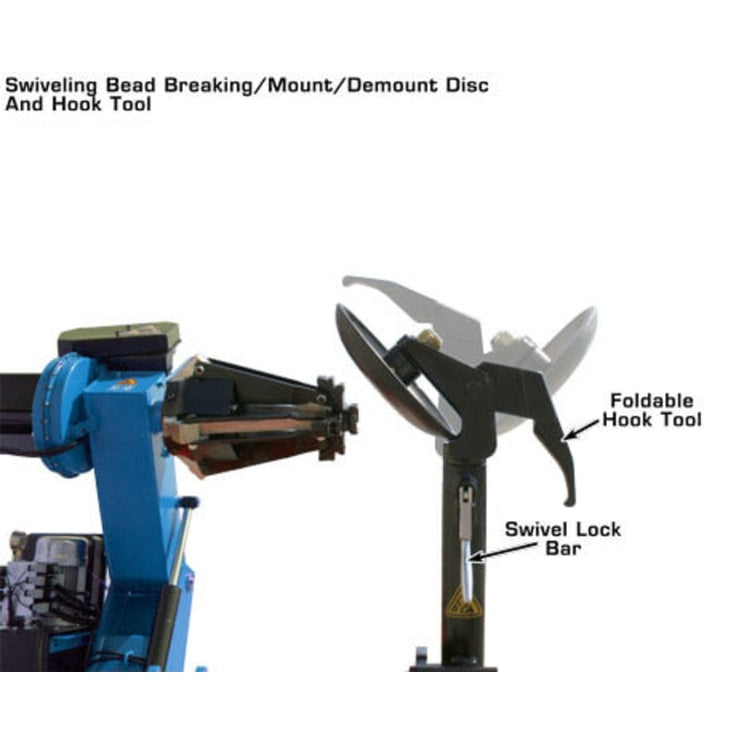

• Bead breaker and mount/demount head included

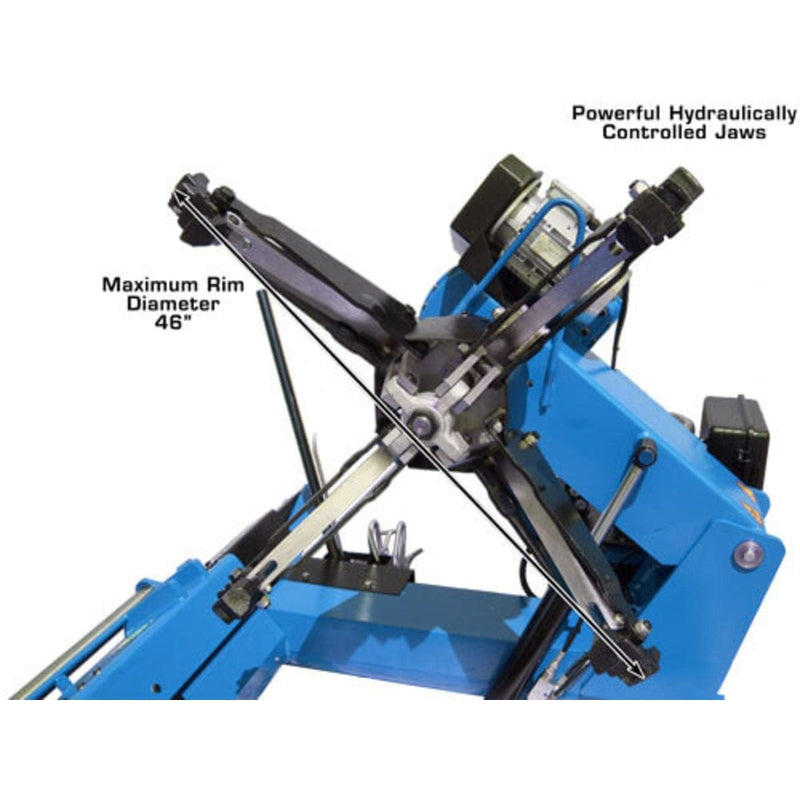

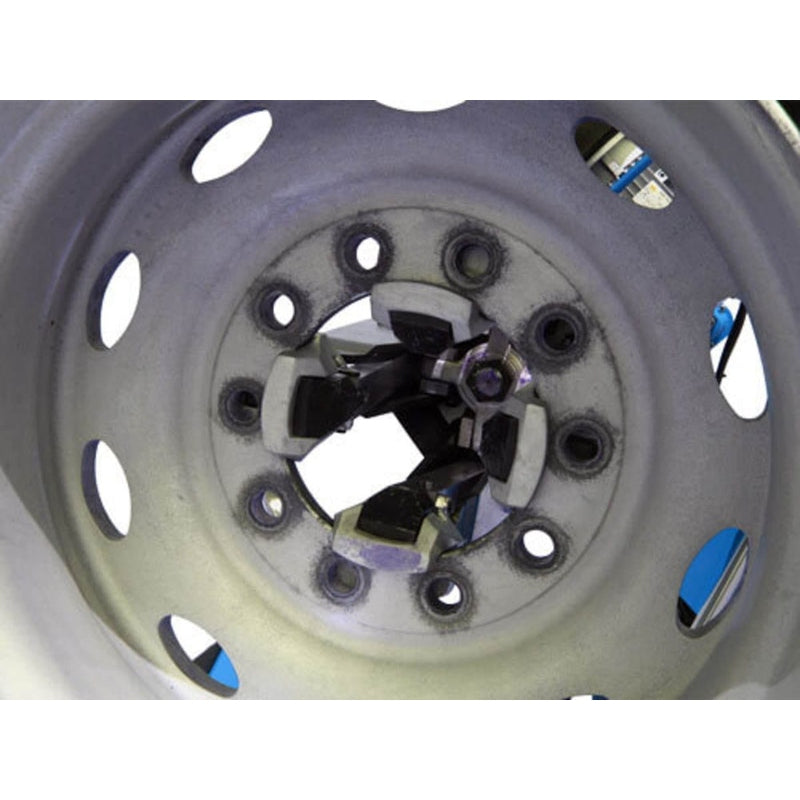

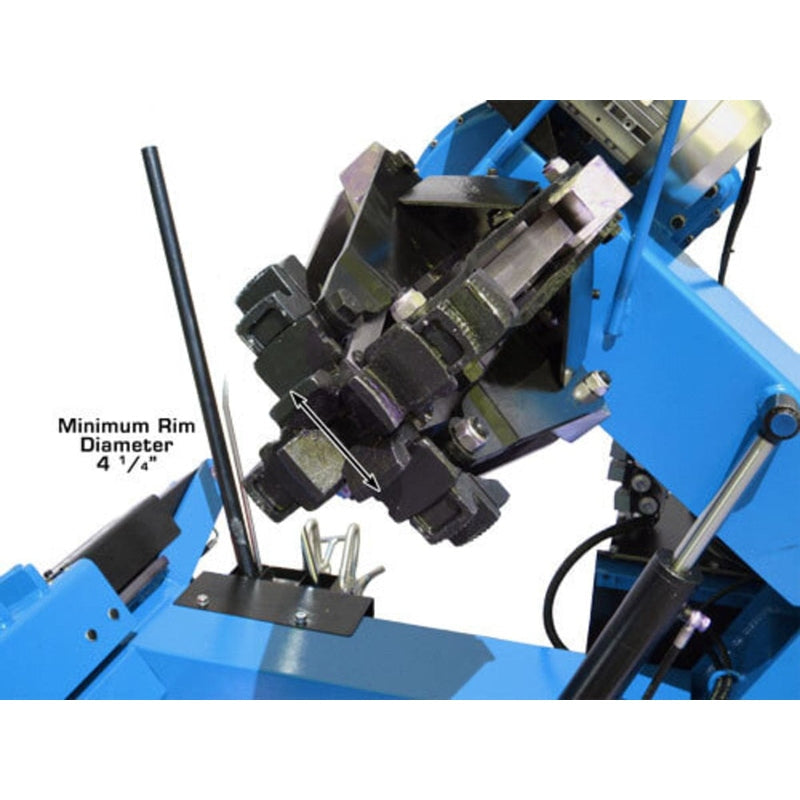

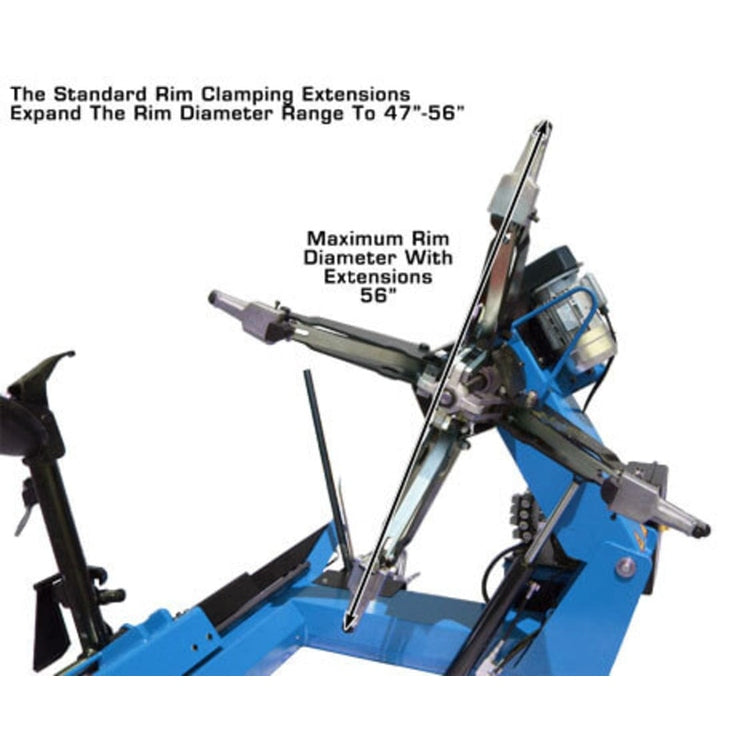

• Electric/hydraulic self-centering four-jaw chuck
• 5 rim locking positions

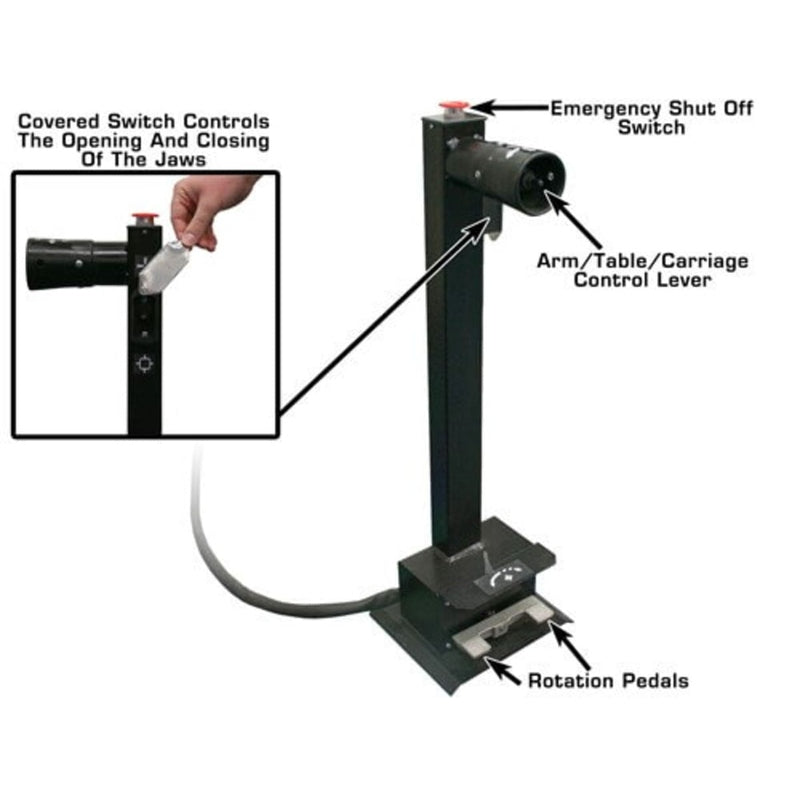

• Wired mobile control unit included

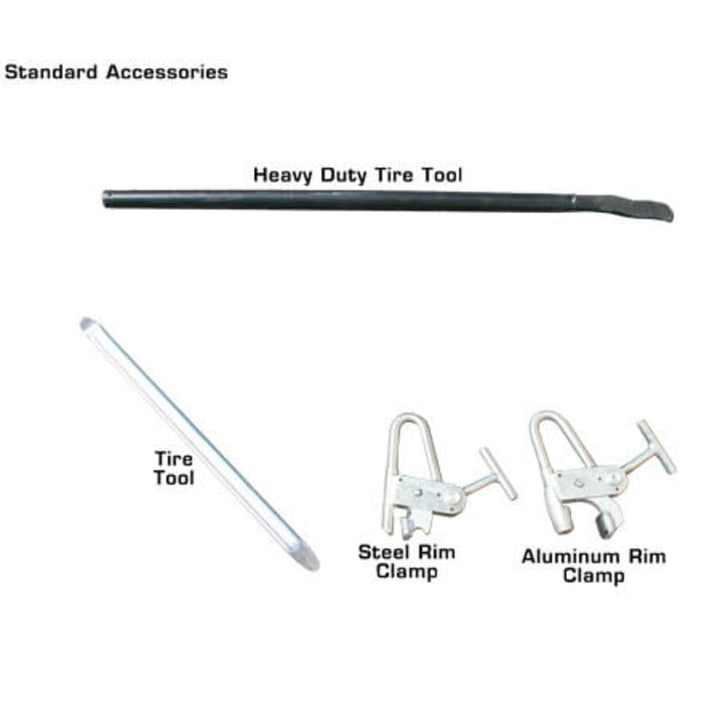

• Heavy-duty tire tool included

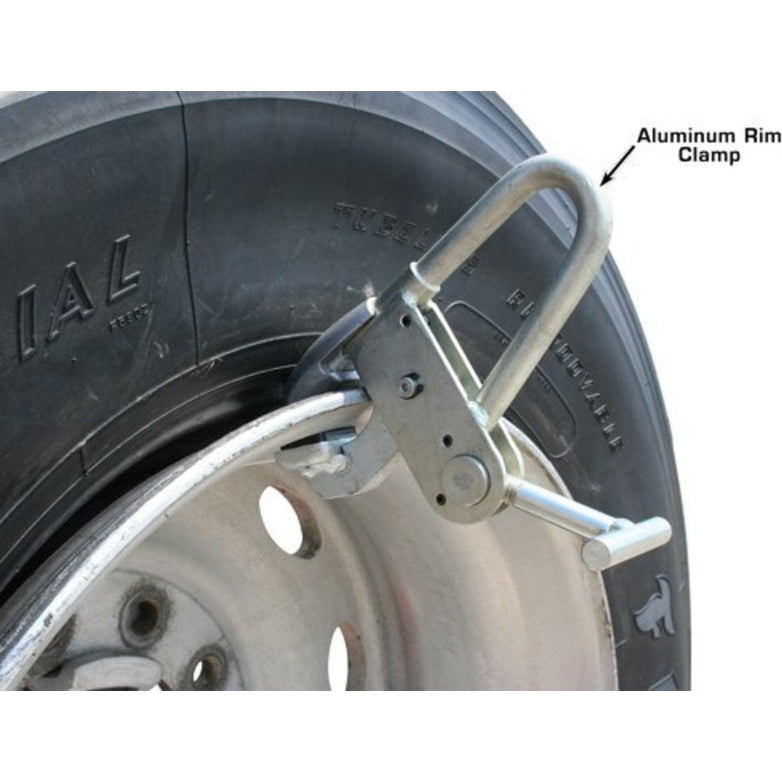

• Rim clamps for steel and alloy wheels included

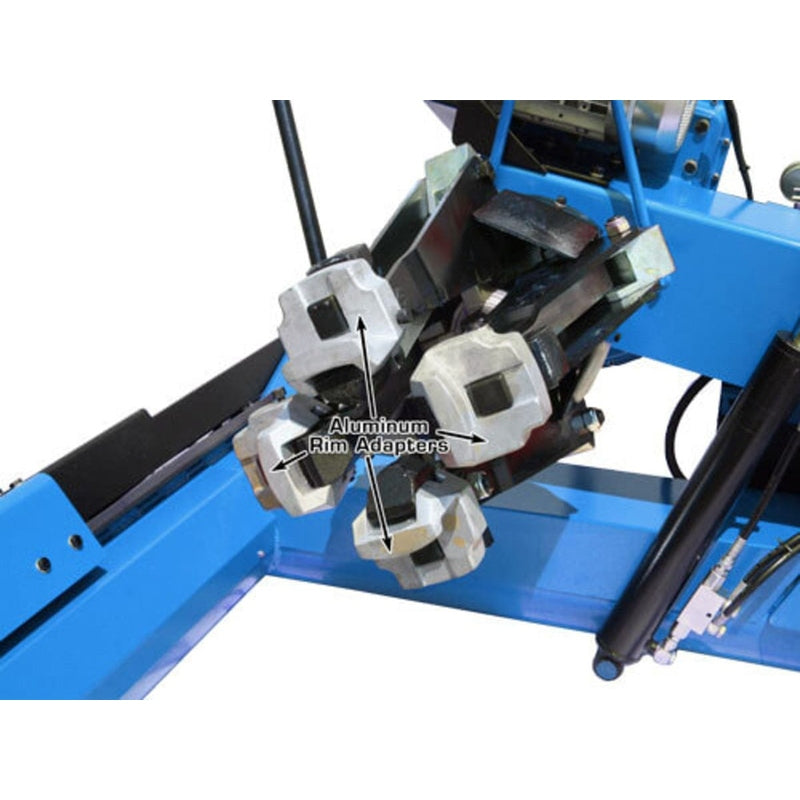

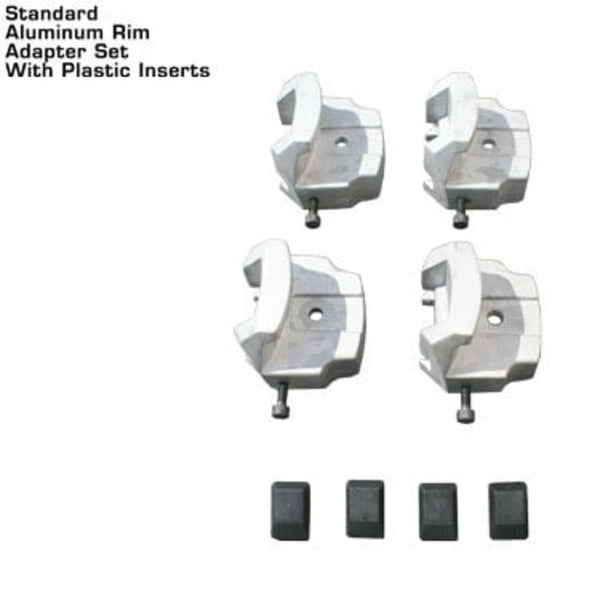

• Alloy rim adapter set with plastic inserts included
• 1-year parts-only warranty

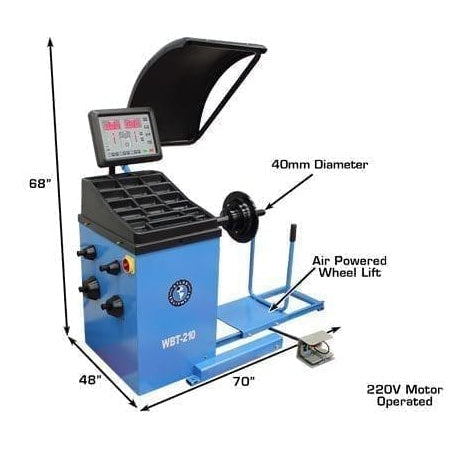

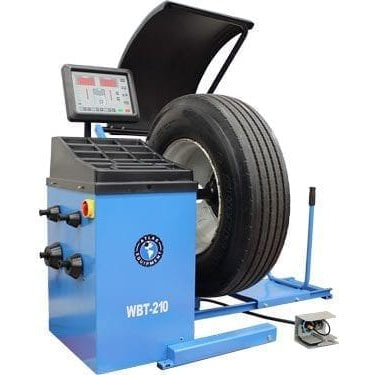

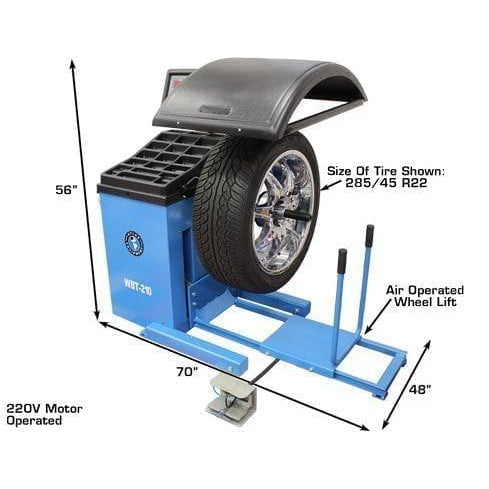

WBT-210 Wheel Balancer

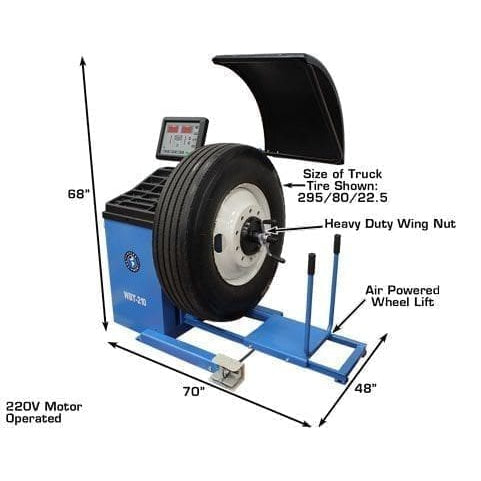

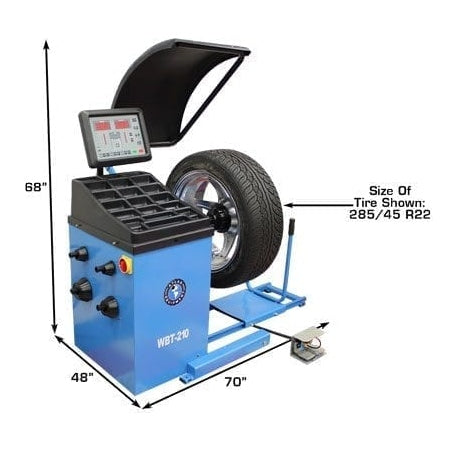

• Computer-controlled heavy-duty spin balancer

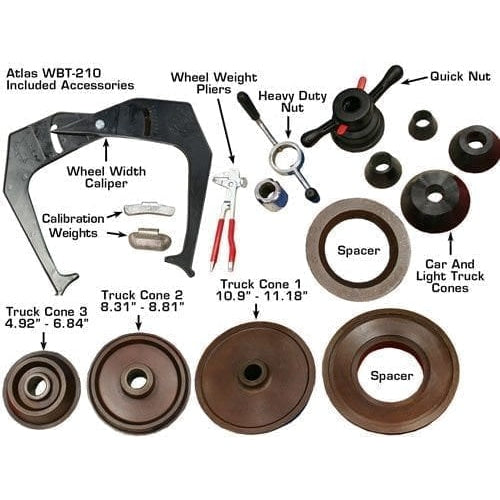

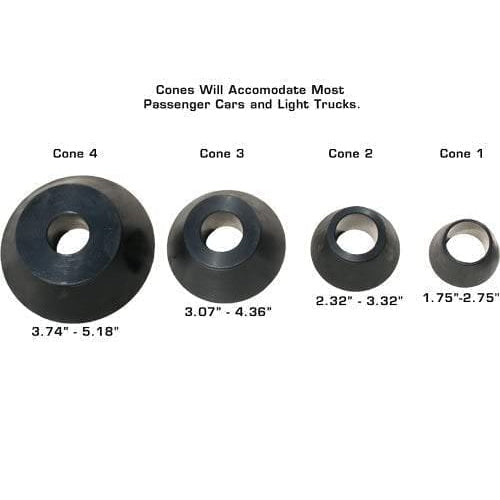

• Cone sets included for car and light truck tires
• Cone and spacer set included for truck, bus, and implement tires
• Plastic quick-release nut included
• Heavy-duty steel wing nut included

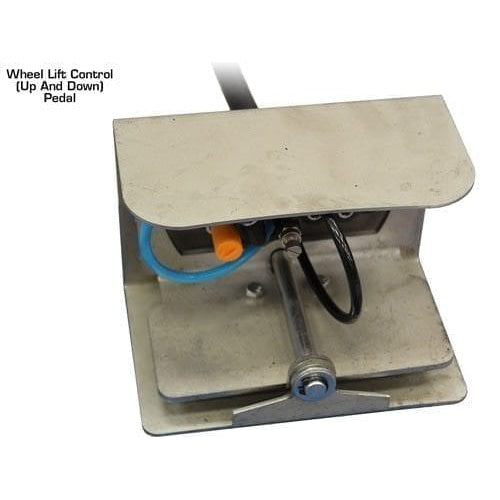

• Pneumatic wheel lift for effortless loading (external air supply required)
• Automatic start/stop triggered by hood position for streamlined operation
• Static and dynamic balancing modes
• Rapid optimization (OPT) function for fast, precise results
• Self-diagnosis and self-calibration for consistent, long-term accuracy
• Exceptional stability in reading unbalance between planes

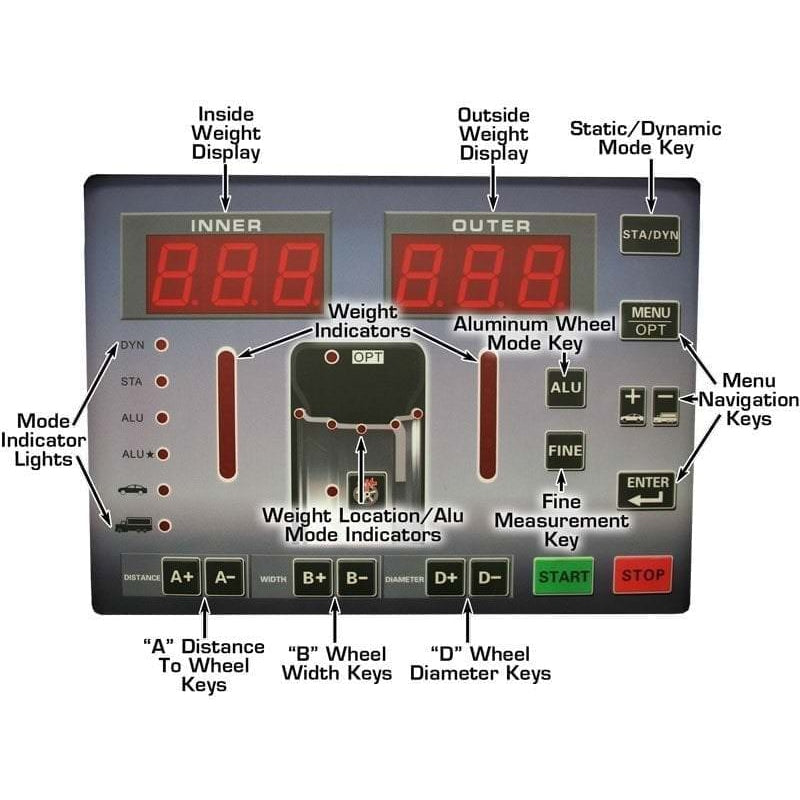

• Selectable display units: grams or ounces, and mm or inches
• Wheel weight pliers included
• Wheel width calipers included
• Replacement parts and wear items kept in stock
• 1-year parts-only warranty

Specifications

Atlas® TTC303

Atlas® WBT-210

Documents

Atlas® TTC303 Truck Tire Changer Manual

Atlas® WBT-210 Manual
