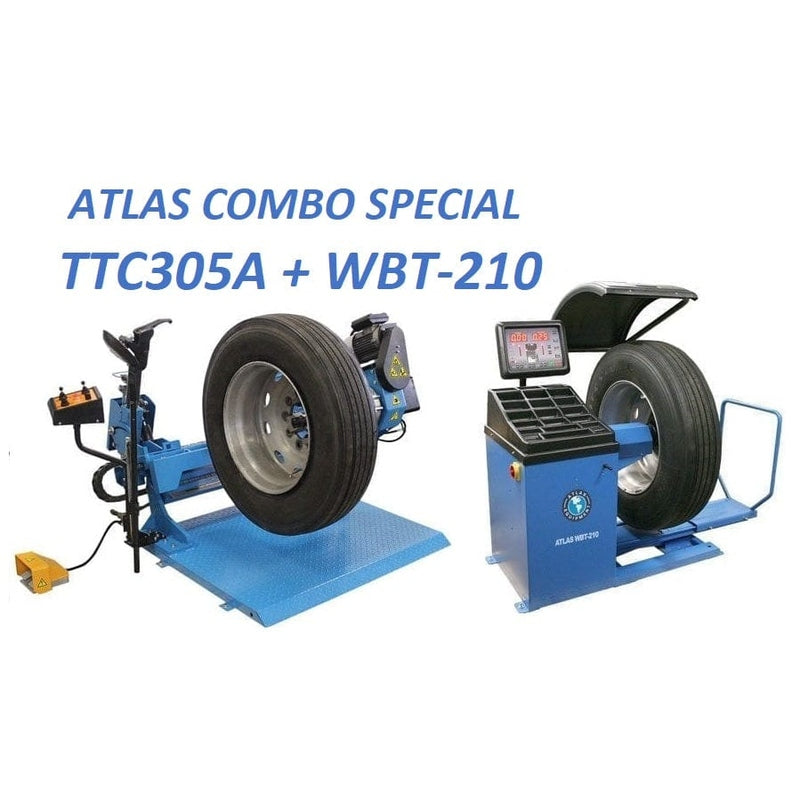

Atlas TTC305A Truck Tire Changer + WBT-210 Heavy Duty Wheel Balancer Combo

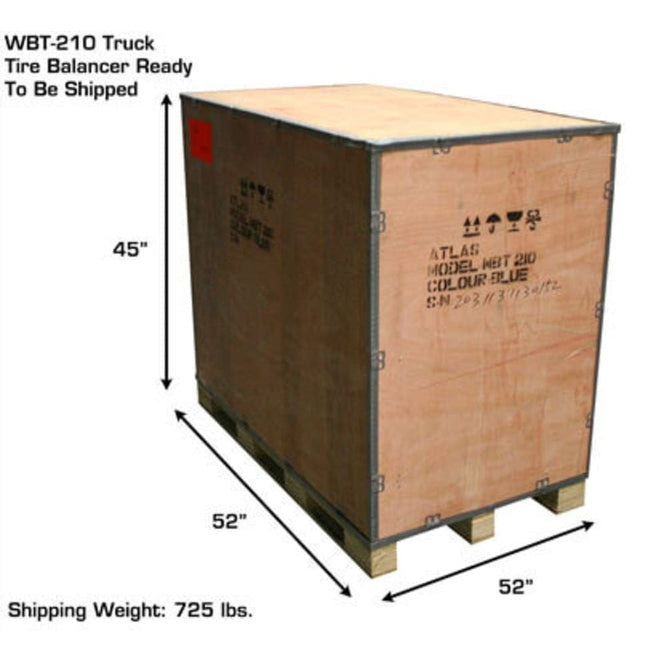

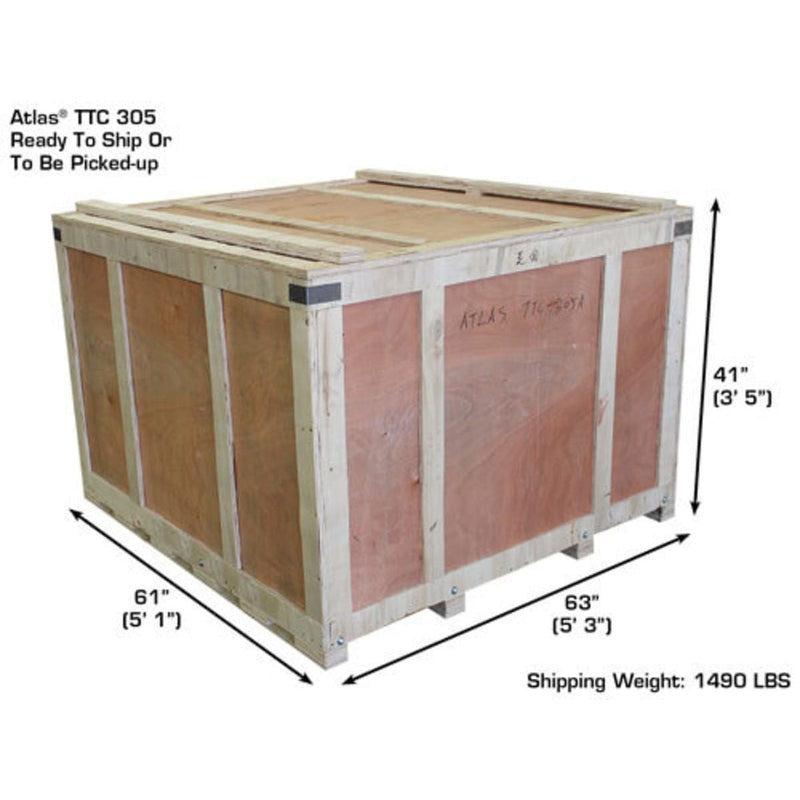

The Atlas TTC305A and WBT-210 is a matched fully automatic truck tire changer and balancer combo sized for commercial tire operations handling medium-duty trucks, buses, and larger light commercial vehicles. The TTC305A covers rim bore sizes from 8" to 26" and tire diameters in excess of 55" with a maximum tire width of 30.5 inches — the range that covers standard over-the-road commercial and medium-duty truck tires without stepping up to the larger TTC306's agricultural and earthmover capacity. The WBT-210 balances the full range from 14-inch passenger car rims through 300-lb semi-truck tires, covering the balancing side of the same vehicle range. Both machines carry a 1-year parts warranty. Delivery requires access for a 53-foot truck.

The TTC305A's automatic movement and positioning of the bead tool, carriage, and chuck arm runs from a mounted control unit with additional foot pedal controls, keeping the operator's hands on the tire during the critical bead and sidewall phases. Interchangeable mount/demount and roller heads adapt the tooling to different tire types and profiles without a separate machine, and the electric/hydraulic self-centering four-jaw chuck with 5 rim locking positions clamps consistently across the 8"–26" rim range. Included tooling covers the full size range: heavy-duty tire tool, rim clamps for steel and alloy wheels, and alloy rim adapter set with plastic inserts. On the balancer, the WBT-210's 40mm heavy-duty shaft handles standard car and truck cones, the included BUDD-style truck adapter set covers most commercial wheel configurations, and a pneumatic wheel lift (external air supply required) manages loading on heavy assemblies. Self-diagnosis with error code display keeps both machines serviceable in-shop.

This combo is built for commercial tire centers and fleet service operations that handle medium-duty truck, bus, and larger light commercial tires at volume, and for shops that need full-range commercial capability — changer and balancer matched on the same size range — without the 3-phase power requirement and larger footprint of the TTC306.

Features

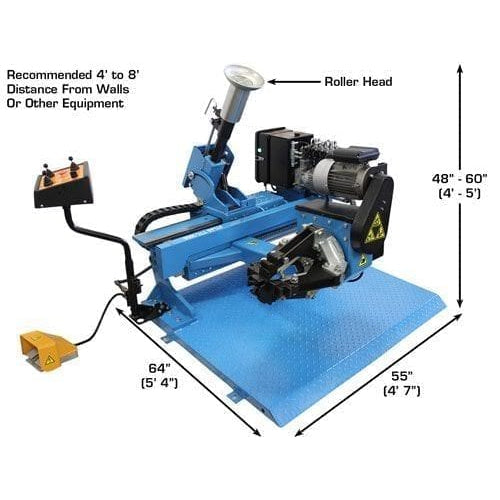

TTC305A Truck Tire Changer

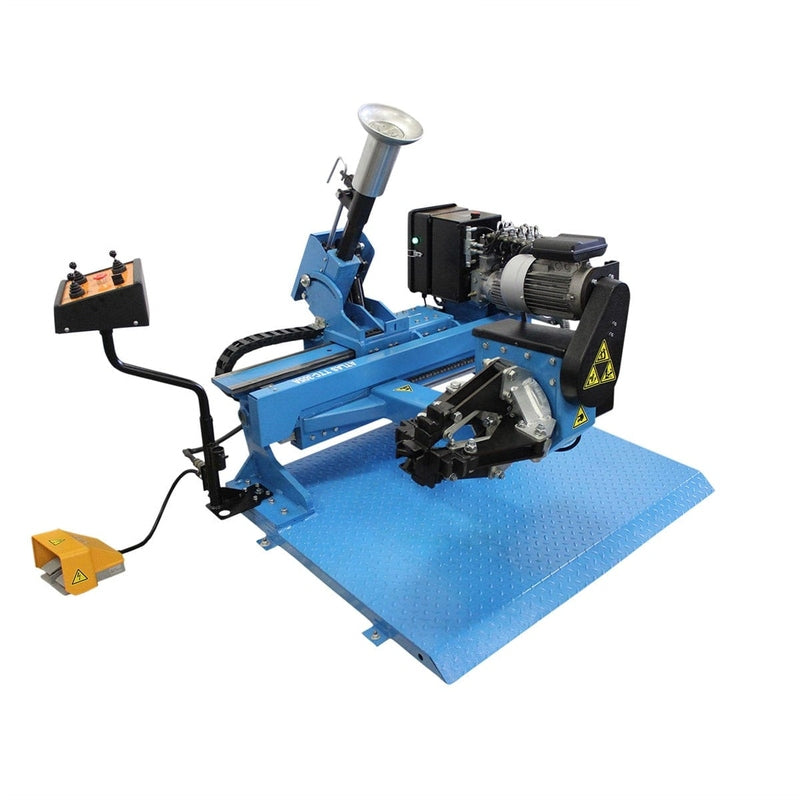

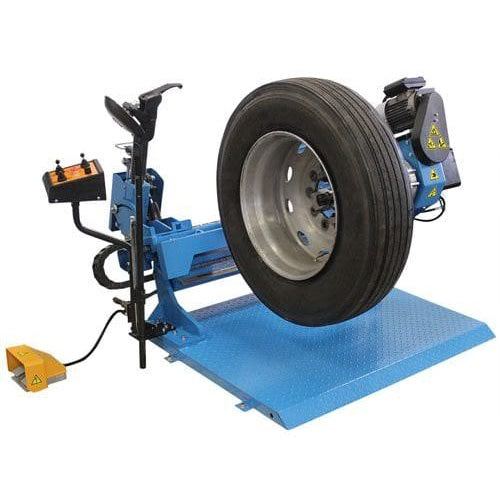

• Fully automatic truck tire changer

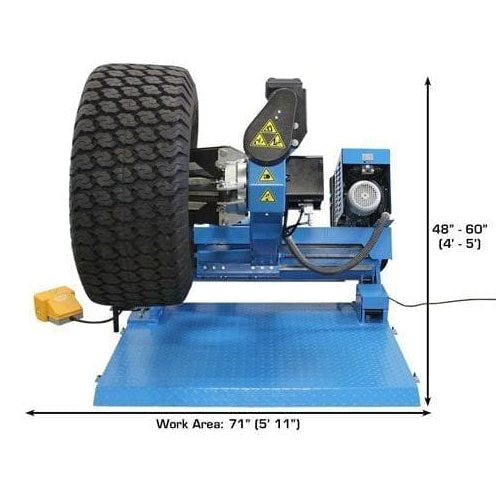

• Handles rims from 8" to 26" and tire diameters in excess of 55"
• Accommodates tires with a maximum width of up to 30½"

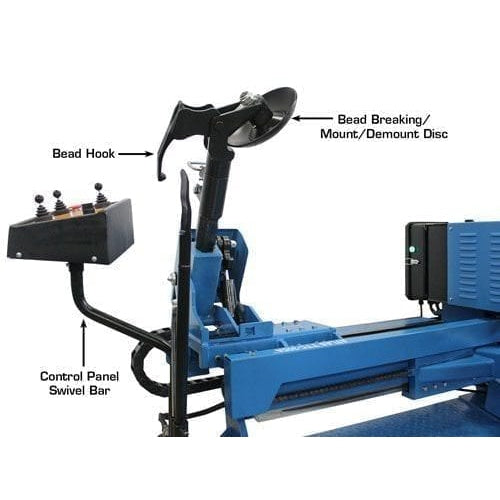

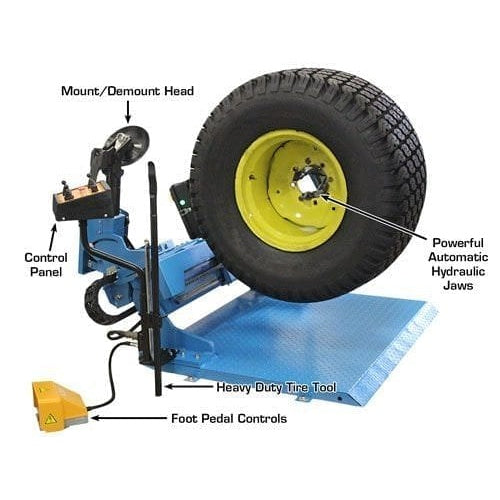

• Automatic movement and positioning of bead tool, carriage, and chuck arm

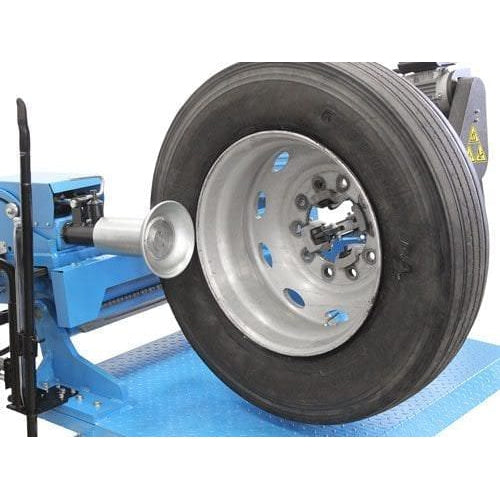

• Bead breaker included

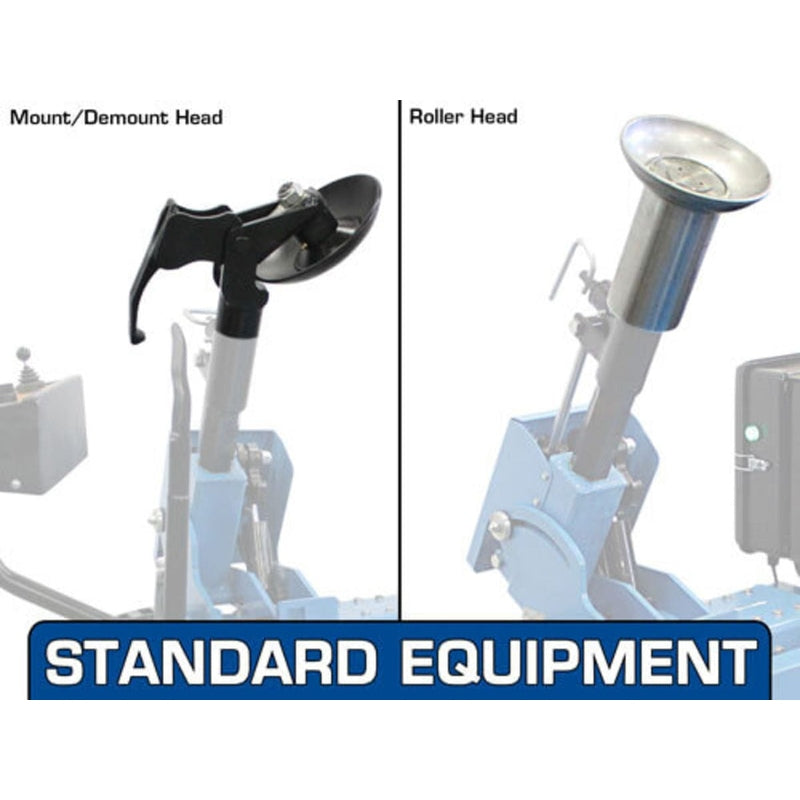

• Interchangeable mount/demount and roller heads for versatile tire service

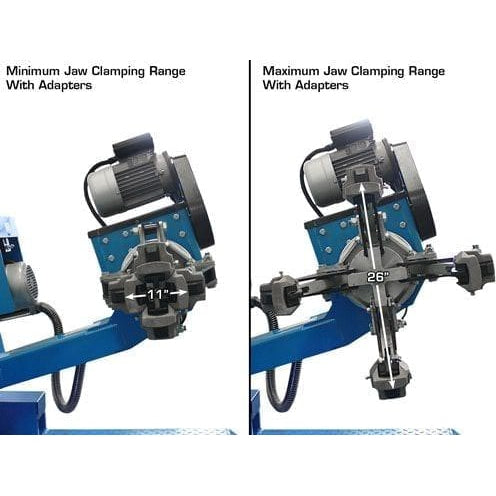

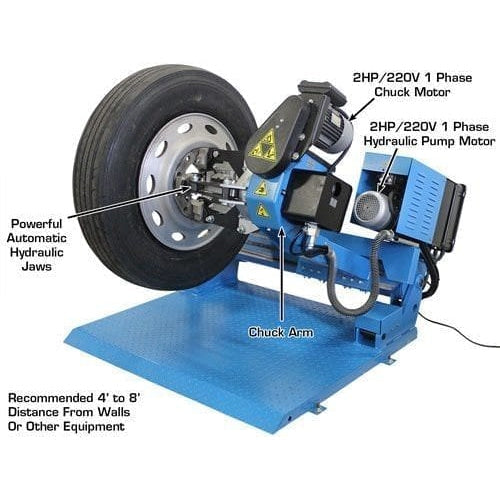

• Electric/hydraulic self-centering four-jaw chuck
• 5 rim locking positions

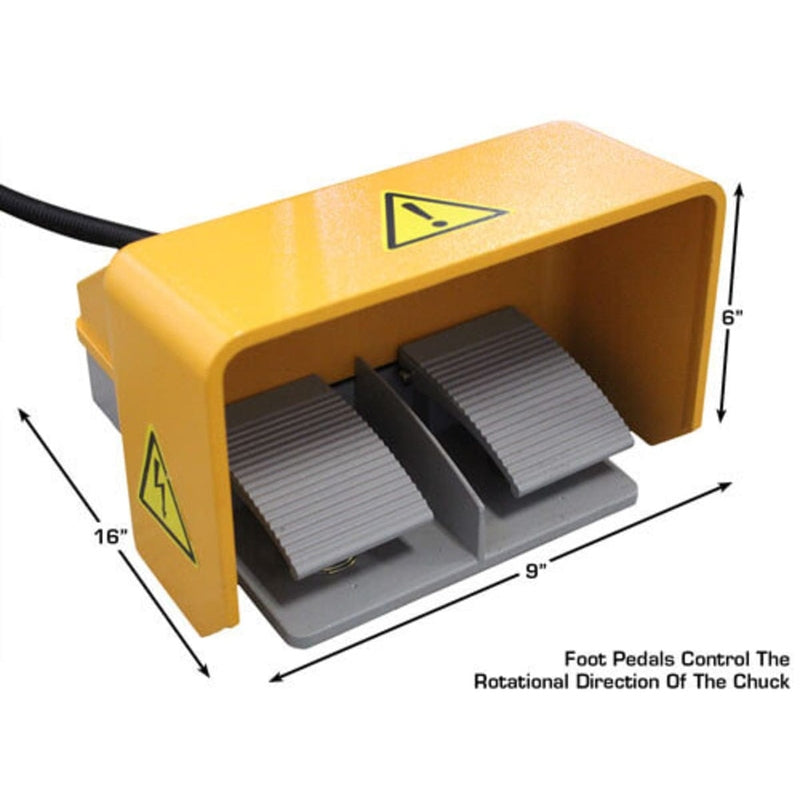

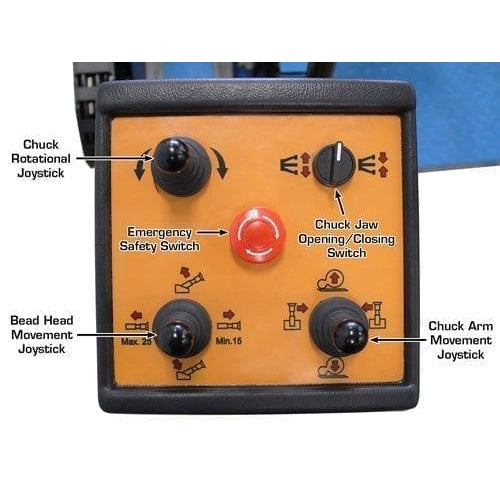

• Mounted control unit with additional foot pedal controls

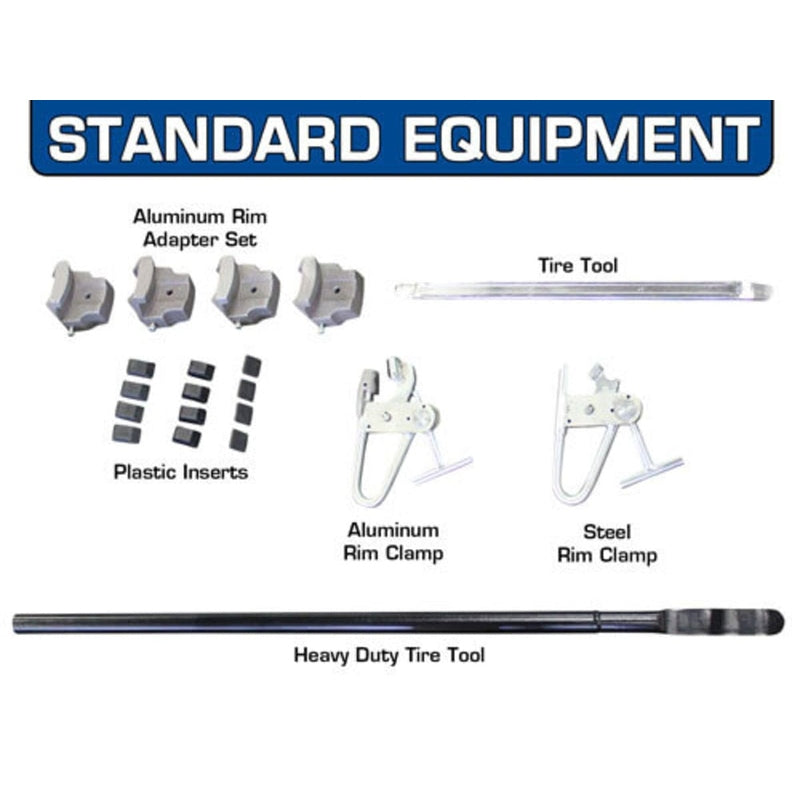

• Heavy-duty tire tool included
• Rim clamps for steel and alloy wheels included
• Alloy rim adapter set with plastic inserts included
• 1-year parts-only warranty

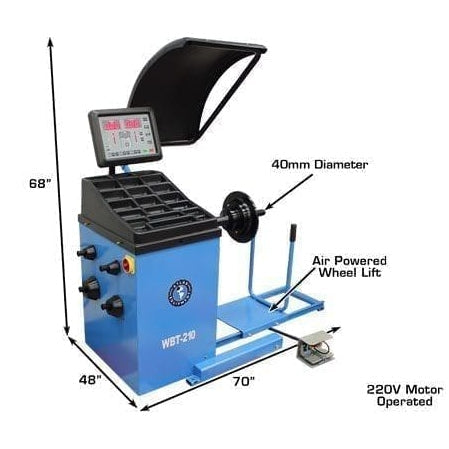

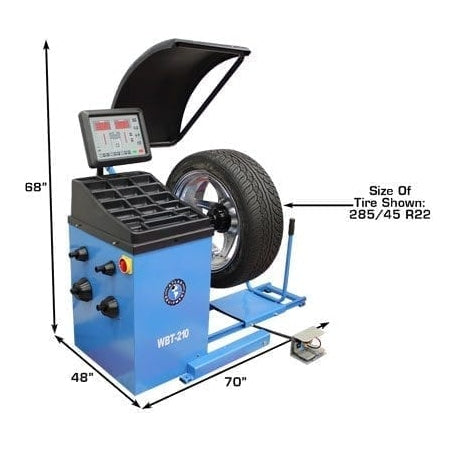

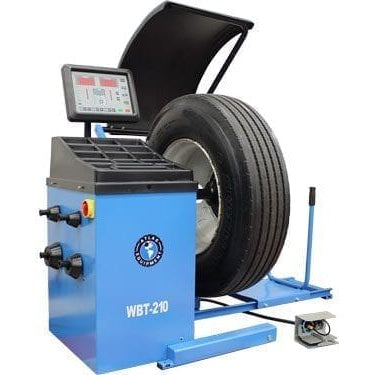

WBT-210 Wheel Balancer

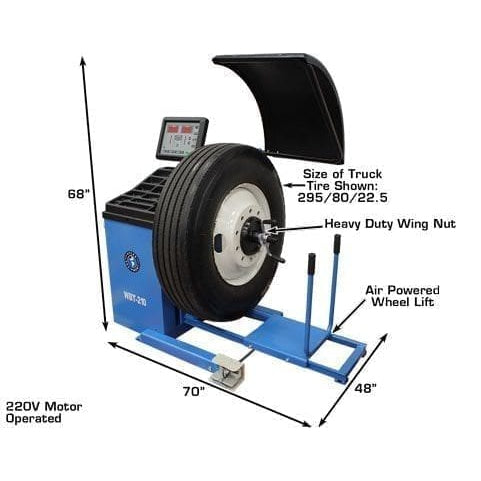

• Computer-controlled heavy-duty spin balancer

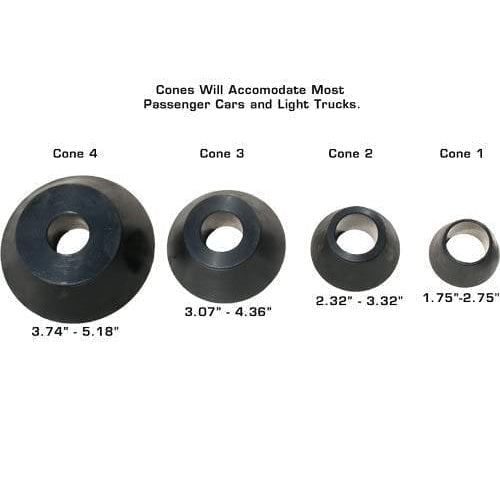

• Cone sets included for car and light truck tires

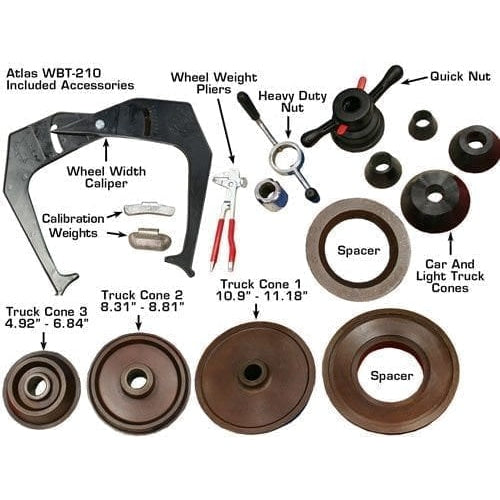

• Cone and spacer set included for truck, bus, and implement tires
• Plastic quick-release nut included
• Heavy-duty steel wing nut included

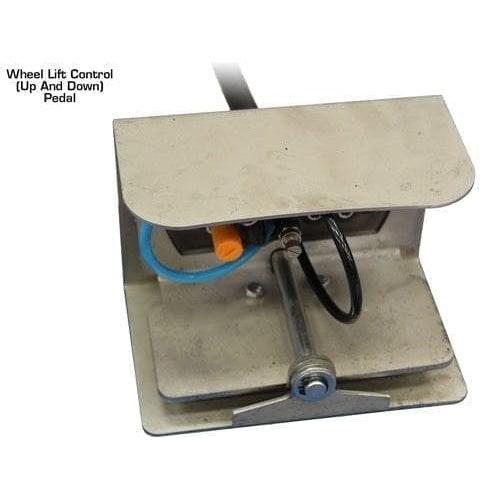

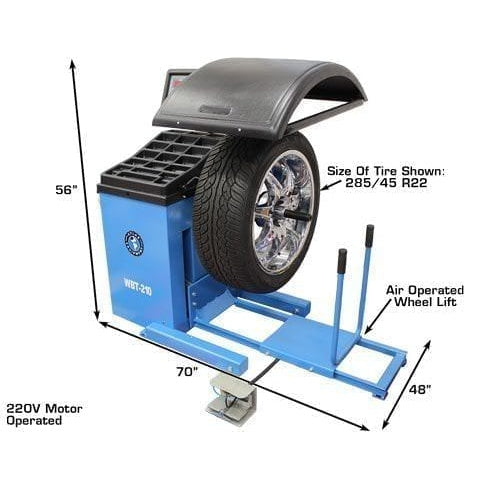

• Pneumatic wheel lift for effortless loading (external air supply required)
• Automatic start/stop triggered by hood position for streamlined operation

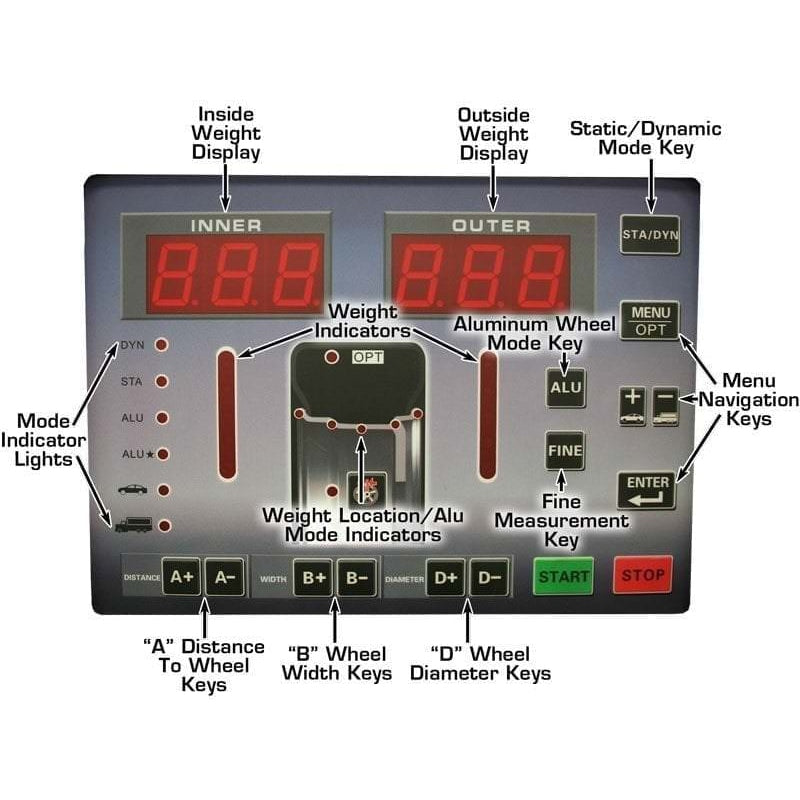

• Static and dynamic balancing modes
• Rapid optimization (OPT) function for fast, precise results
• Self-diagnosis and self-calibration for consistent, long-term accuracy
• Exceptional stability in reading unbalance between planes
• Selectable display units: grams or ounces, and mm or inches
• Wheel weight pliers included
• Wheel width calipers included
• Replacement parts and wear items kept in stock
• 1-year parts-only warranty

Specifications

Atlas® TTC305A

Atlas® WBT-210

Documents

Atlas® TTC305A Truck Tire Changer Manual

Atlas® WBT-210 Manual
