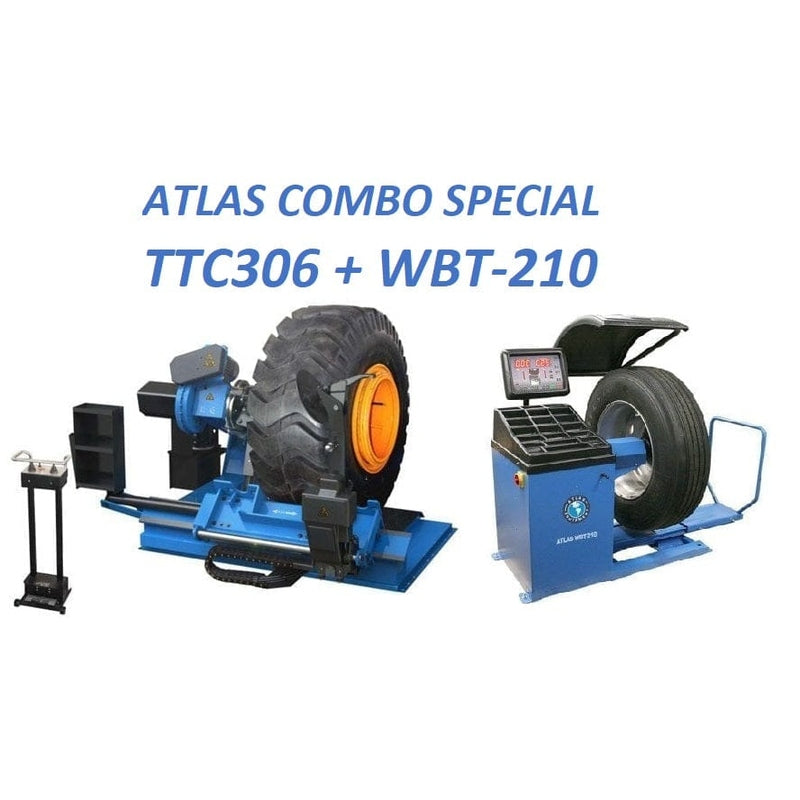

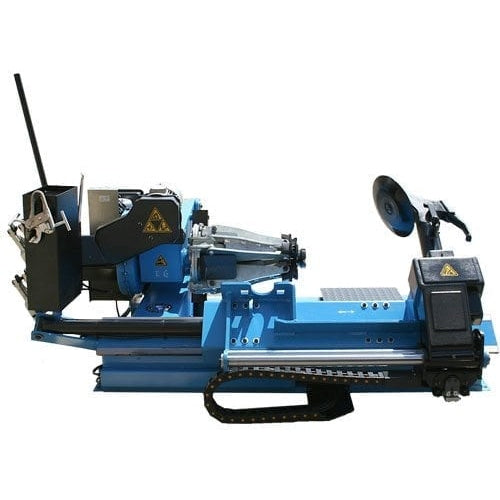

Atlas TTC306 Truck Tire Changer + WBT-210 Heavy Duty Wheel Balancer Combo

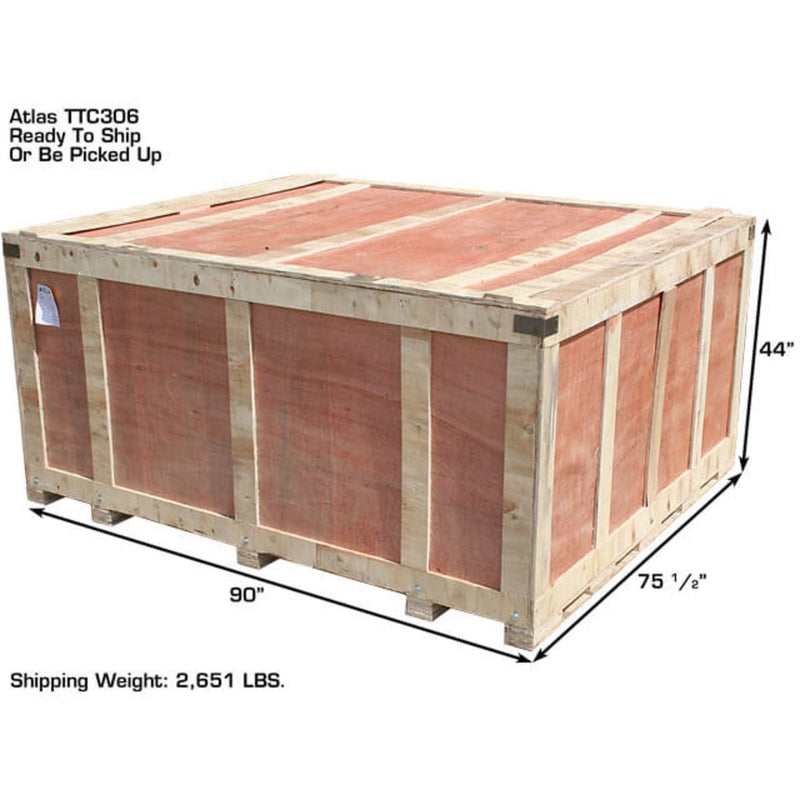

The Atlas TTC306 and WBT-210 is a matched heavy-duty truck tire changer and balancer combo built for operations that service large agricultural, earthmover, and over-the-road commercial tires. The TTC306 handles rim sizes from 14" to 56" and tire diameters in excess of 97" with a maximum tire width of 53 inches — the capacity range that covers everything from light commercial through the largest agricultural and construction equipment tires on a single machine. It runs on 220V 3-phase power. The WBT-210 balances the full range from 14-inch passenger car rims through 300-lb semi-truck tires, covering the same breadth on the balancing side. Delivery requires access for a 53-foot truck. Both machines carry a 1-year parts warranty.

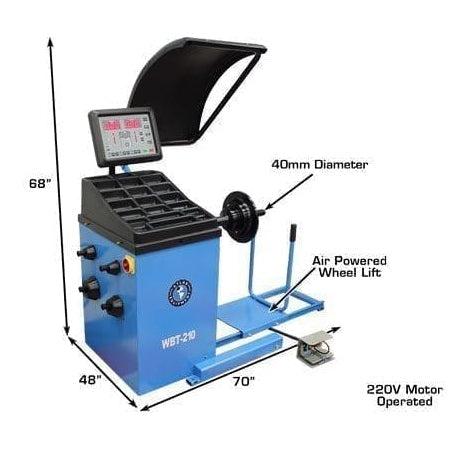

The TTC306's wired mobile control unit (wireless optional) lets the operator position the bead breaker disc, carriage, and chuck arm automatically from anywhere around the tire — critical on a 97-inch earthmover tire where the operator needs to be at the tire, not at a fixed panel. The 2-speed hydraulic chuck with 5 rim locking positions and electric/hydraulic self-centering four-jaw chuck handle the clamping sequence consistently across the wide rim range, and included rim clamps for steel and alloy wheels, alloy rim adapter set with plastic inserts, clamping extensions, and heavy-duty tire tool cover the tooling needed for the full size range without additional purchases. The WBT-210's 40mm heavy-duty shaft accommodates standard car and truck cones, and the included BUDD-style truck adapter set handles most commercial wheel configurations. A pneumatic wheel lift (external air supply required) manages loading on heavy assemblies, and self-diagnosis with error code display keeps both machines serviceable in-shop.

This combo is built for agricultural equipment dealers, earthmover service operations, and commercial tire centers that service the full spectrum from passenger tires through the largest off-road and over-the-road commercial tires, and for trucking companies and fleet operations that need a single changer-and-balancer setup capable of handling every wheel in the fleet.

Features

TTC306 Truck Tire Changer

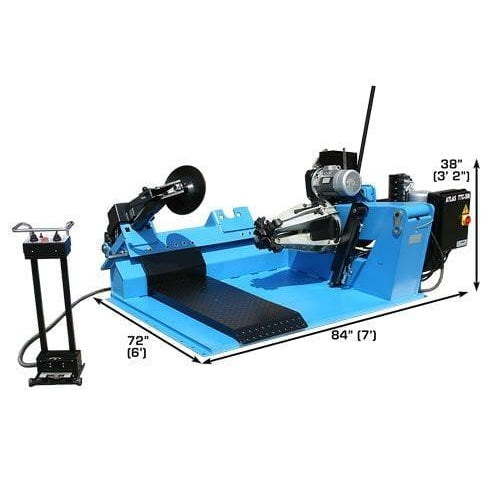

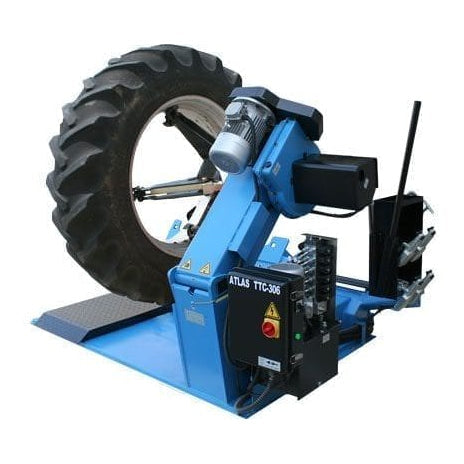

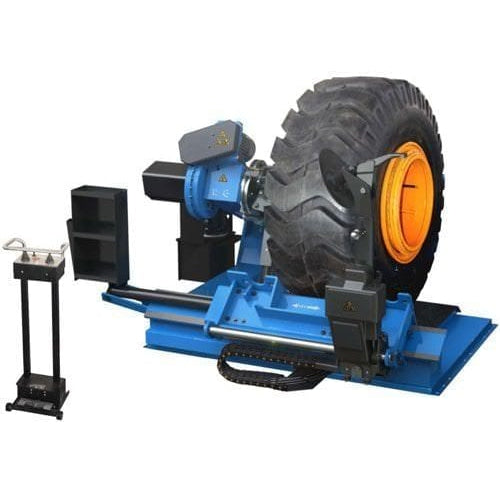

• Deluxe automated truck tire changer

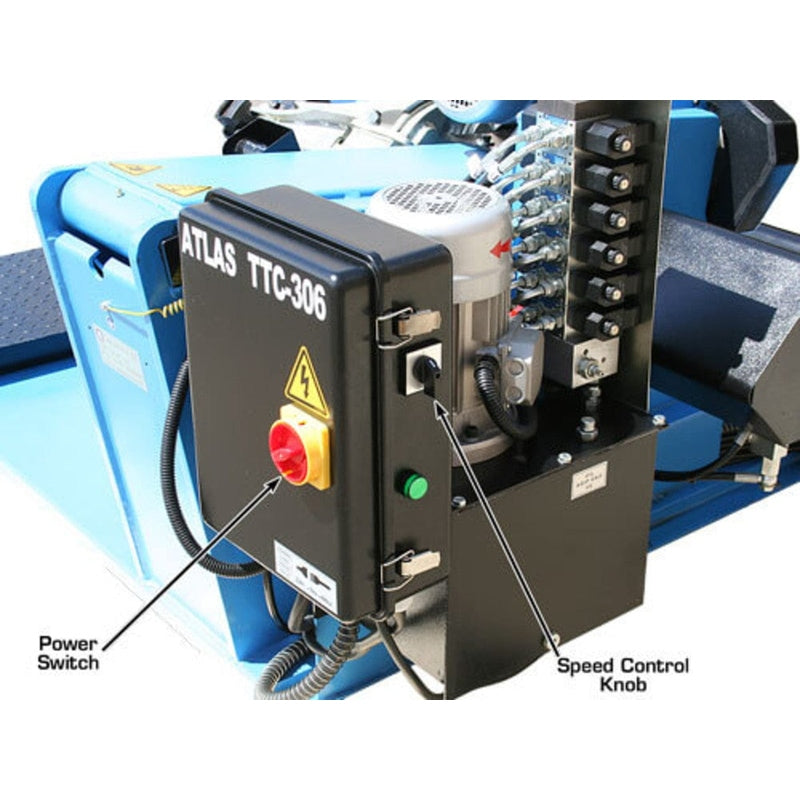

• 220V / 3-phase electric operation
• 2-speed hydraulic chuck with 5 rim locking positions
• Automatic movement and positioning of bead tool, carriage, and chuck arm

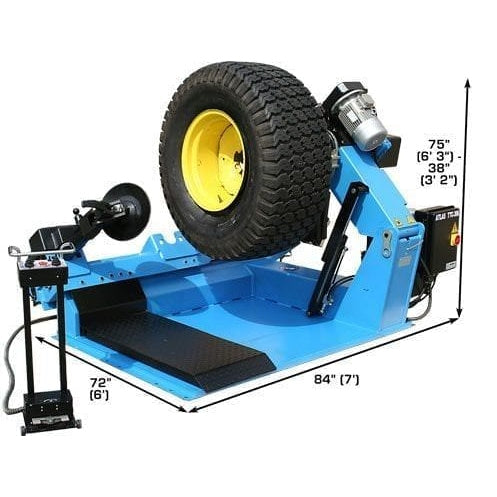

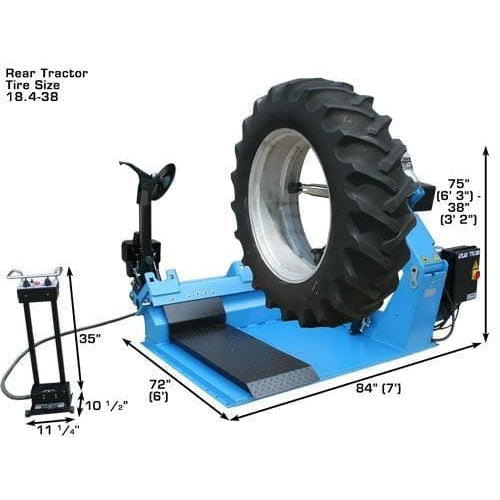

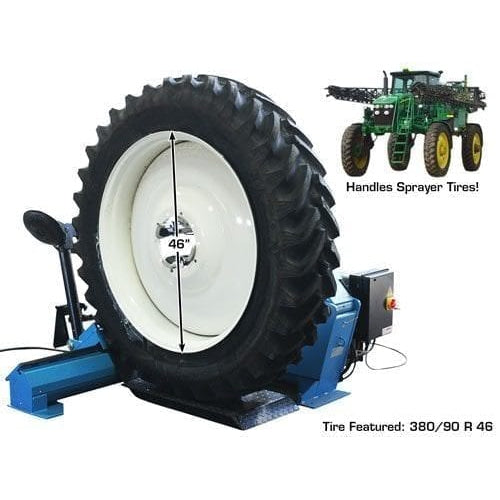

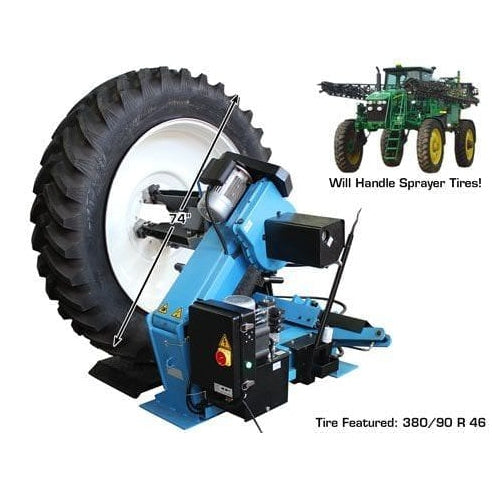

• Handles rims from 14" to 56" and tire diameters in excess of 97"
• Accommodates tires with a maximum width of up to 53"

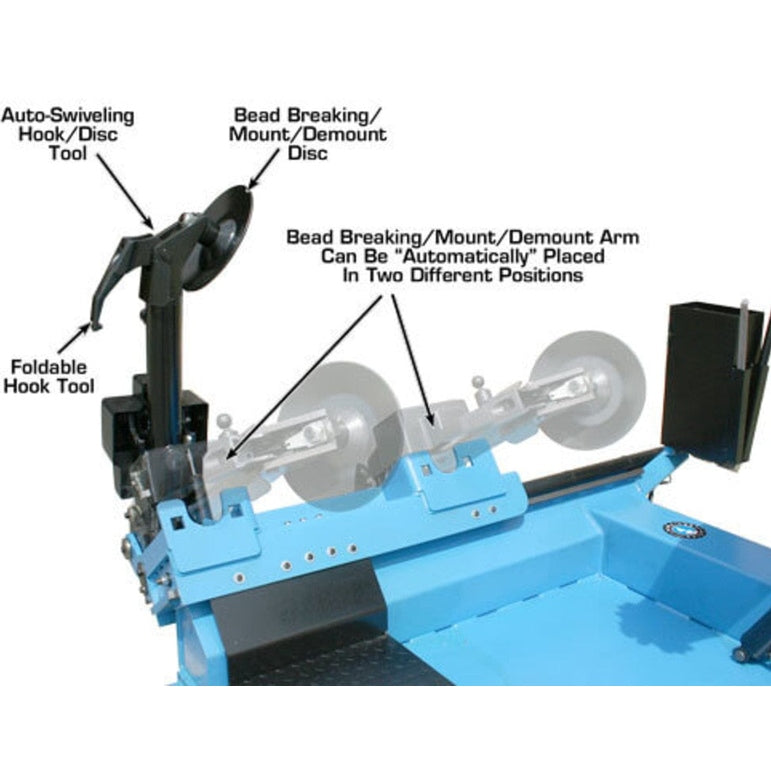

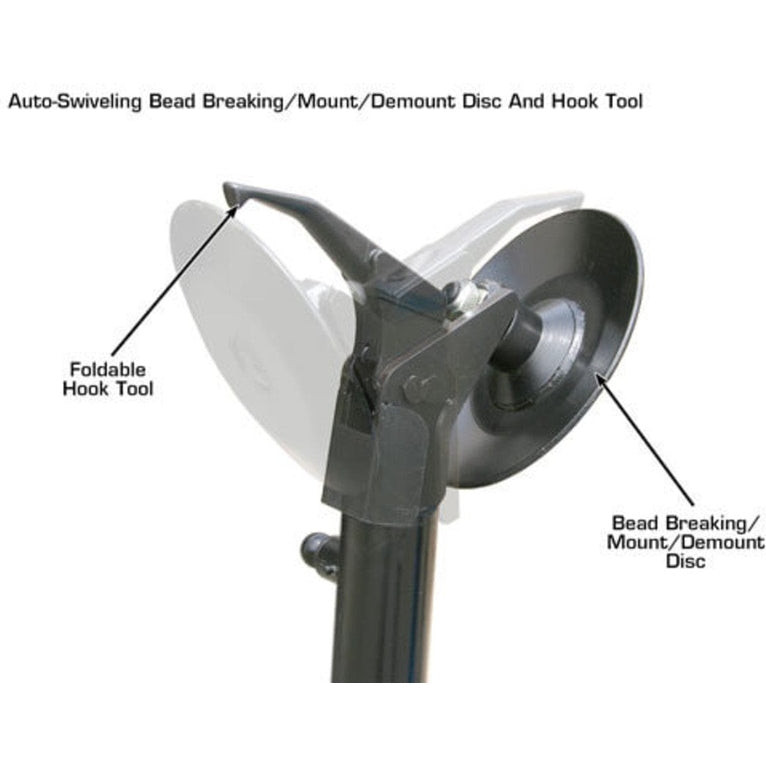

• Bead breaker and mount/demount head included

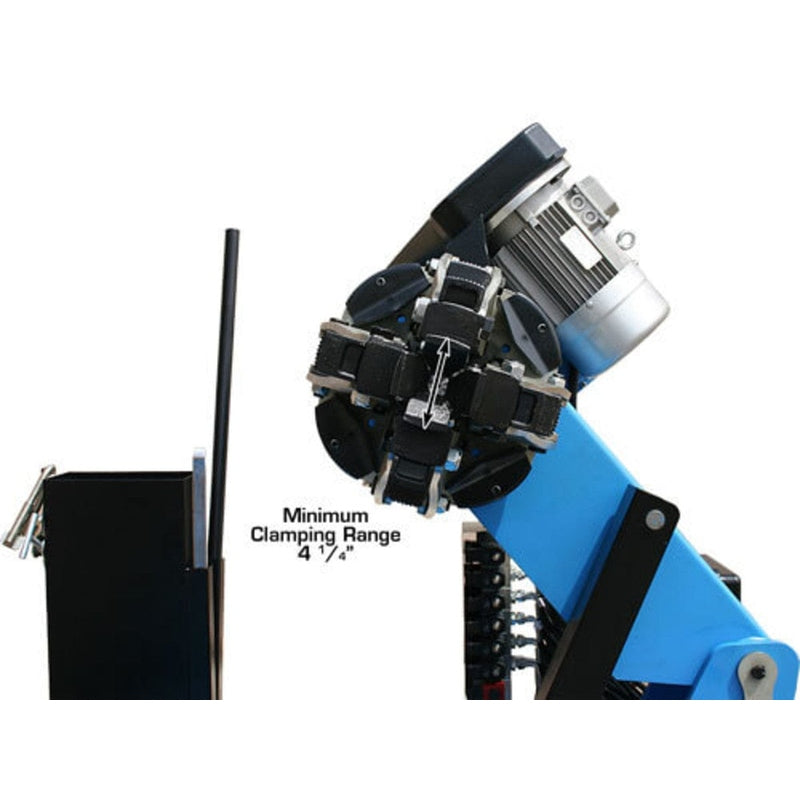

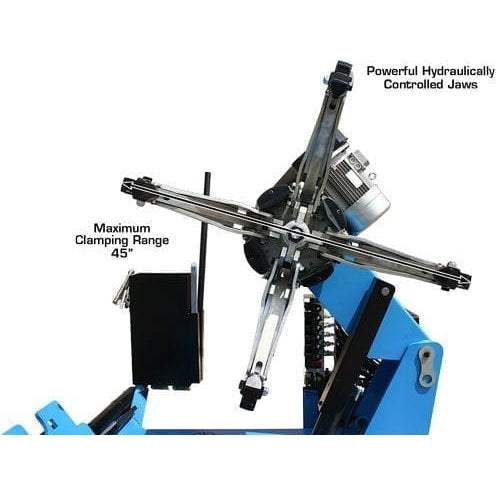

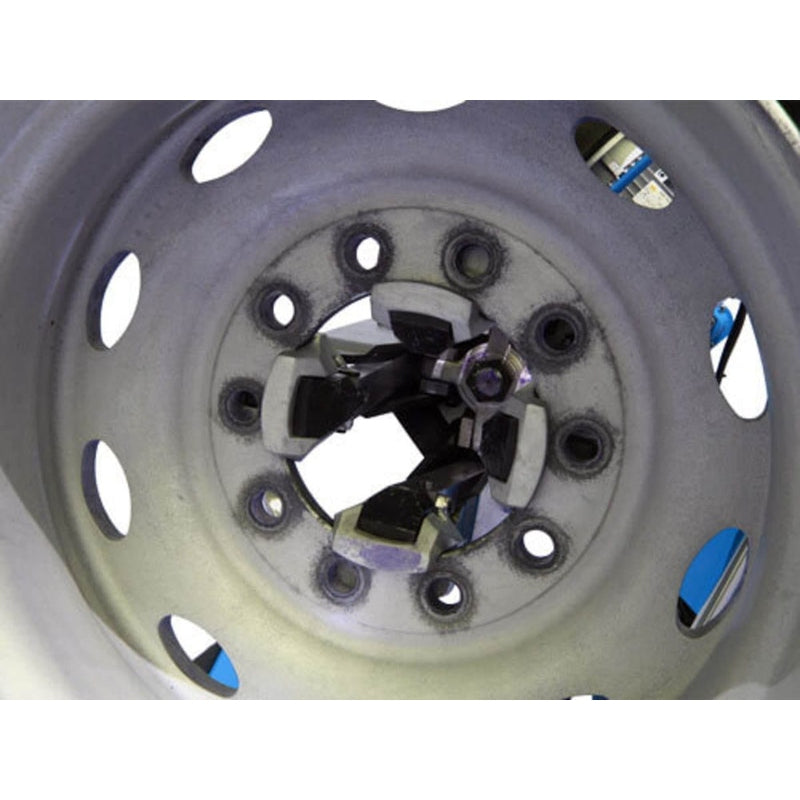

• Electric/hydraulic self-centering four-jaw chuck

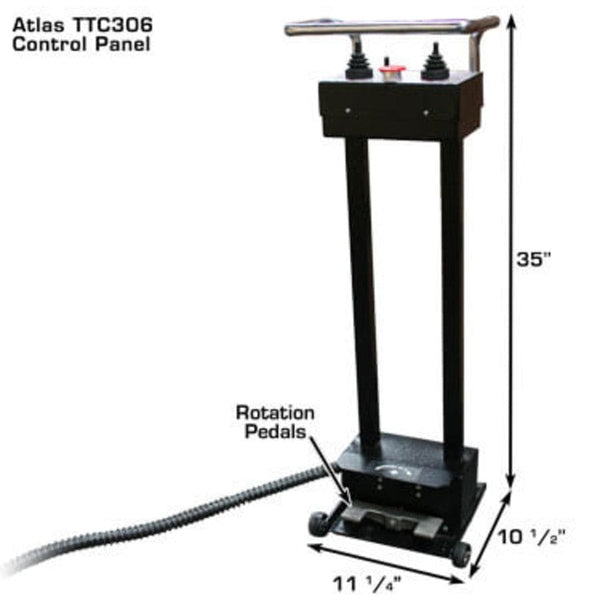

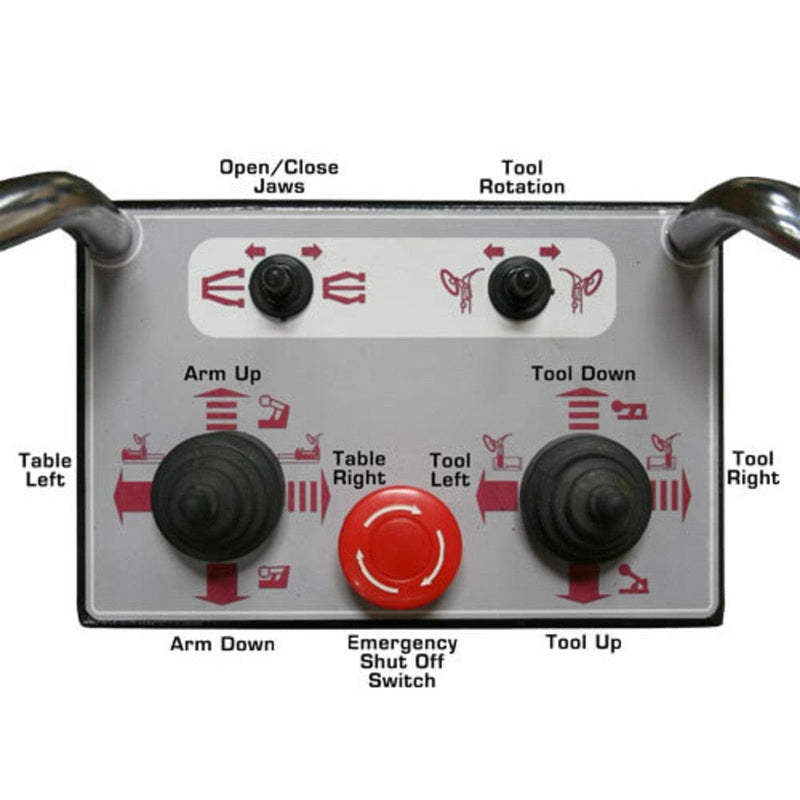

• Wired mobile control unit included (wireless control optional)

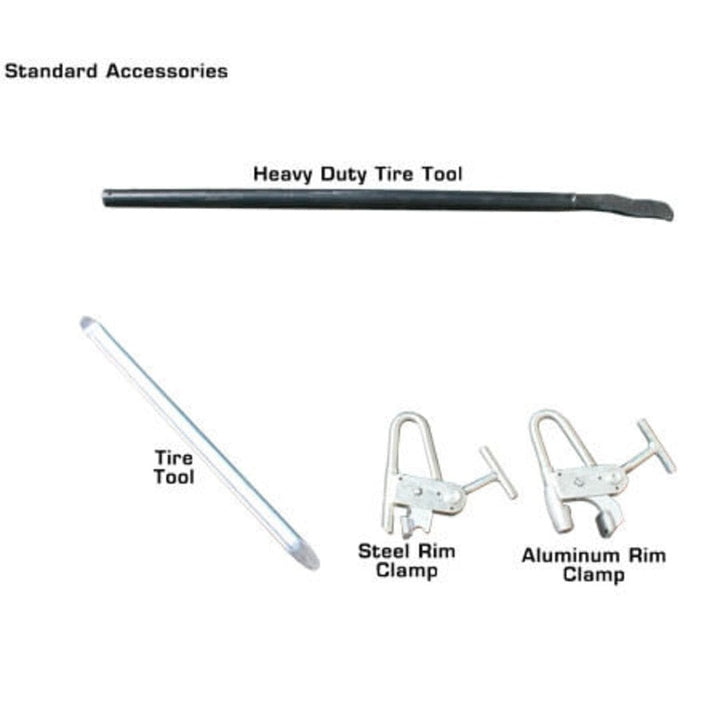

• Heavy-duty tire tool included

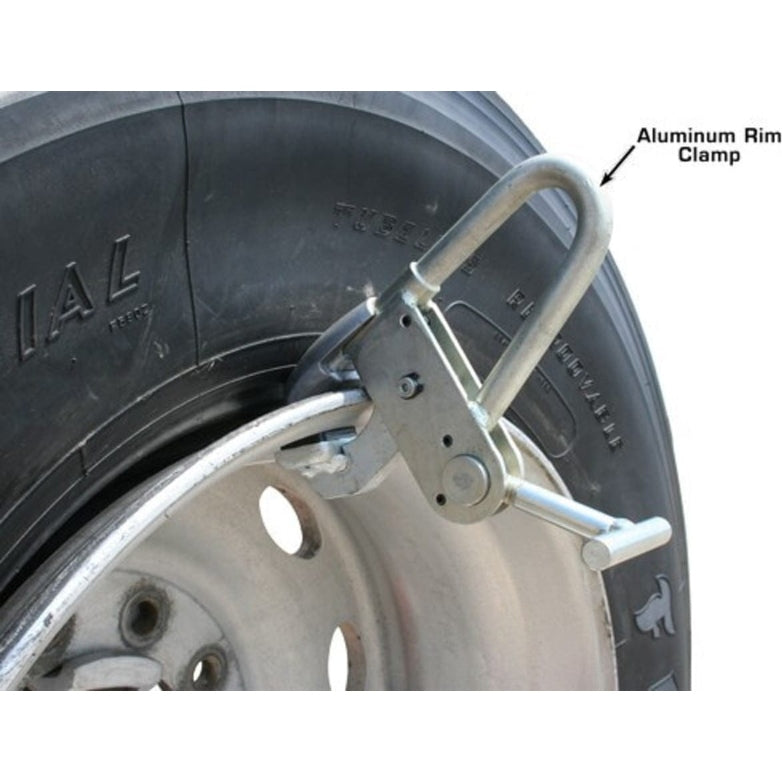

• Rim clamps for steel and alloy wheels included

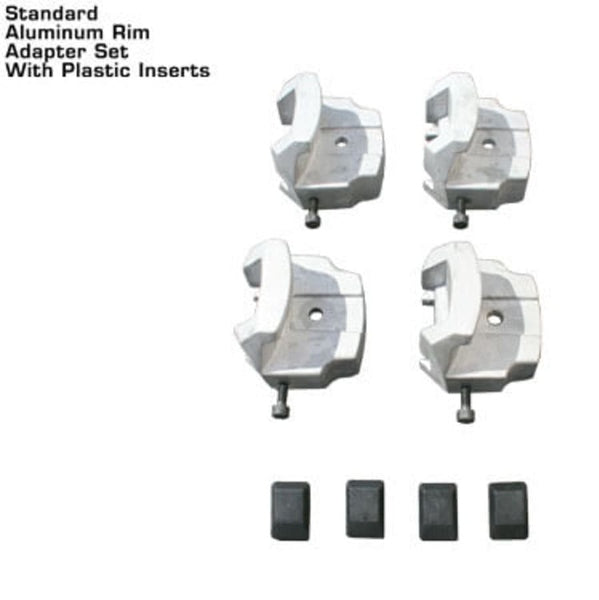

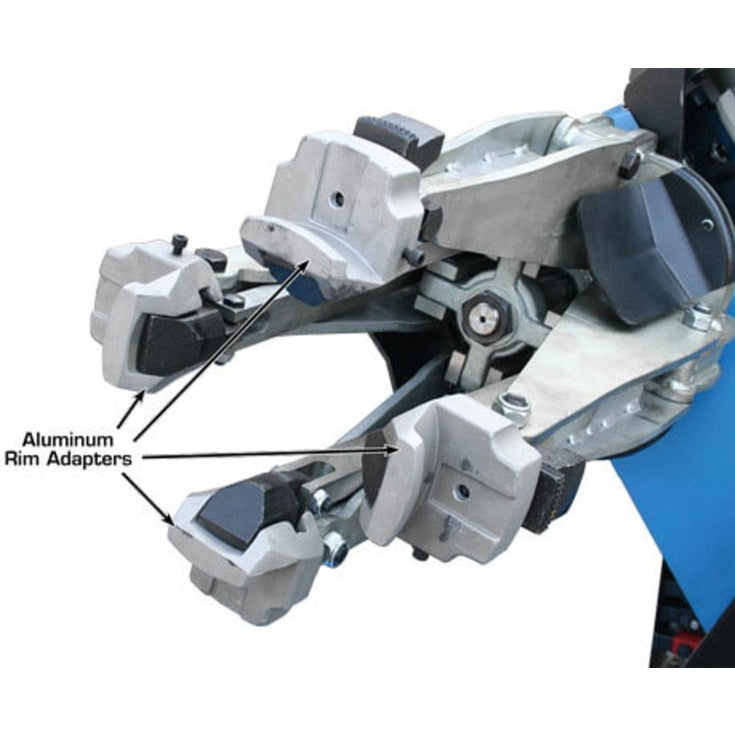

• Alloy rim adapter set with plastic inserts included

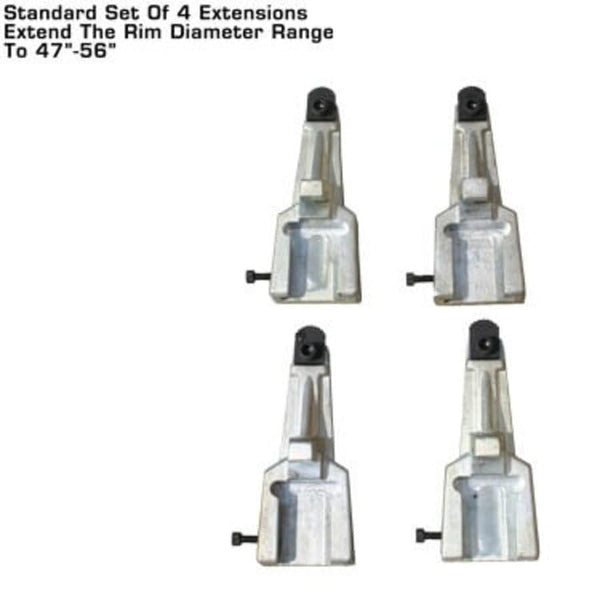

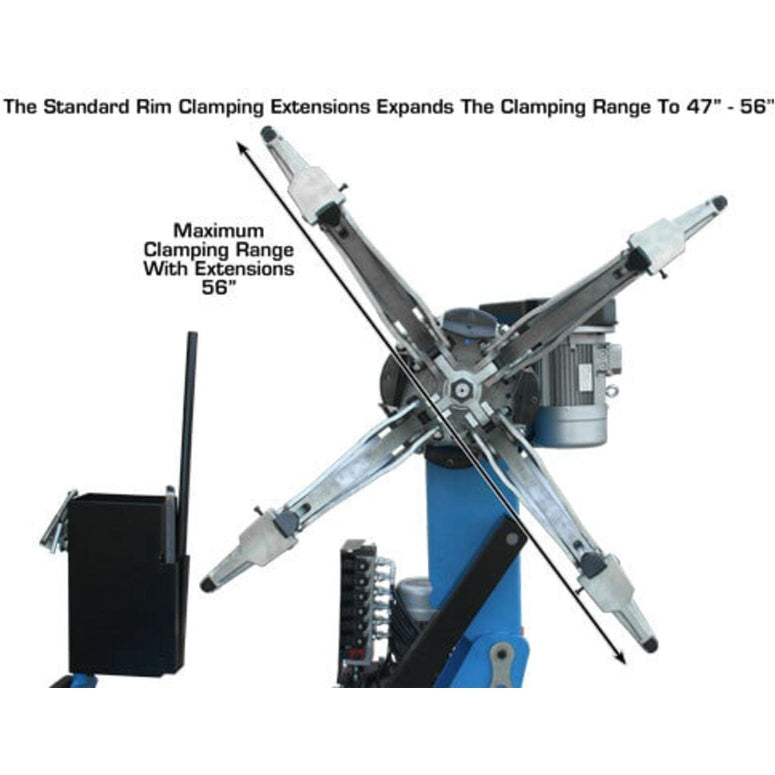

• Clamping extensions included
• 1-year parts-only warranty

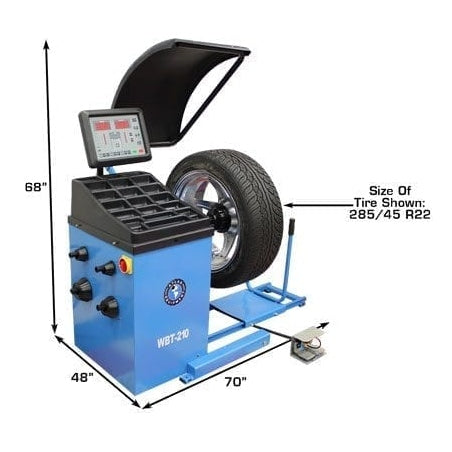

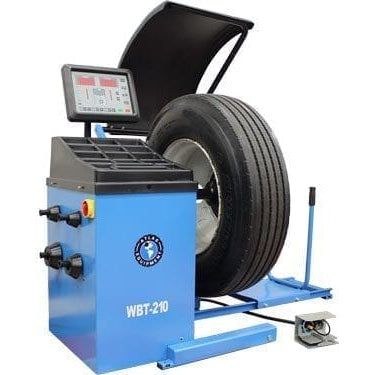

WBT-210 Wheel Balancer

• Computer-controlled heavy-duty spin balancer

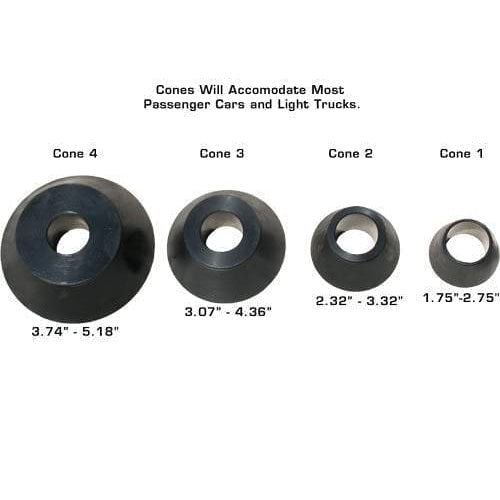

• Cone sets included for car and light truck tires

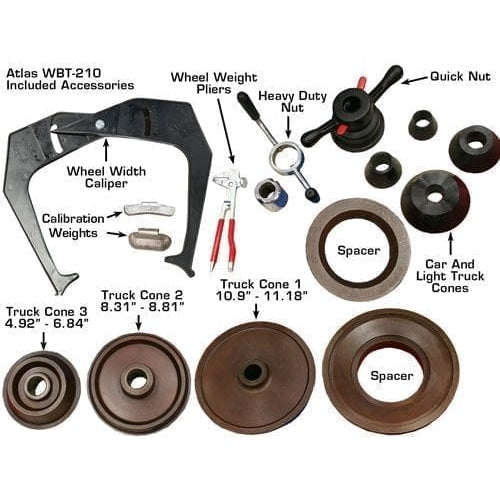

• Cone and spacer set included for truck, bus, and implement tires
• Plastic quick-release nut included
• Heavy-duty steel wing nut included

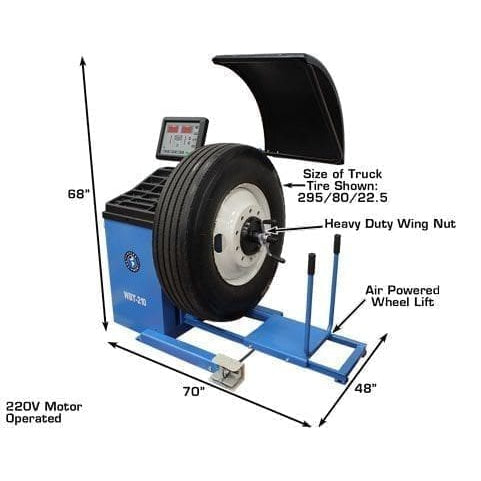

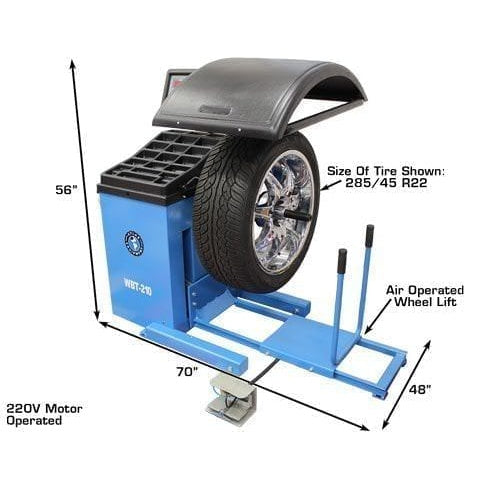

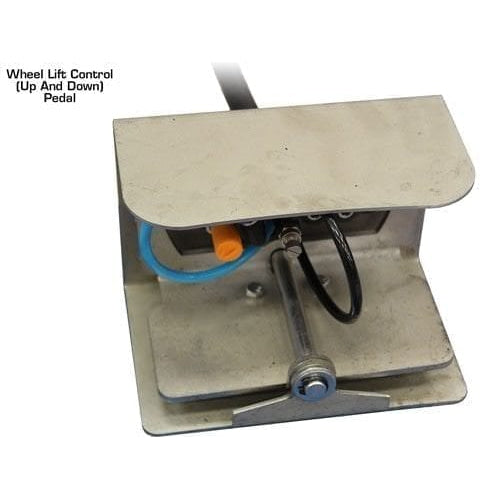

• Pneumatic wheel lift for effortless loading (external air supply required)
• Automatic start/stop triggered by hood position for streamlined operation

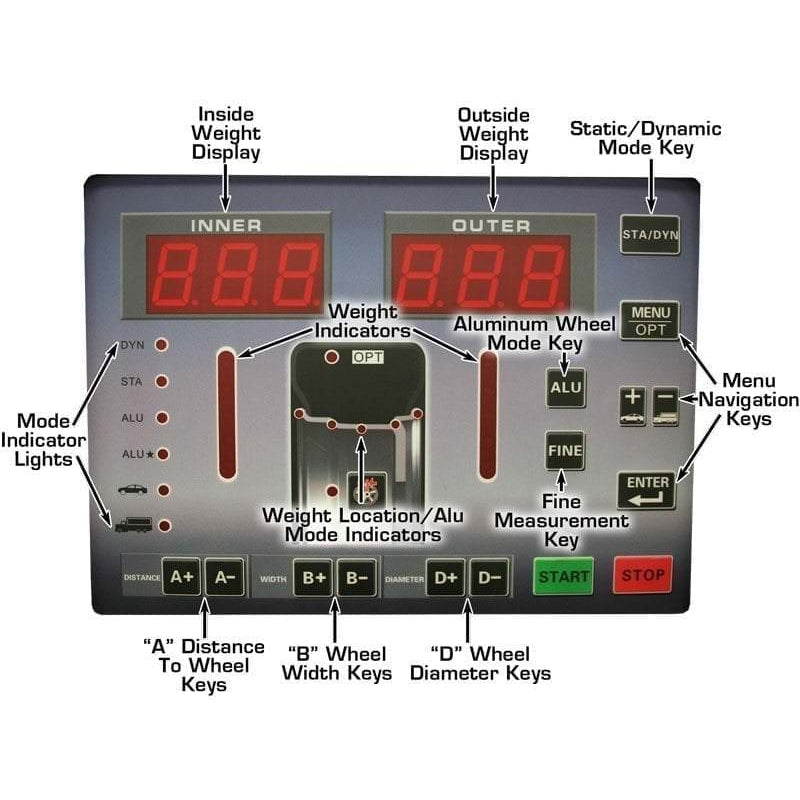

• Static and dynamic balancing modes
• Rapid optimization (OPT) function for fast, precise results
• Self-diagnosis and self-calibration for consistent, long-term accuracy
• Exceptional stability in reading unbalance between planes
• Selectable display units: grams or ounces, and mm or inches
• Wheel weight pliers included
• Wheel width calipers included
• Replacement parts and wear items kept in stock
• 1-year parts-only warranty

Specifications

Atlas® TTC306

Atlas® WBT-210

Documents

Atlas® TTC306 Truck Tire Changer Manual

Atlas® WBT-210 Manual
