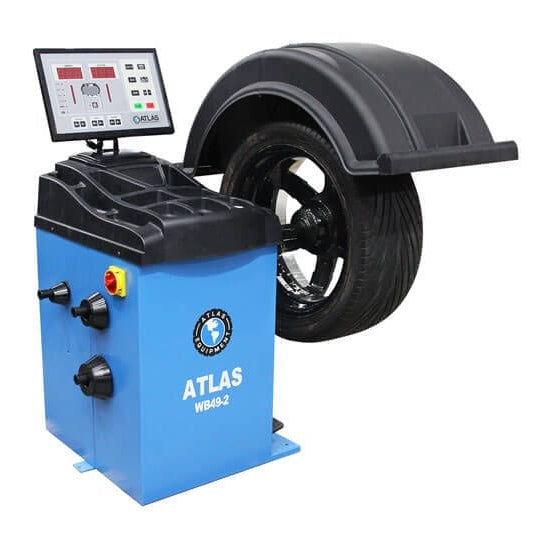

Atlas WB49-2 Premium 2D Computer Wheel Balancer

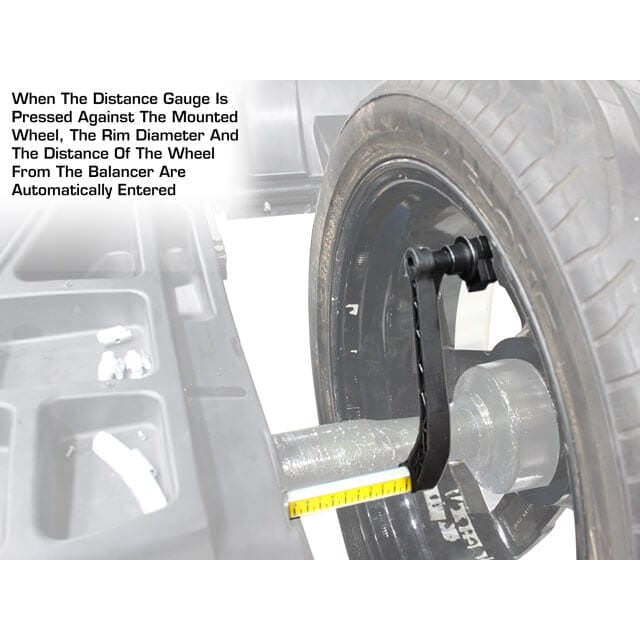

The Atlas WB49-2 is a computer-controlled motorized spin balancer with automatic 2D data entry — the inner measuring gauge captures offset and diameter automatically, so two of the three dimensions needed for balancing are entered without manual input. Width entry remains manual on the base WB49-2; a separate width measuring gauge is available to upgrade it to full automatic 3D data entry, the same configuration as the WB49-2-PRO. It handles wheels up to 32 inches in diameter and accurately balances assemblies up to 150 lbs — the meaningful capacity rating being accurate balance at that weight, not just shaft support. Delivery requires access for a 53-foot truck. Backed by a 1-year parts warranty with replacement parts and wear items kept in stock.

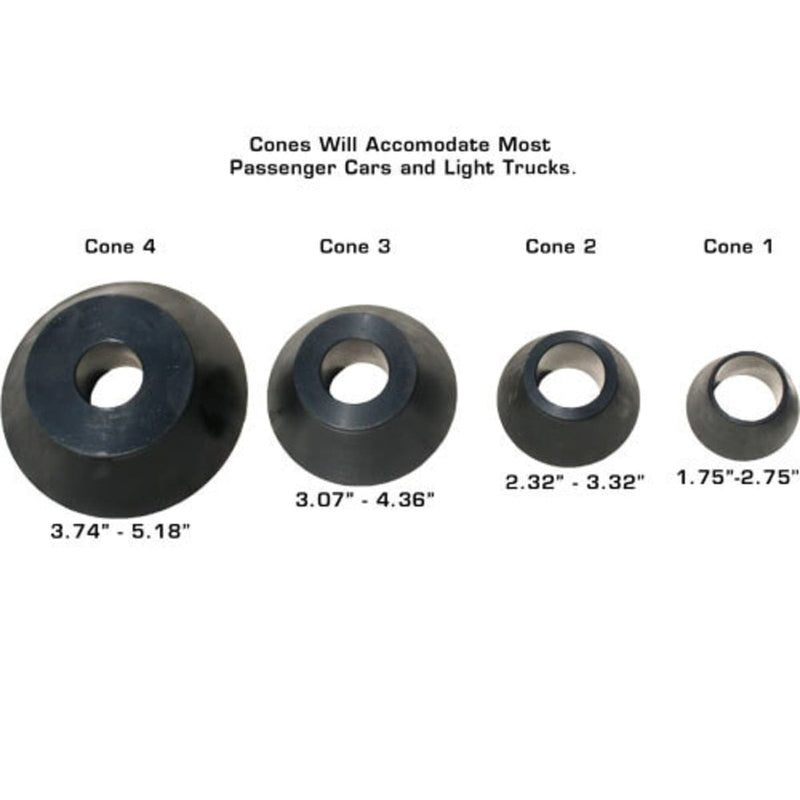

The Split-Weight Function calculates hidden weight placement behind the spokes automatically for alloy wheels where visible weights aren't acceptable, and an automatic LED light illuminates the inside of the rim during weight application. Auto-positioning rotates the wheel to the correct weight location and holds it, and self-diagnosis with error code display lets operators identify and address problems in-shop without a service call. Self-calibration maintains accuracy over time. The raised display and large wheel weight tray are practical shop-floor details — the display reads clearly from a working position without stooping, and the tray keeps weights accessible without a separate bin. The balancer runs static and dynamic modes, rapid optimization (OPT), and displays in grams or ounces and mm or inches. Included: plastic quick-release nut, four centering cones (1.75" to 5.18" center holes), wheel weight pliers, and measuring calipers. A light truck adapter kit for larger center holes and offset wheels is available separately.

The WB49-2 is the right fit for independent tire shops and dealership service bays that want automatic offset and diameter measurement with the option to add full 3D automation later, and for shops comparing the WB49-2 against the PRO who want the same core platform at a lower entry price with the upgrade path available when volume justifies it.

Features

• Computer-controlled motorized spin balancer

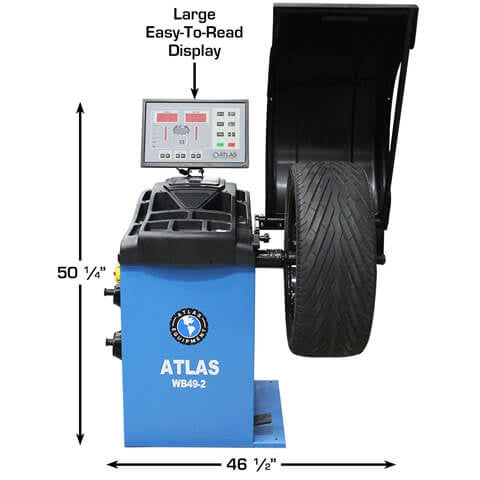

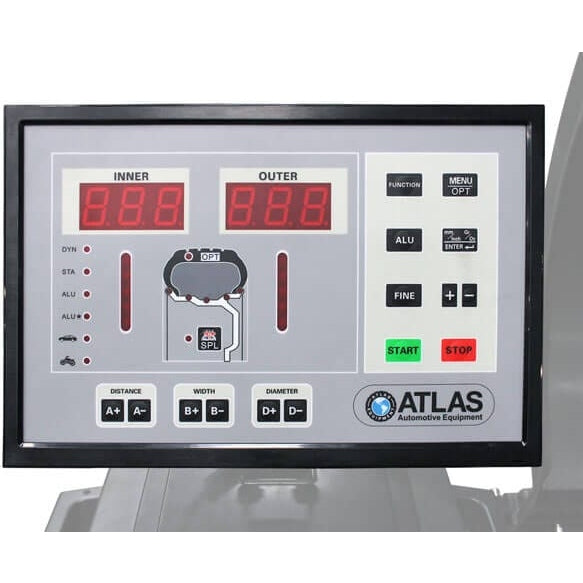

• Raised, easy-to-read display for clear visibility during operation
• Large wheel weight tray for convenient access and organization
• Automatic 2D data entry for fast, accurate setup
• Width measuring gauge for automatic 3D data entry available (sold separately)
• Split-weight function for discreetly hiding weights behind spokes

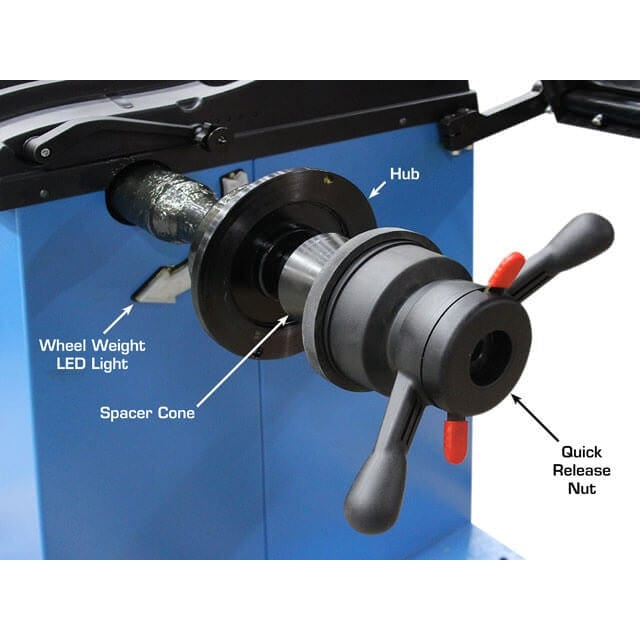

• Automatic LED work light illuminates the wheel area for accurate weight placement
• Auto-positioning rotates the wheel to the correct balance point automatically

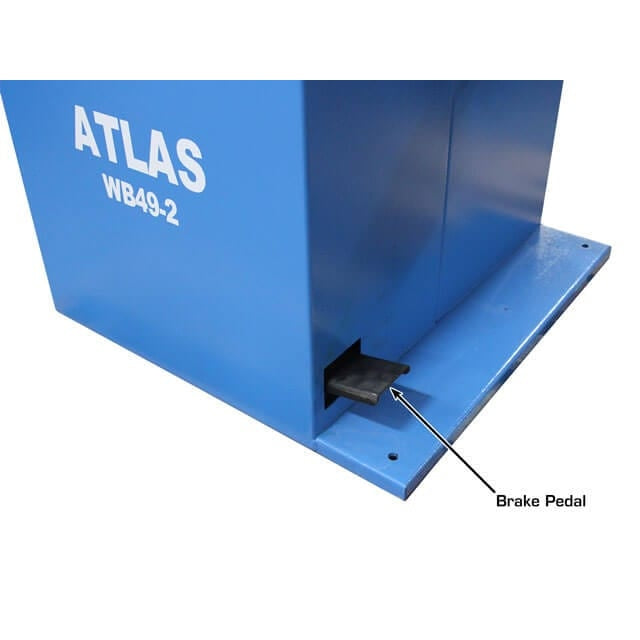

• Automatic and pedal-operated brake for flexible control
• Automatic start/stop triggered by hood position for streamlined operation
• Static and dynamic balancing modes
• Rapid optimization (OPT) function for fast, precise results
• Self-diagnosing and self-calibrating for consistent, long-term accuracy
• Exceptional stability in reading unbalance between planes
• Selectable display units: grams or ounces, and mm or inches
• No anchor-down installation required

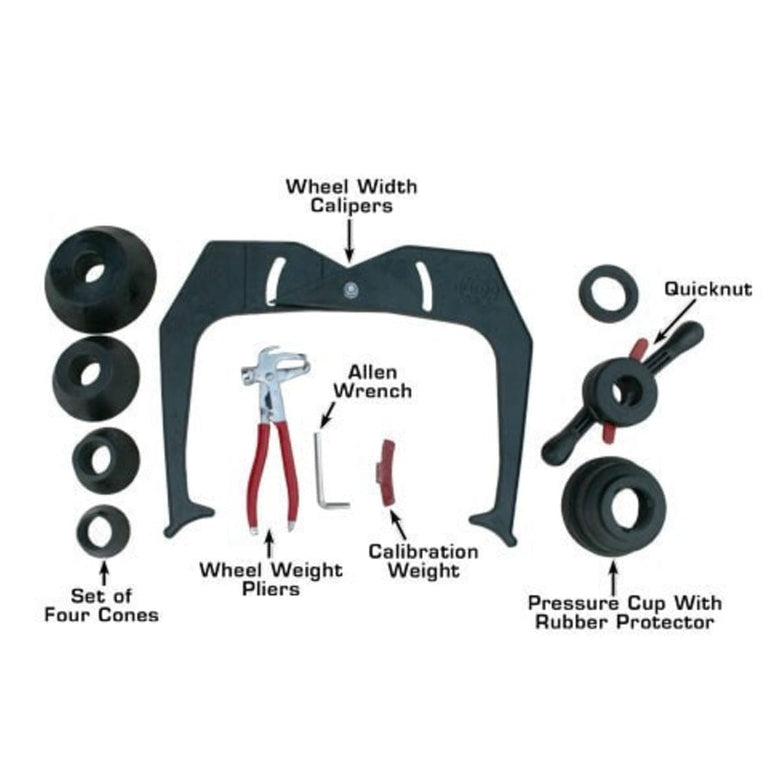

• Includes plastic quick-release nut, 4 centering cones, wheel weight pliers, and measuring calipers
• Replacement parts and wear items kept in stock
• 1-year parts-only warranty

Specifications

Atlas® WB49-2

Documents

Atlas® WB49-2 Manual

Atlas® WB49 Quick Start Guide
