Atlas WBT-210 Heavy Duty Truck Wheel Balancer

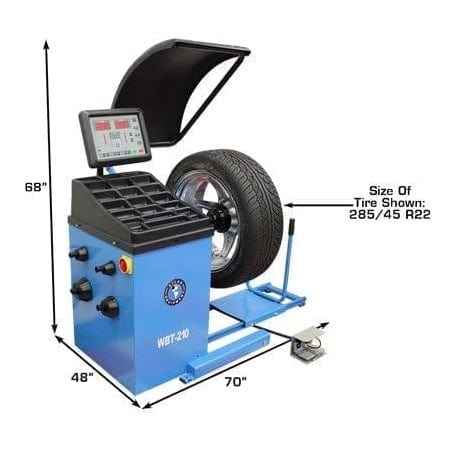

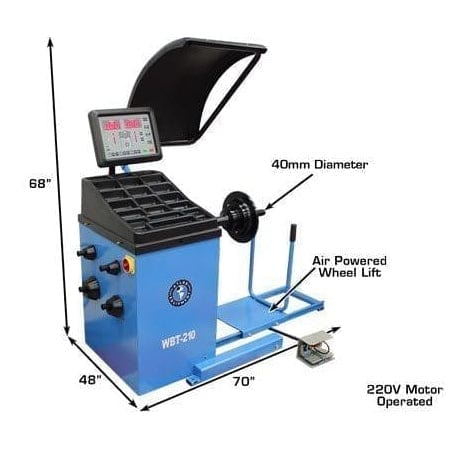

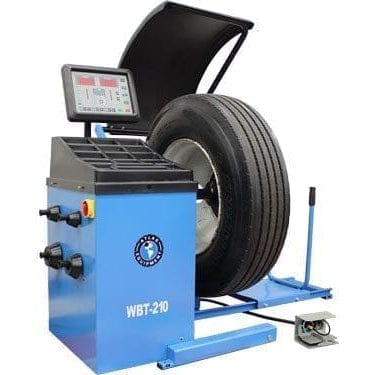

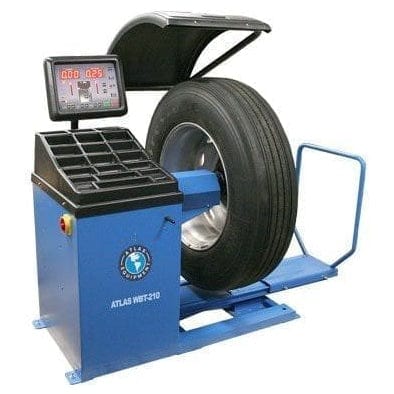

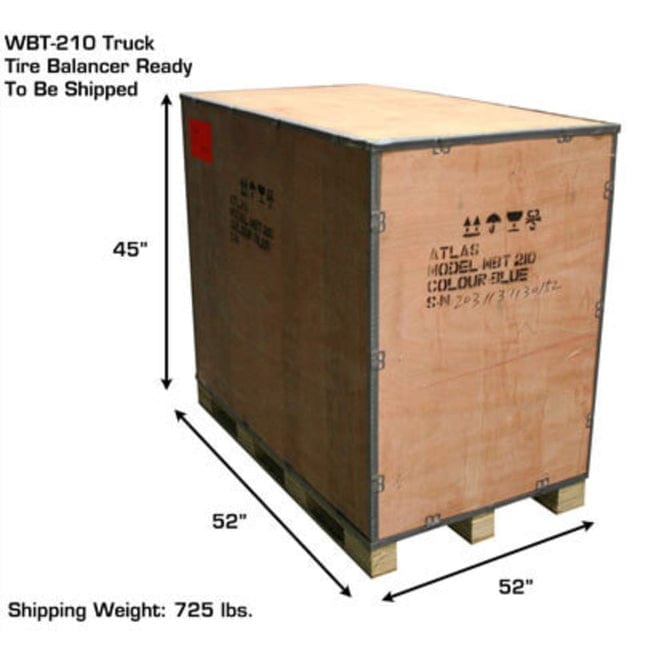

The Atlas WBT-210 is a computer-controlled heavy-duty spin balancer that covers the full range from 14-inch passenger car steel rims through 300-lb semi-truck tires on a single machine — the span that normally requires two separate balancers in a mixed-fleet operation. The 40mm heavy-duty shaft accommodates standard mounting cones for cars and pickup trucks, and the included cone and spacer set for truck, bus, and implement tires handles most BUDD-style wheels without additional hardware. A pneumatic wheel lift (external air supply required) manages the loading work on heavy commercial tires. Delivery requires access for a 53-foot truck. Backed by a 1-year parts warranty with replacement parts and wear items kept in stock.

The WBT-210 runs static and dynamic balancing modes, rapid optimization (OPT), and displays in grams or ounces and mm or inches. Self-calibration maintains measurement accuracy over time, and self-diagnosis with error code display lets the operator identify and address problems in-shop without waiting for a service technician — each electrical component is designed for plug-and-play replacement rather than board-level repair. Automatic start/stop triggers when the hood is lowered and raised, and the included wheel weight pliers and wheel width calipers cover the measurement and weight placement tools needed day-to-day.

The WBT-210 is built for truck fleets and commercial tire operations that balance everything from passenger cars through over-the-road semi tires on the same equipment, independent shops that handle both light vehicle and large custom wheel balancing including oversized off-road tires, and any operation that needs commercial-grade truck balancing capability without the price point of major brand alternatives.

Features

• Computer-controlled heavy-duty spin balancer

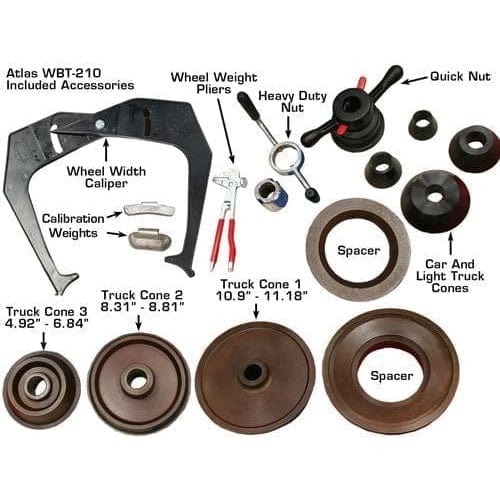

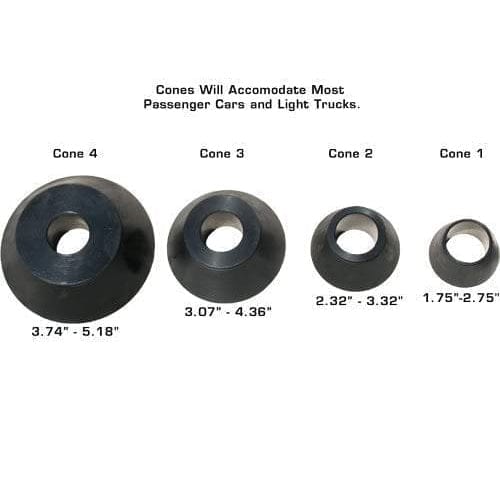

• Cone sets included for car and light truck tires
• Cone and spacer set included for truck, bus, and implement tires
• Plastic quick-release nut included
• Heavy-duty steel wing nut included

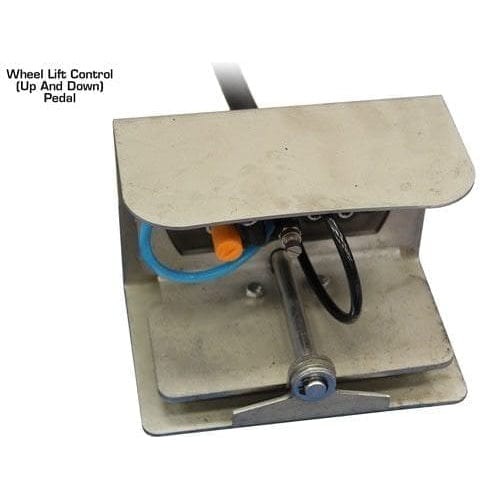

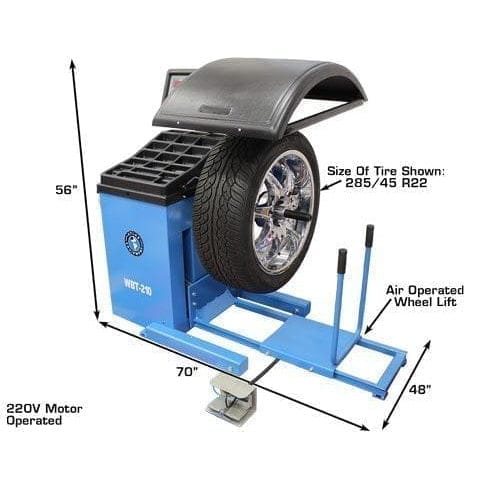

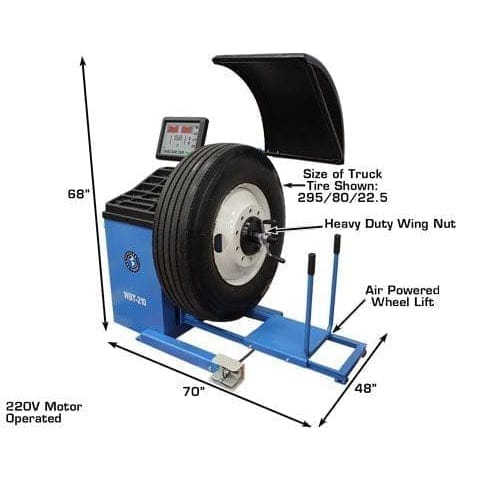

• Pneumatic wheel lift for effortless loading (external air supply required)
• Automatic start/stop triggered by hood position for streamlined operation

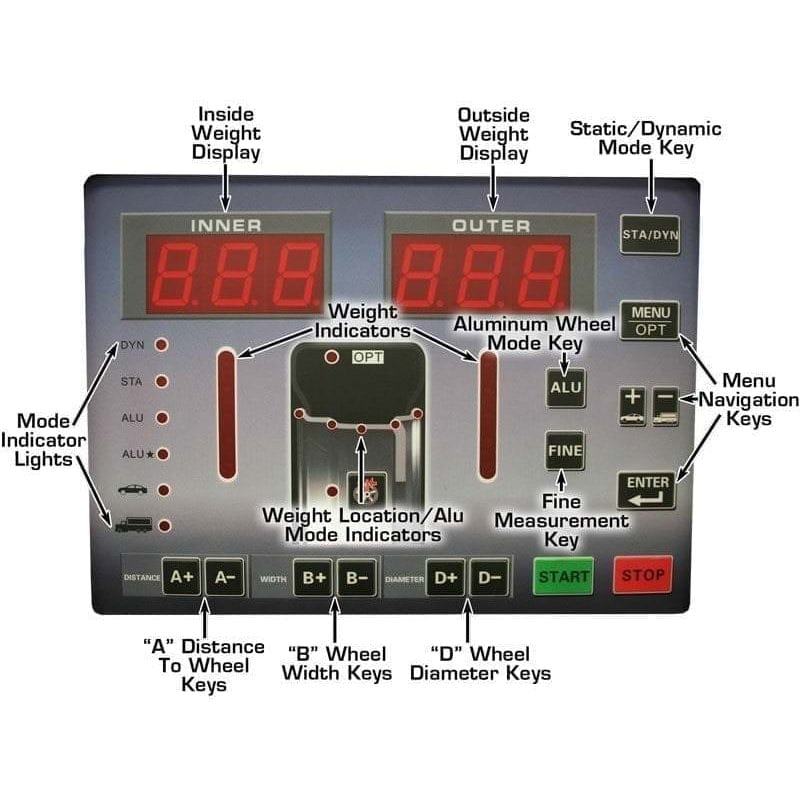

• Static and dynamic balancing modes
• Rapid optimization (OPT) function for fast, precise results
• Self-diagnosis and self-calibration for consistent, long-term accuracy
• Exceptional stability in reading unbalance between planes
• Selectable display units: grams or ounces, and mm or inches
• Wheel weight pliers included
• Wheel width calipers included
• Replacement parts and wear items kept in stock
• 1-year parts-only warranty

Specifications

Atlas® WBT-210

Documents

Atlas® WBT-210 Manual

Atlas® WBT-210 Quickstart Guide
