Autel ADASCAL1 MaxiSYS ADAS Expansion Package — AVM, RCW, ACC, BSM, FCW & Night Vision Calibration Add-On (Standard Frame & Tablet Not Included)

The Autel ADASCAL1 ADAS Expansion Package upgrades an existing Autel ADAS Standard Calibration Frame into a more complete advanced driver assistance system calibration platform. Designed for shops that already have a MaxiSYS tablet and ADAS calibration setup, this expansion kit adds 15 vehicle-specific targets, radar components, reflectors, and brackets to support additional calibration procedures for ACC, BSM, FCW, RCW, AVM, Park Assist, and OEM Night Vision systems on supported Volkswagen, Audi, Honda, Cadillac, Mercedes-Benz, and Nissan vehicles.

The included components mount directly to the Autel ADAS Standard Calibration Frame and work through the existing MaxiSYS ADAS Calibration Software workflow. The kit adds dedicated targets for Around View Monitoring and Rear Collision Warning, radar calibration components for Adaptive Cruise Control and Blind Spot Detection, and specialized hardware for Night Vision camera calibration. This allows technicians to expand service coverage without replacing their current frame or diagnostic tablet.

Built for collision repair centers, dealerships, ADAS calibration specialists, and advanced automotive service facilities, the ADASCAL1 helps shops handle a wider range of modern vehicle safety system repairs. The package is an efficient upgrade for businesses looking to add more calibration capabilities while continuing to use their existing Autel ADAS equipment. The ADAS Standard Calibration Frame and compatible MaxiSYS tablet are required separately.

Features

• Adds calibration coverage for Around View Monitoring (AVM), Rear Collision Warning (RCW), Adaptive Cruise Control (ACC), Blind Spot Monitoring (BSM), Front Collision Warning (FCW), Park Assist, and OEM Night Vision systems.

• Includes fifteen vehicle-specific calibration components organized by ADAS system.

• Designed to mount on the Autel ADAS Standard Calibration Frame.

• Operated through a MaxiSYS tablet running ADAS Calibration Software.

• Includes Night Vision calibration hardware for OEM camera modules.

• Provides vehicle-brand-specific AVM and RCW targets for Volkswagen, Honda, Cadillac, Mercedes-Benz, and Nissan vehicles.

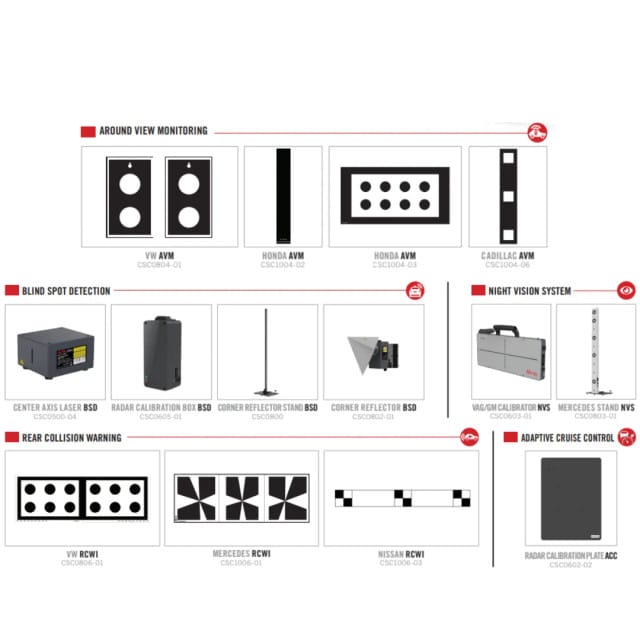

What's Included

Around View Monitoring (AVM) — 4 vehicle-specific targets

• VW AVM target — CSC0804-01

• Honda AVM target — CSC1004-02

• Honda AVM target — CSC1004-03

• Cadillac AVM target — CSC1004-06

Blind Spot Detection (BSD) — 4 components

• Center Axis Laser — CSC0500-04

• Radar Calibration Box — CSC0605-01

• Corner Reflector Stand — CSC0800

• Corner Reflector — CSC0802-01

Night Vision System (NVS) — 2 components

• VAG/GM Calibrator — CSC0603-01

• Mercedes Stand — CSC0803-01

Rear Collision Warning (RCW) — 3 vehicle-specific targets

• VW RCW target — CSC0806-01

• Mercedes RCW target — CSC1006-01

• Nissan RCW target — CSC1006-03

Adaptive Cruise Control (ACC) — 1 component

• Radar Calibration Plate — CSC0602-02

Compatibility

The ADASCAL1 expansion kit is designed to mount on the Autel ADAS Standard Calibration Frame and is operated through a MaxiSYS tablet with an active ADAS Calibration Software license.

The calibration frame and tablet are sold separately and are not included with this kit.

The included targets and components are designed for ADAS systems on Volkswagen, Audi, Honda, Cadillac, Mercedes-Benz, and Nissan vehicles. Confirm specific year and model coverage using the MaxiSYS ADAS Calibration Software vehicle coverage list before scheduling calibration work.

Documents

Autel ADASCAL1 ADAS Expansion Package Brochure (PDF)

For fitment confirmation against your existing Autel ADAS Standard Calibration Frame or your MaxiSYS tablet, contact MGS at support@carliftsupply.com or 877-600-5227.
