Autel CVADD1 MaxiSYS ADAS Standard Frame Commercial Vehicle LDW Calibration Add-On Package (Frame & Tablet Not Included)

The Autel CVADD1 Commercial Vehicle ADAS Add-On Kit expands an existing MaxiSYS ADAS Standard Frame and MaxiSYS 909CV setup to support static ADAS calibrations for commercial vehicles. Designed for shops already performing passenger vehicle calibrations, this kit adds coverage for Mercedes-Benz Sprinter, RAM ProMaster, and heavy-duty trucks equipped with the Bendix Wingman system. By building on your current equipment instead of replacing it, the CVADD1 provides a cost-effective way to add commercial vehicle calibration services without investing in a completely new system.

The kit includes dedicated LDW camera targets, an ACC reflector and bracket, a CV pattern bracket, and a Digital ADAS kit that streamlines the calibration process. The Digital ADAS system reduces the time spent measuring and positioning vehicles, while the included Standard Frame Adaptor allows the new calibration targets to mount directly to your existing ADAS frame. This combination helps improve positioning accuracy, shortens setup time, and supports repeatable calibration results for lane departure warning, front collision warning, and radar systems.

The CVADD1 is an ideal upgrade for commercial truck repair facilities, fleet maintenance shops, dealerships, and ADAS calibration specialists that already own a MaxiSYS ADAS Standard Frame and MaxiSYS 909CV tablet. It provides the tools needed to expand into commercial vehicle ADAS services while maintaining the same workflow and equipment platform your technicians already use.

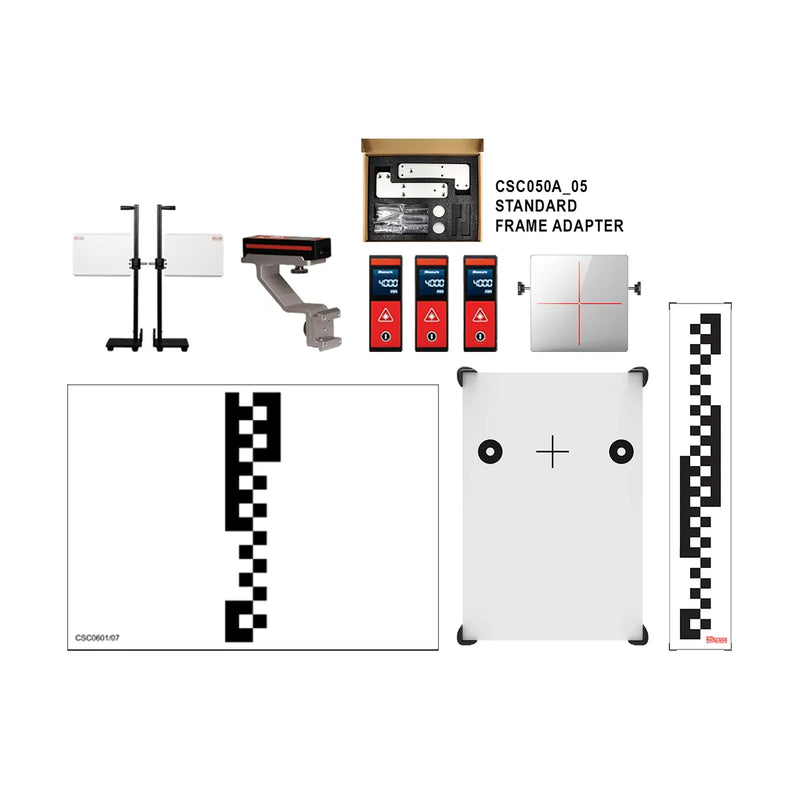

What’s in the CVADD1 package

• Standard Frame Adaptor (CSC050A_05) for pattern attachment
• Digital ADAS kit for faster vehicle setup and positioning
• LDW camera calibration targets for Mercedes-Benz Sprinter vans
• LDW camera calibration targets for RAM ProMaster vans
• Front collision warning and LDW pattern (CV pattern CSC0611-06) for heavy-duty vehicles equipped with the Bendix Wingman system
• CV Pattern Bracket
• ACC reflector and bracket for radar-equipped Bendix Wingman system calibration

Warranty

One-year limited warranty from Autel.

Documents

CV ADAS Calibration Packages Flyer (PDF)

If the flyer doesn’t load, email support@carliftsupply.com or call 877-600-5227  and we’ll send the latest copy.
