Autel CVAGLS CV ADAS Standard Glass Calibration Package — MS909CV Tablet + CV Pattern for Class 3-8 Commercial Vehicles

The Autel CVAGLS Commercial Vehicle ADAS Standard Glass Calibration Package expands an existing Autel IA800 or Standard Frame ADAS Calibration System to support commercial vehicle camera calibrations. Designed for shops that already own an Autel calibration frame, this package includes the MaxiSYS MS909CV diagnostic tablet and the required CV Pattern target for Bendix Wingman systems, allowing you to add Class 3–8 commercial vehicle ADAS services without purchasing a second calibration frame.

At the core of the package is the MaxiSYS MS909CV, Autel's commercial vehicle diagnostic platform, which provides the software and vehicle coverage needed for advanced truck calibration procedures. Combined with the included CV Pattern target, technicians can perform dynamic and static ADAS camera calibrations for Class 3–5 medium-duty and Class 6–8 heavy-duty trucks equipped with supported Bendix Wingman systems. The package also includes one year of free software updates and a one-year limited warranty.

This package is an excellent solution for commercial truck repair facilities, fleet maintenance shops, dealerships, glass replacement specialists, and ADAS calibration centers looking to expand into heavy-duty vehicle calibration. By leveraging an existing Autel IA800 or Standard Frame, shops can increase service capabilities while maximizing their current equipment investment.

Vehicle coverage

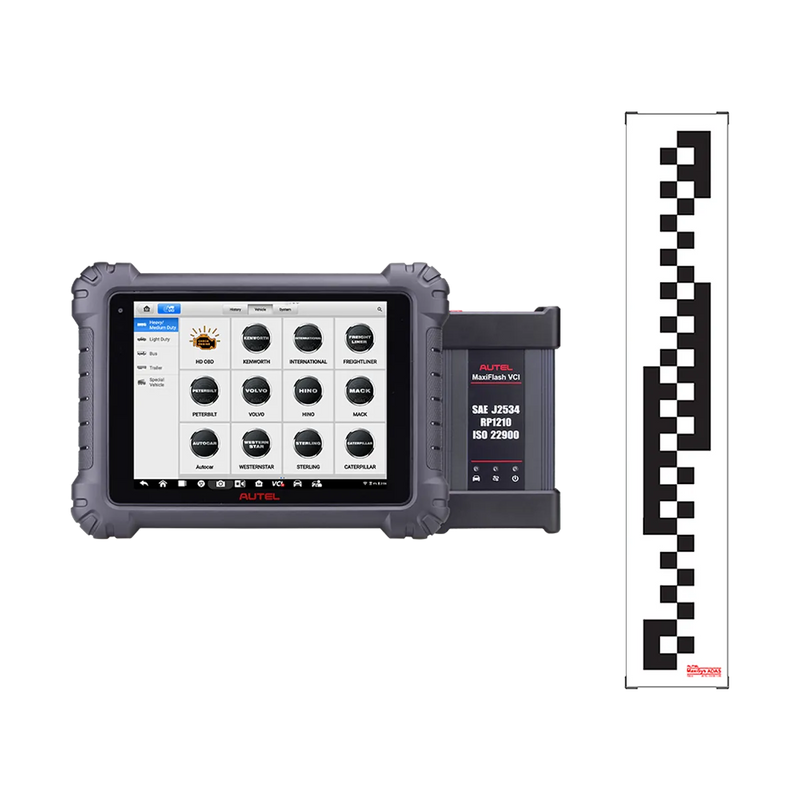

What's in the Package

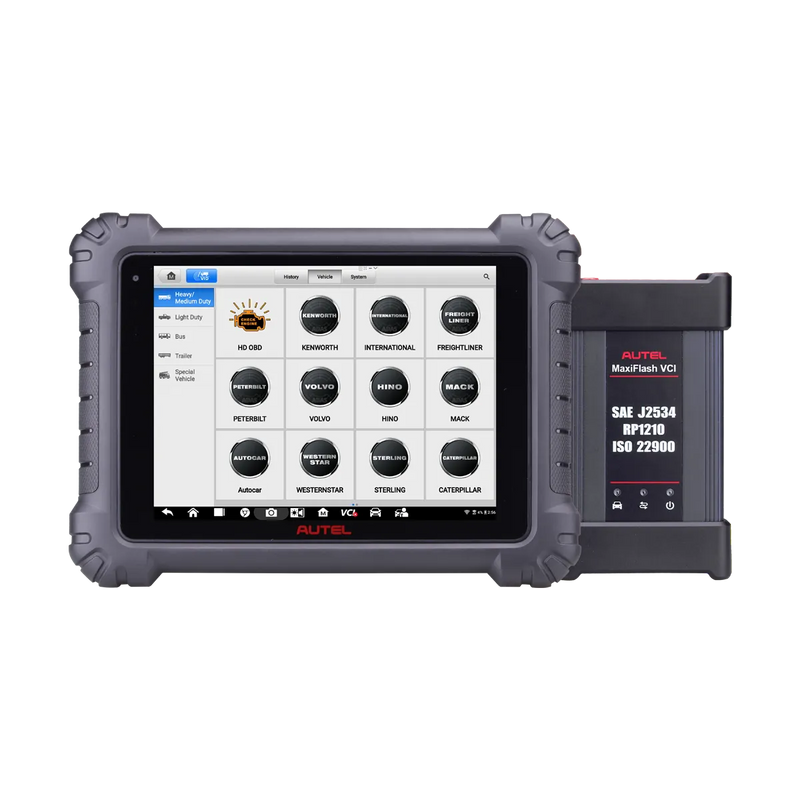

• MaxiSYS MS909CV advanced diagnostic tablet — Autel's heavy-duty commercial vehicle diagnostic platform specified for this calibration workflow, including one year of free software updates.

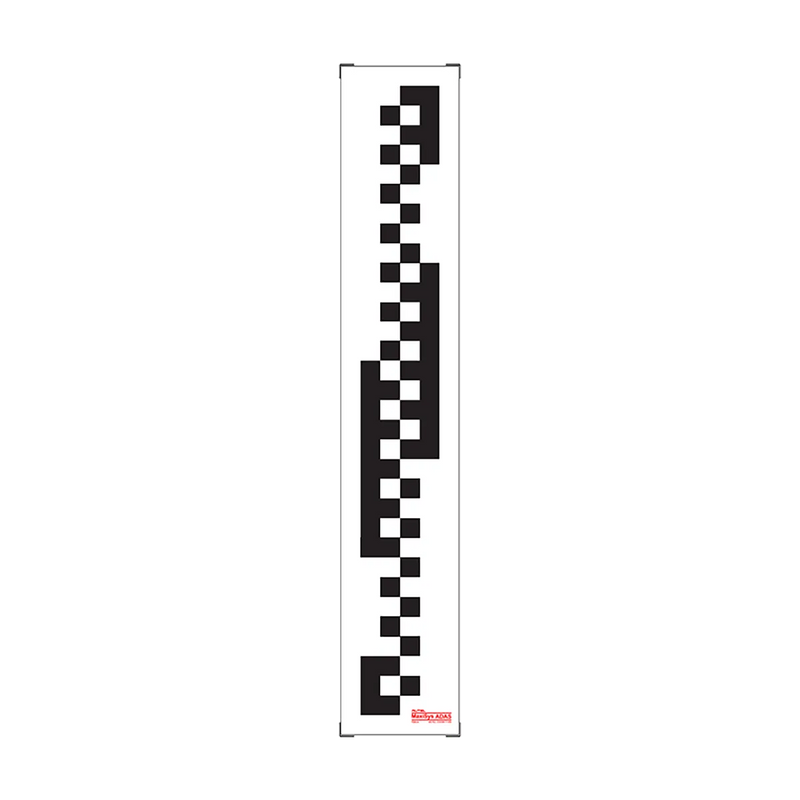

• CV Pattern target — Calibration target used to perform camera calibration on Bendix Wingman systems found on Class 3–8 commercial trucks.

• Dynamic and static ADAS calibration capability for Class 3–5 and Class 6–8 commercial vehicles when used with an existing Autel IA800 or Autel Standard Calibration Frame.

What You'll Need That Isn't in the Box

• Autel IA800 or Standard Frame ADAS Calibration System — CVAGLS is an expansion package and requires an existing IA800 or Standard Frame calibration system. The calibration frame is not included.

• Autel Lane Departure Warning (LDW) package — Required if you plan to calibrate Mercedes-Benz Sprinter or Ram ProMaster camera systems. The necessary LDW targets for these vehicles are included with Autel's LDW packages, not with the CVAGLS kit.

Software, Updates, and Warranty

• One year of free software updates for the MaxiSYS MS909CV tablet, beginning at activation.

• One-year limited warranty covering both the CV ADAS Target and the MS909CV diagnostic tablet.

Autel does not publish complete information for this package, including the full list of Bendix Wingman vehicle coverage, post-warranty software renewal pricing, or the specific LDW package SKUs required for Mercedes-Benz Sprinter and Ram ProMaster vehicles.

For compatibility or pre-purchase questions, contact MGS at support@carliftsupply.com or 877-600-5227, and we can confirm fitment with Autel before you order.
