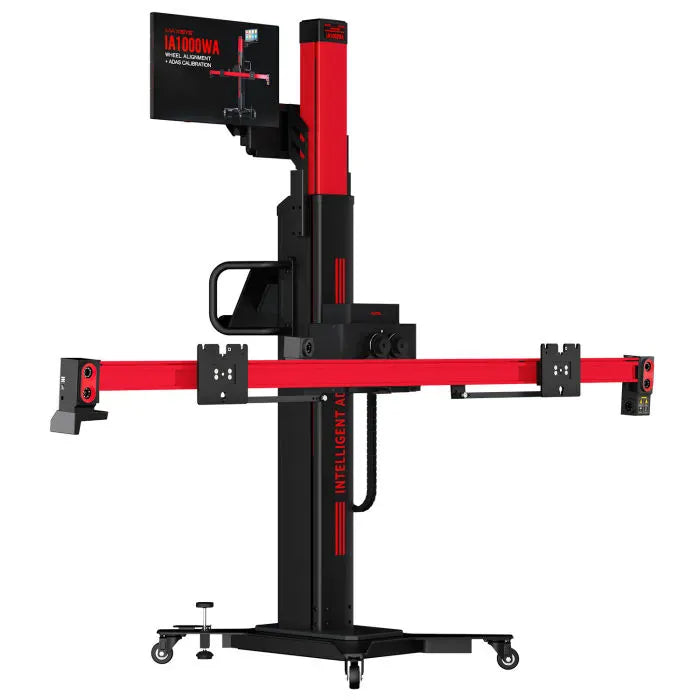

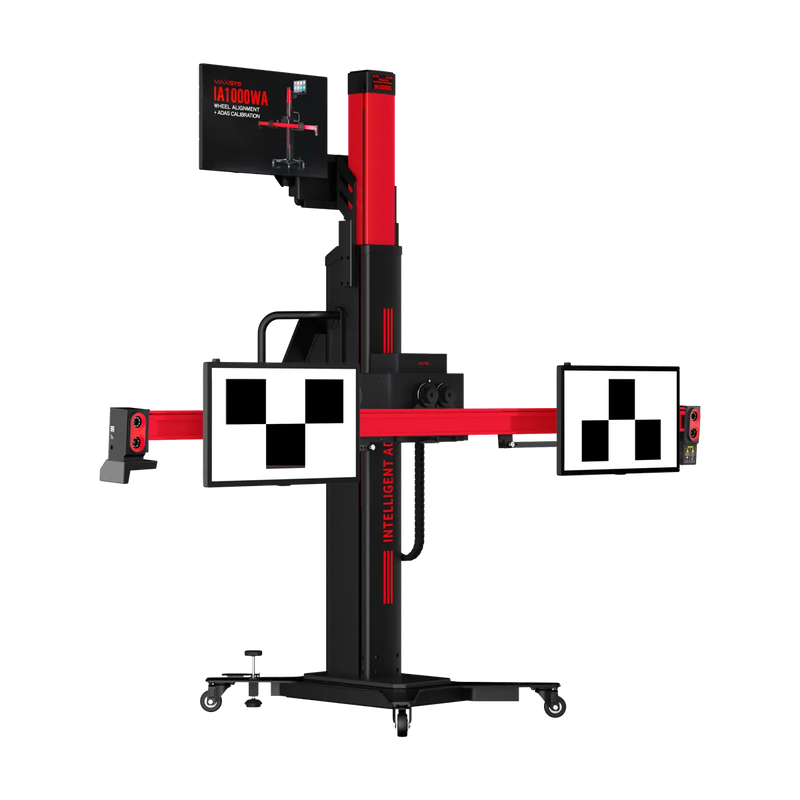

Autel IA1000 Automated ADAS Calibration & Wheel Alignment System (Frame Package, AUTEL-CSC1000)

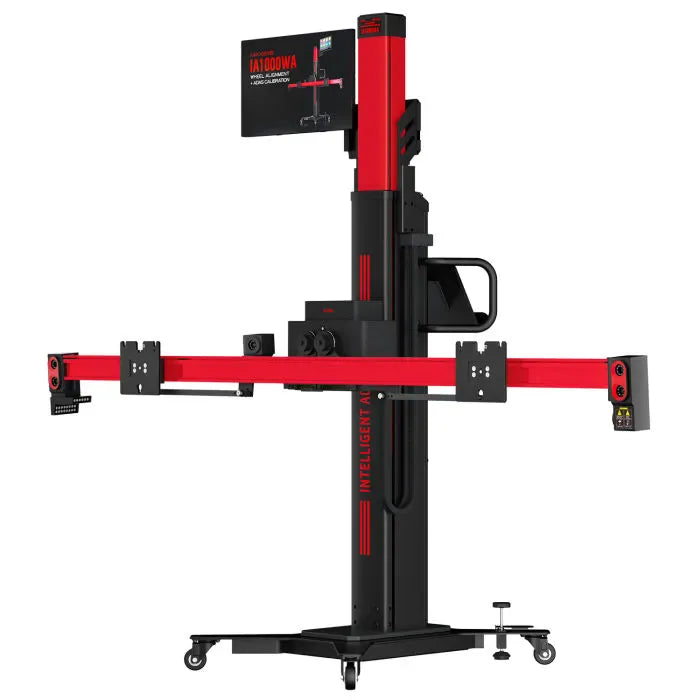

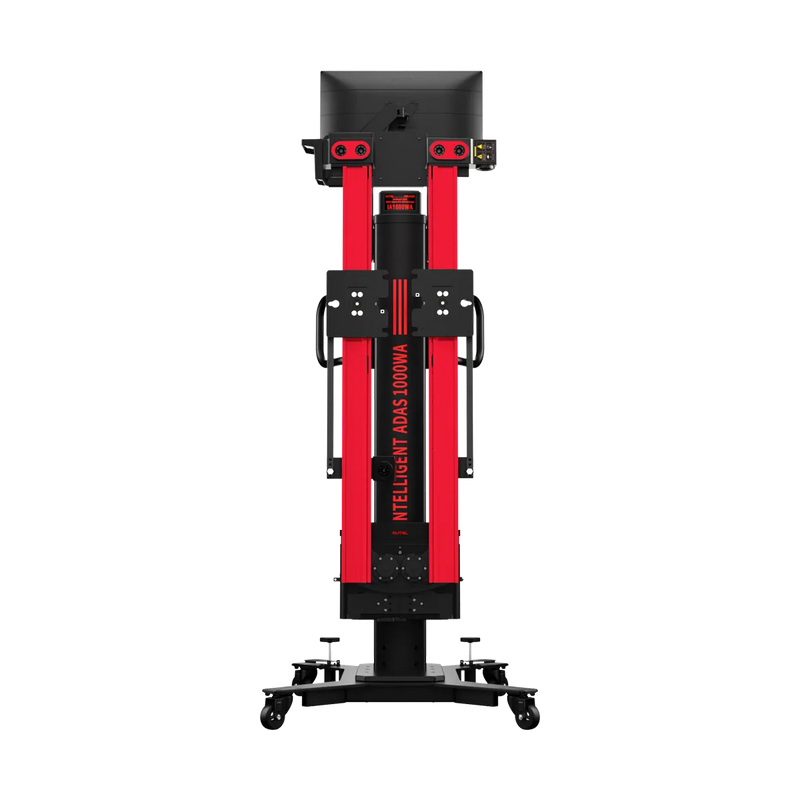

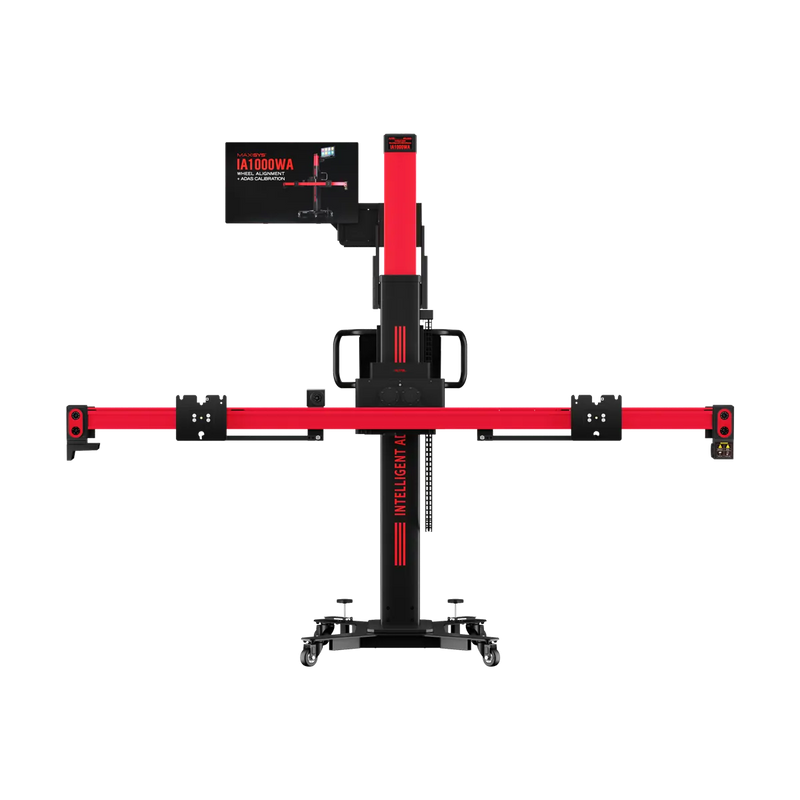

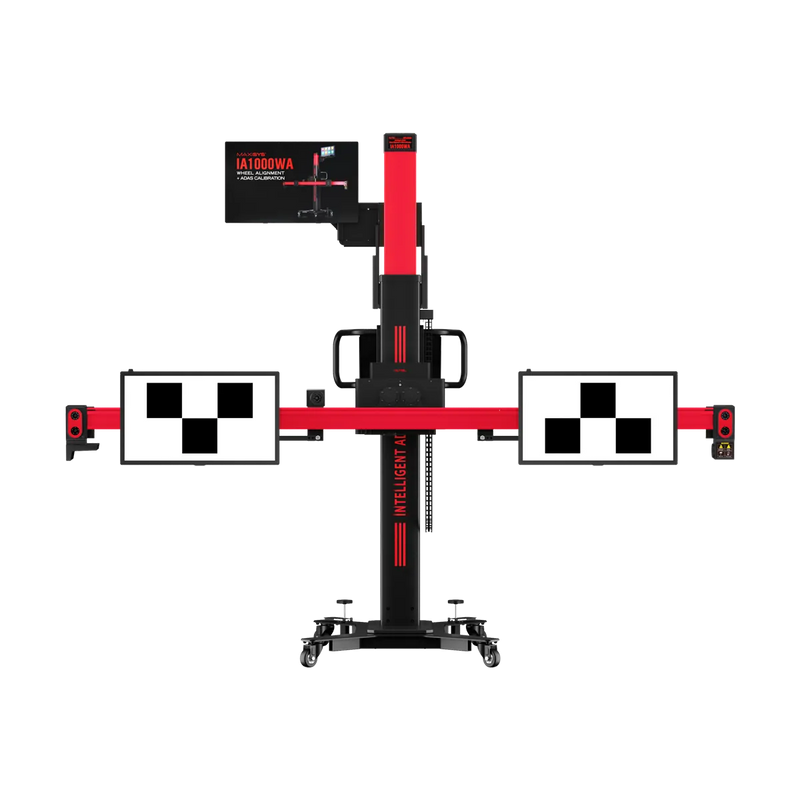

The Autel MaxiSYS IA1000 Frame Package is an automated ADAS calibration and four-wheel alignment frame designed to combine alignment checks and sensor calibration into one workflow. With 5-way robotic target positioning, six high-definition cameras, and 0.02° alignment accuracy, it replaces manual target measurements with guided positioning and automated adjustments. This package includes the AUTEL-CSC1000 calibration frame and accessory kit, but does not include the MaxiSys Ultra S2 tablet, IA1000 activation card, LDW targets, or digital target monitors. Note: installation requires approximately 13.2 ft × 17.5 ft of clear space, with at least 9 ft 1 in. ceiling clearance for full frame operation.

The IA1000 uses robotic movement to position ADAS targets in front-to-back, vertical, horizontal, pitch, roll, and yaw adjustments, helping technicians achieve repeatable calibration results with less setup time. Six cameras track the vehicle and frame position, while laser-guided placement supports ACC, AVM, NVS, and BSD calibration workflows. Automated floor compensation allows the system to maintain accuracy on level floors, sloped floors, or vehicle racks, while digital Go/No-Go validation confirms target placement before calibration continues.

Built for collision centers, alignment shops, and repair facilities handling modern vehicles, the IA1000 Frame Package provides the foundation for a scalable ADAS calibration system. Shops can expand coverage with additional LDW targets, digital target displays, or All Systems packages without replacing the frame. When paired with the required MaxiSys Ultra S2 tablet and IA1000 software activation, it supports U.S., Asian, and European vehicles from 1996 and newer with OEM-based alignment and calibration procedures.

Features

• 5-way robotic target positioning with pitch, roll, yaw, and height adjustment

• Six HD cameras with 0.02° alignment accuracy

• Laser-guided AVM, ACC, NVS, and BSD target placement

• Automatic uneven-floor compensation

• Digital Go/No-Go target validation

• Pre- and post-scan reports with calibration documentation

• Advanced alignment measurements: camber, caster, toe, thrust angle, SAI, and more

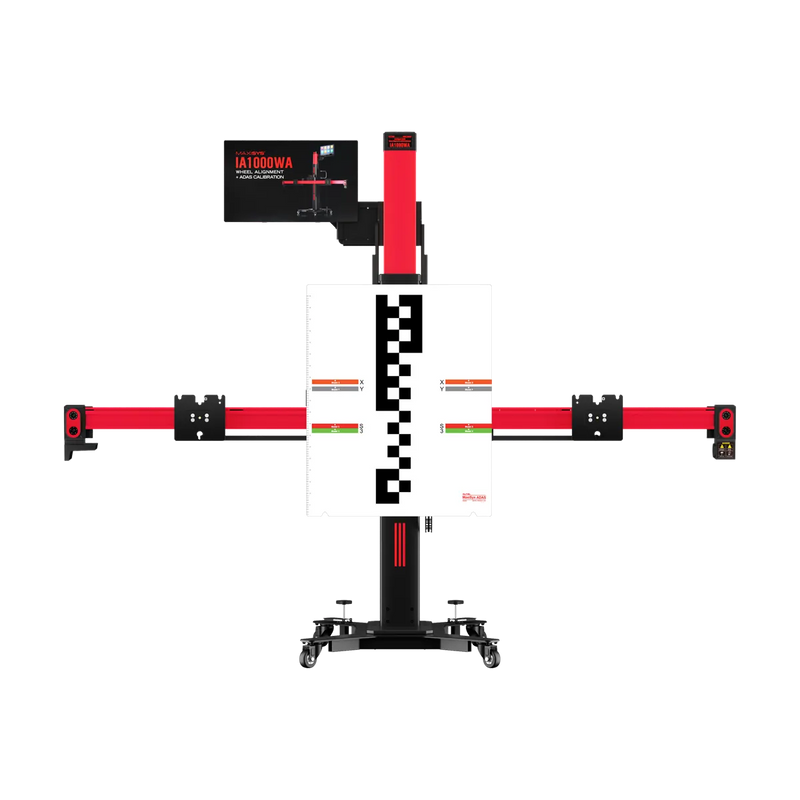

• Expandable with LDW targets, digital monitors, and All Systems packages

• OTA software updates for new vehicle coverage

Compatibility

• Supports U.S., Asian, and European vehicles (1996+)

• Requires MaxiSYS Ultra S2 tablet and IA1000 ADAS software activation (sold separately)

• Supports LDW coverage for Mercedes-Benz, Nissan, Infiniti, Hyundai, Kia, Toyota, Lexus, Mazda, Mitsubishi, Subaru, Volkswagen, Audi, and Alfa Romeo

• Optional add-ons extend coverage for radar, lidar, night vision, AVM, and RCW systems

• Workspace requirements:

  • Calibration area: 13.2 ft × 17.5 ft

  • Full alignment/ADAS bay: 32.8 ft × 16.4 ft

  • Ceiling height: 9 ft 1 in minimum

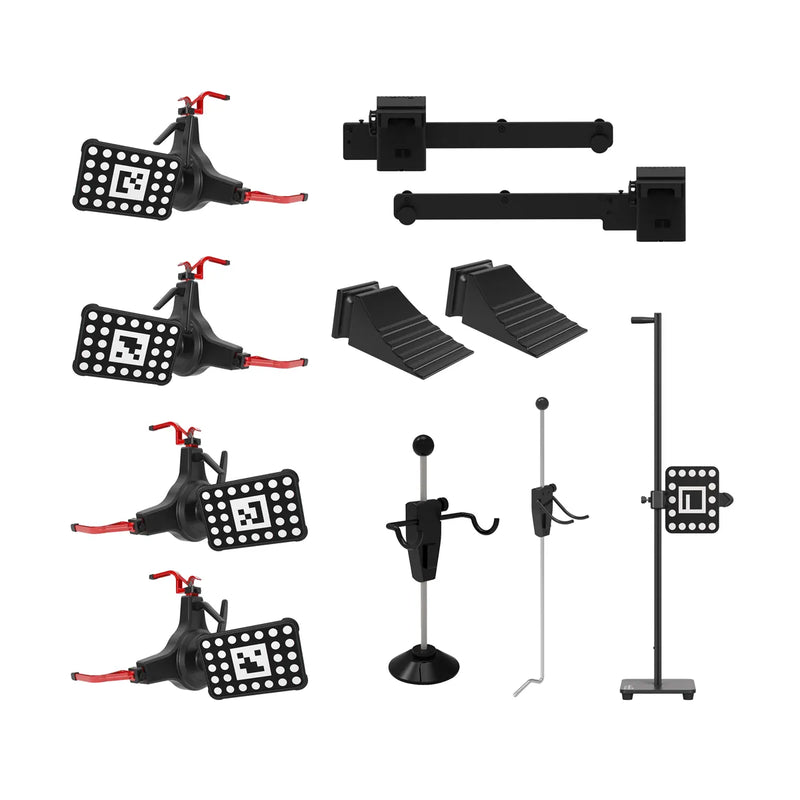

What's Included

• IA1000 Calibration Frame

• Steering Wheel Holder

• Brake Pedal Depressor

• 2 × Wheel Chocks

• Distance Target

• 2 × AVM Modules

• 4 × Wheel-Clamp Tire Clamps

• 5 mm Hex L-wrench

• Packing list and Quick Reference Guides

Specifications

Warranty

• 1-year limited Autel warranty covering manufacturing defects under normal use.

• Full warranty terms and exclusions are listed in the User Manual.

FAQ

Does the IA1000 include the MaxiSYS Ultra S2 tablet?
No. This package includes the frame and accessories only. The MaxiSYS Ultra S2 tablet and IA1000 activation card are sold separately.

Are digital target monitors included?
No. Digital target displays and E-Target activation are sold separately.

What ADAS systems can it calibrate?
With the correct software and target packages, it supports LDW, ACC, BSD, RCW, AVM, Night Vision, HUD, radar, lidar, and other ADAS calibrations.

What accuracy does it provide?
Up to 0.02° accuracy using six cameras and precision wheel-clamp targets.

What space is required?

• Frame setup: 13.2 ft × 17.5 ft

• Full alignment + ADAS workspace: 32.8 ft × 16.4 ft

• Minimum ceiling height: 9 ft 1 in.

Does it include installation or training?
Freight shipping is included. Setup and onboarding training may be available depending on the package and dealer.

How is this different from IA1000LDWT or IA1000AST?

• IA1000: Frame only, no tablet or targets

• IA1000LDWT: Adds Ultra S2 tablet, activation card, and LDW targets

• IA1000AST: Adds full All Systems calibration package for wider ADAS coverage

Documents

• IA1000 User Manual
• IA1000 Product Flyer & Spec Sheet
• All Systems ADAS Brochure
• IA1000 Packing List (Without Monitor)
• IA1000 Digital Target Package List & Quick Reference Guide
• IA1000 AVM Package List & Quick Reference Guide
