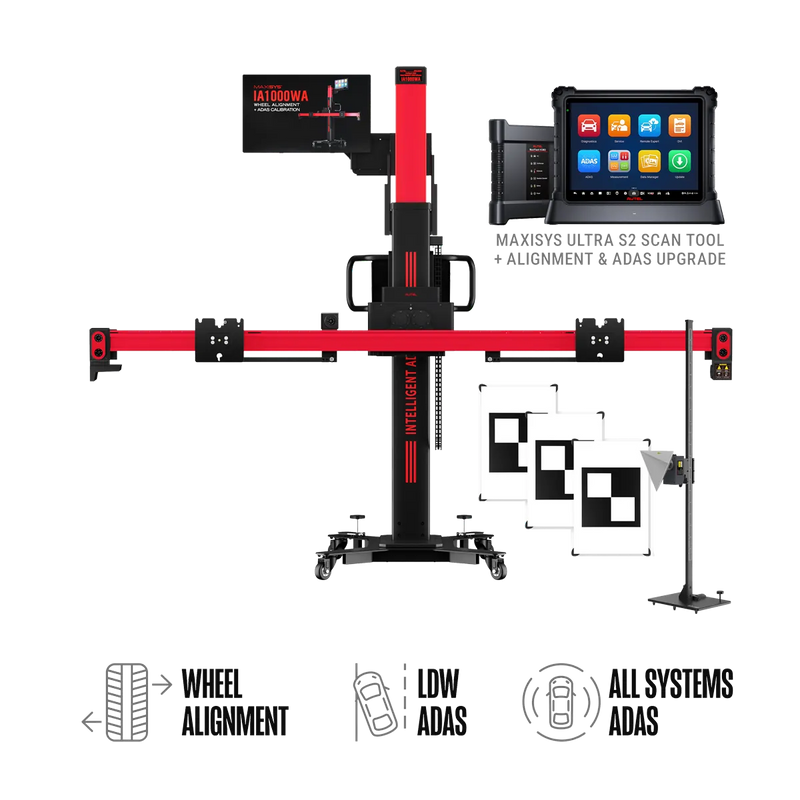

The Autel MaxiSYS IA1000LDWTDT is a complete automated ADAS calibration and four-wheel alignment system that combines the IA1000 robotic frame, MaxiSYS Ultra S2 diagnostic tablet, physical LDW targets, and three 27-inch digital target monitors. Designed for collision centers, dealerships, and ADAS calibration specialists, it brings alignment, diagnostics, and sensor calibration into one workflow. With five-way robotic target positioning, six high-definition cameras, and 0.02° alignment accuracy, the IA1000LDWTDT reduces setup time while helping technicians perform repeatable OEM-based calibrations.

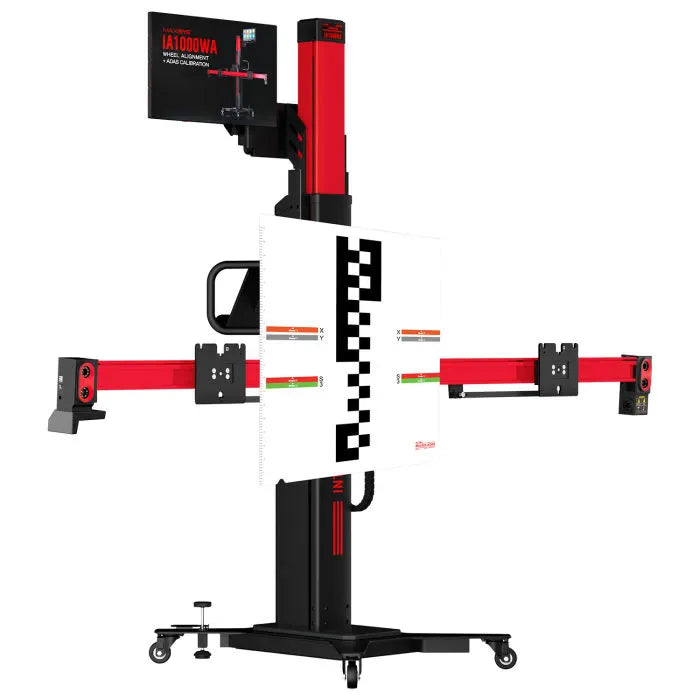

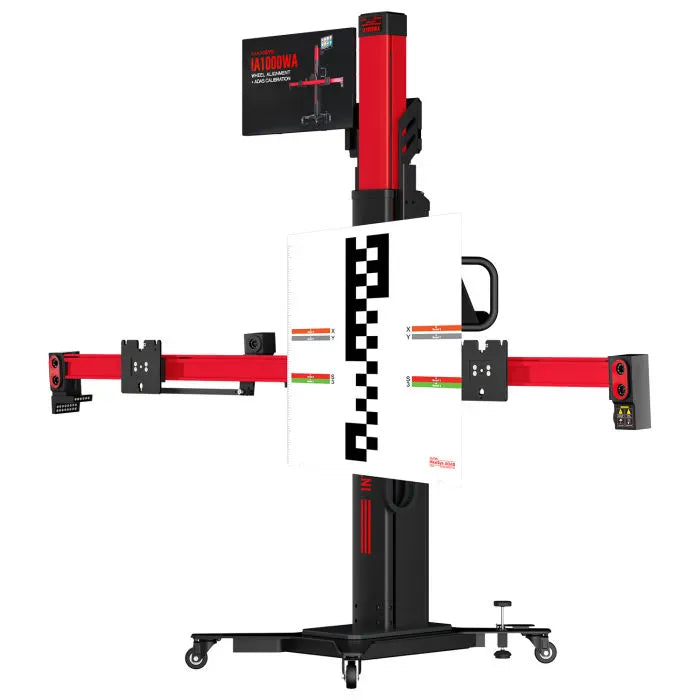

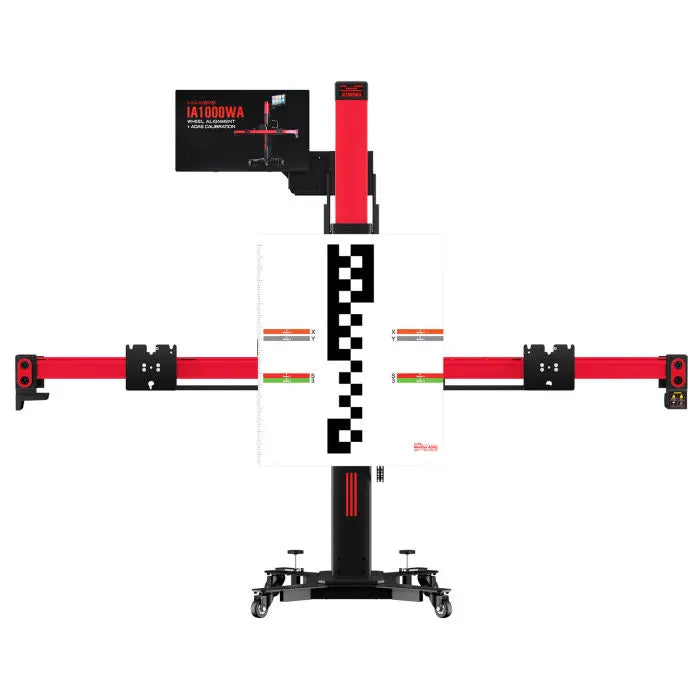

The IA1000 frame automates the most time-consuming part of ADAS calibration with robotic front-to-back, vertical, horizontal, pitch, roll, and yaw adjustments. Six cameras track the vehicle and frame position, while laser-guided placement manages AVM, ACC, NVS, and BSD patterns. The included digital LDW target monitors automatically display OEM calibration patterns, eliminating the need to store and manually swap multiple physical target boards. Self-adjusting screen brightness and OTA updates help maintain consistent target visibility and updated coverage. Automated floor compensation allows calibration on level floors, uneven shop surfaces, or vehicle racks.
Built for modern repair facilities, the IA1000LDWTDT combines advanced alignment data, diagnostics, and ADAS calibration in a single system. The included MaxiSYS Ultra S2 tablet with MaxiFlash VCMI2 provides Topology 3.0 network analysis, ECU testing, coding, adaptations, and vehicle diagnostics for U.S., Asian, and European vehicles from 1996 and newer. Pre-scan and post-scan reports document faults, completed calibrations, and validated target positions for insurance records and repair documentation. The scalable platform also supports additional ADAS calibration packages, including radar, lidar, and night vision, as shop needs expand.
Features
5-Way Robotic Forward-Facing Target Positioning
Optical Camera & Laser-Guided Floor Pattern Positioning
Supports U.S., Asian, and European passenger vehicles from model year 1996 and newer. The system provides static and dynamic calibration coverage for a wide range of ADAS technologies, including cameras, radar, LIDAR, Night Vision, Around View Monitoring (AVM), Rear Collision Warning, Blind Spot Monitoring, Adaptive Cruise Control (ACC), and Lane Departure Warning (LDW) systems. Coverage continues to expand through the MaxiSYS Ultra S2 software with seamless OTA updates as Autel releases additional OEM-sourced targets and calibration data.
What's Included
IA1000 Calibration Frame with attached 24" touchscreen display
MaxiSYS Ultra S2 Tablet
MaxiFlash VCMI2 6-in-1 vehicle communication and measurement device
The IA1000AST system includes a one-year limited warranty. The package also includes one year of MaxiSYS Ultra S2 software updates from the date of activation. After the included update period, continued access to software and coverage updates is available through Autel’s software-update subscription.
FAQ
Which ADAS systems can the IA1000AST calibrate?

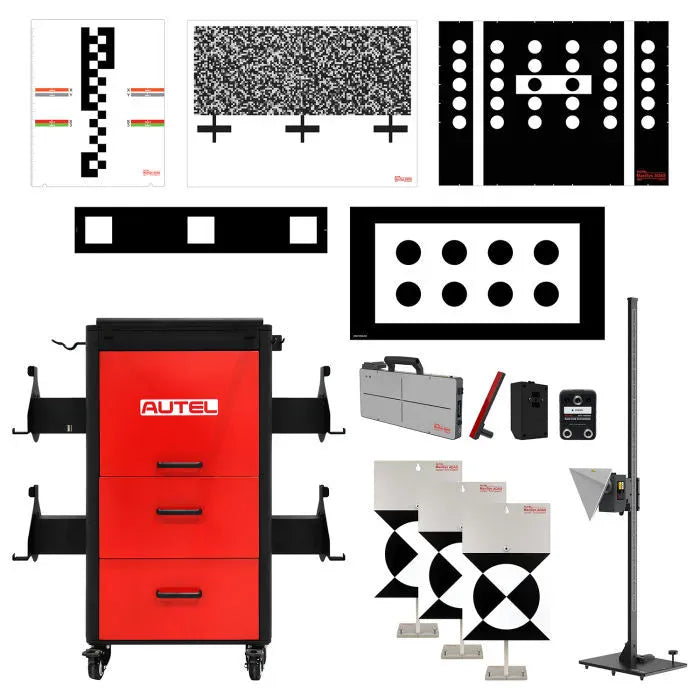

The IA1000AST supports static and dynamic calibration for a wide range of ADAS systems, including cameras, radar, LIDAR, Night Vision, Around View Monitoring (AVM), Rear Collision Warning, Blind Spot Detection (BSD), Adaptive Cruise Control (ACC), and Lane Departure Warning (LDW). The All-Systems Calibration Equipment package includes the physical LDW targets required for standard static calibrations on U.S., Asian, and European vehicles.
Does the IA1000AST include the tablet, or is it a frame-only package?

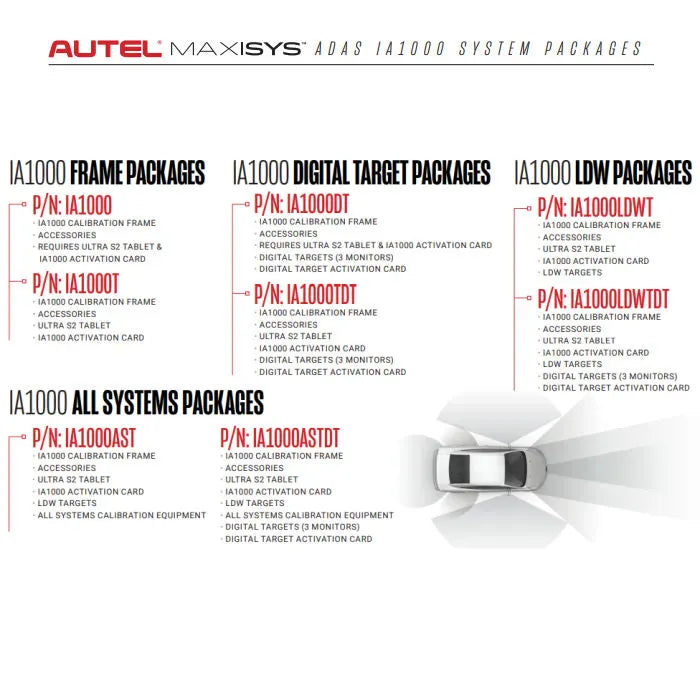

The IA1000AST package includes the MaxiSYS Ultra S2 tablet, MaxiFlash VCMI2, and IA1000 activation card. The frame-only IA1000 package (without tablet or activation card) and the IA1000T package (tablet included without LDW targets or All-Systems equipment) are available separately.
Does it work on uneven shop floors?
Yes. During setup, the tablet allows technicians to select level floor, unlevel floor, or on-rack conditions. The system compensates for floor slope or rack tilt during the calibration process, allowing accurate setup without requiring a perfectly level surface.
Can I add digital LDW target monitors later?
Yes. The IA1000AST comes with physical LDW targets and supports optional 27-inch attachable digital target monitors. These monitors automatically display calibration-specific targets, reducing the need for physical target storage and manual target handling.
What is the accuracy specification?
Autel specifies 0.02° accuracy for the IA1000 system, achieved through its six high-definition cameras and precision-engineered wheel clamp targets.
