Autel IA1000DT Automated ADAS Calibration & Wheel Alignment System with Digital LDW Targets

The Autel MaxiSYS IA1000DT is a digital-target ADAS calibration and wheel alignment system designed for collision centers, dealerships, and high-volume repair facilities that need faster, repeatable sensor calibration workflows. This package combines the automated IA1000 robotic calibration frame with three 27-inch digital LDW target monitors, replacing multiple physical Lane Departure Warning targets with OEM-based patterns displayed directly on the screens. The package includes the frame, digital targets, and Digital Target Activation Card, but does not include the MaxiSYS Ultra S2 tablet or IA1000 Activation Card, which are required separately.

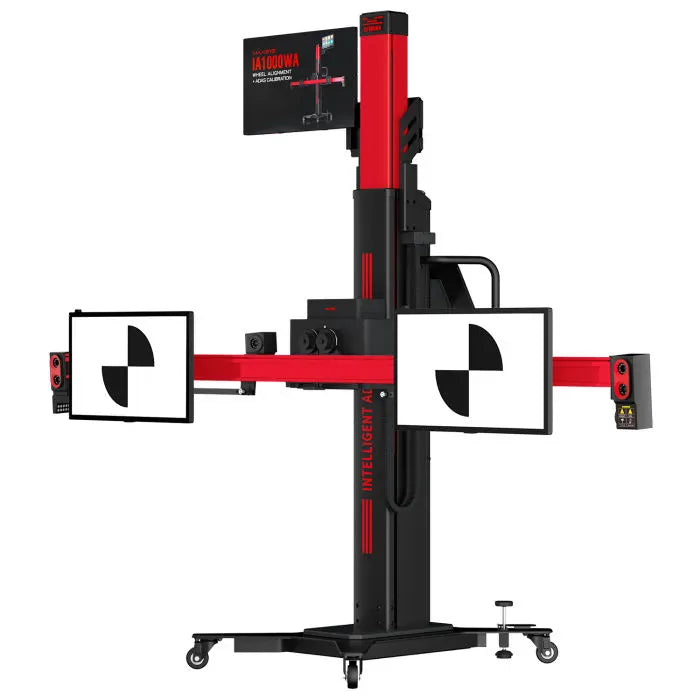

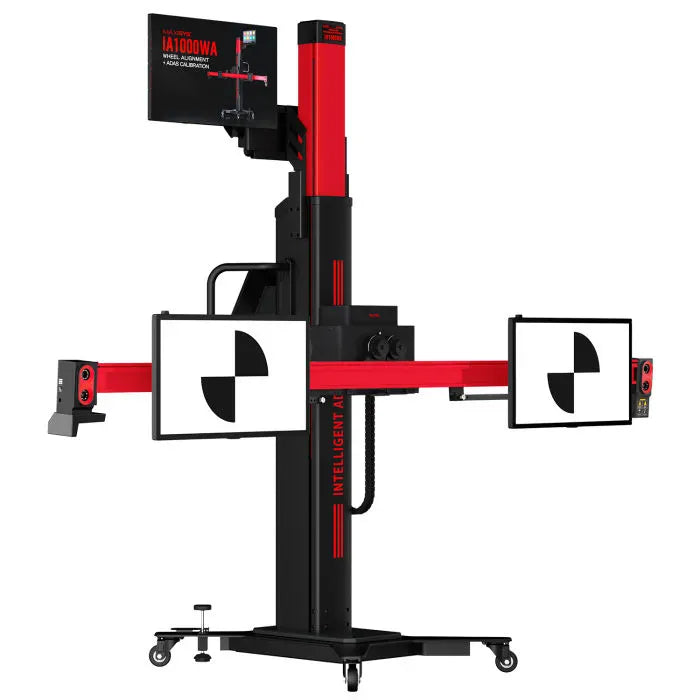

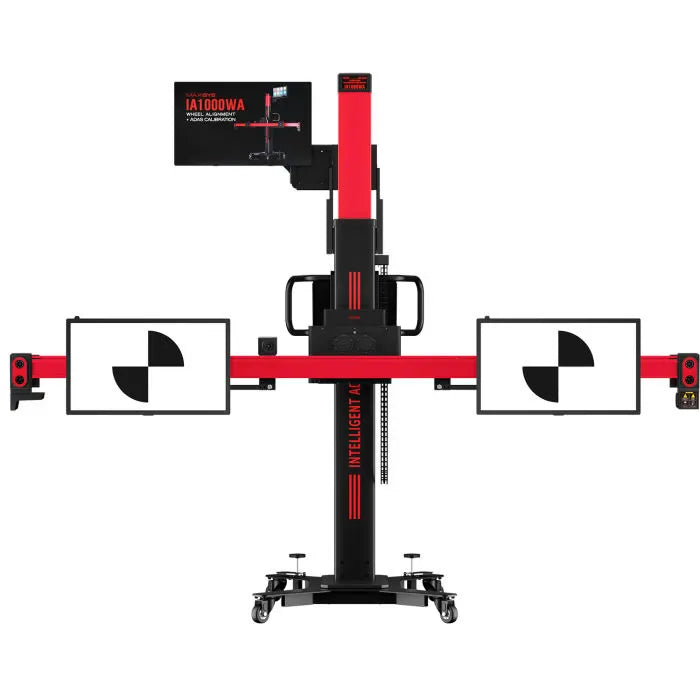

The IA1000 frame uses five-way robotic target positioning, six high-definition cameras, and laser-guided pattern placement to automate ADAS setup. The system adjusts target position front-to-back, vertically, horizontally, pitch, roll, and yaw, reducing manual measuring and repositioning. Digital target monitors automatically display the correct OEM LDW pattern selected through the tablet, while automatic brightness adjustment and OTA updates help keep the target library current. Unlevel floor compensation allows calibration on sloped floors, racks, or uneven shop surfaces without relocating the vehicle.

Built for shops servicing modern vehicles, the IA1000DT supports static and dynamic ADAS calibration workflows when paired with the required software and targets. It provides detailed alignment measurements beyond camber, caster, and toe, including thrust angle, SAI, included angle, toe-out on turns, ride height, and setback. Pre- and post-scan reports document calibration results, target positioning, and vehicle faults for repair records and insurance documentation. It is an ideal foundation for collision repair facilities, ADAS specialists, and dealerships looking to expand calibration capabilities while reducing setup time.

Features

• Fully robotic 5-way target positioning with automatic fine adjustments

• Six HD cameras (3072 × 2048) for real-time frame and vehicle tracking

• Laser-guided placement for AVM, ACC, NVS, and BSD patterns

• 0.02° wheel-alignment accuracy with wheel-clamp targets

• Digital LDW target monitors with automatic OEM pattern projection (IA1000DT)

• OTA updates keep digital target libraries current

• Automatic compensation for level, unlevel floors, and rack setups

• Advanced alignment measurements: thrust angle, SAI, toe-out on turns, ride height, setback, and more

• Pre- and post-scan reports with target validation and calibration records

• Supports static and dynamic calibration for LDW, BSD, ACC, AVM, Night Vision, and HUD systems

• Compatible with U.S., Asian, and European vehicles (coverage depends on software and targets)

Compatibility

The IA1000DT includes the frame and digital target system. Required separately:

• MaxiSYS Ultra S2 tablet — runs diagnostics and calibration software

• IA1000 Activation Card — enables wheel alignment and ADAS functions

• Digital Target Activation Card — included, unlocks 19 CSC digital LDW targets

Supports U.S., Asian, and European vehicles. Additional OEM target coverage is expanded through Autel software updates and available calibration packages.

What's Included

• IA1000 Calibration Frame (CSC1000) with robotic positioning and six HD cameras

• Three 27-inch digital LDW target monitors

• Digital Target Activation Card (19 CSC LDW targets)

• Steering wheel lock

• Brake pedal depressor

• Distance target/alignment aid

• Two AVM modules with lasers

• Two wheel chocks

• Four tire clamps with alignment targets

• 5 mm hex L-wrench

• Packing list and Quick Reference Guides

Specifications

Warranty

• 1-year limited Autel warranty covering defects under normal use.

• Repair or replacement is provided with proof of purchase.

• Excludes misuse, unauthorized modifications, extreme conditions, external damage, and cosmetic/structural damage.

FAQ

What is the difference between IA1000DT and other IA1000 packages?

• IA1000DT: Frame + digital targets only

• IA1000TDT: Adds Ultra S2 tablet and activation card

• IA1000LDWTDT: Adds tablet and physical LDW targets

• IA1000ASTDT: Full All Systems package with tablet, digital targets, physical targets, and calibration equipment

What else is required?

• MaxiSYS Ultra S2 tablet (sold separately)

• IA1000 Activation Card (sold separately)

• Digital Target Activation Card included

How much space is needed?

• Frame setup: 13.2 ft × 17.5 ft

• Full alignment + ADAS workflow: 32.8 ft × 16.4 ft

Does it require special power?
No. Uses standard grounded shop power (100–264 V AC, 50/60 Hz).

What do digital targets cover?
The included Digital Target Activation Card unlocks 19 CSC LDW patterns. Other ADAS systems like AVM, RCW, radar, lidar, and night vision require additional physical targets and calibration packages.
