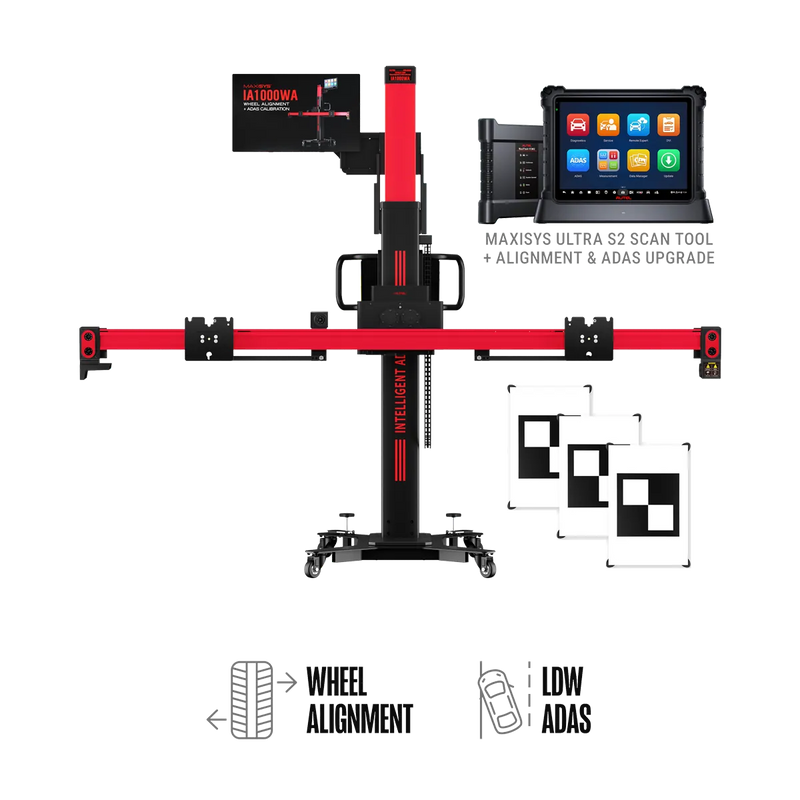

Autel IA1000LDWT Automated ADAS Calibration & Wheel Alignment System with MaxiSYS Ultra S2 Tablet and LDW Targets

The Autel IA1000LDWT combines four-wheel alignment, ADAS calibration, and advanced diagnostics into a single robotic workflow designed for modern repair facilities. Powered by the included MaxiSYS Ultra S2 tablet with MaxiFlash VCMI2, this system automates ADAS target positioning, provides laser-guided calibration setup, and generates documented pre- and post-scan reports for OEM-level service records. The LDWT package includes the physical Lane Departure Warning (LDW) target kit, making it ready for static LDW calibrations while maintaining the option to upgrade to digital targets later.

What makes the IA1000LDWT different is its automated calibration process. The technician simply positions the frame within the tablet’s green Distance and Offset tolerance zone, and the system handles the critical adjustments automatically. The 5-way robotic positioning system manages vertical and horizontal movement, front-to-back adjustment, pitch, roll, yaw, and LDW target spread, eliminating manual measuring and repeated repositioning. Combined with six high-definition cameras and precision wheel-clamp targets, it achieves accurate vehicle-to-frame mapping while compensating for uneven shop floors, alignment racks, and drainage slopes.

The included MaxiSYS Ultra S2 with MaxiFlash VCMI2 expands the system beyond alignment and calibration. It provides advanced diagnostics for U.S., Asian, and European vehicles from 1996 and newer, including active tests, coding, adaptations, topology mapping, and module communication checks. The system also supports OEM-based calibration procedures with digital Go-No-Go validation, helping prevent incorrect target placement before completing a calibration.

This solution is built for ADAS calibration centers, dealership service departments, collision repair facilities, and advanced automotive shops that need a complete alignment-to-calibration workflow. With validated reporting, OTA software updates, and upgrade compatibility for digital targets and additional accessories, the IA1000LDWT is designed for shops preparing for the growing demand for ADAS-equipped vehicle service.

Feature

• 5-way robotic target positioning with automatic pitch, roll, yaw, height, and distance adjustment

• Six HD cameras with 0.02° positioning accuracy

• Laser-guided AVM, ACC, NVS, and BSD target placement

• MaxiSYS Ultra S2 tablet with MaxiFlash VCMI2 for advanced diagnostics

• Supports active tests, coding, adaptations, Topology 3.0, and Remote Expert

• Advanced alignment measurements: thrust angle, SAI, toe-out on turns, and more

• Automatic compensation for level floors, uneven floors, and lift setups

• Pre- and post-scan reports with target validation and calibration records

• OEM-sourced calibration procedures with Go/No-Go verification

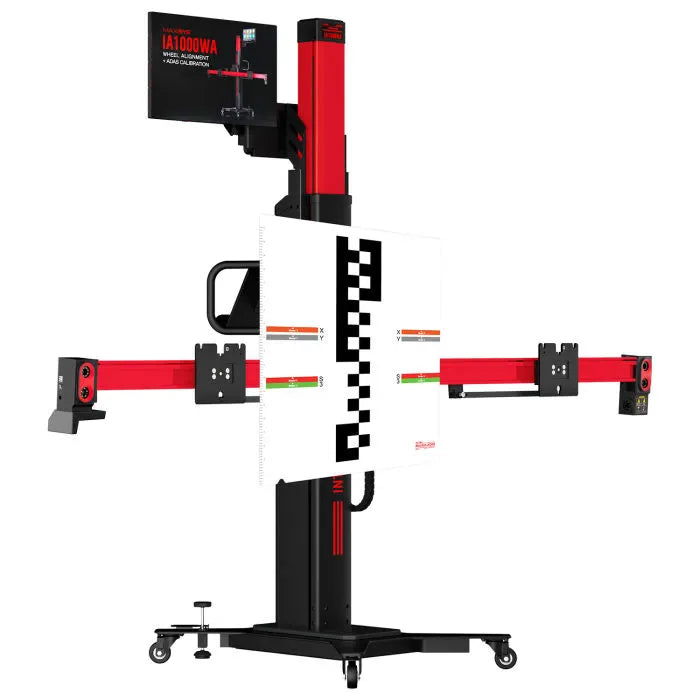

• Physical LDW targets included; supports optional digital target upgrades

• OTA updates for software and vehicle coverage

Compatibility

• Supports U.S., Asian, and European vehicles (1996+)

• Includes LDW coverage for Mercedes-Benz, Nissan, Infiniti, Hyundai, Kia, Toyota, Lexus, Mazda, Mitsubishi, Subaru, Volkswagen, Audi, and Alfa Romeo

• Supports additional AVM and RCW coverage with compatible targets

• Compatible with MaxiSYS Ultra tablet ecosystem

• Upgradeable with digital targets and All Systems calibration packages

What's Included

• IA1000 Calibration Frame (CSC1000)

• MaxiSYS Ultra S2 Tablet with MaxiFlash VCMI2

• IA1000 Activation Card

• LDW Physical Target Kit

• Steering Wheel Lock

• Brake Lock

• Distance Target

• 2 × AVM Modules

• 2 × Wheel Chocks

• 4 × Tire Clamps

Specifications

Warranty

The Autel IA1000 system includes a one-year limited warranty covering defects in materials and workmanship. The package also includes one year of MaxiSYS Ultra S2 software updates. After the included update period, continued software access can be renewed through the Autel IA1000WAUP activation card.

Documents

• MaxiSYS Intelligent ADAS IA1000WA User Manual (PDF)
• Autel IA1000 ADAS Calibration & Wheel Alignment Systems Brochure (PDF)
• IA1000 Package List (Without Digital Target Monitor) (PDF)
• IA1000 AVM Package List & Quick Reference Guide (PDF)

Shipping & Delivery: The IA1000 ships via freight on a single pallet. The calibration frame folds down to 800 × 1000 × 1900 mm for easier transport and storage. Contact support@carliftsupply.com or call 877-600-5227 to confirm lead times, schedule delivery, and discuss available installation or training options for your shop.
