The Autel MaxiSYS IA1000LDWTDT is a complete automated ADAS calibration and four-wheel alignment system that combines the IA1000 robotic frame, MaxiSYS Ultra S2 diagnostic tablet, physical LDW targets, and three 27-inch digital target monitors. Designed for collision centers, dealerships, and ADAS calibration specialists, it brings alignment, diagnostics, and sensor calibration into one workflow. With five-way robotic target positioning, six high-definition cameras, and 0.02° alignment accuracy, the IA1000LDWTDT reduces setup time while helping technicians perform repeatable OEM-based calibrations.

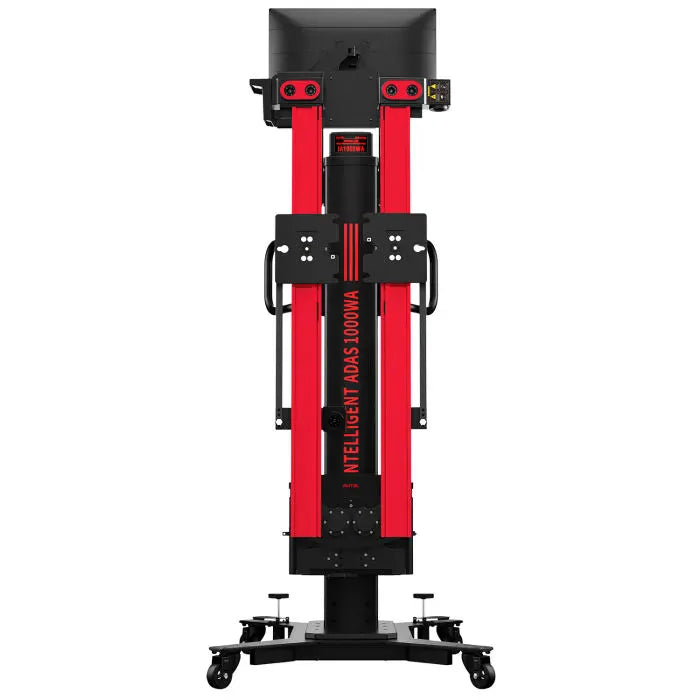

The IA1000 frame automates the most time-consuming part of ADAS calibration with robotic front-to-back, vertical, horizontal, pitch, roll, and yaw adjustments. Six cameras track the vehicle and frame position, while laser-guided placement manages AVM, ACC, NVS, and BSD patterns. The included digital LDW target monitors automatically display OEM calibration patterns, eliminating the need to store and manually swap multiple physical target boards. Self-adjusting screen brightness and OTA updates help maintain consistent target visibility and updated coverage. Automated floor compensation allows calibration on level floors, uneven shop surfaces, or vehicle racks.
Built for modern repair facilities, the IA1000LDWTDT combines advanced alignment data, diagnostics, and ADAS calibration in a single system. The included MaxiSYS Ultra S2 tablet with MaxiFlash VCMI2 provides Topology 3.0 network analysis, ECU testing, coding, adaptations, and vehicle diagnostics for U.S., Asian, and European vehicles from 1996 and newer. Pre-scan and post-scan reports document faults, completed calibrations, and validated target positions for insurance records and repair documentation. The scalable platform also supports additional ADAS calibration packages, including radar, lidar, and night vision, as shop needs expand.
Features
Fully Robotic Calibration
-

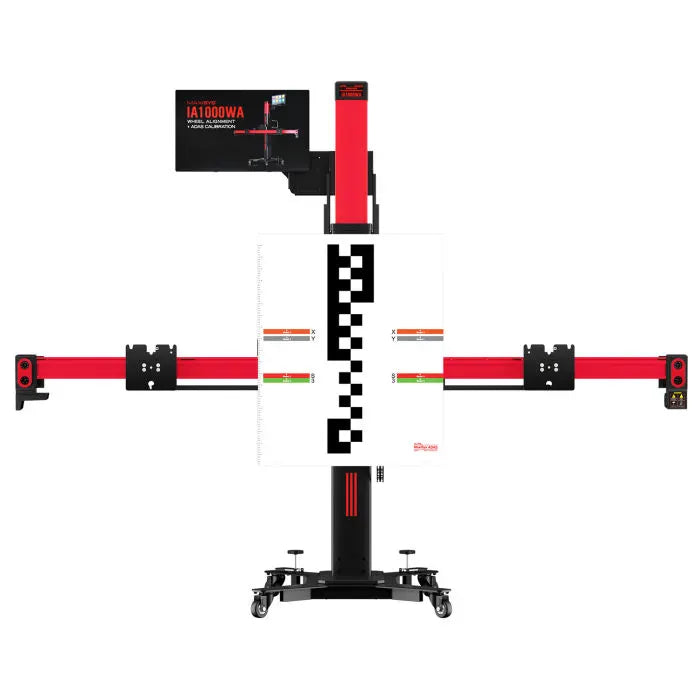

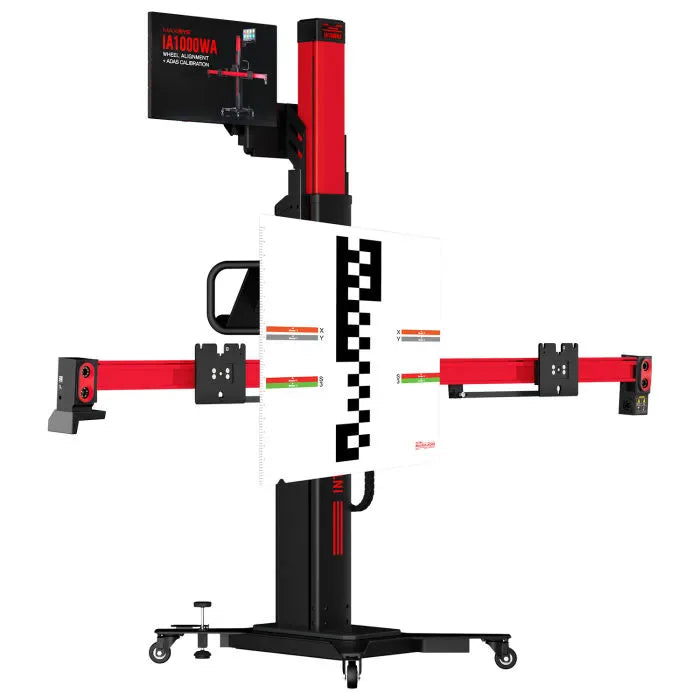

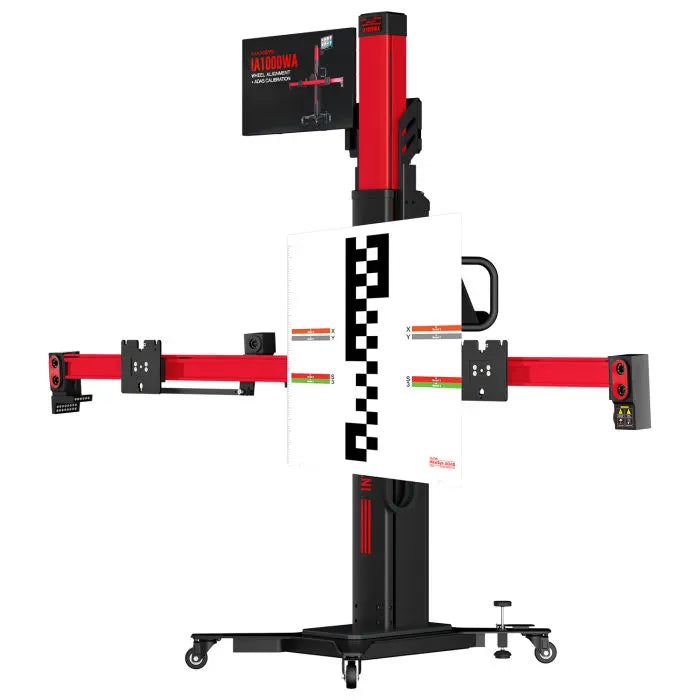

Automated 5-way target positioning with front-to-back, vertical, horizontal, pitch, roll, and yaw adjustments
-
Reduces setup time and improves calibration accuracy
HD Cameras & Laser Positioning
-
Six HD tracking cameras (3072 × 2048 pixels each) monitor vehicle and frame position
-
Laser-guided placement for AVM, ACC, NVS, and BSD calibration patterns
Digital LDW Target Monitors
MaxiSYS Ultra S2 + VCMI2
-
13.7-inch diagnostic tablet with 512 GB storage
-
Advanced diagnostics, coding, adaptations, Topology 3.0, and ECU communication testing
-
Includes IA1000 and Digital Target activation cards
Advanced Wheel Alignment
-
Measures camber, caster, toe, thrust angle, SAI, and toe-out on turns
-
Helps diagnose chassis, frame, and suspension issues
Unlevel Floor Compensation
-
Supports level floor, unlevel floor, and on-rack calibration modes
-
Maintains accuracy in real shop environments
Reporting & Support
-

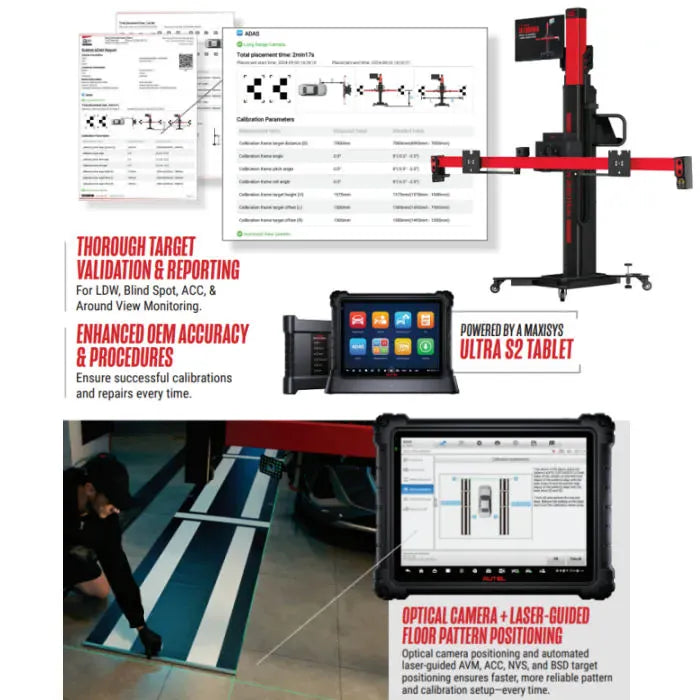

Pre- and post-scan reports for documentation and compliance
-
Digital Go/No-Go target validation
-
Remote Expert and Guided ADAS support available
Compatibility
The IA1000 supports U.S., Asian, and European vehicles from 1996 and newer.
ADAS coverage includes:
-
LDW targets and patterns: Mercedes-Benz, Nissan, Infiniti, Hyundai, Kia, Toyota, Lexus, Mazda, Mitsubishi, Subaru, Volkswagen, Audi, and Alfa Romeo
-
RCW and AVM mats: Nissan, Mercedes-Benz, Volkswagen, Honda, General Motors, Toyota, and Mitsubishi
-
Additional calibration options: Radar, Lidar, and Night Vision systems
The IA1000 is compatible with the MaxiSYS Ultra Tablet Series for diagnostics and ADAS calibration workflows.
What’s Included

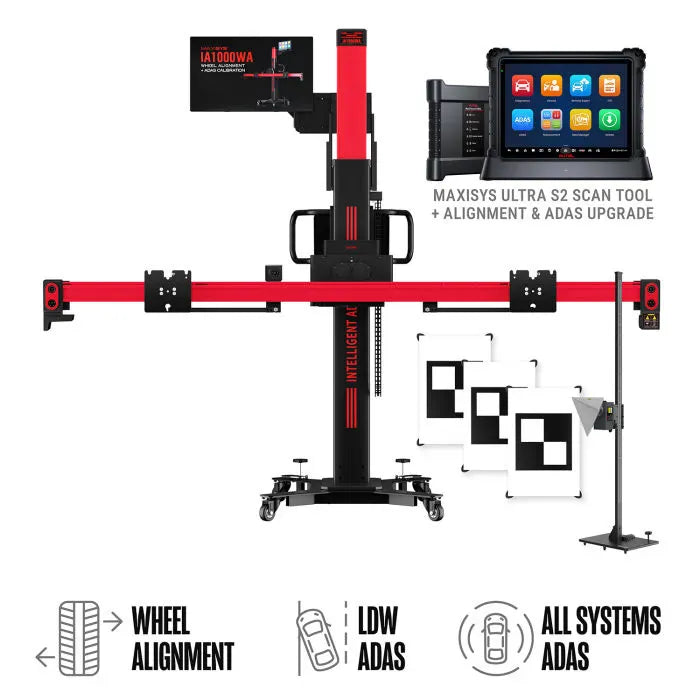

- IA1000 Calibration Frame (model AUTEL-CSC1000)
- MaxiSYS Ultra S2 Tablet
- IA1000 Activation Card (wheel alignment and ADAS software)
- LDW Targets (physical)
- Digital Targets — three 27-inch attachable monitors
- Digital Target Activation Card
- Accessory kit: Steering Wheel Lock, Brake Lock, two Wheel Chocks, Distance Target, two AVM Modules, four Tire Clamps
Specifications
| Autel IA1000LDWTDT Specifications |
| Model (Calibration Frame) |
AUTEL-CSC1000 |
| Cameras |
6 HD positioning and tracking cameras |
| Single Camera Resolution |
3072 × 2048 |
| Wheel Alignment Accuracy |
0.02° |
| Rated Power |
360 W |
| Power Supply |
100–264 V, 50/60 Hz |
| Calibration Frame Folded Dimensions |
800 × 1000 × 1900 mm (31.50 × 39.37 × 74.80 in) |
| Crossbar Length, Unfolded |
2700 mm (106.30 in) |
| Crossbar Length, Folded |
400 mm (15.75 in) |
| Calibration Frame Height Range |
1670–2770 mm (65.75–109.06 in) |
| Crossbar Height Range |
300–2500 mm (11.81–98.43 in) |
| Operating Temperature |
-10 to 50 °C (14 to 122 °F) |
| Storage Temperature |
-20 to 60 °C (-4 to 140 °F) |
| Compatible Tablet |
MaxiSYS Ultra Tablet Series (MaxiSYS Ultra S2 included) |
FAQ
What vehicles does the IA1000 cover?
The IA1000 supports U.S., Asian, and European vehicles from 1996 and newer for wheel alignment and ADAS calibration across major vehicle brands.
Can the IA1000 perform both wheel alignment and ADAS calibration?
Yes. The IA1000 combines four-wheel alignment and ADAS calibration in one workflow using the same frame and tablet.
Does the IA1000 require a level shop floor?
No. The system includes Unlevel Floor Compensation, allowing technicians to select level floor, unlevel floor, or on-rack operation for accurate calibration.
What does the digital LDW target system replace?
The three 27-inch digital monitors automatically display OEM-specific Lane Departure Warning targets, reducing the need for multiple physical target boards and manual target selection. Physical LDW targets are still included with this package.
Does the IA1000 require an OE subscription?
No. Most calibrations use Autel’s OEM-sourced coverage library. For vehicles requiring OE software or additional support, Remote Expert connects technicians with OE tools and experts, while Guided ADAS supports workflows using local OE software.
Documents
Manuals, brochures, and package documentation are available below. Additional technical documents can be provided upon request. Contact support@carliftsupply.com or call 877-600-5227 for more information.
Authorized Dealer - Full Warranty Included
