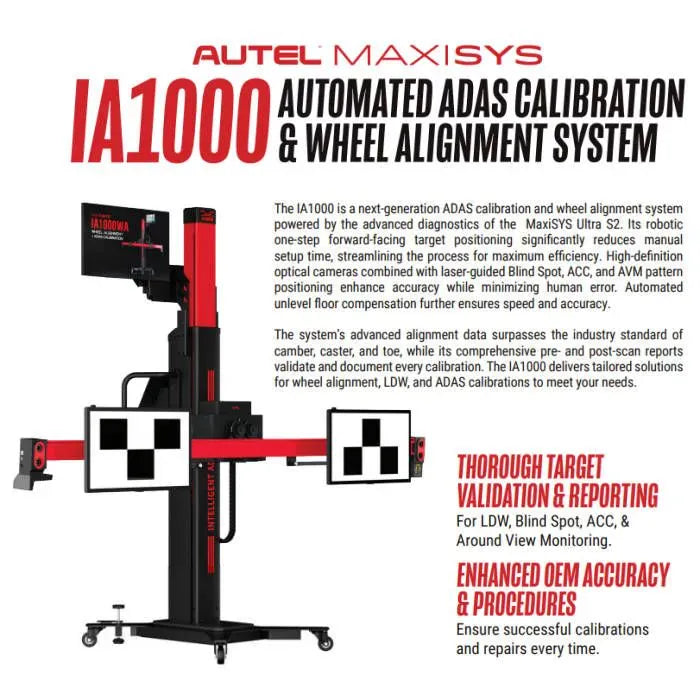

The Autel MaxiSYS IA1000TDT is a complete automated ADAS calibration and wheel alignment system that combines the IA1000 robotic calibration frame, MaxiSYS Ultra S2 diagnostic tablet, and digital target technology into one workflow. Designed for collision centers, dealerships, and high-volume repair facilities, it performs alignment, diagnostics, and ADAS calibration from a single platform. With five-way robotic target positioning, six high-definition cameras, and 0.02° alignment accuracy, the IA1000TDT reduces manual setup time while helping technicians follow OEM calibration procedures with repeatable results.
The IA1000TDT uses robotic front-to-back, vertical, horizontal, pitch, roll, and yaw adjustments to position ADAS targets automatically after the technician places the frame within the tablet-guided setup zone. Six optical cameras track vehicle and frame position, while laser-guided placement manages AVM, ACC, NVS, and BSD patterns. The included three digital LDW target monitors replace multiple physical targets by automatically displaying the correct OEM pattern, with self-adjusting brightness and OTA updates to keep the target library current. Automated floor compensation also allows calibration on level floors, sloped bays, or vehicle racks.
Built for modern repair facilities, the IA1000TDT combines advanced alignment measurements, diagnostics, and ADAS service in one system. The included MaxiSYS Ultra S2 tablet provides Topology 3.0 network analysis, active module testing, coding, adaptations, and OEM-based calibration procedures for U.S., Asian, and European vehicles from 1996 and newer. Pre-scan and post-scan reports document vehicle faults, completed calibrations, and validated target positions for insurance records and repair documentation. The system can also expand with additional ADAS targets and packages as shop requirements grow.
Features
5-way robotic target positioning for automated ADAS setup
Six HD cameras with laser-guided target placement
Digital LDW target monitors with automatic OEM pattern projection
OTA updates keep digital target coverage current
Advanced wheel alignment measurements: camber, caster, toe, thrust angle, SAI, and more
Automatic compensation for level floors, uneven floors, and lift setups
MaxiSYS Ultra S2 tablet with advanced diagnostics, Topology 3.0, coding, and adaptations
Pre- and post-scan reports for documentation and compliance
Supports ADAS calibration and wheel alignment in one workflow

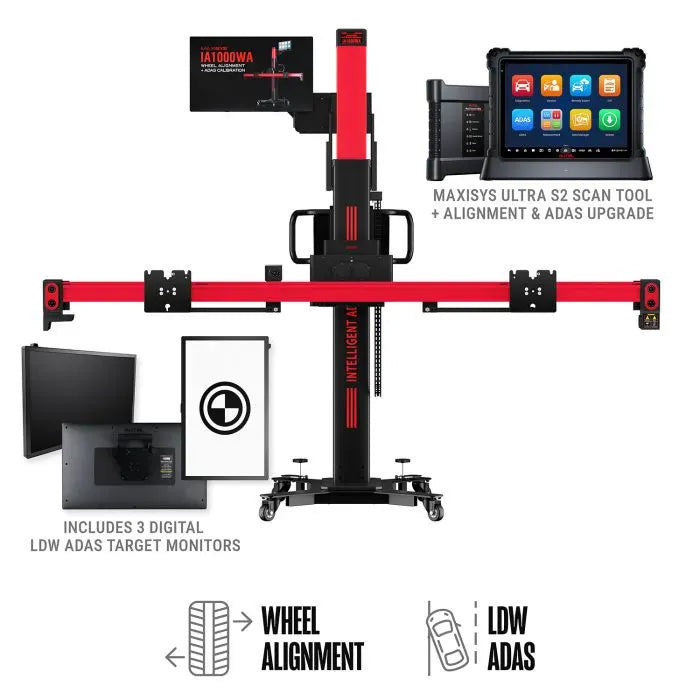

What's Included
IA1000 calibration frame
MaxiSYS Ultra S2 diagnostic tablet
IA1000 activation card
Three digital LDW target monitors
Digital target activation card
Steering wheel lock
Brake lock
Two wheel chocks
Distance target
Two AVM modules
Four tire clamps
IA1000TDT Package
Digital-targets + tablet configuration for shops needing automated LDW target projection. The IA1000 platform is available in multiple configurations with options for physical LDW targets, digital targets, and All Systems calibration coverage.
MaxiSYS Ultra S2 tablet, IA1000 activation card, physical LDW targets, digital targets (3 monitors), digital target activation card
IA1000AST
All Systems package: tablet, IA1000 activation card, physical LDW targets, all-systems calibration equipment
IA1000ASTDT
All Systems package plus digital targets (3 monitors) and digital target activation card
Specifications
Autel IA1000TDT Specifications
Supplier model number
AUTEL-CSC1000
Rated power
360 W
Power supply
100–264 V, 50/60 Hz
Calibration frame folded dimensions
800 × 1000 × 1900 mm (31.50" × 39.37" × 74.80")
Crossbar unfolded length
2700 mm (106.30")
Crossbar folded length
400 mm (15.75")
Calibration frame height range
1670–2770 mm (65.75"–109.06")
Crossbar height range
300–2500 mm (11.81"–98.43")
Camera count
6
Camera resolution
3072 × 2048 each
Alignment accuracy
0.02°
Operating temperature
-10° to 50°C (14° to 122°F)
Storage temperature
-20° to 60°C (-4° to 140°F)
Diagnostic tablet
MaxiSYS Ultra S2 (13.7" touchscreen, 512 GB)
Diagnostic communication device
MaxiFlash VCMI2 6-in-1
Vehicle coverage
U.S., Asian, European vehicles, 1996 and newer
FAQ
Does the IA1000TDT include physical LDW targets? No. It includes three digital LDW target monitors. Physical LDW targets are sold separately for additional vehicle coverage.
Which vehicles are supported by the digital LDW targets? The digital library covers Mercedes-Benz, Honda, Nissan, Infiniti, Toyota, Mazda, Mitsubishi, Maserati, Hyundai, Kia, and Subaru. OTA updates add future coverage.
Does the IA1000 perform alignment and ADAS calibration? Yes. It combines four-wheel alignment and ADAS calibration in one workflow, including advanced measurements and diagnostics.
Can it calibrate on uneven floors or lifts? Yes. The system supports level floor, uneven floor, and on-rack calibration with automatic compensation.
What software is included with the MaxiSYS Ultra S2? Includes IA1000 alignment software, ADAS calibration functions, advanced diagnostics, active tests, coding, adaptations, and Topology 3.0 vehicle network analysis.
