Autel IA900AS MaxiSYS All-Systems ADAS Calibration & Wheel Alignment System (Tablet Not Included)

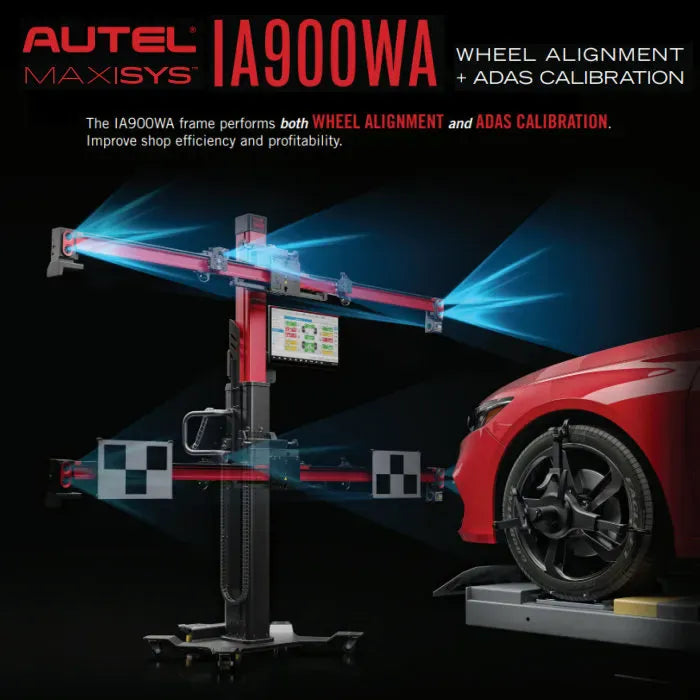

The Autel IA900LDWT combines a 4-wheel alignment system and Lane Departure Warning (LDW) ADAS calibration platform into one integrated setup. Built around the IA900WA frame, it uses six high-resolution positioning cameras to measure alignment angles and position ADAS targets to the vehicle centerline from the same workflow. The package includes LDW target boards and the 12.7-inch MaxiSYS ULTRAADAS wireless tablet with alignment and ADAS calibration software already loaded. Alignment reading accuracy reaches 0.02°, and the system requires only an alignment bay with enough space for the vehicle-specific calibration procedures.

The main advantage is eliminating separate alignment and ADAS stations. The frame’s robotic crossbar movement automatically positions targets according to manufacturer specifications, while the cameras self-calibrate and track vehicle height on the lift to reduce setup adjustments between jobs. Technicians can control the system from either the 12.7-inch wireless tablet or the 24-inch frame-mounted touchscreen, with guided workflows showing live alignment readings, adjustment locations, and required calibration steps. Built-in digital vehicle inspection and pre-scan functions also help document vehicle condition before service begins.

The IA900LDWT is designed for professional repair shops, dealerships, and calibration centers that need to perform modern vehicle alignment and LDW camera calibrations in-house. It supports 1996+ U.S., Asian, and European vehicles and includes vehicle-specific LDW targets for major manufacturers including Toyota/Lexus, Honda/Acura, BMW, Mercedes-Benz, Nissan/Infiniti, Hyundai/Kia, Mazda, Subaru, and others. For shops servicing collision repairs, advanced driver assistance systems, and routine alignment work, this package provides a single platform for expanding ADAS service capabilities.

Features

• One frame for 4-wheel alignment and ADAS calibration

• Six high-resolution cameras for positioning and tracking

• 0.02° alignment accuracy with robotic frame movement

• 24" frame-mounted touchscreen for alignment and ADAS workflows

• Optional MaxiSYS UltraWA tablet control (sold separately)

• Pitch, roll, yaw, and center crossbar adjustments

• Folding crossbar with locking mechanism

• Self-calibrating cameras with automatic vehicle-height tracking

• Built-in cable management and consolidated power supply

• Uneven-floor compensation in all directions

• Coverage for U.S., Asian, and European vehicles (1996+)

Compatibility

Supports all-systems ADAS calibration, including:

• LDW — Lane Departure Warning

• ACC — Adaptive Cruise Control

• LIDAR

• Radar

• NVS — Night Vision

• RCW — Rear Collision Warning

• Lane Watch

• AVM — Around View Monitoring

• BSD — Blind Spot Detection

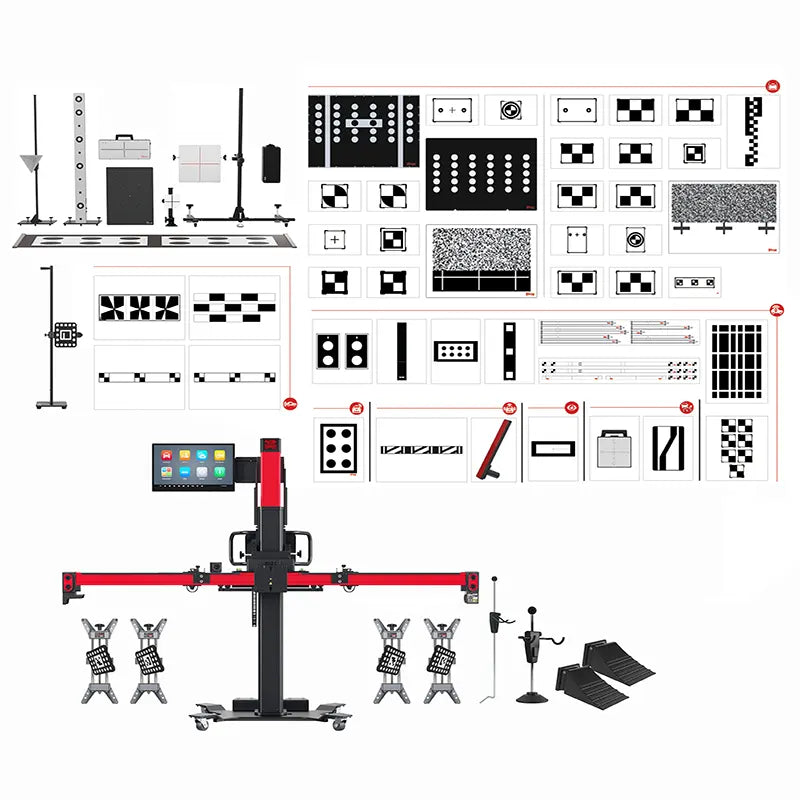

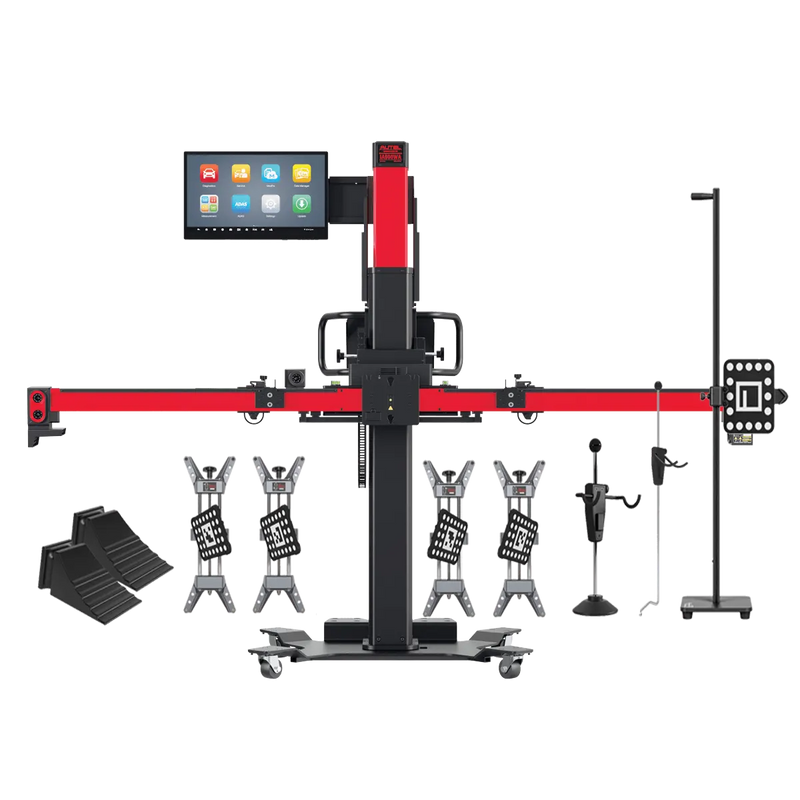

What’s Included

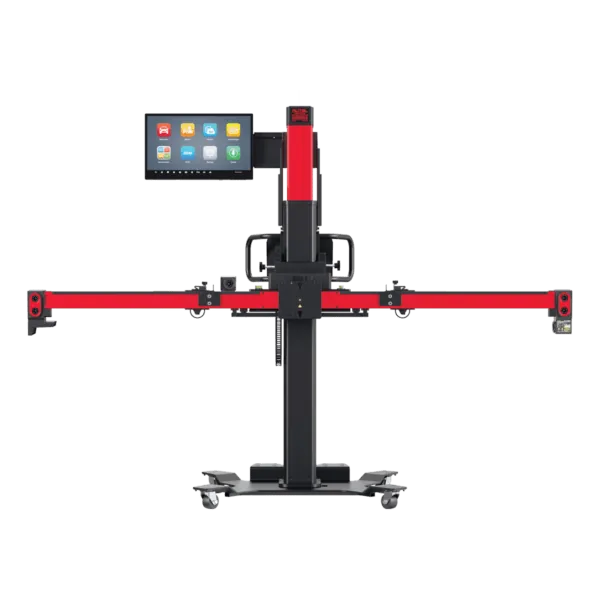

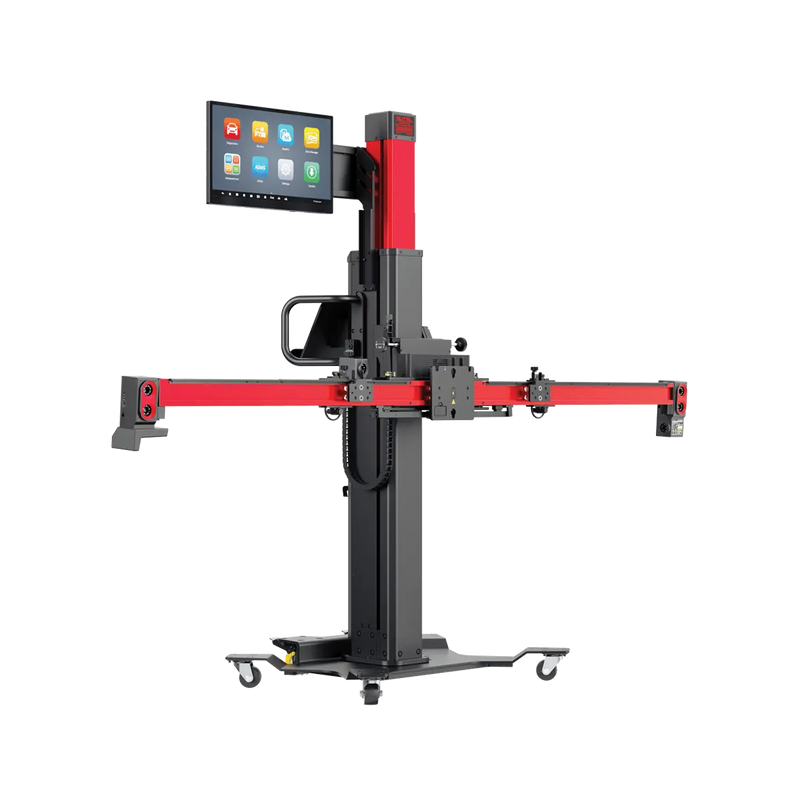

• IA900WA wheel alignment + ADAS calibration frame

• 24" touchscreen display

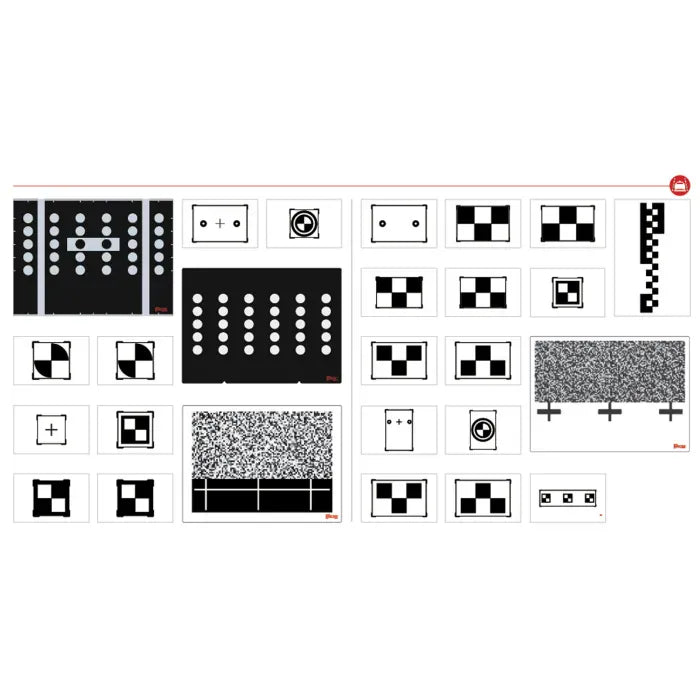

• All Systems ADAS targets, patterns, and components

• LDW target set

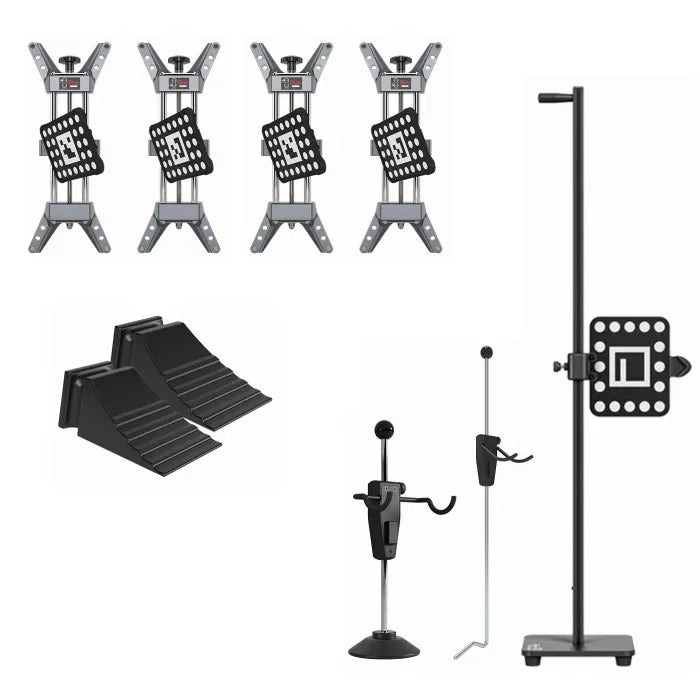

• 4 × wheel clamps with camera targets

• 4 × wheel targets

• Distance target

• Steering wheel lock

• Brake pedal lock

• 2 × wheel chocks

Software

The included 24-inch touchscreen runs both the IA900 Wheel Alignment Software and the IA900 ADAS Calibration Software. The same workstation handles vehicle inspection, alignment measurement, ADAS target placement, and calibration confirmation.

IA900 Wheel Alignment Software

• Vehicle inspection of tires, brakes, suspension, steering, and more
• Mark service recommendations and attach photos, videos, and notes
• Live alignment-reading display
• View all alignment results, rear only, front only, chassis symmetry, and tire diameter
• Illustrated alignment guide with live readings, required tools, and adjustment locations on a single screen

IA900 ADAS Calibration Software

• Frame placement with target position validation
• Step-by-step illustrated full-color instructions walk through the ADAS calibration process
• Set ADAS calibration target height with the push of a button

Specifications

Warranty

• 1-year limited warranty against defects in materials and workmanship

• Covers repair or replacement at Autel’s discretion with proof of purchase or registration

• Excludes damage from misuse, accidents, environmental damage, or unauthorized repairs

FAQ

What is the difference between IA900AS and IA900AST?
IA900AST includes the MaxiSYS Ultra ADAS tablet. IA900AS does not. Both include the IA900WA frame, touchscreen, All Systems targets, LDW targets, and accessories.

Do I need a separate diagnostic tablet?
No. The built-in 24" touchscreen runs alignment and ADAS software. A MaxiSYS UltraWA tablet is optional.

Which ADAS systems are supported?
Supports LDW, ACC, LIDAR, Radar, NVS, RCW, Lane Watch, AVM, and BSD.

What vehicles are covered?
U.S., Asian, and European vehicles from 1996 and newer.

What is the working height range?
The frame operates from 6" to 7 ft and automatically tracks vehicle height while maintaining alignment accuracy.

How does it ship?
Ships via multi-pallet freight. Contact sales for pallet details and delivery requirements.

How do I prepare for setup?
Autel provides a setup video covering receiving, unboxing, and initial frame preparation.

Documents

• MaxiSYS Intelligent ADAS IA900WA User Manual
• MaxiSYS IA900WA All Systems Brochure
• MaxiSYS IA900WA Alignments Without Limits Brochure
• MaxiSYS IA900WA Brochure (Letter Size)
• MaxiSYS IA900WA Brochure (French)
• ADASWAUPGRADE Expansion Package
• MSULTRAADAS Expansion Package
• ADAS Package Comparison Chart
