Autel IA900LDW MaxiSYS ADAS Calibration & 4-Wheel Alignment Frame with LDW Targets Package

The Autel MaxiSYS IA900LDW combines four-wheel alignment and Lane Departure Warning (LDW) ADAS calibration into one platform, allowing shops to perform alignment services and camera calibration without moving the vehicle to a separate aiming system. Built around the IA900WA frame, this package adds the LDW target panels and boards required for forward-facing camera calibrations while maintaining the same workspace and workflow for both services.

The system uses six high-resolution positioning and tracking cameras with alignment accuracy down to 0.02 degrees to monitor vehicle position, target placement, and frame movement throughout the procedure. Its robotic frame controls, self-calibrating cameras, and automatic vehicle-height tracking help maintain calibration accuracy even when working on lifts with uneven floor conditions. The included 24-inch touchscreen display mounts directly to the frame and provides live alignment readings, illustrated instructions, adjustment locations, and ADAS calibration guidance from one workstation.

Designed for collision repair facilities, dealerships, alignment shops, and ADAS service centers, the IA900LDW helps combine two high-value services into a single bay. It supports alignment coverage for U.S., Asian, and European vehicles and includes inspection tools for tires, brakes, suspension, and steering systems. The modular design also allows shops to expand their ADAS capabilities later with additional Autel software and calibration equipment. This package includes the frame and LDW targets but does not include the MaxiSYS Ultra S2 tablet or all-systems ADAS target packages.

Features

• 4-Wheel Alignment + ADAS Calibration
• Six-Camera Positioning System
• Robotic Frame Control
• Integrated Alignment Workflow
• ADAS Calibration Software

Compatibility

• Supports U.S., Asian, and European vehicles.

• Crossbar operating range: 6 inches to 7 feet.

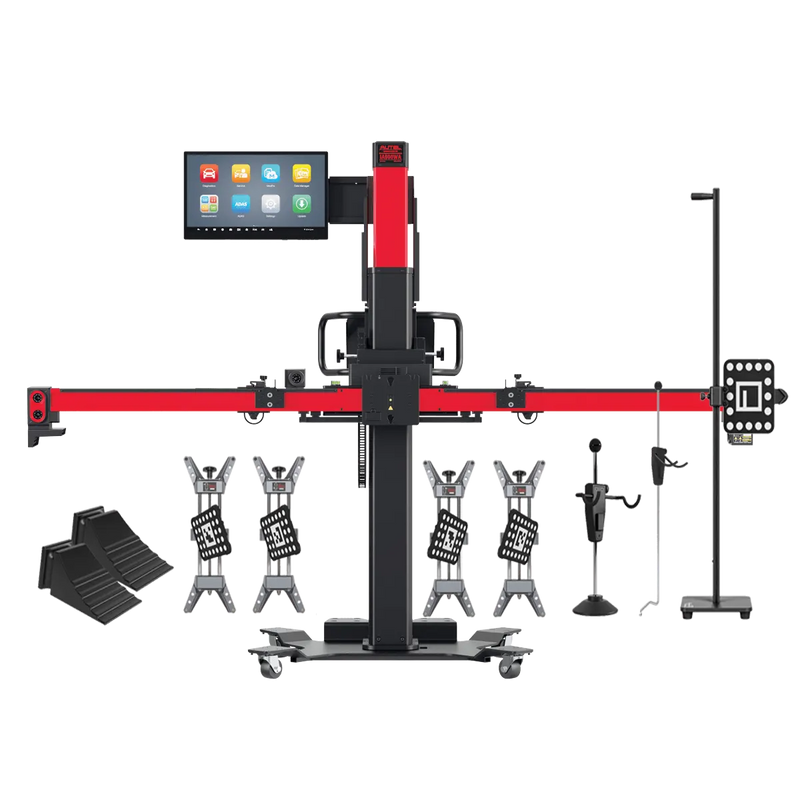

What's Included

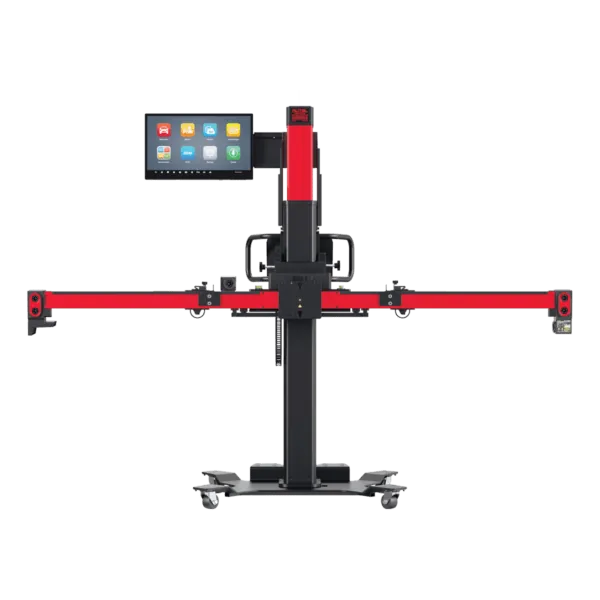

• IA900WA Wheel Alignment + ADAS Calibration Frame

• 24-inch touchscreen display

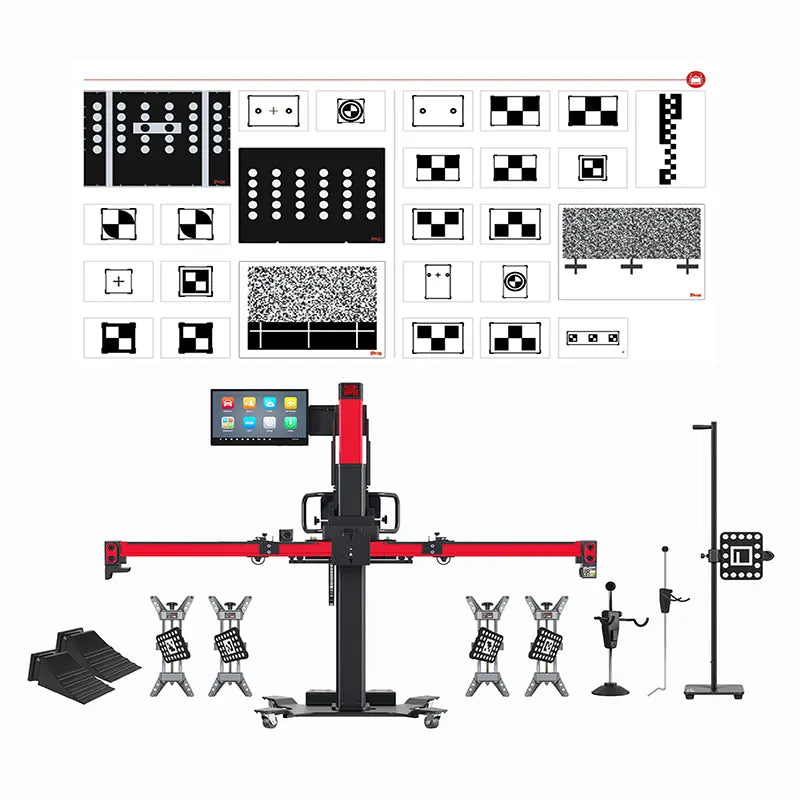

• LDW target panels and boards

• 4 wheel clamps with camera targets

• 4 wheel targets

• Distance target

• Steering wheel lock

• 2 wheel chocks

• Brake lock

Specifications

Warranty

• Includes a 1-year limited warranty from the original purchase date against defects in materials and workmanship.

• Covers repair or replacement at Autel’s discretion with proof of purchase.

• Excludes damage caused by misuse, accidents, natural events, modifications, or unauthorized repairs.

• Out-of-warranty repairs are available with a repair quote provided before service begins.

Documents

• Autel IA900WA User Manual (PDF)
• Autel IA900WA Brochure (PDF)
• Autel IA900WA All-Systems Brochure (PDF)
• Autel IA900WA Brochure — Letter Format (PDF)
• Autel IA900WA Brochure — French (PDF)
• Autel ADASWAUPGRADE Expansion Package (PDF)
• Autel MSULTRAADAS Expansion Package (PDF)
• Autel ADAS Package Comparison Chart (PDF)
