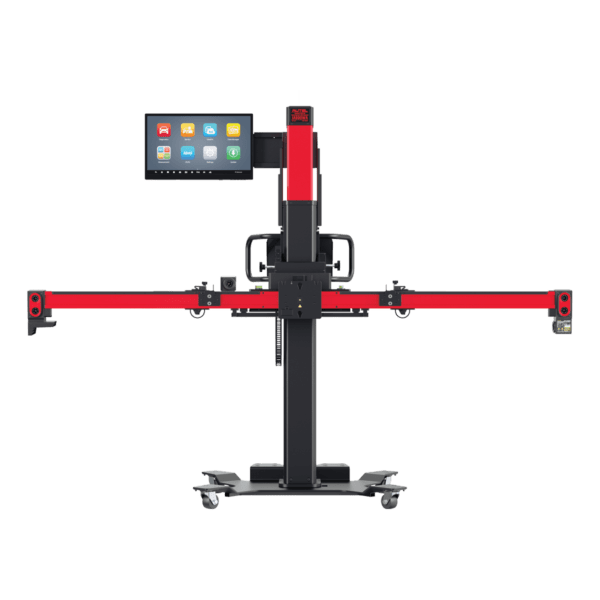

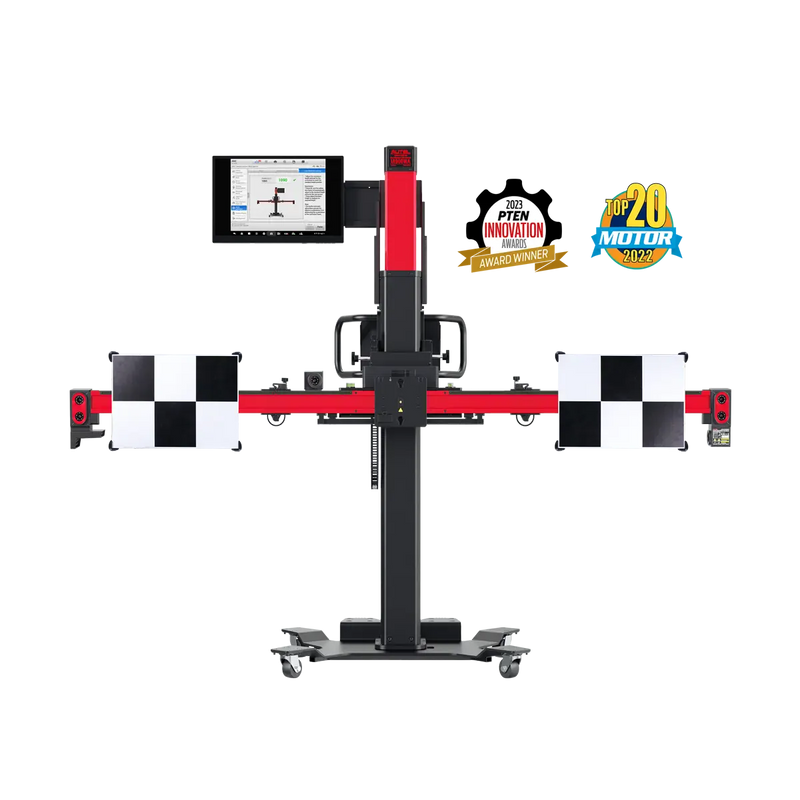

Autel IA900WA MaxiSYS Wheel Alignment & ADAS Calibration Frame (Tablet & Software Sold Separately)

The Autel IA900WA MaxiSYS ADAS Calibration and Wheel Alignment Frame combines four-wheel alignment and ADAS calibration capabilities into a single mobile system. Using six high-resolution cameras, a motor-driven crossbar, and a compatible MaxiSYS tablet, the IA900WA handles vehicle positioning, alignment measurements, and ADAS target placement from one workspace. It supports U.S., Asian, and European passenger vehicles from 1996 and newer, helping shops complete alignment and calibration procedures without moving vehicles between separate stations.

The optical positioning system uses six 3072 × 2048 pixel cameras to automatically identify targets, calculate frame position, and guide technicians through setup with real-time onscreen feedback. The motorized crossbar adjusts height automatically and tracks vehicle movement on the lift, while features like Unlevel Floor Compensation, wheel-off mode, raised-vehicle adjustment, and bump-steer analysis help technicians handle more complex alignment situations. The same MaxiSYS workflow also supports ADAS calibration, pre- and post-scans, steering angle resets, and detailed service documentation.

Designed for collision repair facilities, dealerships, alignment shops, and ADAS service centers, the IA900WA helps replace separate alignment and calibration workstations with one integrated platform. The system provides detailed alignment measurements including camber, caster, toe, thrust angle, SAI, and wheelbase data, while generating professional reports for customers, insurers, and shop records. This listing includes the IA900WA frame and accessory kit only; the MaxiSYS Ultra tablet, VCI, and software licenses are sold separately.

Features

• Combined wheel alignment and ADAS calibration
  The IA900WA uses one frame for both alignment and ADAS calibration. Built-in cameras and wheel targets measure frame position and guide setup with onscreen prompts.
• Six-camera optical positioning
  Six high-resolution cameras automatically detect targets for fast and accurate frame placement without manual measurements.
• Automatic crossbar adjustment

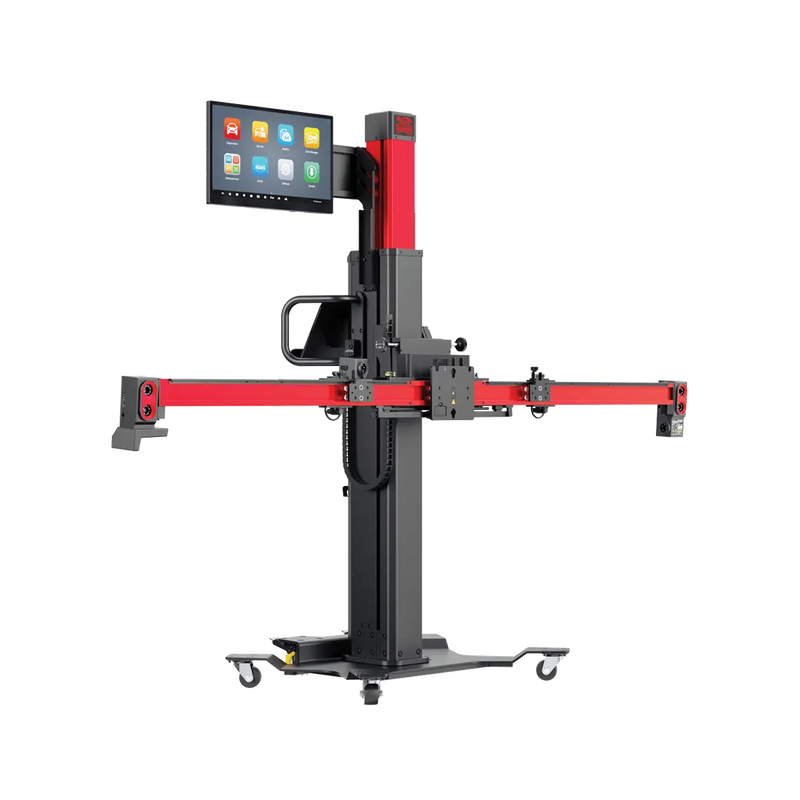

  The motorized crossbar adjusts height with one button and automatically follows lift movement. Folding arms simplify storage and transport.
• Unlevel-floor compensation
  Compensates for uneven floors or rack setups to maintain accurate ADAS calibration.
• Integrated alignment software

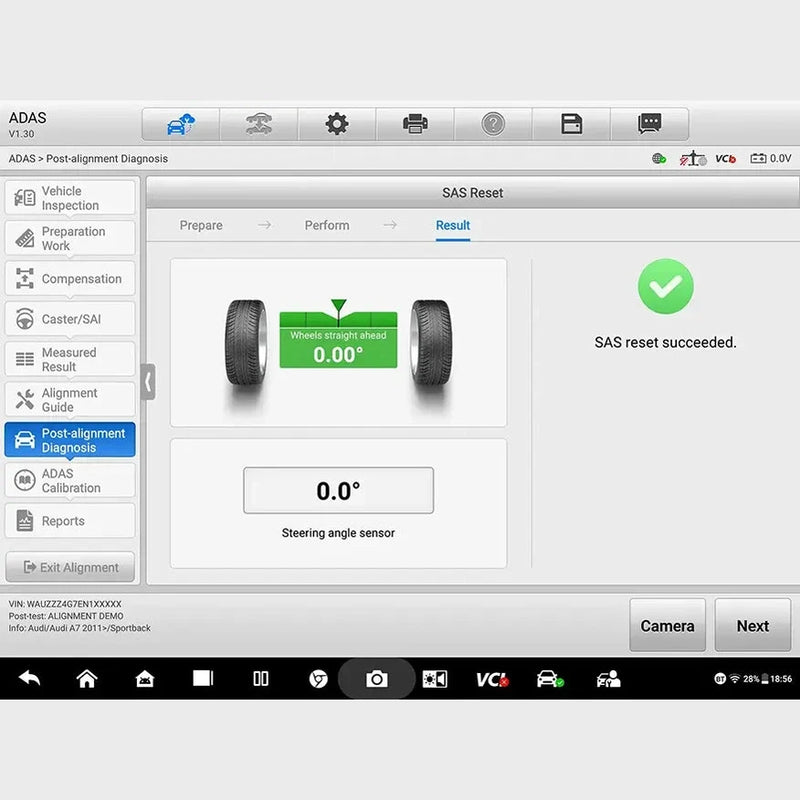

  Wheel alignment, diagnostics, steering-angle reset, and ADAS calibration run through the MaxiSYS tablet with no separate PC required.
• Advanced alignment measurements
  Measures camber, caster, toe, thrust angle, SAI, setback, rolling diameter, and other alignment data.
• Tire inspection functions
  Captures tread depth and tire pressure data and includes it in service reports.
• Advanced adjustment modes

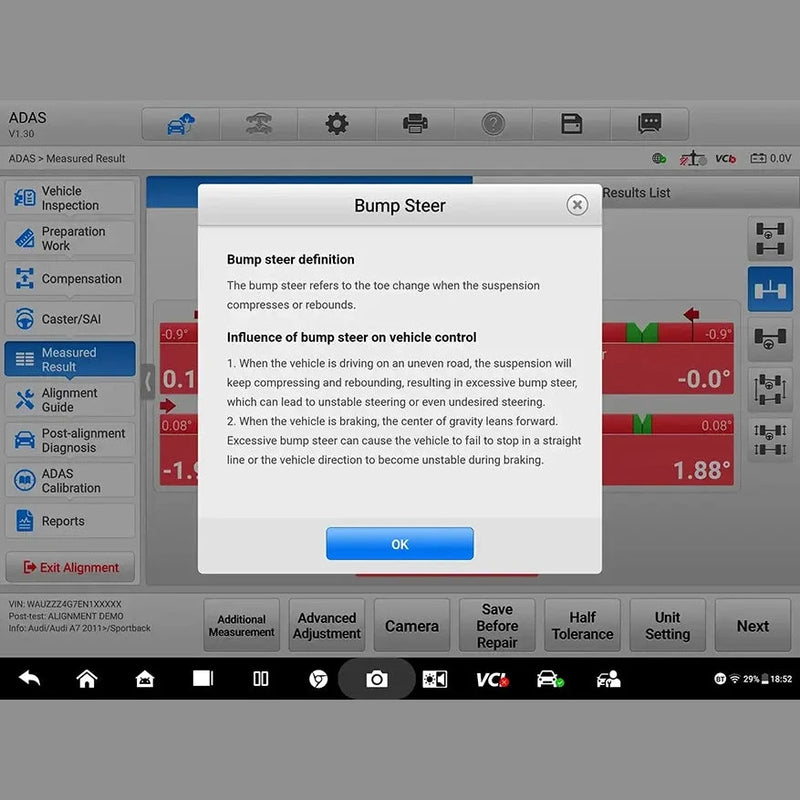

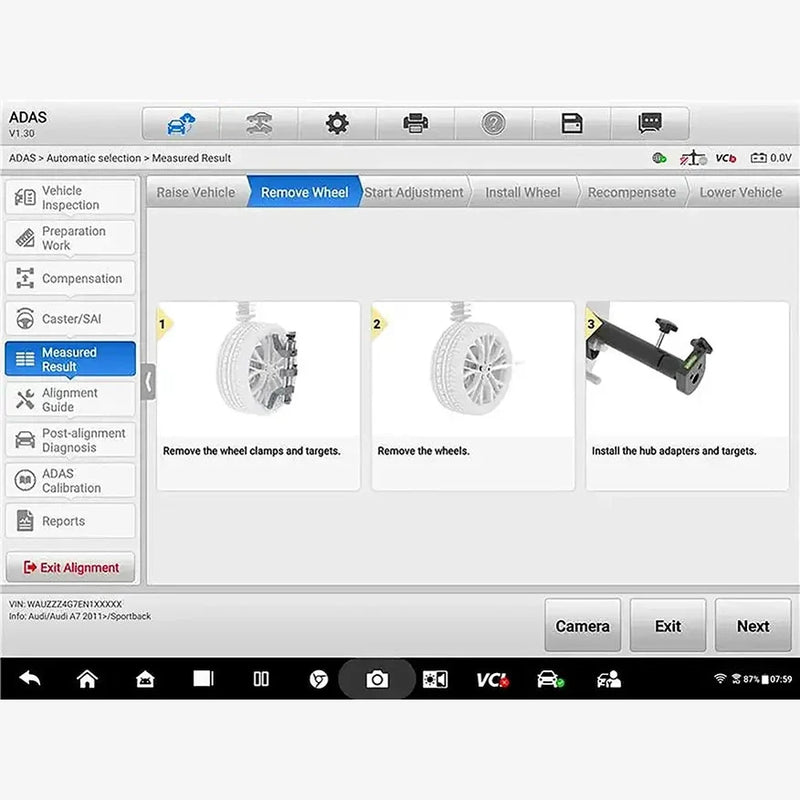

  Supports bump-steer diagnosis, wheel-off adjustments, and raised-vehicle compensation.
• Guided ADAS calibration workflow
  Provides step-by-step instructions for frame positioning, target alignment, calibration, and documentation.
• Pre- and post-scan reports
  Documents vehicle faults, calibration results, alignment data, and repair information for customer and insurance records.
• Vehicle network and service information
  Displays module status, wiring diagrams, repair information, and service data directly through the MaxiSYS tablet.

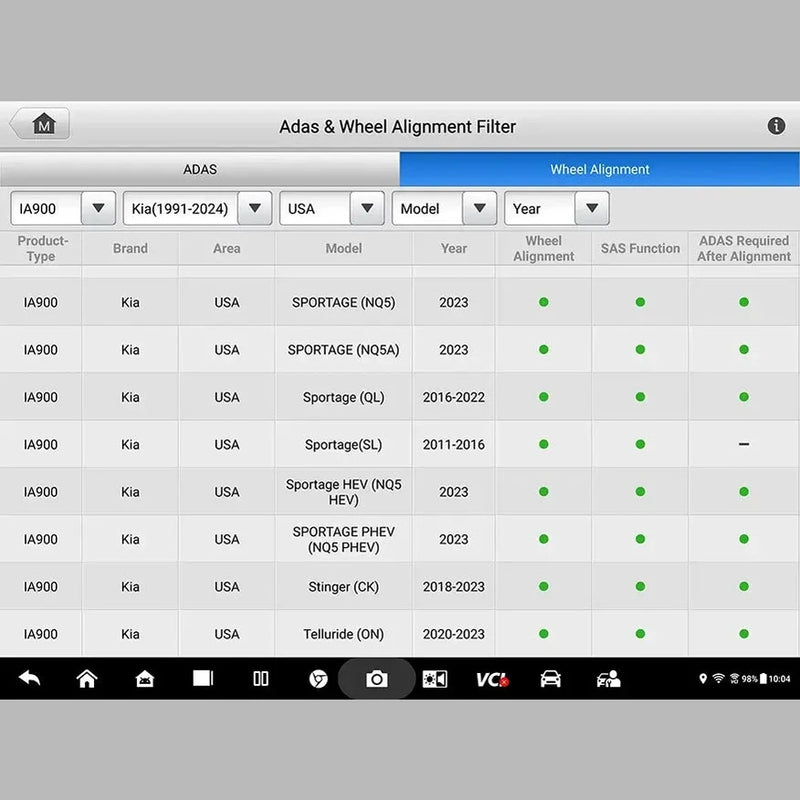

Vehicle coverage

What's Included

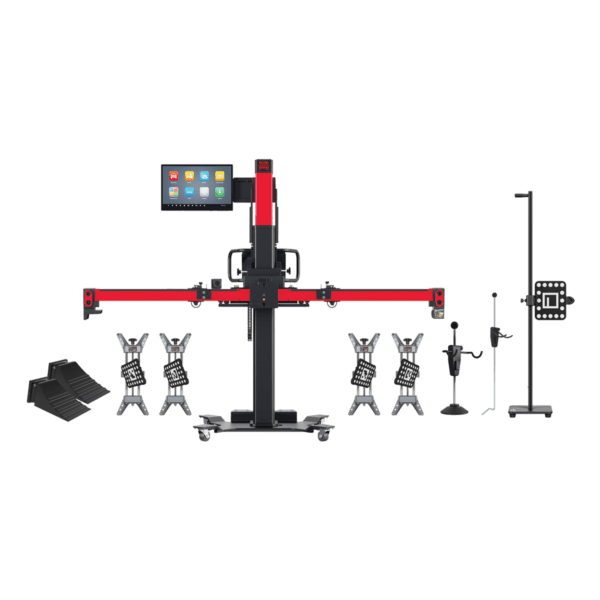

The IA900WA frame ships with the following accessory kit (Autel "What's Included" list):

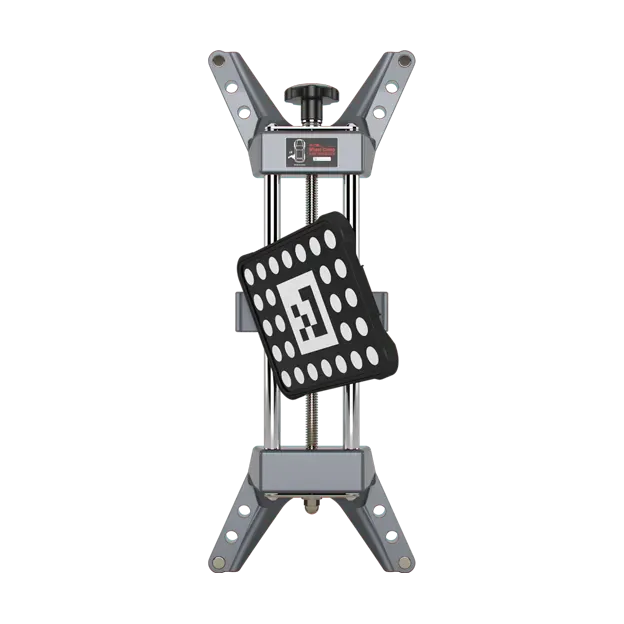

• Wheel Clamp (4x) — self-centering rim clamps with mounted ADAS wheel targets

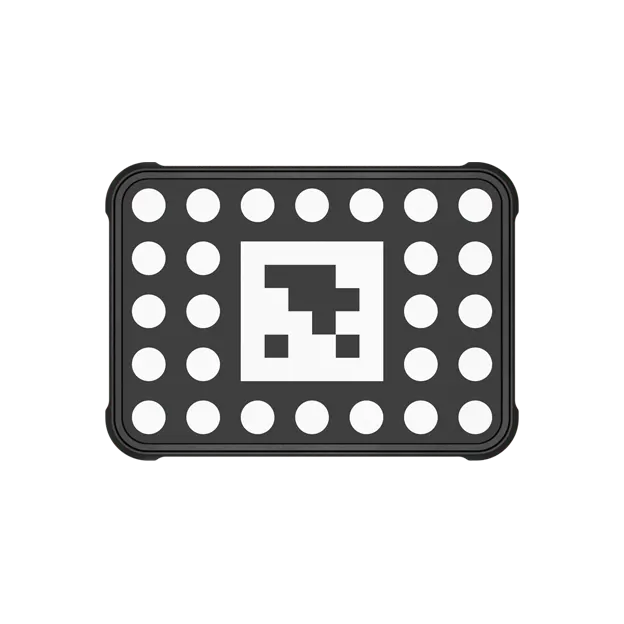

• Wheel Target (4x) — high-contrast dot-pattern targets used by the cameras for wheel-position identification
• Distance Target (1x) — vertical-stand target for frame-to-vehicle distance reference

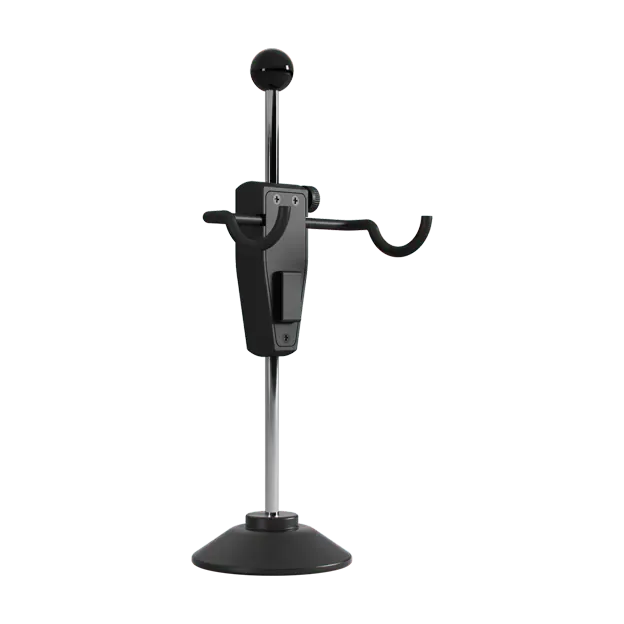

• Steering Wheel Lock (1x) — holds the steering wheel stationary during alignment measurement

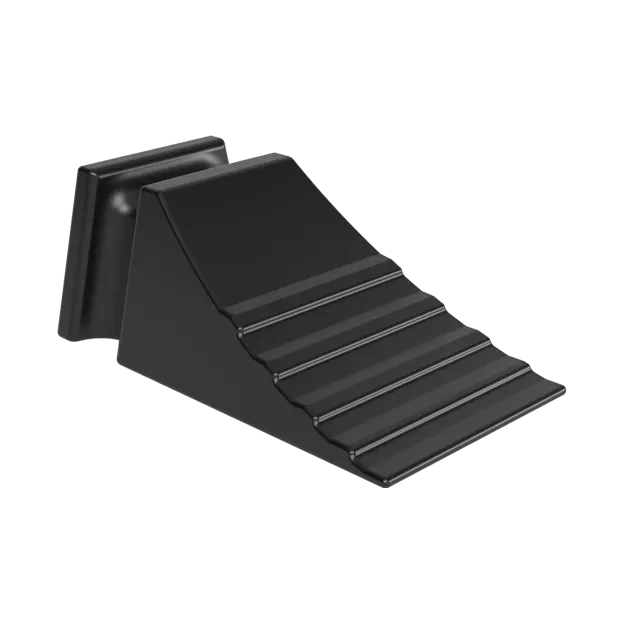

• Wheel Chock (2x) — prevents vehicle roll during the alignment procedure

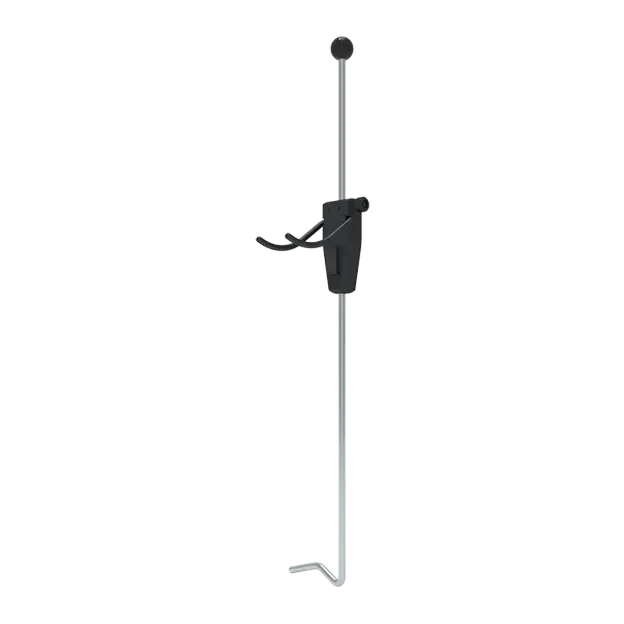

• Brake Lock (1x) — pedal depressor for brake-applied measurements

Not included with the IA900WA frame (sold separately):

• MaxiSYS Ultra tablet and MaxiFLASH VCI
• ADAS calibration software upgrade for the MaxiSYS Ultra
• Wheel alignment software upgrade for the MaxiSYS Ultra
• System-specific target packages (LDW, AVM, ACC, BSD, LIDAR, NVS, RCW) — purchased per the vehicle brands the shop services

Specifications

Warranty

The Autel IA900WA carries a one-year limited warranty from the manufacturer. Coverage details are in Section 9.1 of the IA900WA user manual, linked under Documents below.

Documents

• MaxiSYS Intelligent ADAS IA900WA User Manual
• IA900WA Workspace Requirements
• IA900WA Wheel Alignment & ADAS Calibration Brochure
• IA900WA — Alignments Without Limits Brochure
• MaxiSYS IA900WA All Systems Brochure
• MaxiSYS IA900WA Brochure (French)
• ADASWAUPGRADE Expansion Package
• MSULTRAADAS Expansion Package
• Autel ADAS Comparison Chart
