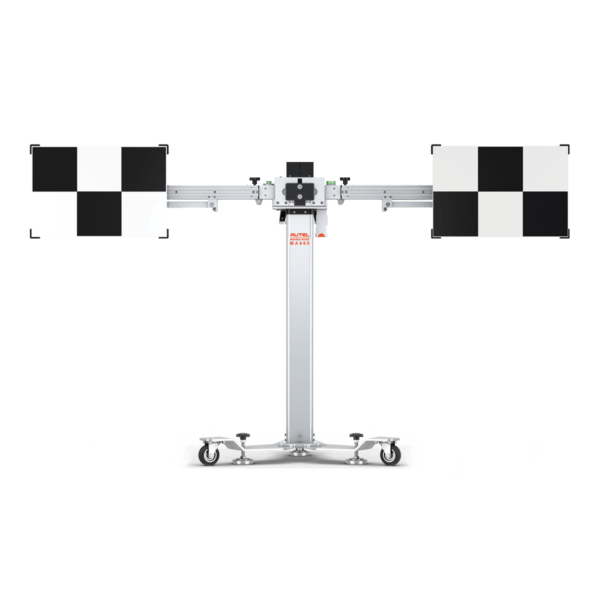

The Autel MA600 MaxiSYS ADAS Mobile Calibration Frame is a portable ADAS calibration system designed for technicians who need to perform Lane Departure Warning (LDW) camera calibrations without a dedicated calibration bay. The lightweight, collapsible aluminum frame includes the complete LDW target set, laser alignment tools, and transport cases, making it ideal for mobile service providers, collision repair shops, glass installers, and independent repair facilities. A compatible Autel MaxiSYS tablet is required separately to run the calibration software.
The MA600 is engineered for fast, accurate setup by a single technician. Its two-line and five-line laser positioning system, plumb line, L-shaped positioning bracket, and integrated bubble levels simplify frame alignment and vehicle centering while reducing setup time compared to traditional measuring methods. The hand-crank height adjustment provides precise positioning for OEM calibration procedures, and the collapsible design allows the frame to be transported easily between service locations without tools.
Designed to grow with your business, the MA600 serves as the foundation for a wide range of optional Autel ADAS expansion kits that add calibration coverage for systems such as Adaptive Cruise Control (ACC), Blind Spot Monitoring (BSM), Around View Monitoring (AVM), Rear Collision Warning (RCW), Night Vision, and more. It is compatible with the MSADAS tablet or select MaxiSYS MS906 and MS908 series tablets with the required ADAS software upgrade, providing a flexible solution for shops looking to expand their ADAS calibration capabilities over time.
Features

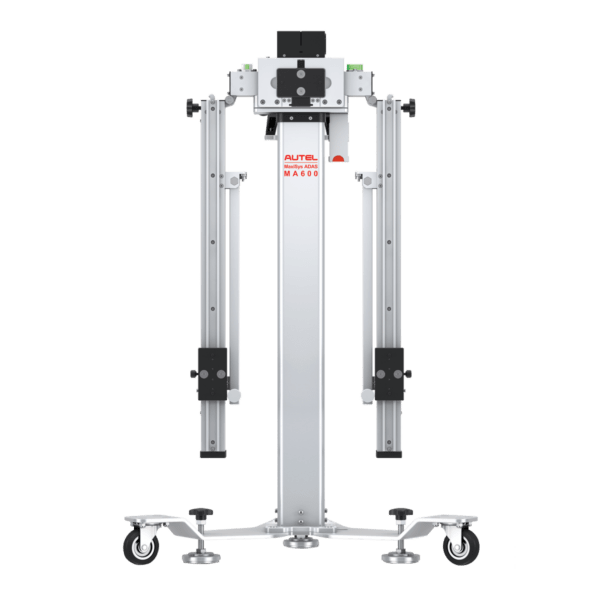

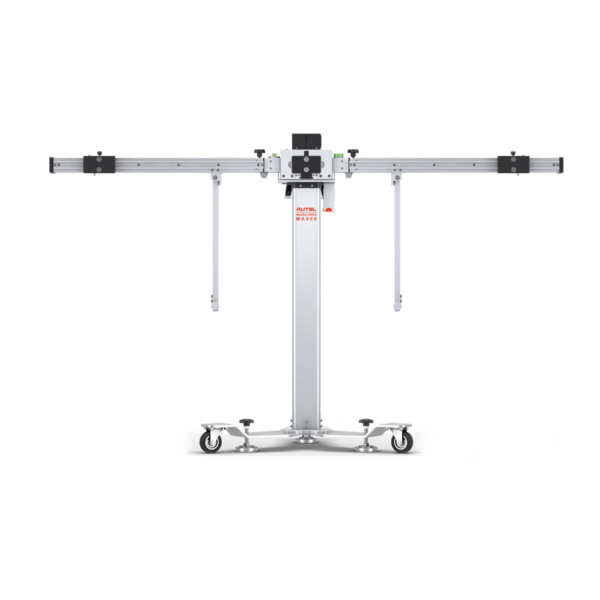

Portable collapsible aluminum frame The MA600 column, crossbar, and base break down for transport and reassemble without tools, making it easy to move between calibration jobs. The frame ships in two manageable cases for easier loading and transport.
Two-line and five-line laser positioning Includes both two-line and five-line lasers, along with a plumb line and laser-assisted reflector, to help center, level, and square the frame to the vehicle faster than traditional methods.
Fine-adjustment height control with bubble levels A hand crank and fine-adjustment knobs provide precise height adjustment, while dual bubble levels help ensure the crossbar is level before calibration.
Lane Departure Warning (LDW) target set included Includes the LDW target set for calibrating forward-facing cameras on supported vehicles after windshield replacement, collision repair, suspension work, or other services that affect camera alignment.
Specifications
Autel MA600 Calibration Frame Specifications
Frame Dimensions (W x D x H)
2510 mm (98.82") x 714 mm (28.11") x 1480–2105 mm (58.27–82.87")
Pattern Board Size (L x W)
1360 mm (53.54") x 960 mm (37.80")
Crossbar Length
2510 mm (98.82")
Crossbar Height Range
350–950 mm (13.78–37.40")
Pattern Board Height Range
1000–1600 mm (39.37–62.99")
Rated Power
24 V, 3 A
Laser Rated Power
3 V, 25 mA
Laser Battery Type
2 x AA 1.5 V
Laser Class
Class 2
Operating Temperature
0°C to 50°C (32°F to 122°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Net Weight — Base
53.6 lb
Net Weight — Main Column + Crossbar
47.2 lb
Total Net Weight
100.8 lb
Gross Weight — Base (shipping package)
102 lb
Gross Weight — Main Column + Crossbar (shipping package)
88.2 lb
Total Gross Weight
190.2 lb
Certifications
CE, FCC, RoHS
Tablet not included. See the Compatibility section for the list of supported MaxiSYS tablets.
Compatibility
The MA600 frame is the hardware shell — calibration runs are driven by a compatible Autel MaxiSYS tablet running the ADAS application. The MA600 is engineered to work with the following tablets:
MSADAS — runs the ADAS application natively, no software upgrade needed
MS906BT, MS906TS, MS908, MS908P, MS908S, MS908SP, MSELITE — require a one-time ADAS application software upgrade, sold separately
Out of the box, the MA600 supports LDW calibration, five-line laser alignment, and the included digital tape measure. ACC, AVM, RCW, BSD, NVS, and PowerLift functions require the corresponding Autel expansion packages.
MA600 base capabilities versus the LDW Package and ADASComplete upgrade tiers.
What's Included
Each MA600 system ships with the calibration frame and the laser-leveling accessory kit needed for LDW calibration setup:
MA600 calibration frame — main aluminum column, crossbar, and four-caster wheeled base
L-shaped positioning bracket
Two-line laser
Five-line laser
Laser-assisted reflector
Laser reflective board
Plumb line
LDW calibration target set
Travel case for the collapsible frame and accessories
Virtual setup and onboarding training session with an Autel ADAS expert
