The Autel IWA500ACT MaxiAlign Wheel Alignment System is a portable six-camera wheel alignment solution designed to deliver fast, accurate, and repeatable alignments across U.S., Asian, and European vehicles from 1975 to current models. This complete package includes the 10.1-inch MaxiAlign touchscreen tablet, Bluetooth MaxiVCI V200, and an Autel metal rim-storage cabinet, providing everything needed for efficient alignment service in a mobile, bay-to-bay setup. With server-based Auto VID, the system automatically identifies vehicles and loads current OEM alignment specifications to streamline the workflow from the start.
The guided alignment process walks technicians through vehicle identification, pre-scan diagnostics, undercarriage inspection, and tire tread and pressure analysis before measurements begin. The mobile six-camera frame captures critical alignment angles including camber, caster, toe, and thrust angle, while the auto-tracking crossbar automatically follows the vehicle as the lift moves to maintain accurate target positioning. Advanced features such as MaxiToe steering wheel centering, SAS calibration, bump steer analysis, raised-vehicle alignment, and wheel-off mode help technicians complete complex alignments more efficiently and reduce repeat measurements.
Ideal for alignment shops, dealerships, tire centers, and high-volume automotive repair facilities, the IWA500ACT combines advanced measurement technology with a portable design that moves easily between service bays. Detailed pre- and post-alignment reports can be saved, printed, or shared digitally, providing professional documentation for customers, insurance claims, and shop records while supporting modern ADAS-equipped vehicles.
Features
-
Mobile six-camera alignment frame for camber, caster, toe, and thrust angle measurements
-
Server-based Auto VID with automatic vehicle identification and OE alignment specifications
-
Guided workflow with pre-scan, undercarriage inspection, and tire tread/pressure analysis
-
Measures rolling diameter, symmetry, camber, caster, toe, and thrust angle
-
Advanced functions including bump steer, raised-vehicle analysis, and wheel-off adjustment
-
MaxiToe centers the steering wheel during toe adjustment without a steering wheel holder
-
SAS (Steering Angle Sensor) calibration for post-alignment procedures
-
Auto-tracking crossbar follows the vehicle as the lift moves
-
Pre- and post-alignment reports that can be saved, printed, or shared
-
Compatible with Autel's Bluetooth handheld inclinometer for Mercedes-Benz alignments (sold separately)
Compatibility
-
Vehicle coverage: U.S., Asian, and European vehicles (1975–current)
-
ADAS vehicles: Supports SAS Relearn after alignment
-
Mercedes-Benz: Compatible with Autel Bluetooth handheld inclinometer (sold separately)
-
Installation: Portable, bay-to-bay design with no permanent installation required

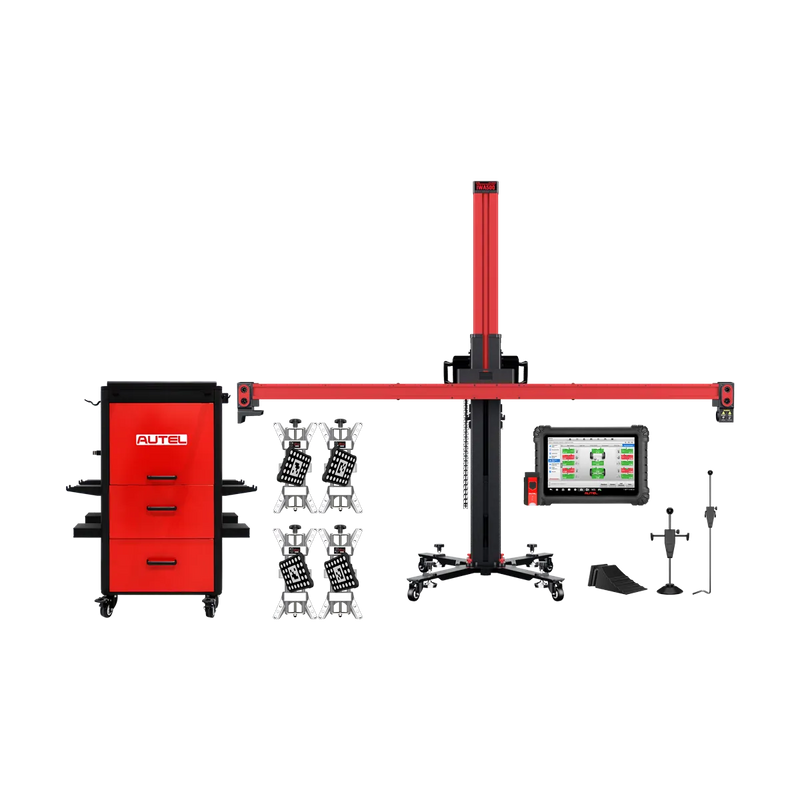

What's Included
-
IWA500 mobile six-camera wheel alignment frame
-
10.1-inch MaxiAlign IWA500 wireless tablet
-
Bluetooth MaxiVCI V200 vehicle communication interface
-
Autel metal rim-storage cabinet
-
Four (4) tire rim clamps with positioning targets
-
Two (2) wheel chocks
-
Brake pedal depressor
-
Steering wheel holder stand tool
-
Equipment cover
-
Tablet holder
-
AC power cord
-
12/24 V power cord
Warranty
One-year limited warranty covering the IWA500 alignment system, MaxiAlign IWA500 tablet, and rim-storage cabinet. The tablet ships with one year of included software updates so vehicle coverage and OE alignment specifications stay current through the warranty period.
Documents
Authorized Dealer - Full Warranty Included
