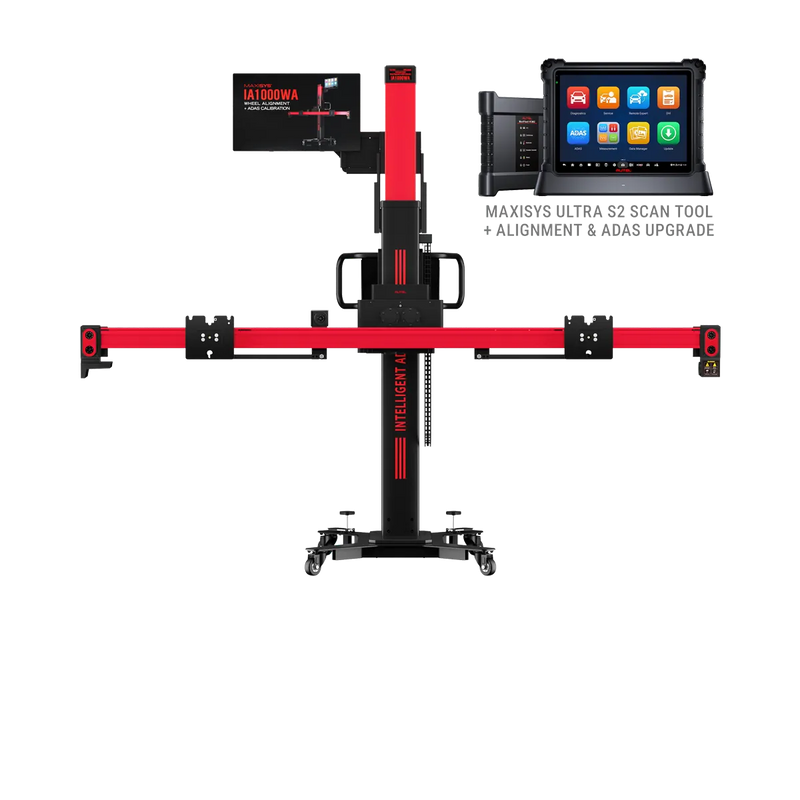

The Autel MaxiSYS IA1000T is a complete automated ADAS calibration and wheel alignment system that combines the IA1000 robotic calibration frame with the included MaxiSYS Ultra S2 diagnostic tablet. Designed for collision centers, dealerships, and ADAS calibration shops, it integrates advanced diagnostics, four-wheel alignment, and sensor calibration into one workflow. With five-way robotic target positioning, six high-definition cameras, and 0.02° alignment accuracy, the IA1000T reduces manual setup time while helping technicians follow OEM calibration procedures.
The IA1000T automates ADAS target placement using robotic front-to-back, vertical, horizontal, pitch, roll, and yaw adjustments. Six cameras track vehicle and frame position, while laser-guided placement handles Blind Spot, ACC, and AVM patterns with repeatable accuracy. Automated unlevel floor compensation allows the system to maintain calibration precision on standard shop floors, vehicle racks, or slightly sloped surfaces. The included MaxiSYS Ultra S2 tablet manages vehicle diagnostics, calibration procedures, pre-scan and post-scan reports, and advanced system analysis through one connected platform.
Built for shops working on modern vehicles, the IA1000T provides a scalable solution for ADAS service and alignment operations. It delivers detailed alignment measurements beyond camber, caster, and toe, including thrust angle, SAI, and other diagnostic values that help identify suspension or chassis issues. Digital Go/No-Go validation confirms target positioning before calibration continues, while OEM-based reporting supports insurance documentation and repair records. Optional digital LDW target monitors can be added later to expand the system without replacing the core frame.
Features
5-way robotic target positioning for static ADAS calibration
Six HD cameras (3072 × 2048) for precise tracking
Laser-guided ACC, BSD, and AVM target placement
0.02° wheel alignment accuracy
Advanced alignment measurements beyond camber, caster, and toe
Automatic unlevel-floor compensation
MaxiSYS Ultra S2 with Topology 3.0 diagnostics
Pre- and post-scan reports for documentation
OEM calibration procedures and Go/No-Go validation
Supports optional digital LDW target displays
OTA updates for software and target coverage
Compatibility
Supports static and dynamic ADAS calibration plus wheel alignment
Compatible with U.S., Asian, and European vehicles
Covers ACC, BSD, AVM, and LDW systems (with required targets/software)

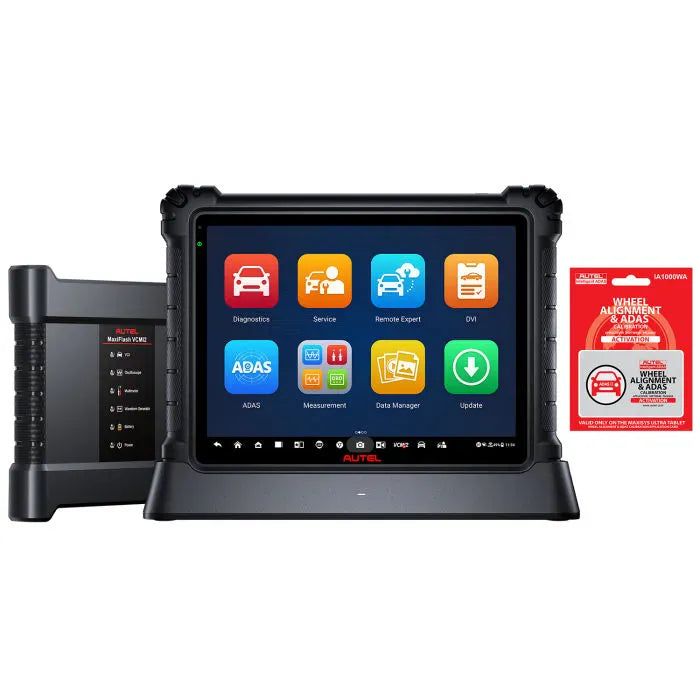

Includes MaxiSYS Ultra S2 tablet for diagnostics and calibration workflow

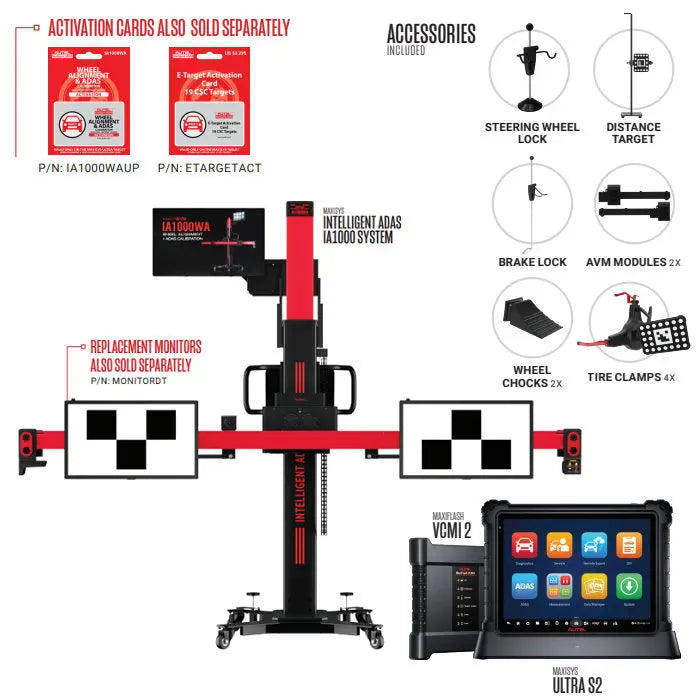

What's Included

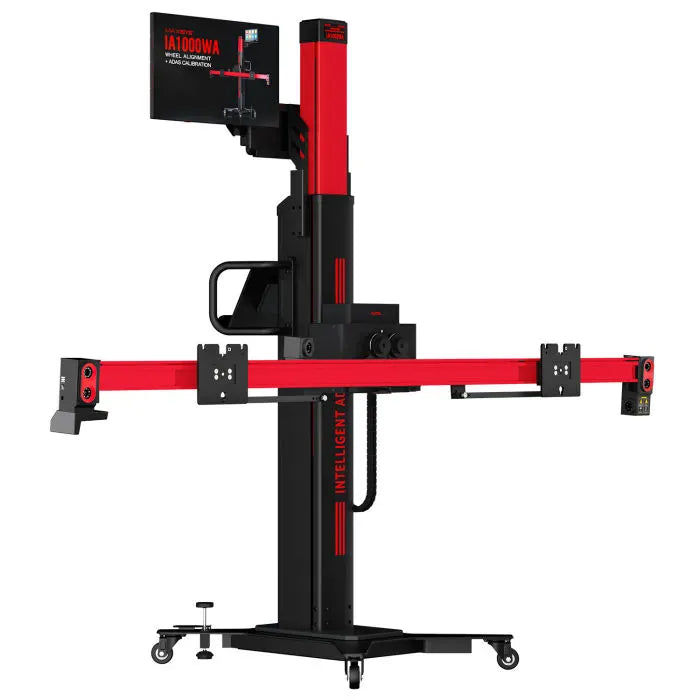

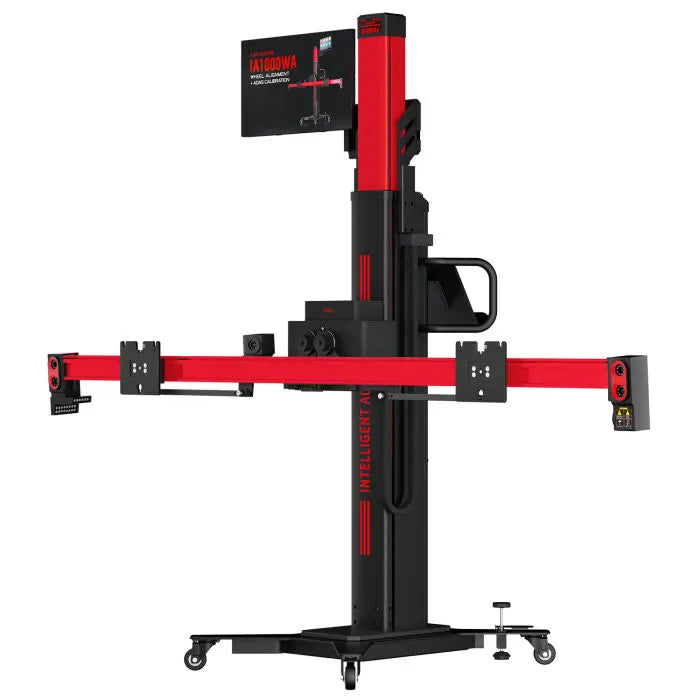

IA1000 calibration frame
MaxiSYS Ultra S2 diagnostic tablet
IA1000 activation card
4 × wheel clamp targets
2 × AVM modules
Distance target
Steering wheel lock
Brake lock
2 × wheel chocks
Specifications
Autel MaxiSYS IA1000T Specifications
Model
AUTEL-CSC1000
Rated Power
360 W
Power Supply
100–264 V, 50/60 Hz
Cameras
6
Camera Resolution
3,072 × 2,048 pixels per camera
Wheel Alignment Accuracy
0.02°

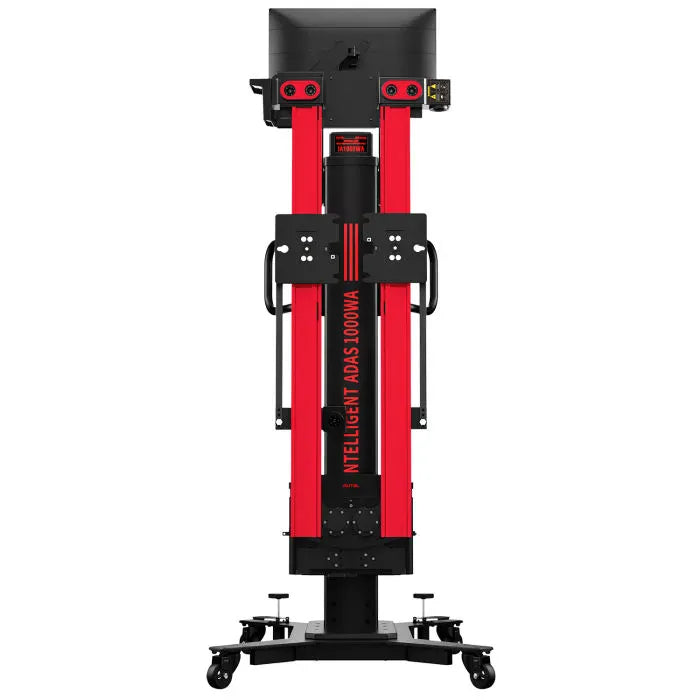

Calibration Frame Folded Dimensions
800 × 1000 × 1900 mm (31.50 × 39.37 × 74.80 in)
Calibration Frame Height Range
1670–2770 mm (65.75–109.06 in)
Crossbar Unfolded Length
2700 mm (106.30 in)
Crossbar Folded Length
400 mm (15.75 in)
Crossbar Height Range
300–2500 mm (11.81–98.43 in)
Operating Temperature
−10 to 50°C (14 to 122°F)
Storage Temperature
−20 to 60°C (−4 to 140°F)
Compatible Tablet
MaxiSYS Ultra Tablet series (Ultra S2 included)
FAQ
Does the IA1000T include LDW targets? No. The package includes the frame, Ultra S2 tablet, activation card, and accessories. Physical LDW targets are included in the IA1000LDWT package.
Can digital LDW targets be added later? Yes. The IA1000T supports Autel’s optional digital target display system with automatic target projection and OTA updates.
What ADAS systems can it calibrate? Supports ACC, Blind Spot, AVM, and LDW calibration with the required target packages and software.
Does it work on uneven floors? Yes. Built-in unlevel floor compensation helps maintain calibration accuracy on imperfect shop floors.
Which tablet is required? The IA1000T includes the MaxiSYS Ultra S2 tablet and IA1000 activation card.
What is the alignment accuracy? Up to 0.02° using six HD cameras and precision wheel-clamp targets.
How are updates delivered? Software and OEM target coverage updates are delivered through OTA updates on the MaxiSYS Ultra S2 tablet.
