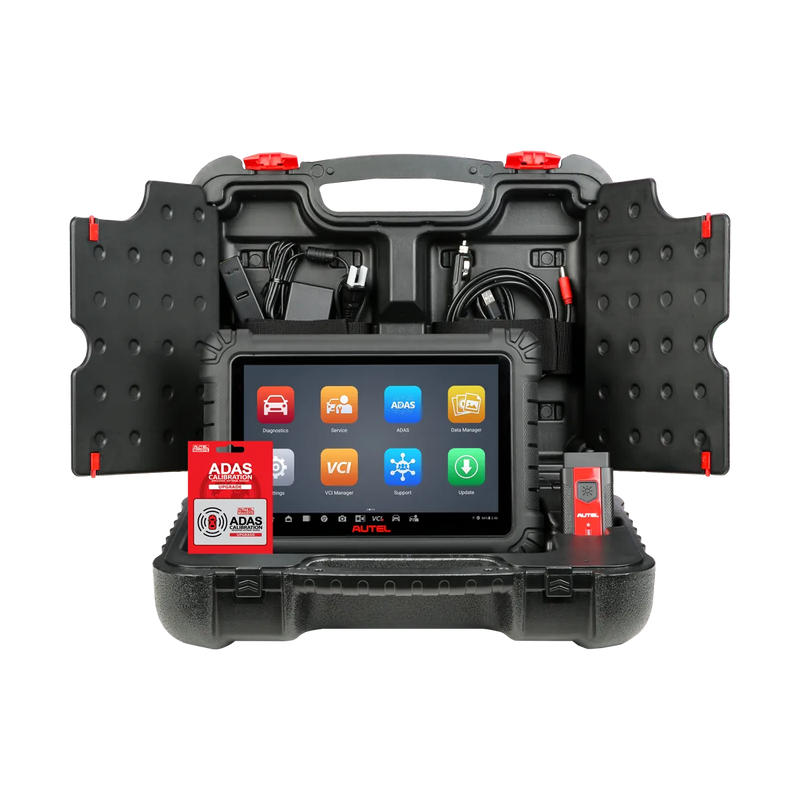

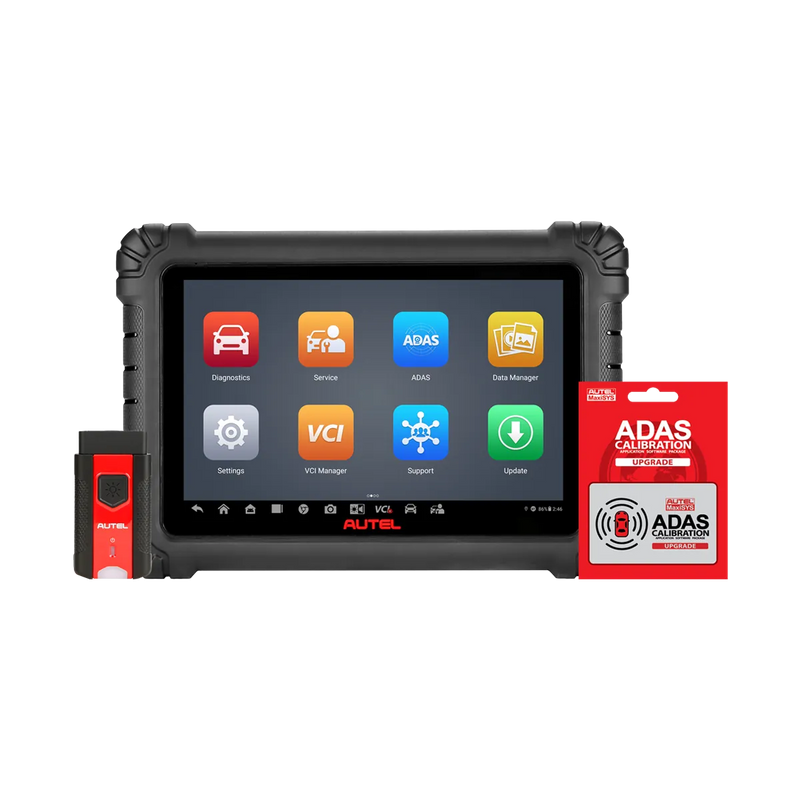

The Autel MaxiSYS MS906 MAX ADAS is a professional 10.1-inch wireless diagnostic tablet that combines full-system vehicle diagnostics with static and dynamic ADAS calibration capability. Included with the Bluetooth MaxiVCI V200 communication interface and Autel’s ADAS Calibration software upgrade, it allows technicians to diagnose, service, and calibrate modern vehicle safety systems across U.S., Asian, and European vehicles from 1996 and newer. The tablet supports calibration workflows for cameras, radar, and lidar when paired with compatible Autel calibration frames.
The MS906 MAX ADAS provides all-systems diagnostics, including code reading and clearing, Freeze Frame data, Live Data graphs, bi-directional Active Tests, coding, adaptations, and Special Functions where supported. Its AutoScan 2.0, customizable Pre and Post Scans with ADAS identification, and 40+ service functions help technicians complete inspections and repairs more efficiently. Powered by Android 10, an octa-core processor, 4 GB RAM, and 128 GB storage, it delivers the performance needed for demanding diagnostic tasks, while the 11,600 mAh battery supports extended shop use.
Designed for collision repair facilities, automotive repair shops, dealerships, and ADAS calibration specialists, the MS906 MAX ADAS provides a flexible platform for expanding advanced vehicle service capabilities. Pair it with the Autel MA600 mobile frame for portable calibration work or a Standard ADAS calibration frame for dedicated shop bays. Additional features like CAN FD and DoIP support, wireless connectivity, direct report sharing, and optional battery testing or videoscope accessories make it a versatile tool for modern vehicle diagnostics.
Features

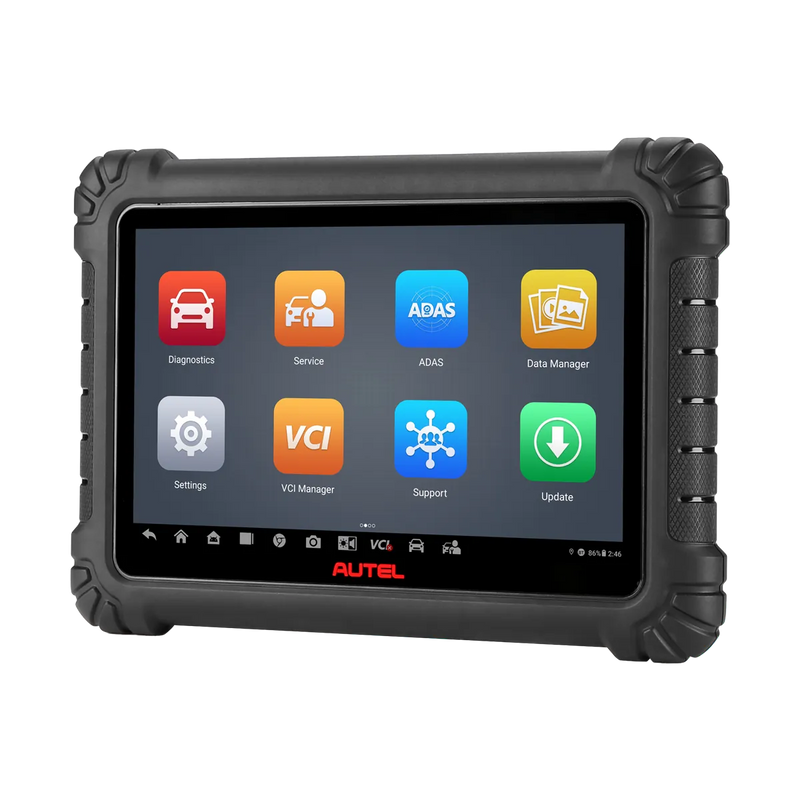

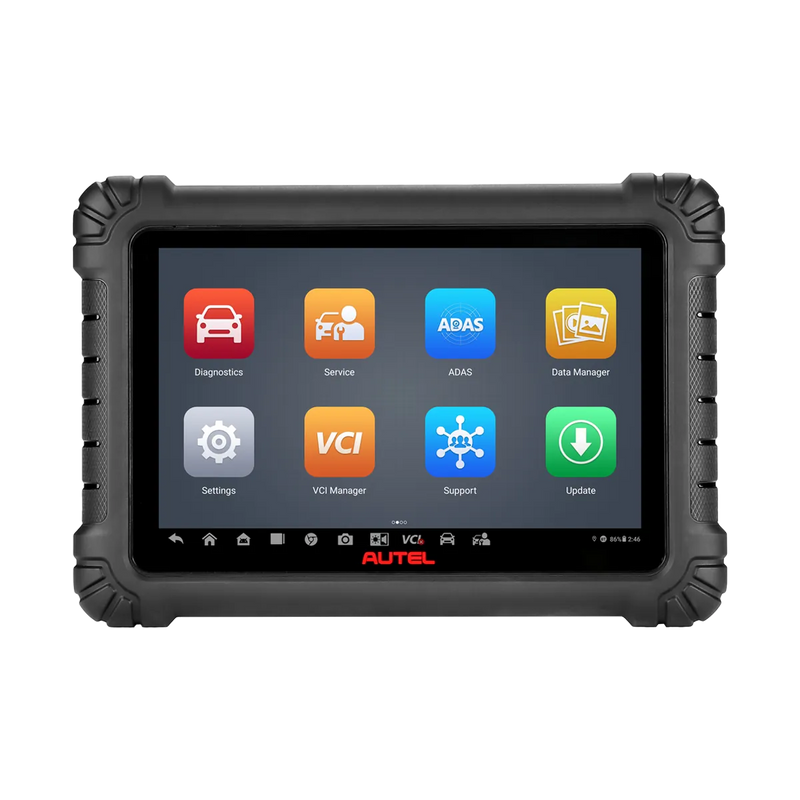

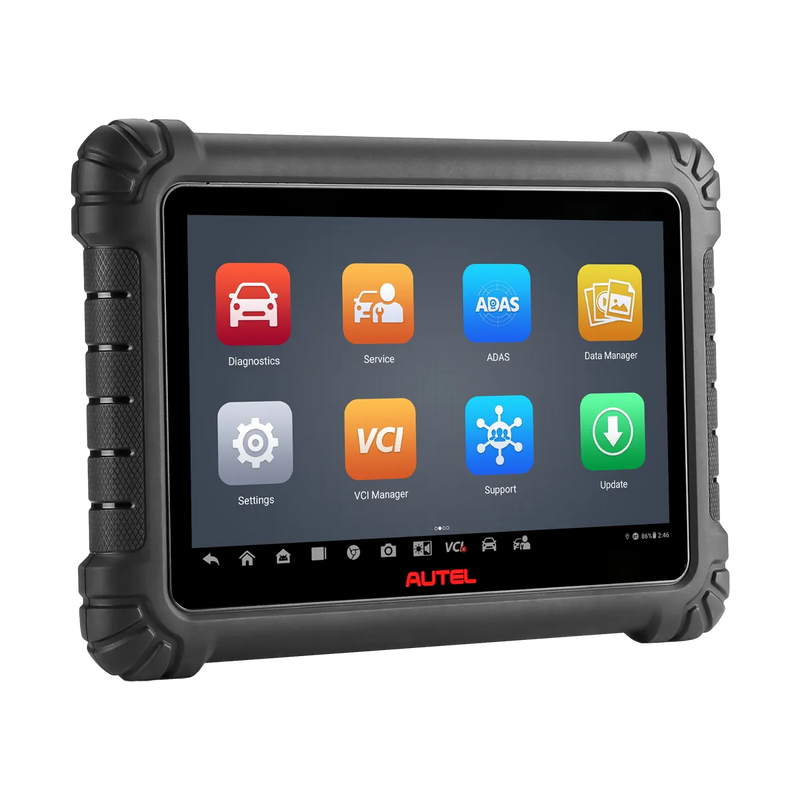

10.1-inch touchscreen wireless professional diagnostic and service tablet
Extensive vehicle coverage for U.S., Asian, and European vehicles from 1996 and newer
Includes static and dynamic ADAS calibration software upgrade
Compatible with Autel MA600 and Standard ADAS Calibration frame systems (sold separately)
All-systems diagnostics: read and erase codes, view Freeze Frame data, and display/graph Live Data
Bi-directional Active Tests and Special Functions
40+ service and maintenance functions, plus coding, adaptations, and hidden functions
Bluetooth-enabled MaxiVCI V200 supports standard and advanced communication protocols, including CAN FD and ISO 13400 (DoIP)
Customizable Pre and Post Scans with ADAS identification
Android 10 operating system with octa-core processor, 4 GB RAM, and 128 GB onboard storage
11,600 mAh lithium-polymer battery for extended operating time
13 MP rear camera for capturing clear and detailed images
Includes one year of software updates and a one-year limited warranty
Supports Battery Testing and Inspection Camera/Videoscope add-ons (sold separately)
Compatibility
The MS906 MAX ADAS tablet works with Autel ADAS calibration frame systems for static and dynamic calibration of camera, radar, and lidar components. Calibration frames are sold separately.
Compatible systems include:
Autel MA600 — Mobile ADAS calibration frame designed for mobile technicians and compact-bay workflows
Autel Standard ADAS Calibration frame systems — Stationary calibration frames designed for dedicated bay-based calibration environments
Specifications
Autel MaxiSYS MS906 MAX ADAS Specifications
Operating System
Android 10
Processor
Octa-core
Memory
4 GB RAM & 128 GB on-board storage
Display
10.1-inch LCD capacitive touchscreen, 1920 x 1200 resolution
Rear Camera
13 MP
Wi-Fi
802.11 a/b/g/n/ac
Bluetooth
BT 5.0 (BR/EDR + BLE)
GPS
Built-in
USB
USB 2.0 (two USB Host Type A, one Mini USB)
SD Card
Supports up to 256 GB
Audio
Microphone, dual speakers, 3-band or 4-band 3.5 mm headset jack
Sensors
Gravity accelerometer, Ambient Light Sensor (ALS)
Battery
11600 mAh, 3.85 V lithium-polymer
Charging
12 V DC power supply
Input Voltage
12 V / 3 A adapter
Operating Temperature
0 °C to 50 °C (32 °F to 122 °F)
Storage Temperature
-10 °C to 60 °C (14 °F to 140 °F)
Dimensions (W x H x D)
311.1 mm x 216.0 mm x 39.9 mm (12.25" x 8.50" x 1.57")
Weight
1.71 kg (3.77 lbs)
Protocols
PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire CAN (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE-J2819 (VAG KW81), KW82, SAE-J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2), ISO 13400 (DoIP), CAN FD
Software Updates
One year included
Warranty
One-year limited
Warranty
The Autel MaxiSYS MS906 MAX ADAS is covered by a one-year limited warranty and includes one year of free software updates. Subsequent software-update subscriptions are purchased separately when the included year expires.
