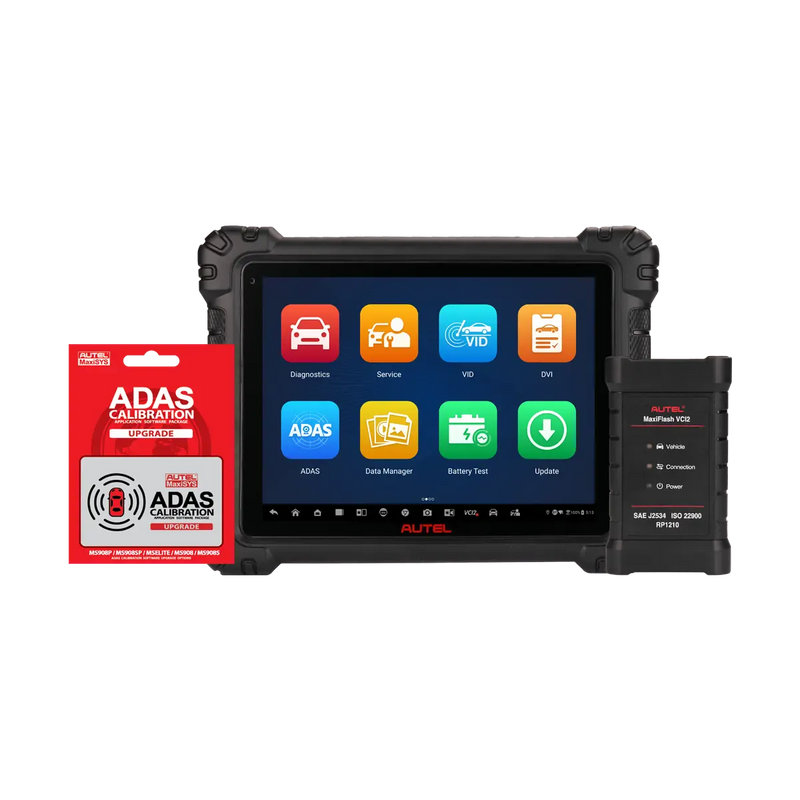

Autel MaxiSYS MS909 S2 Advanced Diagnostic Tablet with ADAS Calibration Software and MaxiFlash VCI2

The Autel MaxiSYS MS909 S2 is an 11-inch wireless diagnostic tablet with ADAS calibration software pre-installed, giving shops a single platform for full-system diagnostics and ADAS procedures. When paired with the correct Autel targets and calibrators (sold separately), it supports dynamic and static calibration workflows for cameras, radar, lidar, and night vision systems across U.S., Asian, and European vehicles from 1996 and newer.

Built for advanced repair environments, the MS909 S2 provides OE-level diagnostics, including all-system scanning, bi-directional tests, coding, adaptations, hidden functions, and more than 45 service and maintenance functions. Its Topology 3.0 dynamic network analysis visually maps vehicle communication networks and helps technicians identify module issues across CAN, CAN FD, DoIP, and other supported protocols. Enhanced Live Data tools with Live Data Fusion, Reference Sampling, and Parameter Graphing make it easier to analyze sensor values and diagnose complex vehicle systems.

The S2 generation adds major hardware improvements with a 2.7 GHz 8-core processor, Android 13 operating system, 12 GB RAM, 256 GB storage, and Wi-Fi 6.0 connectivity. The included MaxiFlash VCI2 wireless interface supports advanced communication protocols and J2534 pass-through programming for supported vehicles. The tablet also includes one year of MOTOR TruSpeed repair information access, MAX digital inspections, and Remote Expert capabilities for connecting with programming specialists when factory-level support is needed.

Designed for collision repair centers, dealerships, ADAS calibration shops, and professional technicians, the MS909 S2 provides a scalable diagnostic platform that can grow with advanced service needs. Optional accessories such as video borescopes and battery testers further expand inspection and diagnostic capabilities. Physical ADAS targets and calibration frames are sold separately.

Features

• Ships with ADAS calibration software pre-installed; supports dynamic and static calibrations of cameras, radar, lidar, and night vision systems when paired with the appropriate Autel targets and calibrators (sold separately).
• Broad U.S., Asian, and European vehicle coverage (1996 and newer), with all-systems diagnostics, bi-directional testing, coding, and adaptations.
• Topology 3.0 dynamic network analysis with the ability to ping and monitor individual module communications across multiple networks.
• Enhanced Live Data analysis with Live Data Fusion, Reference Sampling, Parameter Graphing, and real-time PID tracking.
• One-tap access to 45+ maintenance and reset service functions.
• Security-gateway authorization for Mercedes-Benz, Nissan, VW/Audi, and Stellantis vehicles¹.
• 2.7 GHz 8-core processor, Android 13, 12 GB RAM, 256 GB storage, Wi-Fi 6.0 (2x2 MIMO).
• Included MaxiFlash VCI2 wireless vehicle communication interface with J2534 pass-thru programming.
• MAX multi-point digital vehicle inspection application and hands-free tablet navigation assistant.
• One year of free access to MOTOR TruSpeed integrated repair data.
• Remote Expert-ready for live connection with a programming expert running OE tools and software.
• Upgrade-accessory purchase options: MV108S/MV105S video borescope, BT506 battery tester.

Compatibility

• Covers U.S., Asian, and European vehicles from 1996 and newer.

• Supports security gateway access for Mercedes-Benz, Nissan, VW/Audi, and Stellantis (account or subscription requirements may apply).

• MaxiFlash VCI2 supports advanced communication protocols including CAN FD, DoIP, J1939, J2534 pass-through, ISO, SAE, and OEM-specific protocols.

• Compatible with optional accessories: MV108S/MV105S video borescope and BT506 battery tester (sold separately).

What's Included

• Main Unit (MaxiSYS MS909 S2 tablet)
• MaxiFlash VCI2 wireless vehicle communication interface
• USB 2.0 Cable V2
• USB Type-C Cable
• Main Cable V2.0
• Clamp Cable
• USB to Ethernet Adapter
• AC/DC Adapter (12 V)
• Auxiliary Power Outlet Adapter
• Spare Fuses (6x30 mm, 2 pcs)
• Soft Cloth
• Quick Start Guide
• Quick Reference Guide
• Packing List
• Carrying Case

Specifications

Warranty

• Includes a 1-year limited warranty.

• Comes with 1 year of free software updates.

Documents

• User Manual
• Quick Start Guide
• Packing List
• MS909 S2 ADAS Flyer
• MS909 S2 / MS919 S2 Comparison Flyer
