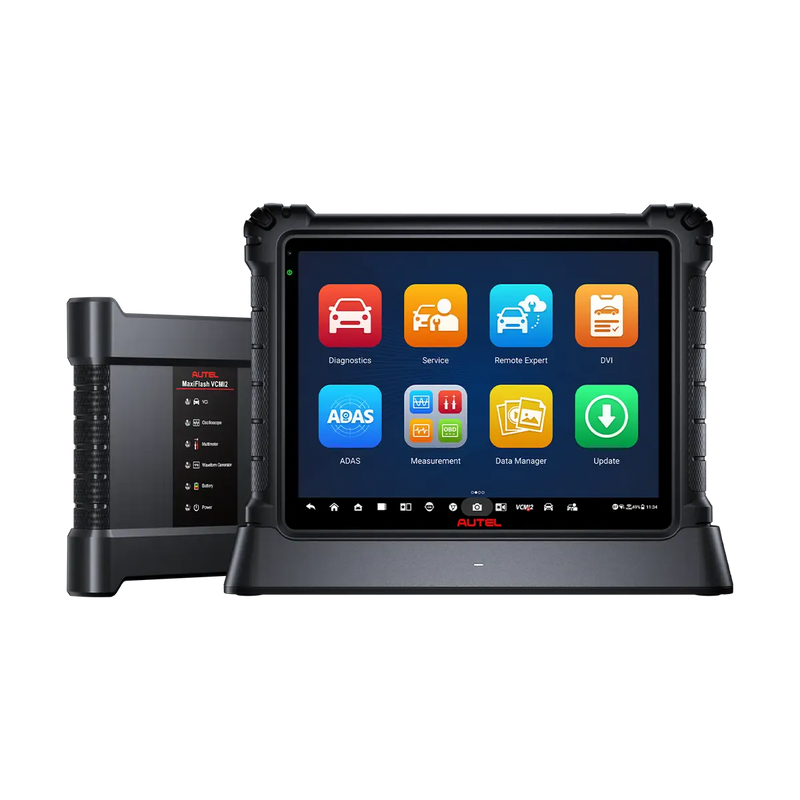

Autel MaxiSYS Ultra S2 Advanced Diagnostic Tablet with IA1000 Wheel Alignment and ADAS Calibration Software

The Autel MaxiSYS Ultra S2 is an advanced diagnostic tablet designed for professional repair shops that need full vehicle diagnostics plus ADAS calibration capability from one platform. Built around the 13.7-inch Android 13 tablet and the MaxiFlash VCMI2 6-in-1 communication and measurement device, it provides active tests, special functions, coding, adaptations, and OE-level diagnostics for U.S., Asian, and European vehicles from 1996 and newer. The included IA1000 4-wheel alignment and ADAS calibration software activation adds support for static calibration workflows for cameras, radar, lidar, and night-vision systems when paired with the required targets and calibration equipment.

The Ultra S2 stands out by combining multiple shop tools into a single diagnostic platform. The MaxiFlash VCMI2 integrates vehicle communication, J2534 programming, a 4-channel oscilloscope, multimeter, waveform generator, CAN-bus tester, and Remote Expert capabilities in one device. Topology 3.0 provides OE-style network mapping, while Active Module and Network Analysis helps technicians identify communication issues by testing individual ECUs and signal quality. The system also includes AI-powered Digital Vehicle Inspection (DVI) features for creating detailed inspection reports and MAX voice assistant functionality for hands-free tablet navigation.

The MaxiSYS Ultra S2 is built for automotive repair shops, dealerships, diagnostics specialists, and ADAS service providers that need advanced troubleshooting and calibration preparation in one workflow. This package is ideal for technicians handling modern vehicles with complex electronic systems, but it is important to note that ADAS calibration targets and frames are not included. Those components must be purchased separately based on the specific calibration procedures and vehicle coverage required.

Features

• Topology 3.0 — OE-style system analysis of multi-speed communication protocol networks
• Active Module and Network Analysis — locate and directly ping ECUs to test signal quality and network integrity
• Enhanced 4-channel oscilloscope — launch directly from Live Data; adds EV-specific tests including AC/DC charging, HV component, interlock loop signal, power-on control, resolver sensor, and thermal management; parasitic current draw and swing tests added
• Live Data Fusion — record and compare value changes across multiple systems
• Parameter Grouping — multi-PID selection for analyzing related parameters simultaneously
• Reference Sampling — record, store, and review selected PIDs for pre- and post-repair comparison; flags min, max, and average
• Service Menu — 48-plus maintenance and service tasks with direct access to common service functions and resets
• Multi-point Digital Vehicle Inspection (DVI) — AI-powered image analysis for auto-detection of dents and scratches; pairs with the Autel TBE200 Tire Tread Examiner and ITS600 TPMS tool to produce detailed tire analysis
• MaxiFlash VCMI2 — VCI/J2534 pass-thru programmer, 4-channel oscilloscope, multimeter, waveform generator, CAN-Bus tester, and standalone Remote Expert in a lighter chassis
• MAX hands-free assistant — access tablet functions with audible commands
• Enhanced docking station with tablet fast-charge
• Motor TruSpeed repair data — one year of free access included
• One year of free Autel software updates included

Compatibility

• U.S., Asian, and European vehicles (1996+)

• Active tests, special functions, coding, and adaptations

• Security gateway support for Stellantis, Nissan, Mercedes-Benz, and Volkswagen/Audi

• Supports DoIP, CAN FD, J2534, and D-PDU protocols

What’s Included

• MaxiSYS Ultra S2 tablet

• MaxiFlash VCMI2 with J2534 programming, oscilloscope, multimeter, waveform generator, CAN tester, and Remote Expert

• Enhanced fast-charge docking station

• IA1000 4-wheel alignment and ADAS calibration software activation card

Specifications

Warranty

• 1-year limited warranty on the MaxiSYS Ultra S2 tablet
• 1 year of free Autel software updates included from the date of activation
• 1 year of free Motor TruSpeed OEM-sourced repair data included

FAQ

Does this kit include targets, calibrators, or the frame?
No. Includes the Ultra S2 tablet, VCMI2, docking station, and IA1000 software activation card. IA1000 calibration hardware is sold separately.

What vehicles does the Ultra S2 cover?
U.S., Asian, and European vehicles (1996+) with diagnostics, coding, adaptations, and active tests.

Are software updates and repair data included?
Yes. Includes 1 year of Autel software updates and Motor TruSpeed repair data.

Does it support factory security gateways?
Yes. Supports Stellantis, Nissan, Mercedes-Benz, and Volkswagen/Audi gateways.

What protocols does the MaxiFlash VCMI2 support?
Supports DoIP, CAN FD, J2534, and D-PDU.

Documents

Autel MaxiSYS Ultra S2 quick reference guide, user manual, packing list, and product flyers are available on request — contact support@carliftsupply.com or call 877-600-5227.
