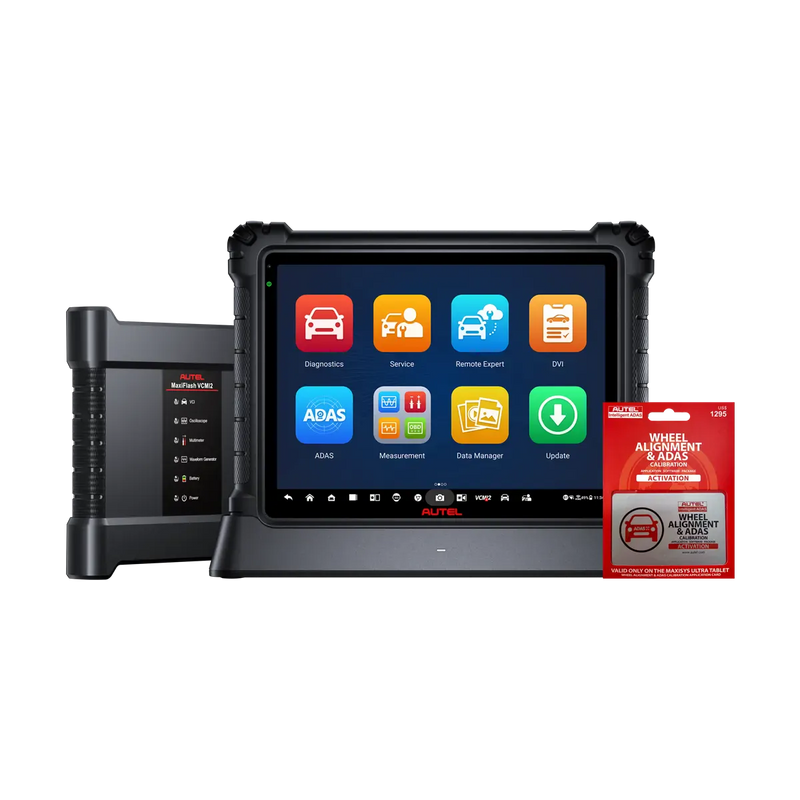

Autel MaxiSYS Ultra S2 Advanced Diagnostic Tablet with IA900 Wheel Alignment and ADAS Calibration Software

The Autel MaxiSYS Ultra S2 with IA900 Software (S2ADAS900) combines Autel’s flagship diagnostic tablet with the software activation needed to operate the IA900 wheel alignment and ADAS calibration platform. The 13.7-inch Ultra S2 tablet and MaxiFlash VCMI2 6-in-1 communication device provide a complete diagnostic workstation for U.S., Asian, and European vehicles from 1996 and newer, adding advanced functions such as active tests, coding, adaptations, ECU analysis, and ADAS calibration control.

The included IA900 software activation card unlocks four-wheel alignment and ADAS calibration workflows when paired with an IA900 calibration frame. The system supports calibration procedures for cameras, radar, lidar, and night vision systems when used with the appropriate physical targets and calibrators (sold separately). The MaxiFlash VCMI2 combines a vehicle communication interface, J2534 pass-through programmer, oscilloscope, multimeter, waveform generator, CAN-Bus tester, and Remote Expert device into one compact unit, reducing the need for multiple diagnostic tools.

Designed for dealerships, collision repair centers, ADAS calibration specialists, and advanced automotive service facilities, the Ultra S2 provides professional-level diagnostics with features such as Topology 3.0 network analysis, enhanced Live Data tools, AI-assisted digital vehicle inspections, EV diagnostics, and 48+ service functions. With 12 GB RAM, 512 GB storage, Android 13, Wi-Fi connectivity, and one year of free software updates, it provides a scalable platform for modern vehicle repair. IA900 calibration frame hardware and ADAS targets are required separately for physical calibration procedures.

Features

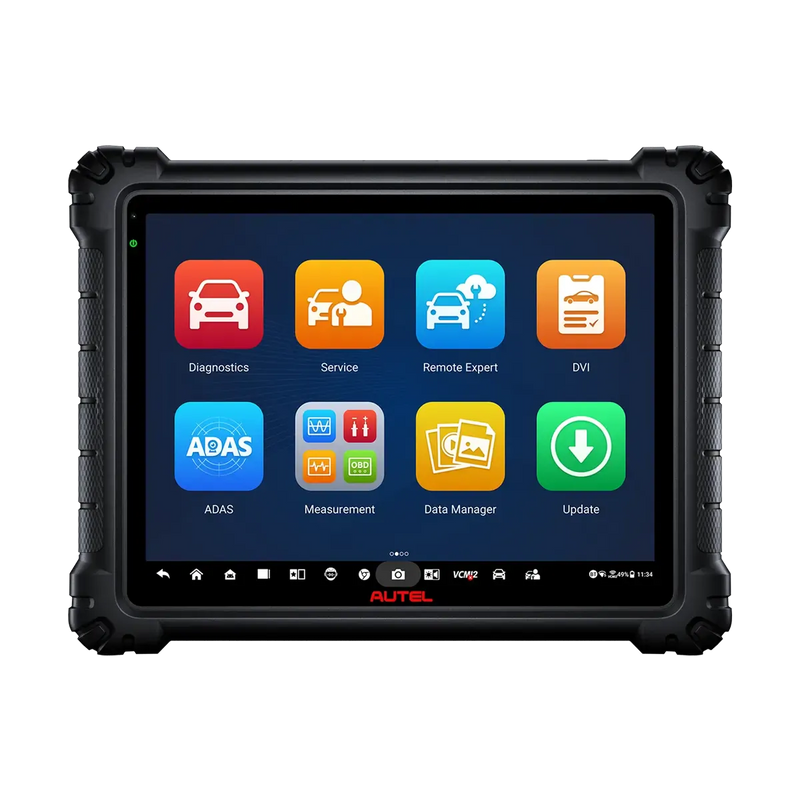

• 13.7-inch anti-glare touchscreen at 2176×1600, driven by a Qualcomm QCS6490 8-core 2.7 GHz processor with 12 GB RAM and 512 GB onboard storage.
• MaxiFlash VCMI2 6-in-1 VCI: VCI/J2534 pass-thru programmer, 4-channel oscilloscope, multimeter, waveform generator, CAN-Bus tester, and standalone Remote Expert device — one lighter chassis instead of separate bench tools.
• Comprehensive coverage of U.S., Asian, and European vehicles, 1996 and newer, with active tests, special functions, coding, and adaptations.
• Topology 3.0 — OE-style system analysis of multi-speed communication protocol networks, plus Active Module and Network Analysis for pinging individual ECUs to verify signal quality and network integrity.
• Enhanced 4-channel oscilloscope that launches directly from Live Data, with EV tests for AC/DC charging, HV components, interlock loop signal, power-on control, resolver sensor, and thermal management. Adds parasitic current-draw and swing tests.
• Multi-point Digital Vehicle Inspection (DVI) with AI-powered image analysis for auto-detection of dents and scratches. Pairs with the Autel TBE200 tire-tread examiner and ITS600 TPMS tool for detailed tire analysis.
• Live Data Fusion records and compares value changes across multiple systems. Parameter Grouping handles multi-PID selection of related parameters. Reference Sampling records, stores, and reviews selected PIDs for pre- and post-repair comparison, flagging min, max, and average.
• Service Menu with 48-plus maintenance and service tasks for direct access to commonly performed service functions and resets.
• MAX virtual assistant for hands-free navigation of the Ultra S2 interface via audible commands.
• Fast-charge docking station for quicker tablet recharge between jobs.
• Security gateway access for Stellantis, Nissan, Mercedes-Benz, and Volkswagen/Audi vehicles.
• One year of free Autel software updates and one year of free access to Motor TRUSPEED OEM-sourced repair data.

Compatibility

• Supports U.S., Asian, and European passenger vehicles from 1996+.

• Compatible with gateway-protected vehicles from Stellantis, Nissan, Mercedes-Benz, and Volkswagen/Audi.

• Supports advanced communication protocols including DoIP, CAN FD, J2534, and D-PDU.

• IA900 software works with Autel IA900 calibration frames and targets.

• Static camera, radar, lidar, and night vision calibrations require the corresponding IA900 calibration hardware (sold separately).

What’s Included

• MaxiSYS Ultra S2 main unit (tablet)
• MaxiFlash VCMI2 vehicle communication and measurement device
• Docking station with fast-charge support
• Main Cable V2.0
• USB 2.0 Cable V2
• USB Type-C cable
• USB-to-Ethernet adapter
• AC/DC adapter (12 V)
• Auxiliary power-outlet adapter
• Clamp cable
• Spare fuse, 6×30 mm (2 pcs)
• Attenuator 20:1 (2 pcs)
• Scope test lead (4 pcs)
• Multimeter test lead (2 pcs)
• Multimeter probe (2 pcs)
• Secondary ignition pickup (2 pcs)
• Breakout lead set (24 pcs total — 4 sizes × 6 pcs)
• Flexible back-pinning probe (4 pcs)
• Back-pinning probes — red, green, blue, yellow, black (5 pcs)
• Back-pinning probe screws (2 pcs)
• Back-pinning probe replacement needles (20 pcs)
• Small alligator clips (4 pcs)
• Large dolphin clips (2 pcs)
• Soft cloth, tool box, accessory storage bag, carrying case
• Quick Reference Guide and Quick Start Guide
• Wheel Alignment & ADAS Calibration software activation card (IA900)

Specifications

Warranty

One-year limited warranty from Autel, with one year of free software updates included.

FAQ

• How is this different from the standalone MaxiSYS Ultra S2?
  Includes the IA900 Wheel Alignment & ADAS Calibration software activation card. The tablet hardware is the same as the standard Ultra S2.
• Do I need anything else for static ADAS calibrations?
  Yes. The IA900 frame and matching targets/calibrators are required and sold separately.
• Which security gateways are supported?
  Supports Stellantis, Nissan, Mercedes-Benz, and Volkswagen/Audi gateways.
• Is Motor TRUSPEED included?
  Yes. Includes 1 year of Motor TRUSPEED repair data and 1 year of Autel software updates.

Documents

• S2ADAS900 Tablet + IA900 Software Flyer
• MaxiSYS Ultra S2 Flyer
• Quick Reference Guide
• User Manual (EN, V1.0)
• Packing List

Need help choosing the matching IA900 calibration frame package or have shipping questions? Contact support@carliftsupply.com or call 877-600-5227.
