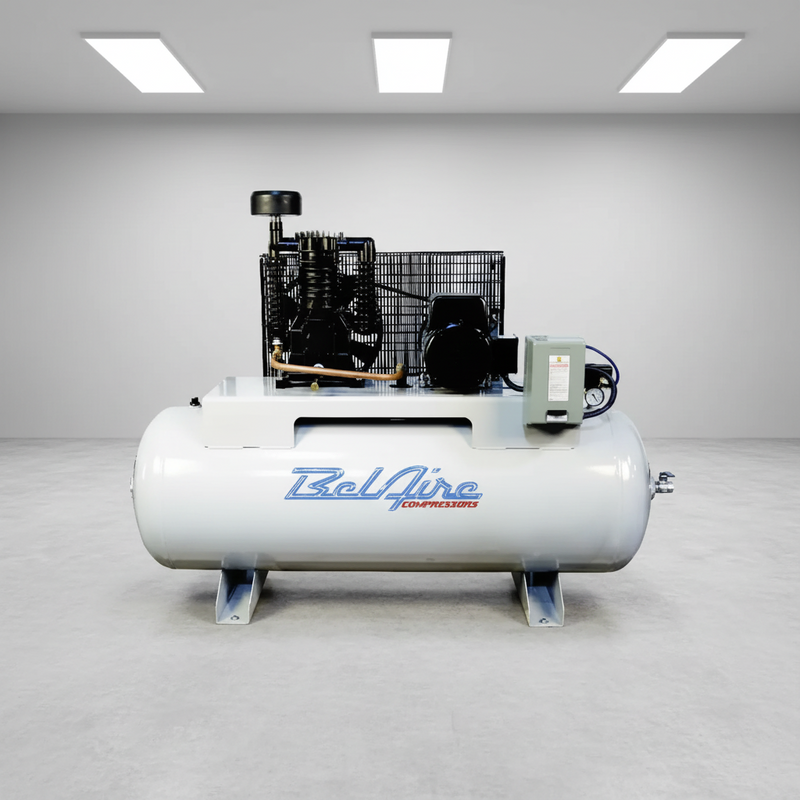

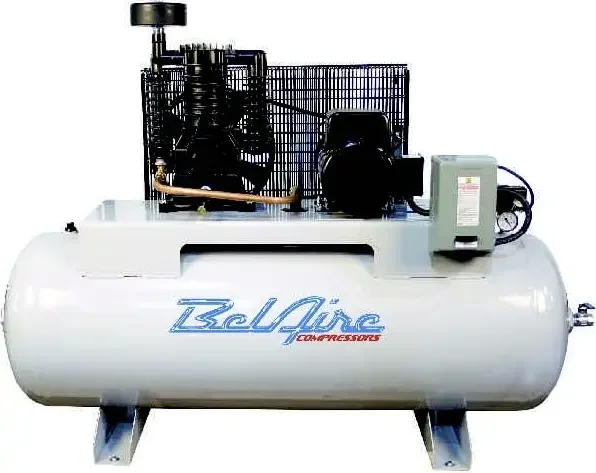

The BelAire 318HLE Elite Series delivers 7.5 HP of compressed air from a single-phase 208V or 230V supply, making it an option for shops that need higher air capacity but do not have three-phase service. Its two-stage pump delivers 22.3 CFM at 100 PSI and reaches 175 PSI maximum pressure, with an 80-gallon horizontal ASME tank and factory-installed magnetic starter. BelAire specifies a 60-amp circuit, so electrical capacity should be verified before installation. Note: the product's attached specification table appears to belong to the vertical sibling model and conflicts with the main listing on dimensions and airflow. Confirm the exact configuration before ordering.
The two-stage pump compresses air in two steps, with cooling between stages, helping the compressor reach 175 PSI while controlling compression heat. A cast iron cylinder sleeve, belt drive, splash lubrication, and oil sight glass support routine maintenance and sustained shop use. The 80-gallon receiver provides reserve air for periods of higher demand, while the integrated aftercooler reduces discharge temperature and helps separate moisture before it reaches the tank. The tank includes a manual drain, so condensate still needs to be removed regularly. For paint, plasma, or other moisture-sensitive applications, BelAire recommends the CPXHT25 dryer, which is not included.
The 318HLE is designed for independent automotive shops, body and paint operations, fabrication facilities, and serious home workshops that have adequate single-phase electrical service. Its horizontal tank configuration is intended for installations where a long, low layout is preferable to a tall vertical compressor, including shops with limited ceiling clearance. Because the supplied specification table does not reliably describe this model, verify the dimensions, tank orientation, and airflow rating before purchasing if the available installation space or tool requirements are tight. The final electrical installation, permits, and site preparation should be handled by a qualified professional.
Specifications
| Model |
318HLE, Elite Series |
| Motor |
7.5 HP, 208V or 230V, 1-Phase, magnetic starter fitted |
| Recommended breaker |
60 Amp |
| Pump |
Two-stage, cast-iron cylinder sleeve, belt drive, splash lubricated, low oil shut-off |
| Airflow |
22.3 CFM at 100 PSI, as stated by this listing |
| Maximum pressure |
175 PSI |
| Tank |
80 gallon ASME, manual drain |
| Air outlet |
3/4 inch |
| Aftercooler |
Fitted. Dryer sold separately |
| Dimensions and weight |
Confirm with us in writing — see the note above |
| Warranty |
2 Year, bumper to bumper |
Certification, Stated Plainly
The tank and safety valve are ASME-rated. This standard applies to the pressure vessel that stores compressed air; it does not cover the electrical assembly.
BelAire’s data for this model does not claim a third-party North American electrical safety listing, and we will not imply one. If your insurer, fleet policy or local inspector requires listed shop equipment, ask us to confirm the available documentation in writing before ordering.
Shipping & Delivery
Ships by palletized freight to the lower 48 states. Unloading is the customer’s responsibility, so plan for a forklift, loading dock or pallet jack on hard, level ground. If that is not available, terminal pickup may be the easier option, and we can help arrange it. Residential deliveries carry an additional fee, quoted with shipping at checkout.
Inspect before signing. Check the gauge, belt guard, motor and tank for shipping damage. Record any damage on the delivery paperwork while the driver is present and take photographs. A clean signed receipt can make a freight damage claim difficult to pursue.
Warranty
The listed coverage is a 2-Year bumper-to-bumper factory warranty, with no additional purchase required. The warranty document supplied with the compressor controls the coverage, so review it when the unit arrives.
If a problem develops, do not disassemble the pump, motor or electrical enclosure before opening a claim. Keep the affected component intact for inspection and contact us first.
