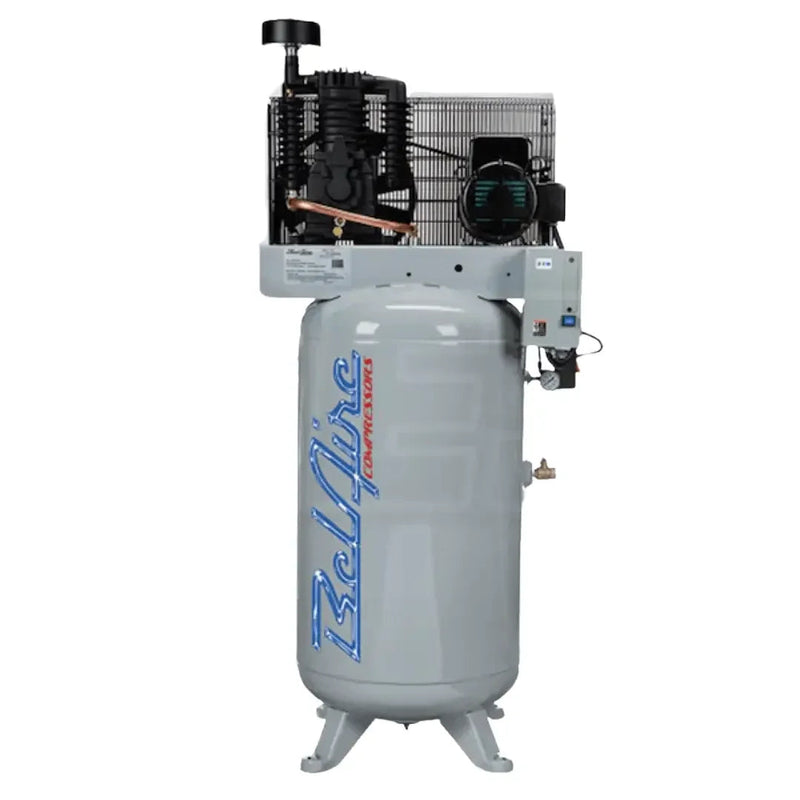

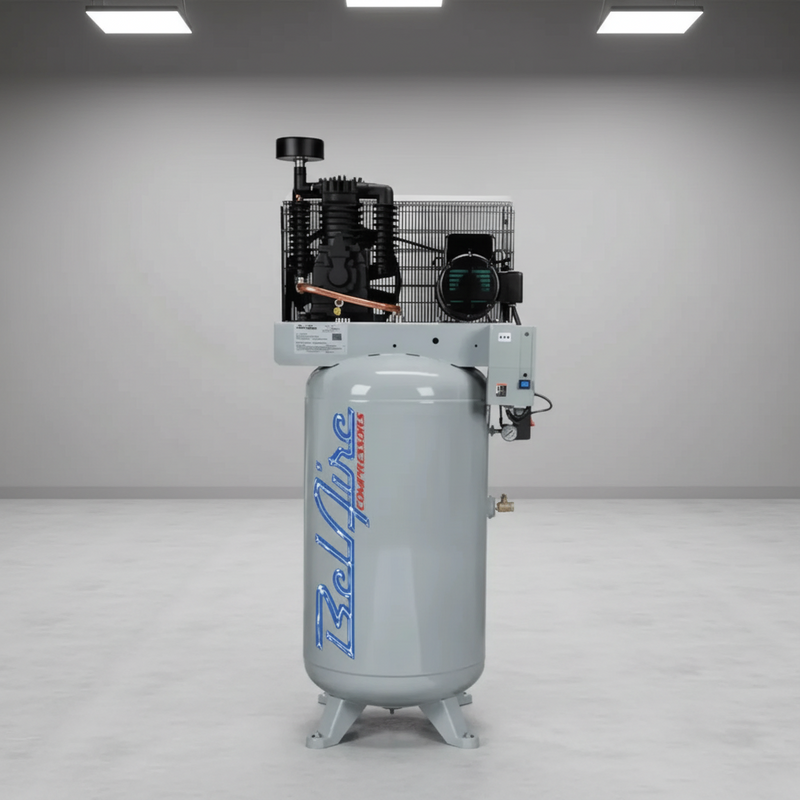

The BelAire 318VLE Elite Series combines 7.5 HP, 22.3 CFM at 100 PSI and a 175 PSI maximum with an 80-gallon vertical ASME tank. Its standout feature is the triple-pass, pump-mounted aftercooler, which reduces compressed-air temperature before it reaches the tank, helping more moisture condense at the compressor instead of traveling into your air lines. The Elite package also includes a magnetic starter, automatic tank drain and low-oil protection. This model operates on 208–230V single-phase power. Note: the listing identifies the unit as approximately 39" × 24" × 77", so confirm the current horsepower, airflow and dimensions in writing before ordering due to conflicting specifications elsewhere on the page.
The aftercooler is particularly useful for applications where moisture can become a problem. Hot compressed air can carry significant water vapor downstream; cooling it before the tank allows more of that moisture to separate where the tank drain can remove it. The automatic pressure-operated drain handles condensate without requiring an electronic timer or daily manual intervention. A low-oil switch adds another layer of pump protection by shutting the compressor down if the oil level becomes too low, while the magnetic starter provides motor protection and prevents an unexpected restart after a power interruption. The belt-driven two-stage pump and vertical tank complete a package designed for regular shop use while keeping the floor footprint compact.
This compressor is a strong fit for busy independent automotive shops, paint and finishing operations, and commercial facilities that need substantial air capacity but only have single-phase electrical service. The vertical configuration makes it especially useful where floor space is limited but adequate ceiling clearance is available. BelAire lists a 60-amp breaker, so have a licensed electrician verify your available service, conductor sizing and disconnect requirements before installation. An air dryer is not included. If airflow, horsepower or the 77" overall height is critical to your application, confirm those specifications with the manufacturer before purchase.
Specifications
| Model |
318VLE, Elite Series |
| Supply |
230V (or 208V), 1-Phase |
| Recommended breaker |
60 Amp |
| Motor, as stated by this listing |
7.5 HP — confirm before you order; see the note above |
| Airflow, as stated by this listing |
22.3 CFM at 100 PSI — confirm before you order; see the note above |
| Maximum pressure |
175 PSI |
| Pump |
Two-stage, belt drive, splash lubricated, low oil level switch |
| Cooling |
Triple-pass pump-mounted aftercooler |
| Tank |
80 gallon ASME, automatic pressurised drain |
| Outlet |
3/4 inch |
| Dimensions, as stated by this listing |
39 in. x 24 in. x 77 in. — confirm before you order; see the note above |
| Warranty |
2 Year, bumper to bumper, valves included |
Certification, Stated Plainly
The tank and safety valve are ASME rated, covering the pressure vessel that holds the compressed air. This does not constitute a listing of the electrical assembly, and the published data does not claim a third-party North American electrical safety listing for the complete machine.
If your insurer, corporate safety policy or local inspector requires an independent listing, ask us to confirm the available documentation in writing before ordering.
Shipping & Delivery
Ships by freight to the lower 48 states, upright on a pallet.
Plan unloading in advance. You will need a loading dock, forklift or pallet jack with hard, level ground between the truck and your door. If that is not available, terminal pickup with a suitable trailer may be easier. Residential deliveries carry an additional fee shown with the shipping quote at checkout.
Inspect before signing. Check the tank, aftercooler, belt guard and gauge for damage. Record any issues on the delivery receipt with the driver present and take photographs before accepting the shipment.
Warranty
BelAire lists this model with a 2-Year bumper-to-bumper factory warranty covering all components, including valves, with no additional purchase required.
The warranty document supplied with the compressor governs coverage, so keep it with your purchase records. If a problem develops, do not disassemble the pump, motor or electrical enclosure before opening a claim. Contact us first so the manufacturer can evaluate the affected component intact.
