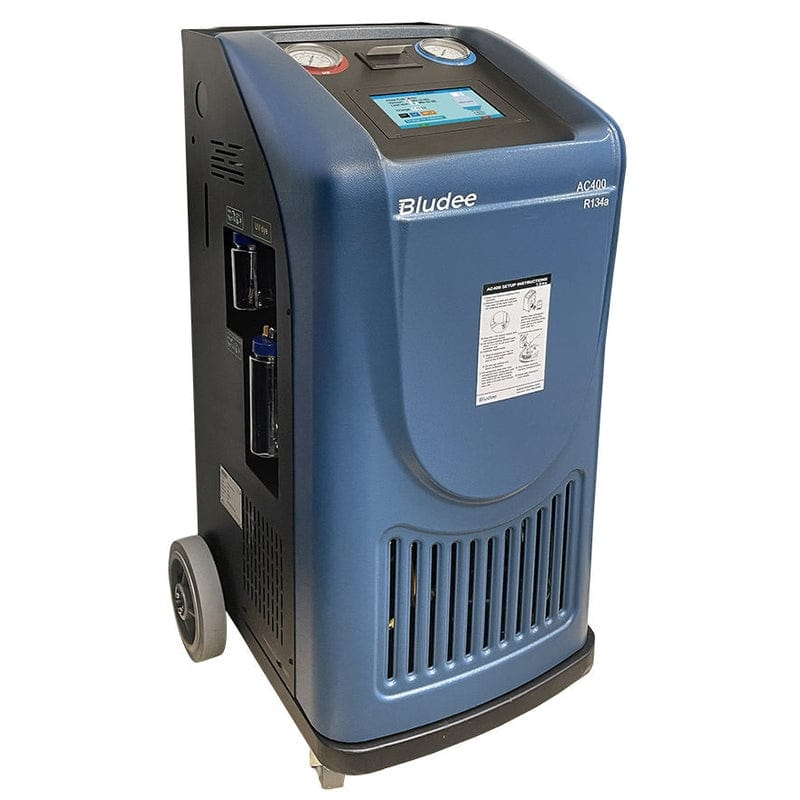

The AC400 is a fully automatic R-134a recovery, recycle, and recharge machine built for shops servicing standard and hybrid vehicles, delivering a 95% recovery efficiency rate on a walk-away cycle — connect the machine, set the parameters, and return when the job is done. It handles the complete A/C service sequence in a single automated run: recovery, recycling, evacuation, leak testing, and recharge, with automatic oil drain and fresh oil injection that measures how much lubricant was removed and puts the correct amount back into the system. A built-in thermal printer outputs a service record at job completion, and an onboard capacity database covers passenger vehicle refrigerant and oil specifications without manual lookup.
The automation extends to the details that slow down manual machines. An automatic internal tank refill keeps the service running without stopping to top up the refrigerant supply mid-job. Automatic air purge prevents air accumulation in the internal tank — a common source of inaccurate recharge weights on machines that require manual purging. Onboard electronic scales measure refrigerant by weight for accurate charge delivery, and a vacuum leak test identifies gross system leaks before refrigerant goes back in. For shops that prefer direct control, a manual mode gives the technician step-by-step operation alongside the standard one-button auto cycle.
The AC400 is a strong fit for independent repair shops and dealership service departments running R-134a A/C service on a mixed fleet of conventional and hybrid vehicles, and for high-volume operations where the fully automatic cycle and walk-away capability keep technician time on A/C jobs to a minimum.
Features
- Fully automatic recovery, recycling, and recharge cycle — start the process and return when complete

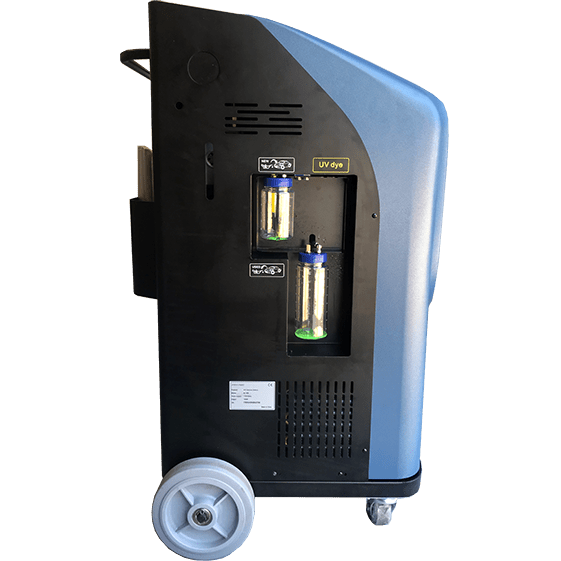

- Automatic used oil discharge and drain for hands-free fluid management

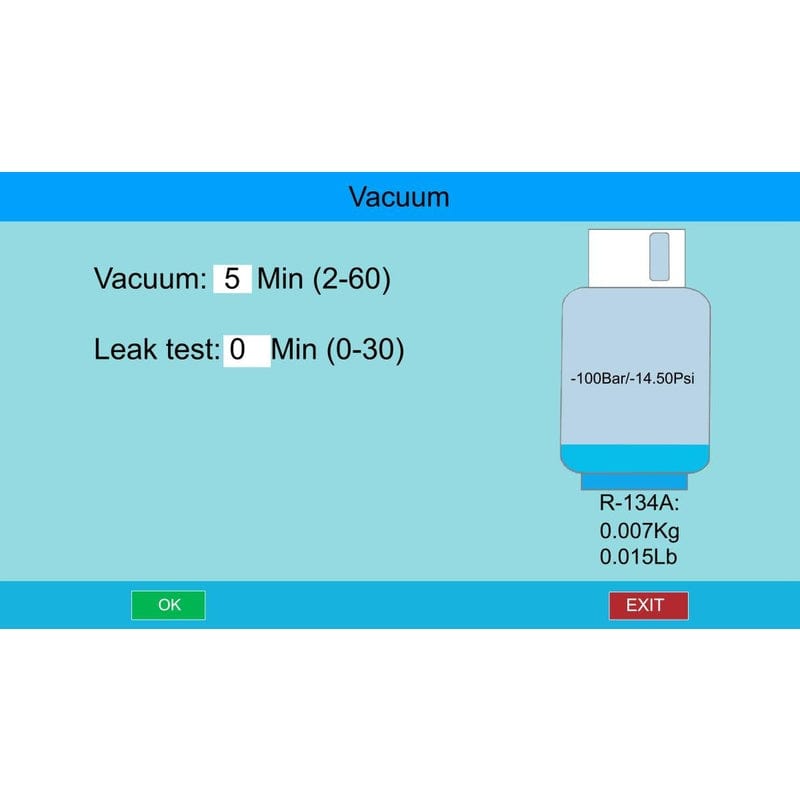

- Automatic vacuum function quickly reaches the required vacuum level under any conditions
- Automatic new oil injection with readout showing how much oil was removed during service
- Automatic internal tank refill eliminates interruptions during service
- Automatic air purge prevents air accumulation in the internal tank
- Comprehensive onboard A/C capacity database for a wide range of vehicles

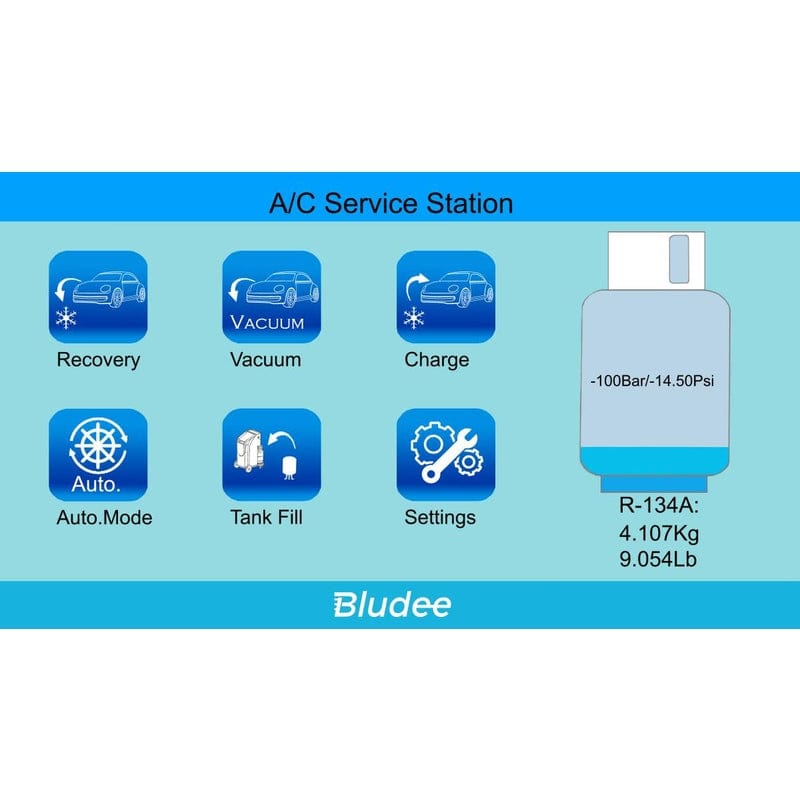

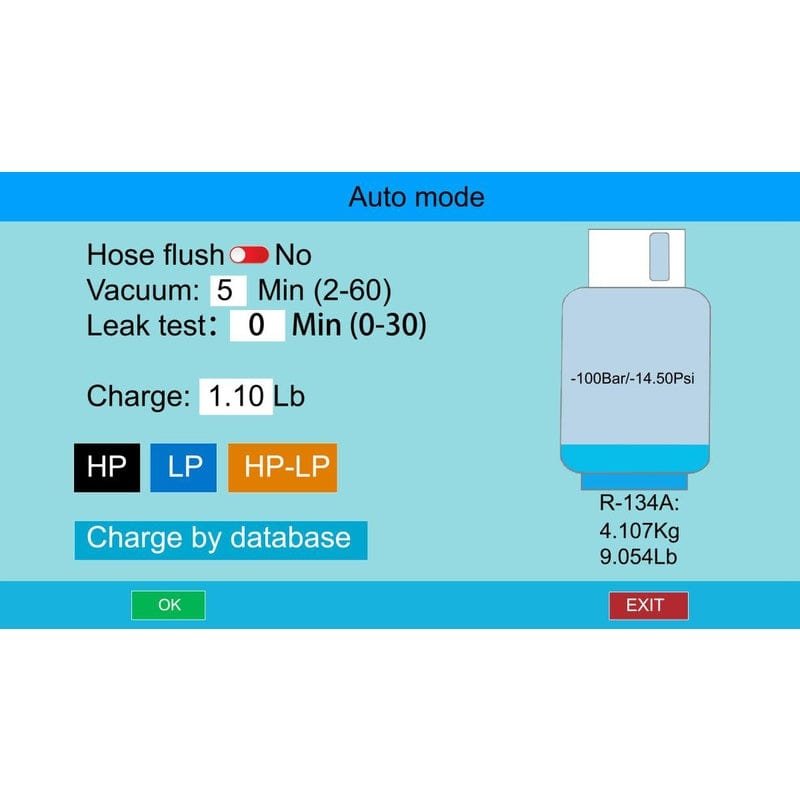

- Auto Mode supports one-step automatic recovery, recycling, vacuum, and recharge

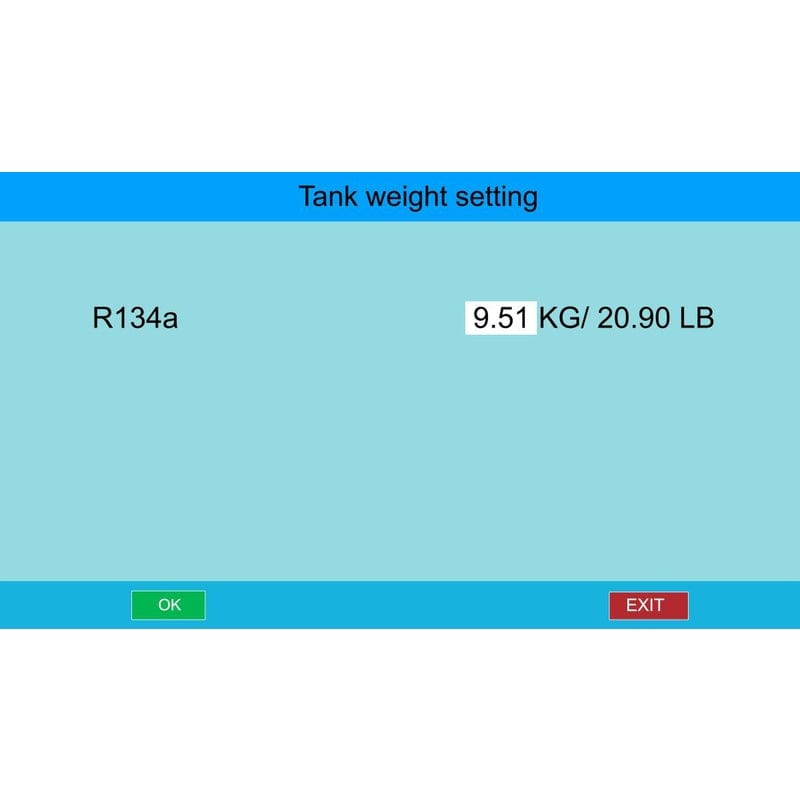

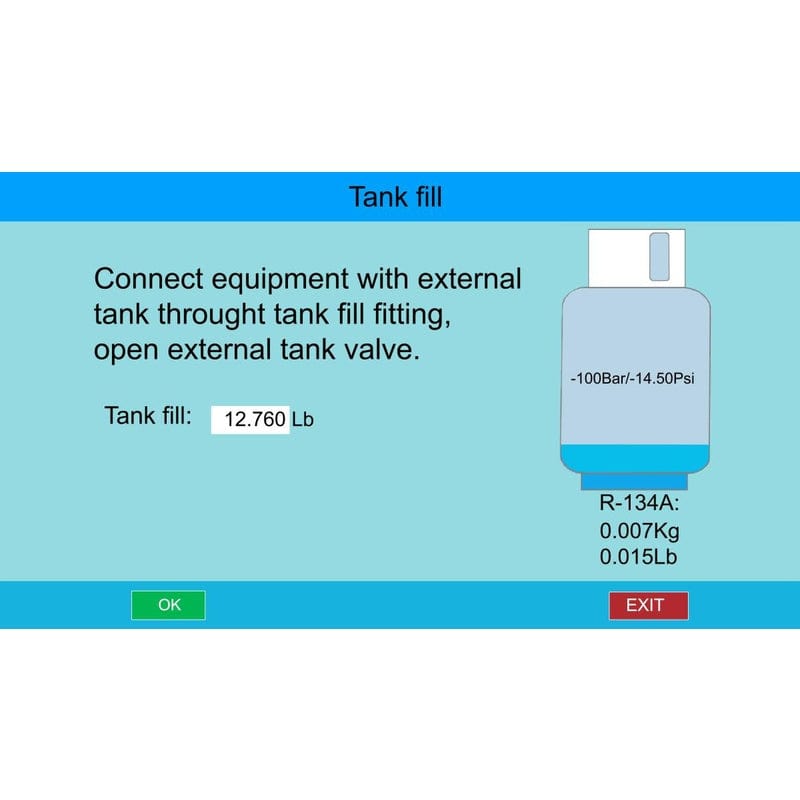

- Tank filling available in manual or pre-set value modes

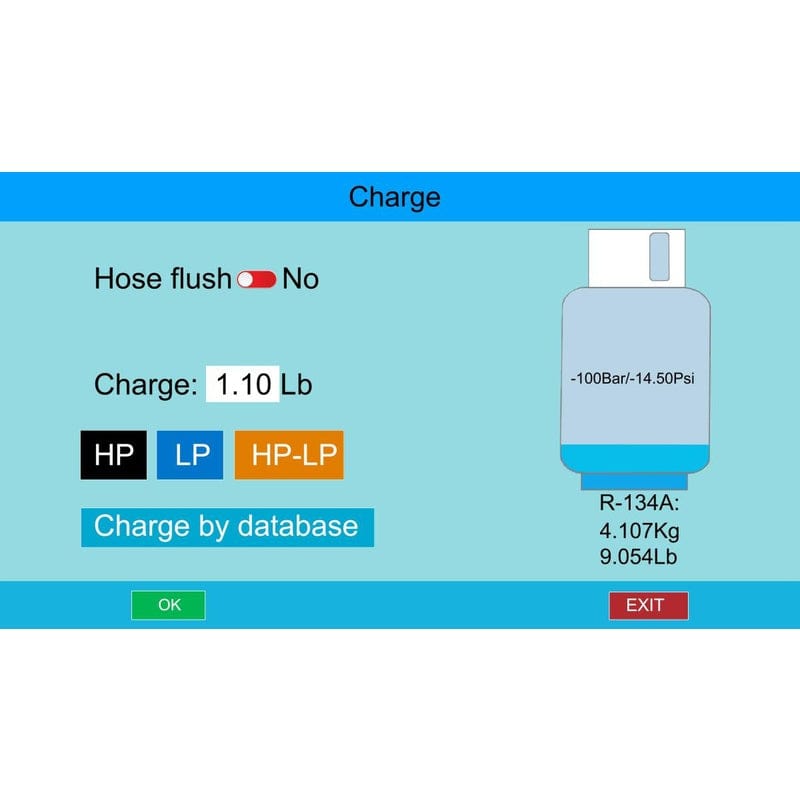

- Onboard electronic scales for precise measurements
- Built-in thermal printer for service records
- Internally mounted tank for a compact, self-contained design
- Vacuum leak test capability to identify gross system leaks
Specifications
-
Input power: AC110V 60Hz.
-
Compressor: 3/8 HP.
-
Vacuum pump capacity: 16Gal/min.
-
Recovery rate: 99% to medium vacuum.
-
Vapor state refrigerant recovery speed: 0.55 lbs/Min.
-
Gas cylinder volume: 22LBS
-
Drying filter: 20oz
-
Load cell accuracy(oil bottle): +_5g
-
Load cell accuracy(gas cylinder): +_10g
-
New and old oil bottle capacity: 8.9/13.5oz Max working pressure 290PSI
-
Color screen: 4.3inch 480RGB*272Dots.
-
Dimension: 560*625*1048mm.
- One year labor warranty, two years part and three years compressor
Functions
Main functions

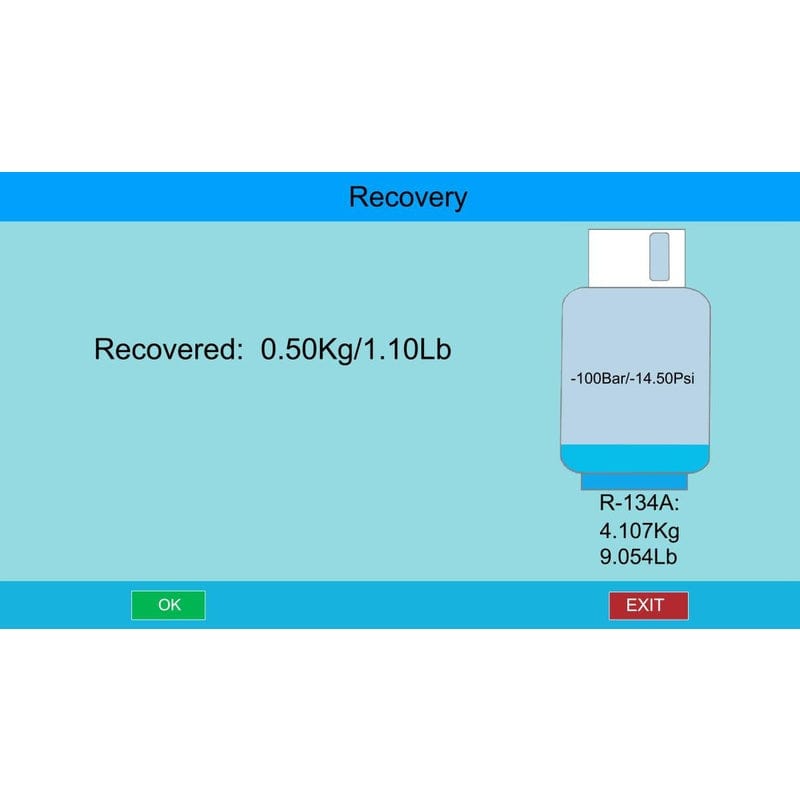

- Recovering/Recycling
- Discharging used oil
- Vacuum
- Refilling new oil
- Recharging
- Full Automatic mode
- Vacuum leak test (optional)
Auxiliary functions
- Vacuum system piping
- Multiple alarms
- Maintenance procedures
- Part inspections
- Calibration of load cell
- Parameters setting
- Gas cylinder heating
- Incompressible gases discharging
User Manual
Download the AC400 user manual
