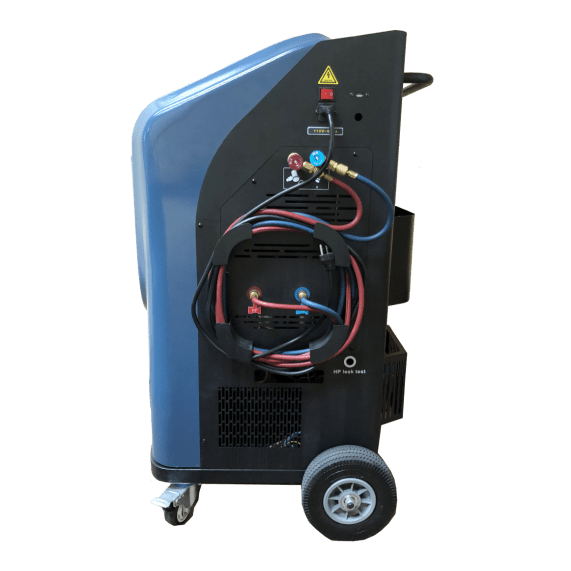

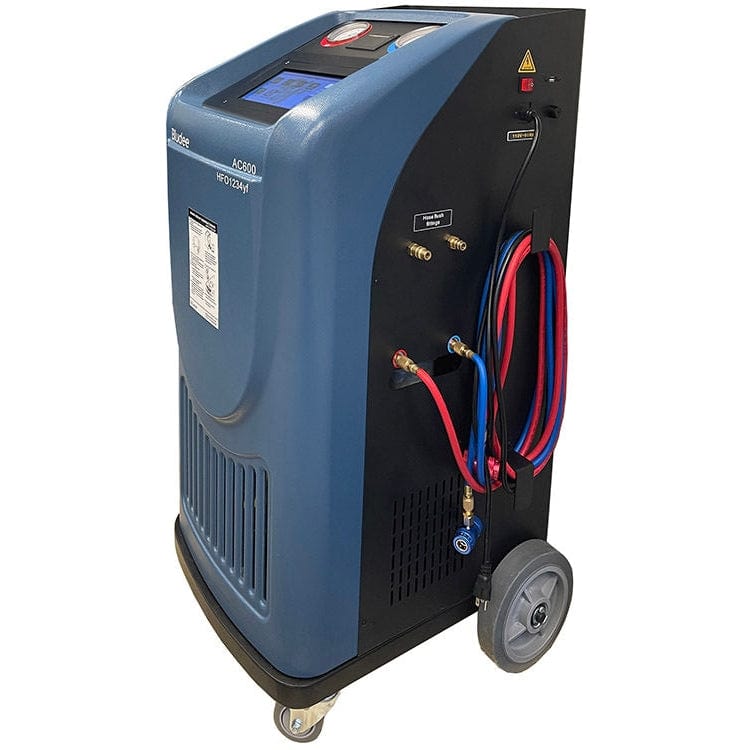

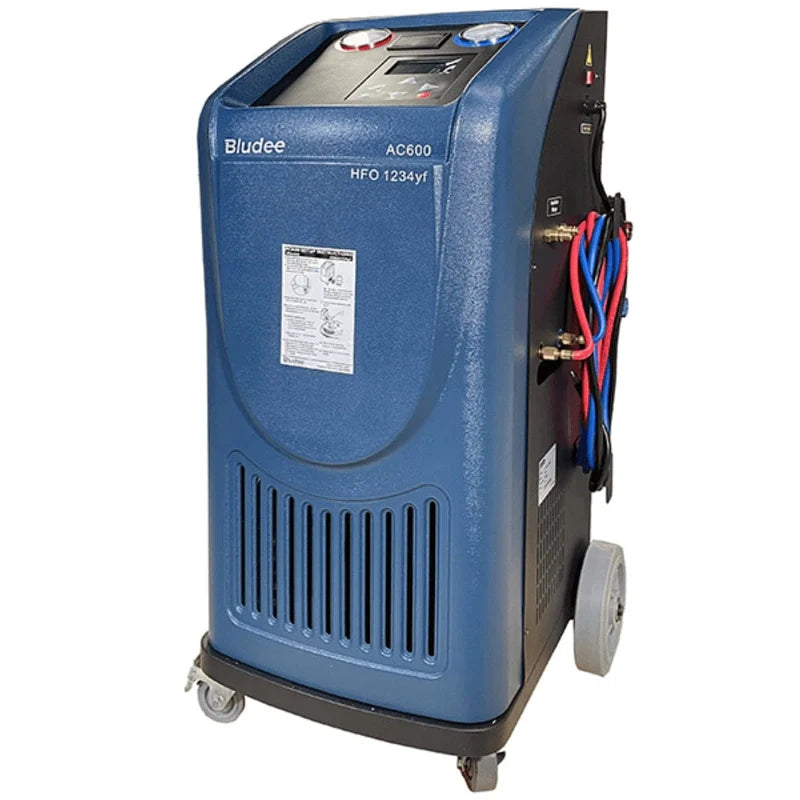

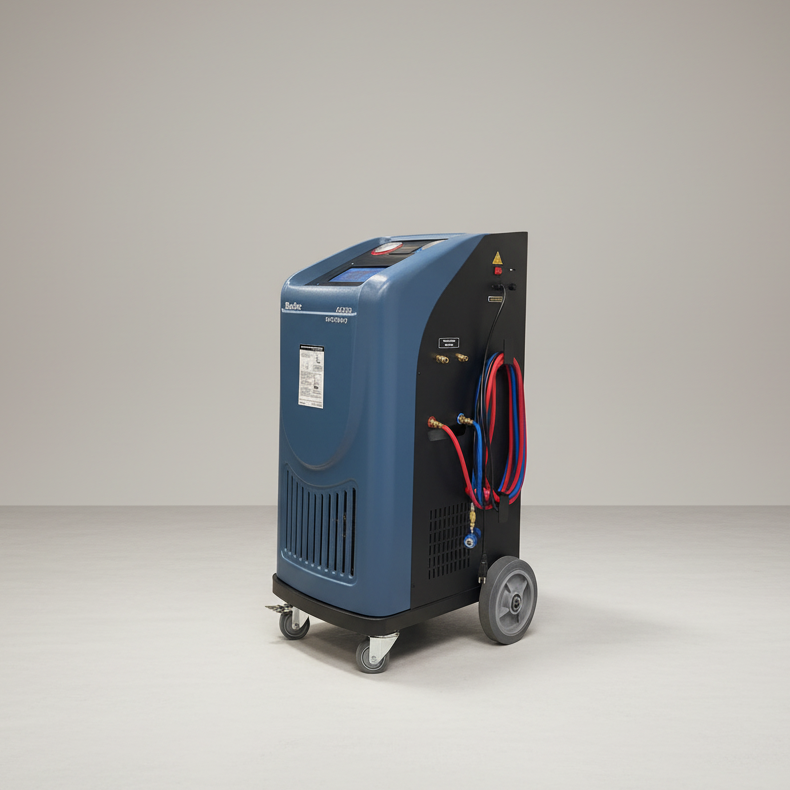

The AC600 is a fully automatic R-1234yf recovery, recycle, and recharge machine built for shops servicing the growing volume of vehicles that require 1234yf refrigerant — including late-model domestic, import, hybrid, and electric vehicles. It delivers 95% recovery efficiency on a walk-away cycle covering the full A/C service sequence: recovery, recycling, evacuation, leak testing, and recharge, with automatic oil drain and fresh oil injection returning the correct amount of lubricant to the system. A built-in thermal printer outputs a service record at job completion, and an onboard capacity database covers refrigerant and oil specifications for all passenger vehicles without manual lookup.
The automation handles the details that create delays on manual machines. Automatic internal tank refill keeps the service cycle running without stopping to replenish the refrigerant supply mid-job, and automatic air purge prevents air accumulation in the internal tank — a source of inaccurate recharge weights that manual-purge machines require the technician to manage. Onboard electronic scales deliver charge weight accuracy without estimation, and a vacuum leak test confirms system integrity before refrigerant goes back in. Manual mode gives step-by-step control for technicians who prefer direct operation alongside the standard one-button auto cycle.
The AC600 is the right fit for independent repair shops and dealership service departments that have committed to dedicated 1234yf service equipment, and for high-volume operations where the fully automatic cycle and walk-away capability keep technician time on A/C jobs to a minimum while the onboard database eliminates manual spec lookup between vehicles.
Features
- Fully automatic recovery, recycling, and recharge cycle — start the process and return when complete
- Automatic vacuum function quickly reaches the required vacuum level under any conditions
- Automatic air purge prevents air accumulation in the internal tank
- Comprehensive onboard A/C capacity database for a wide range of vehicles

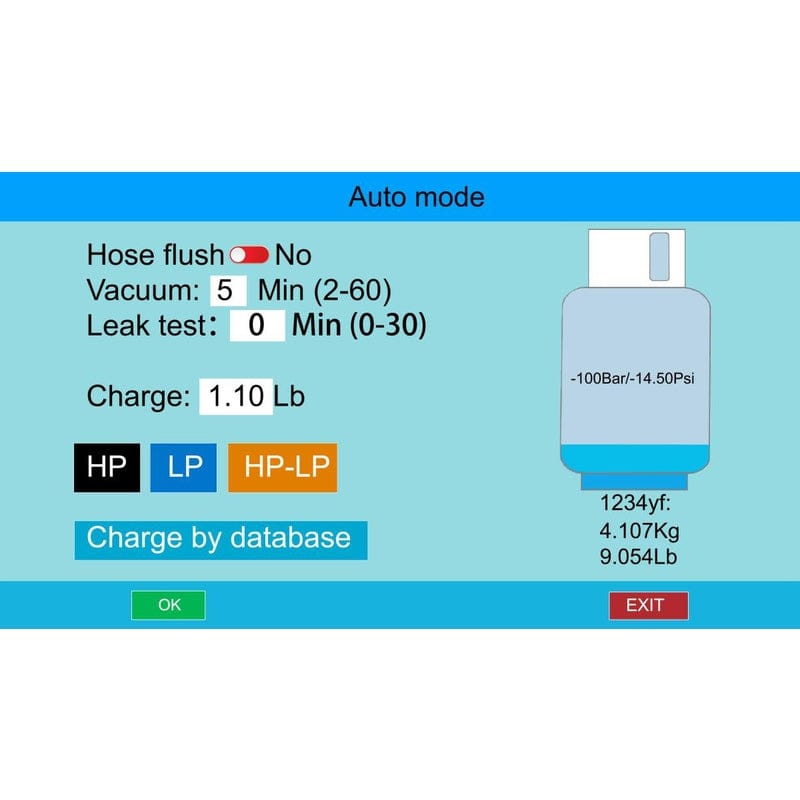

- Auto Mode supports one-step automatic recovery, recycling, vacuum, and recharge

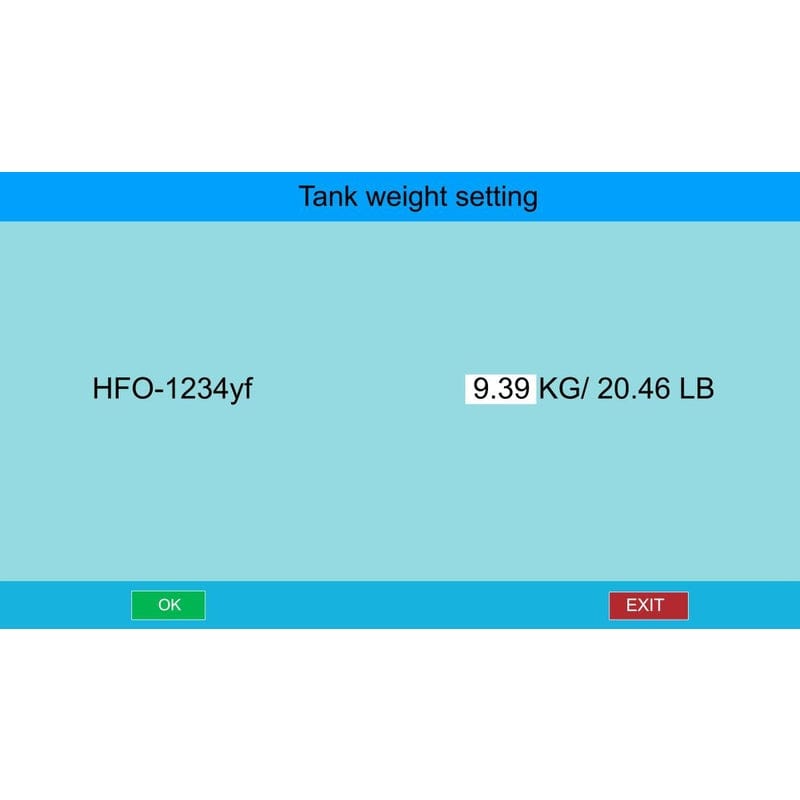

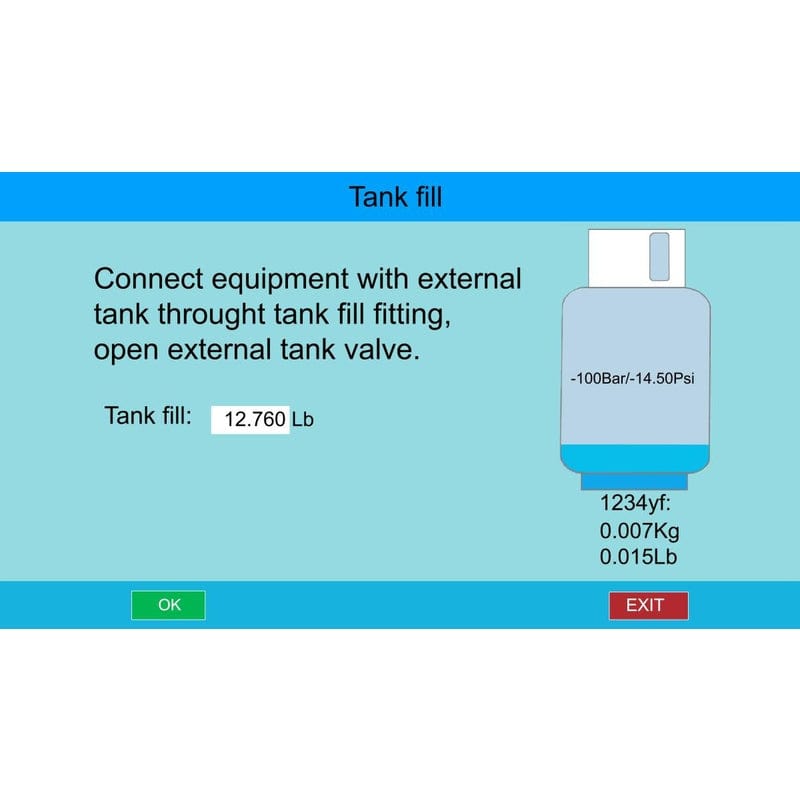

- Tank filling available in manual or pre-set value modes
- Onboard electronic scales for precise measurements
- Built-in thermal printer for service records
- Internally mounted tank for a compact, self-contained design

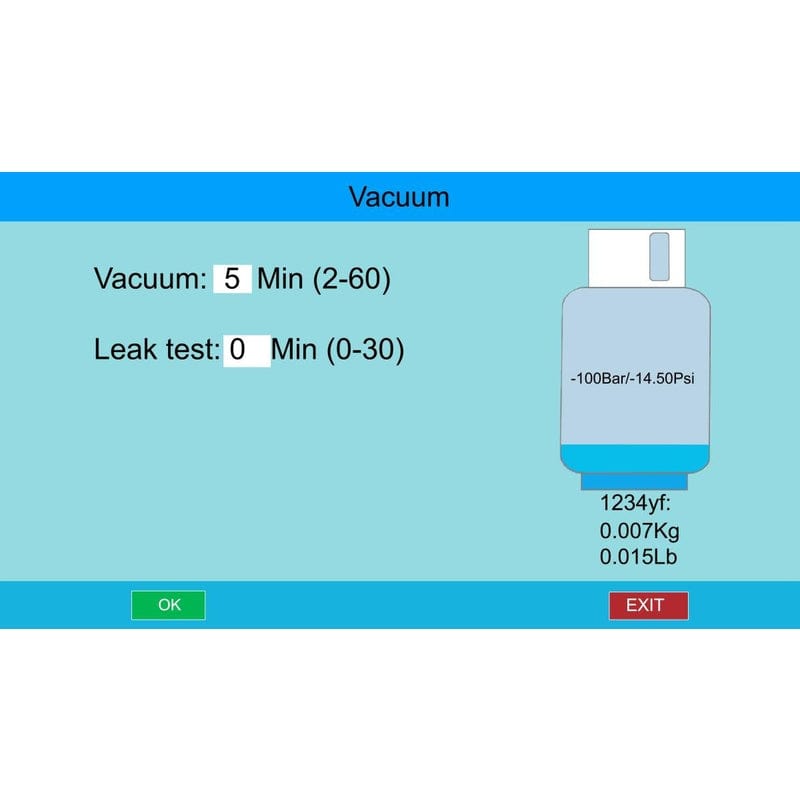

- Vacuum leak test capability to identify gross system leaks
Specifications
-
Input power: AC110V 60Hz.
-
Compressor: 3/8 HP.
-
Vacuum pump capacity: 16Gal/min.
-
Recovery rate: 99% to medium vacuum.
-
Vapor state refrigerant recovery speed: 0.55 lbs/Min.
-
Gas cylinder volume: 22LBS
-
Drying filter: 20oz
-
Load cell accuracy(oil bottle): +_5g
-
Load cell accuracy(gas cylinder): +_10g
-
New and old oil bottle capacity: 8.9/13.5oz Max working pressure 290PSI
-
Color screen: 4.3inch 480RGB*272Dots.
-
Dimension: 560*625*1048mm.
- One year warranty, two years part and three years compressor

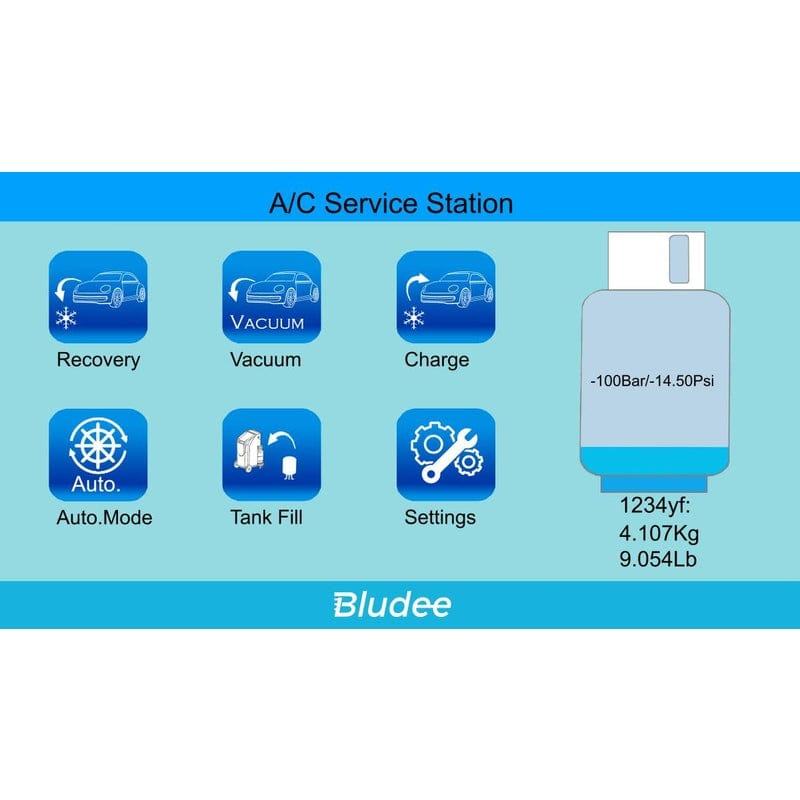

Functions
Main functions

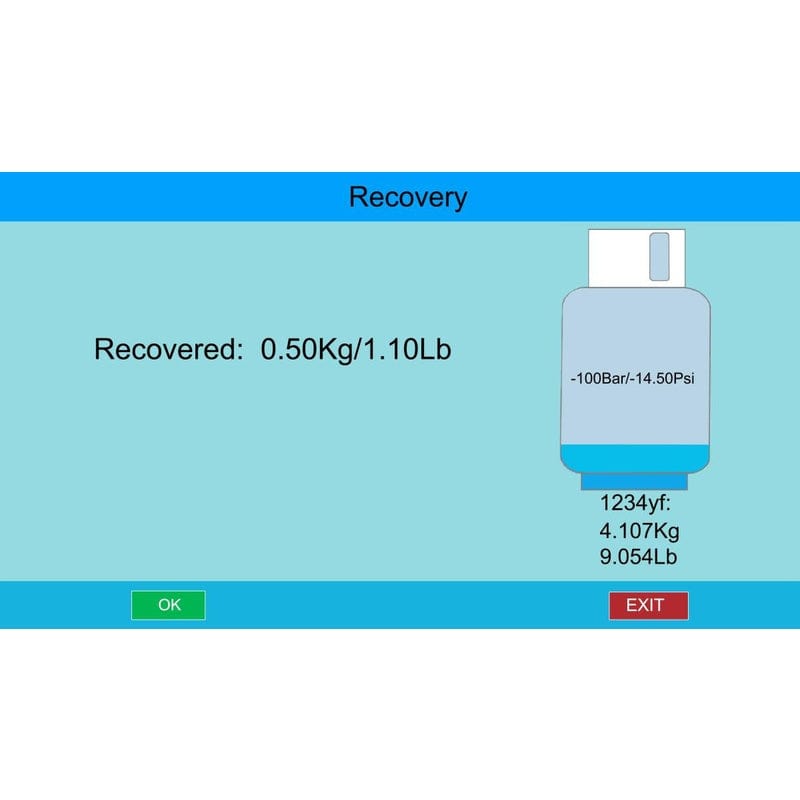

- Recovering/Recycling
- Discharging used oil
- Vacuum
- Refilling new oil

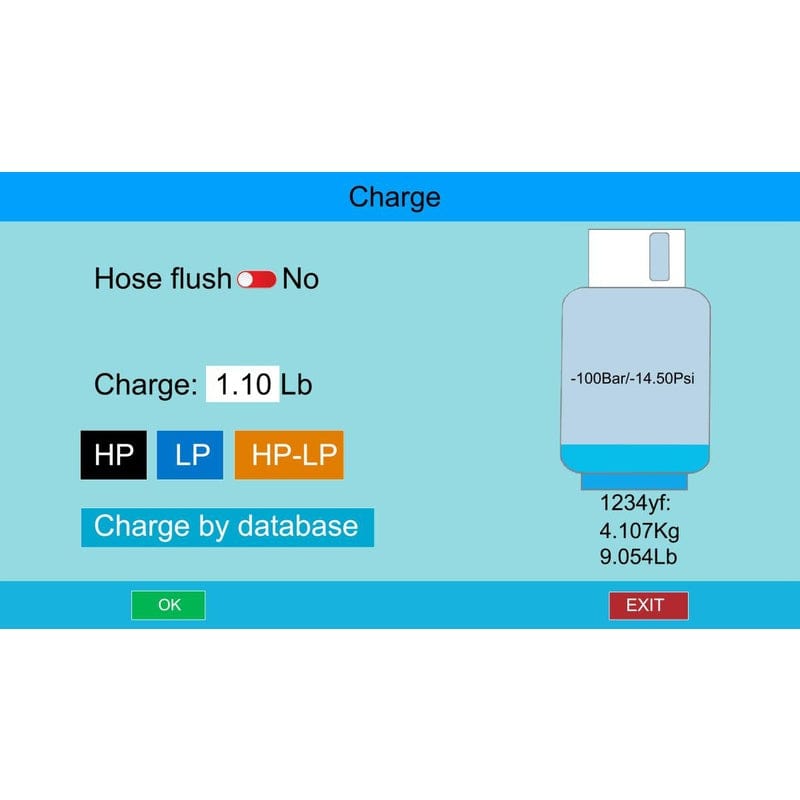

- Recharging
- Full Automatic mode
- Vacuum leak test (optional)
Auxiliary functions
- Vacuum system piping
- Multiple alarms
- Maintenance procedures
- Part inspections
- Calibration of load cell
- Parameters setting
- Gas cylinder heating
- Incompressible gases discharging
User Manual
Download the AC600 user manual
