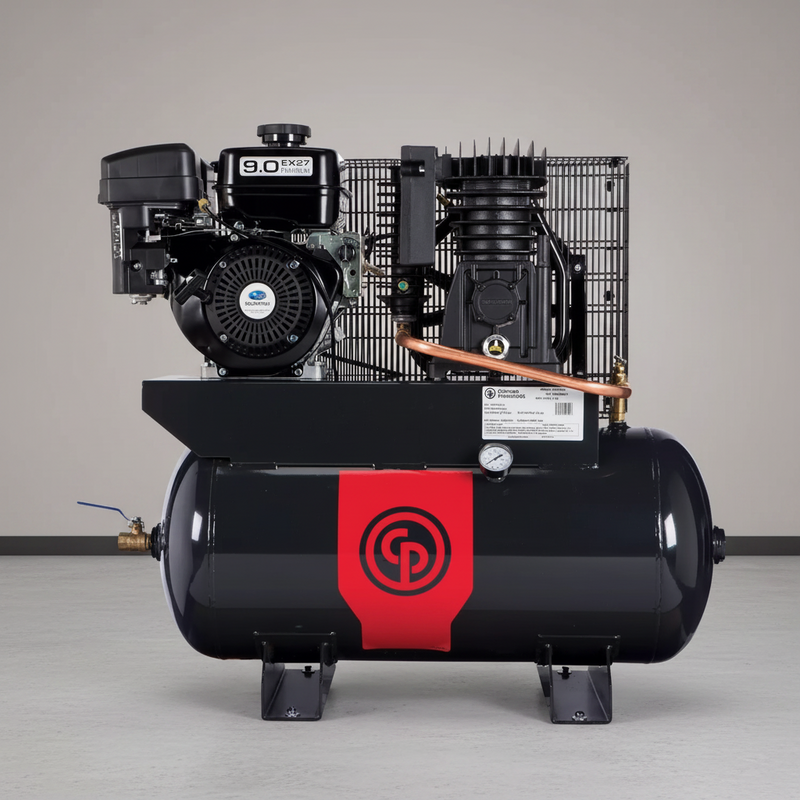

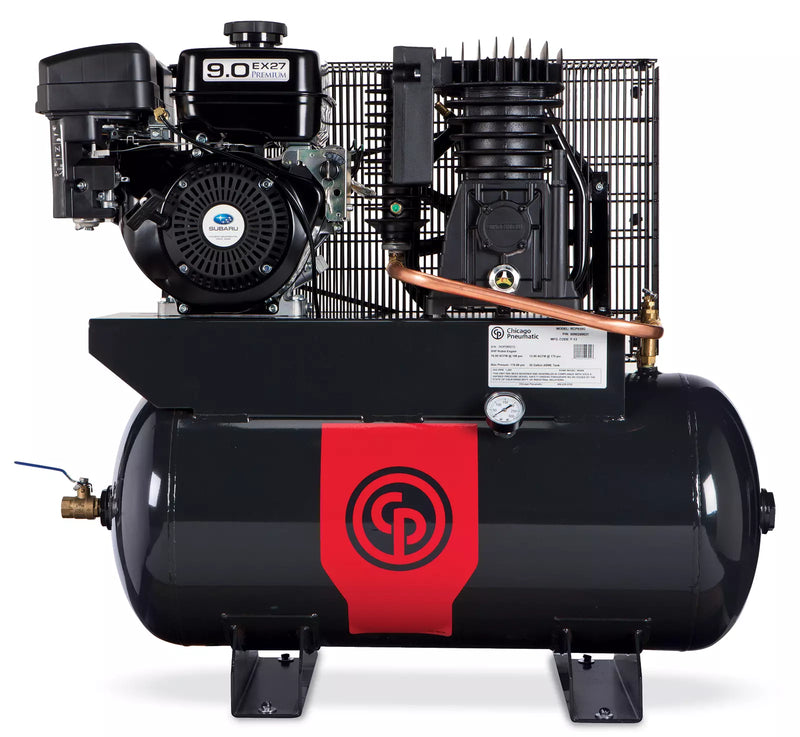

The Chicago Pneumatic RCP-C1330G is a 13 HP service truck compressor built around a two-stage cast iron pump, a 30-gallon horizontal tank, and the air capacity needed for demanding mobile work—including applications using a 1" impact wrench. It delivers 23 CFM at 100 PSI and reaches 175 PSI maximum pressure, giving heavy-duty tools the airflow and pressure they require. A standout feature is its 12V alternator, which charges the battery while the Honda engine is running instead of relying solely on an external charge to keep the electric-start system ready.
The combination of two-stage compression and a cast iron pump is designed for sustained service rather than occasional inflation. The pump compresses air in two stages, with cooling between them, helping the compressor reach 175 PSI while maintaining the pressure needed as air demand increases. That matters with high-consumption tools such as a 1" impact: the compressor needs to keep supplying usable air while the tool is operating, not simply build pressure in the tank and recover afterward. The 12V alternator adds another practical advantage for mobile equipment, replenishing the starting battery during normal operation so the machine is better prepared after sitting between jobs. Recoil and electric starting provide two ways to get the engine running.
This compressor is suited to service trucks, mobile mechanics, fleet maintenance, agricultural equipment service, and roadside or recovery work where compressed air has to travel with the technician rather than remain in a shop. The 30-gallon horizontal tank provides stored air while keeping the package suited to truck-mounted applications, and the gasoline engine eliminates the need for an electrical supply at the job site. For crews regularly using large impact tools or performing heavy-vehicle repairs away from a fixed facility, the RCP-C1330G is designed around the combination of high air demand, mobile operation, and independent engine power.
Specifications
| Output and pressure |
|
| Rated flow |
23 CFM @ 100 psi |
| Maximum pressure |
175 psi |
| Stages |
Two stage |
| Rated for |
Demanding jobs, including a 1" impact |
| Engine and electrics |
|
| Engine |
Honda, 13 HP |
| Starting |
Recoil and electric |
| Charging |
12 Volt alternator |
| Battery |
Not supplied |
| Pump, tank and size |
|
| Pump |
Solid cast iron, two stage |
| Receiver |
30 Gallon, horizontal |
| Tank outlet |
3/4" |
| Overall length |
45" |
| Weight |
501 lbs |
| Air dryer |
Not fitted |
| Electronic drain valve |
Not fitted |
With no electronic drain, the tank is drained by hand — and on a mobile machine that matters more than in a workshop, because condensate sloshing around a receiver that gets driven about is what starts corrosion early.
Certification, Stated Plainly
We will not assign this machine a safety listing that its documentation does not claim. Our product data does not record a third-party safety listing for the complete packaged unit.
That distinction matters if your fleet policy, insurer or site standards require specific documentation. If so, ask us before ordering and we will confirm in writing what this model can document, including the available tank certification.
Shipping & Delivery
Ships by palletized freight to the lower 48 states, with shipping calculated at checkout based on your delivery address.
At 501 lbs, plan for a forklift, loading dock or pallet jack on level ground. Terminal pickup is an alternative if you do not have suitable unloading equipment. Residential delivery carries an additional fee.
Inspect the shipment before signing. Check the engine, pump, tank and fittings with the driver present. Record any damage or shortages on the bill of lading and photograph the shipment before moving it.
Warranty
The listing states a 2-Year warranty covering the unit. Chicago Pneumatic's published Iron Series information also describes warranty coverage for the compressor.
If a fault develops, stop using the machine and contact us before disassembly. Photograph the condition as found and keep the pump and engine intact until the warranty claim has been evaluated.
