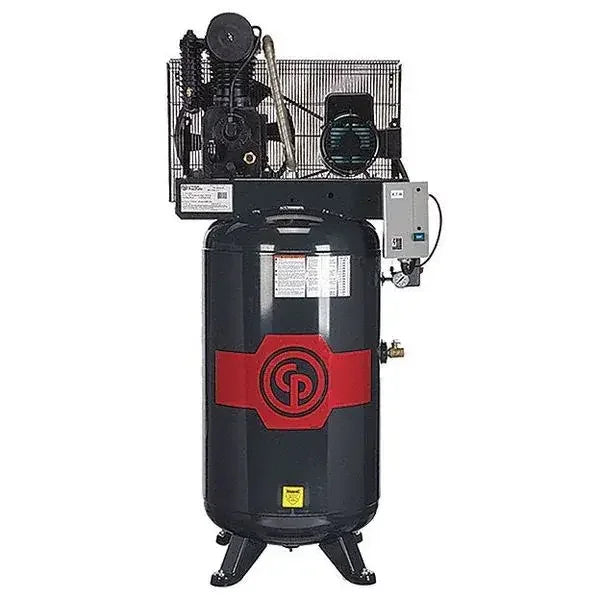

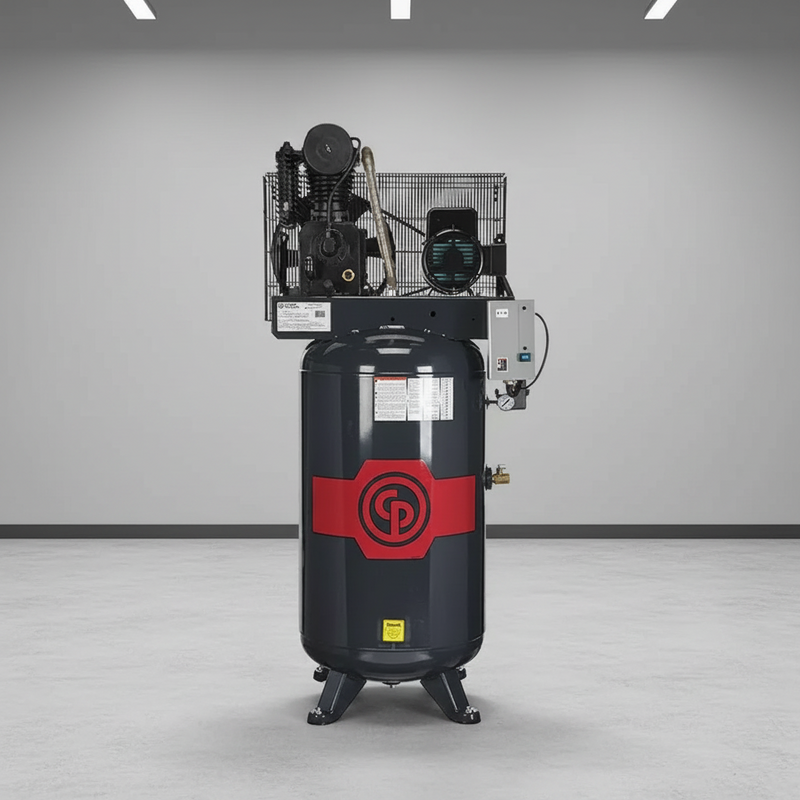

The Chicago Pneumatic RCP-C7581VS is a 7.5 HP two-stage compressor built around an all-cast-iron Iron Series pump, an 80-gallon vertical receiver, and a 2-year full warranty that includes the valves. It delivers 23 CFM at 100 PSI and reaches 175 PSI maximum pressure, giving it the airflow capacity for demanding automotive and body-shop applications. The pump is designed to run at a relatively low 900 RPM, trading higher pump speed for reduced mechanical wear, quieter operation, and lower oil carryover. The machine operates on 208-230V single-phase power and includes a magnetic starter. Note: the listing gives conflicting motor ratings of 7.5 HP and 8 HP, so confirm the exact nameplate rating before ordering if electrical sizing depends on it.
The slow-speed, all-cast-iron pump is the main engineering feature to understand. Cast iron provides substantial mass to absorb heat and vibration, while the lower pump speed reduces piston movement compared with faster reciprocating designs. That combination is intended to support longer component life while producing less operating noise and reducing the tendency to carry oil into the air stream. Two-stage compression further supports the machine's 175 PSI maximum pressure by compressing air in two steps rather than forcing the entire pressure increase through a single stage. The 80-gallon receiver provides stored air for short periods of higher demand and helps reduce unnecessary pump cycling during intermittent work.
This compressor is suited to four- or five-technician automotive shops and one- or two-person body shops, particularly where multiple air tools may be used throughout the workday. The 23 CFM output provides substantially more sustained airflow than a compressor intended only for occasional tool use, while the vertical tank conserves floor space. Its slow-turning cast iron pump also makes it worth considering for noise-sensitive workshops where the compressor operates near offices or other occupied areas. For buyers comparing long-term ownership costs, the valve-inclusive 2-year warranty provides a clear advantage because it covers a component that is commonly treated as a wear item.
Specifications
| Model |
RCP-C7581VS |
| Pump |
Two-stage, solid cast iron |
| Pump speed (RPM) |
900 |
| Delivered air |
23 CFM at 100 PSI |
| Maximum pressure |
175 PSI |
| Tank |
80 gallon, vertical, ASME/CRN |
| Power |
208-230 Volt, single phase |
| Magnetic starter |
Fitted |
| Tank outlet |
3/4" |
| Overall length |
37" |
| Weight |
600 lbs |
| Air dryer |
Not fitted |
Certification, Stated Honestly
The manufacturer describes the tank and safety valves as ASME/CRN certified. This is pressure-vessel certification for the receiver.
Our data records no third-party safety listing for the complete compressor, so we will not imply one. If your insurer or site requirements call for a specific listing, tell us which one and we will confirm in writing whether this unit carries it before ordering.
Shipping & Delivery
Ships by palletized freight to the lower 48 states. You will need a loading dock, forklift or suitable unloading plan; at roughly 600 lbs, this is not a two-person lift. Terminal pickup is an alternative if your site cannot receive the pallet safely. Residential delivery carries an additional fee.
Inspect before signing. Check the crate and compressor with the driver present. Record any damage on the bill of lading and photograph the pallet before breaking it down.
Warranty
The listing states a 2-Year Full Warranty covering the complete machine, including the valves, with no additional purchase required.
If a failure occurs, stop using the compressor and contact us before disassembly. Keep the pump, motor and pressure switch intact for inspection, photograph the condition as found, and follow the manufacturer's claim process.
