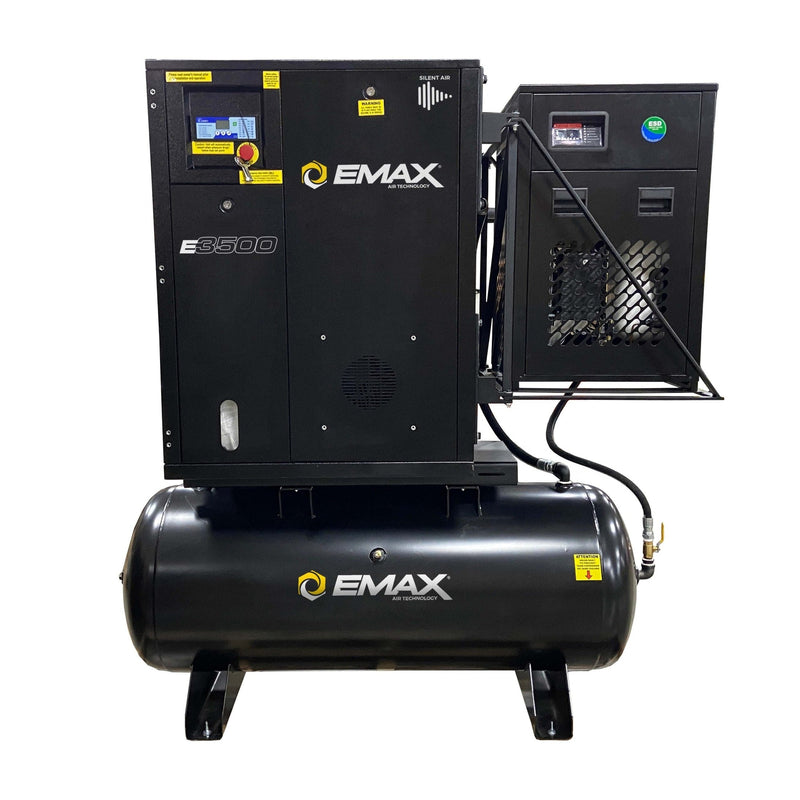

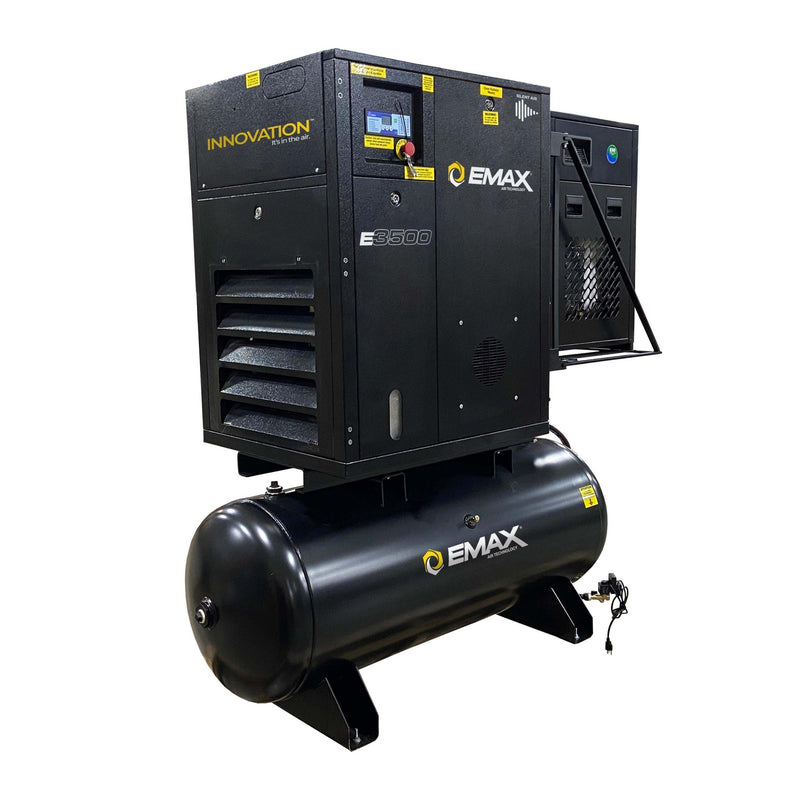

The EMAX 10 HP rotary screw air compressor is a complete compressed air package combining a continuous-duty rotary screw airend, integrated 58 CFM refrigerated dryer, and 120-gallon horizontal receiver tank on a single base. Designed for 208–230V three-phase power, it delivers steady, dry airflow for shops and light-industrial operations that need consistent performance through long run cycles. Unlike piston compressors that operate in start-stop cycles, the oil-injected screw airend is rated for a 100% duty cycle and an estimated 60,000-hour service life, with maximum pressure up to 145 PSI.
The rotary screw system uses meshing male and female rotors to produce continuous airflow with less pulsing than traditional reciprocating pumps. The integrated refrigerated dryer removes moisture before air reaches your tools and lines, helping prevent rust, water contamination, and finish defects in applications like painting and media work. A swing-arm dryer mount allows the dryer to move away from the compressor cabinet for easier service access, while the dual-timer automatic drain removes tank condensate on an adjustable schedule from 1 to 45 minutes.
Built for automotive repair shops, manufacturing facilities, and professional garages, this compressor package is designed for customers who need dependable compressed air throughout demanding workdays. The multi-belt drive, split-bar radiator, and cooling fan system help reduce vibration, manage operating temperatures, and support long-term equipment reliability.
Features
Rotary screw airend
The oil-injected rotary screw airend continuously compresses air instead of operating in individual strokes, delivering the steady airflow required for demanding shop and industrial applications. Designed for up to a 100% duty cycle, it provides reliable operation while running quieter than traditional piston-style compressors.
Multi-belt drive
The multi-belt drive uses wider B- and C-width belts instead of a single narrow belt to distribute power across a larger contact area. This improves traction, reduces belt tension, and helps lower stress on the motor and compressor bearings. The result is reduced noise and vibration, along with longer belt and system life.
Swing-arm dryer mount
The refrigerated dryer is installed on a swing-arm mount that pivots away from the compressor cabinet, creating additional access space around the airend and internal components for easier maintenance. EMAX includes this swing-arm design across its 5 HP–20 HP package models.
Dual-timer automatic drain
The electric dual-timer auto drain automatically removes collected moisture from the receiver tank. The drain cycle interval can be adjusted from 1 to 45 minutes, and the open duration can be customized based on operating conditions. An integrated air muffler helps reduce discharge noise.
Cooling fan and split-bar radiator
The split-bar radiator and circulating fan help cool both the compressor oil and compressed air before it enters the tank, reducing operating temperatures, minimizing wear, and helping remove excess moisture from the air system. The refrigerated dryer also includes a dedicated condenser fan that moves ambient air through the condenser coil to cool the refrigerant system.
Specifications
| EMAX 10 HP Rotary Screw Air Compressor with Refrigerated Dryer — Specifications |
| Horsepower |
10 HP |
| Compressor type |
Rotary screw, oil-injected (single stage) |
| Airflow |
39.9 CFM |
| Maximum pressure |
145 PSI |
| Duty cycle |
100% (continuous-rated airend) |
| Integrated dryer |
Refrigerated air dryer, rated for 58 CFM |
| Tank size |
120 gallon |
| Tank orientation |
Horizontal |
| Tank drain |
Automatic (dual-timer, with muffler) |
| Air outlet size |
1" |
| Voltage |
208–230V (±10%) |
| Phase |
3-phase |
| Motor |
TEFC (totally enclosed, fan-cooled) |
| Motor speed |
1,750 RPM |
| Full-load amps (1.15 service factor) |
28.8 A |
| Locked-rotor / peak starting amps |
171 A |
| Recommended breaker |
40 A |
| Drive |
Belt drive (2 belts) |
| Oil capacity |
1.33 gallons |
| Estimated airend life |
60,000 hours |
| Certifications |
UL Listed |
| Uncrated weight |
660 lbs |
| Crated weight |
1,470 lbs |
| Crated dimensions |
84" L × 48" W × 76" H |
| Recommended service kit SKIT001AWB sold separately; the unit ships with break-in oil and filters installed. |
Warranty
EMAX provides separate warranty coverage for the rotary screw compressor and the refrigerated dryer, with both warranties beginning on the date of delivery.
Rotary screw compressor warranty
The standard warranty covers the rotary screw pump and all components, including the electric motor, against defects in materials and workmanship for 1 year. It also includes one year of warranty labor performed by an authorized technician. For the first 180 days, EMAX covers ground freight costs for warranty replacement parts.
Coverage can be extended through EMAX’s SMART OIL maintenance program. With this program, warranty coverage increases to 10 years for the rotary screw pump and three-phase motor or 5 years for a single-phase motor, with 5-year coverage on most other components. Enrolling in the SMART OIL auto-ship program further extends the rotary screw pump to a limited lifetime warranty that is non-prorated and has no hour limit.
Extended and lifetime warranty coverage requires following EMAX’s recommended maintenance schedule and using genuine EMAX SMART OIL and approved filters for all required oil and filter changes.
Refrigerated dryer warranty
The refrigerated air dryer includes a 1-year warranty covering materials, workmanship, and parts, along with one year of warranty labor. Coverage can be extended to 3 years with product registration and completion of EMAX’s required dryer-filter maintenance schedule.
For warranty eligibility, the system must be installed in a clean, well-ventilated area with ambient temperatures below 100°F and away from excessive dust or contaminants. Refer to the official warranty documentation for complete terms and conditions.
FAQ
What electrical service does it need?
The compressor requires 208–230V three-phase power and draws 28.8 amps at full load with a 1.15 service factor. EMAX recommends a 40-amp circuit breaker for installation. The locked-rotor current, which represents peak starting amperage, is 171 amps.
Does it dry the air?
Yes. The compressor includes an integrated refrigerated air dryer rated for 58 CFM that removes moisture from compressed air before it enters the air lines. This helps protect tools, tanks, and finished surfaces from moisture-related damage.
Can it run continuously?
Yes. The rotary screw airend is designed for a 100% duty cycle, allowing it to operate through extended, continuous cycles without the cooling breaks typically required by piston compressors.
Where should it be installed?
EMAX recommends installing the compressor in a clean, well-ventilated area with ambient temperatures below 100°F. The unit should be protected from fine airborne dust, including contaminants such as granite, marble, or concrete dust. Installation in dusty or poorly ventilated environments may void warranty coverage.
What maintenance does it need?
The factory break-in oil and filters should be replaced after the first 600 hours of operation. After the initial service, EMAX recommends changing the oil and filters annually or every 4,000 hours, whichever comes first, using genuine EMAX SMART OIL.
The recommended maintenance service kit is part number SKIT001AWB.
