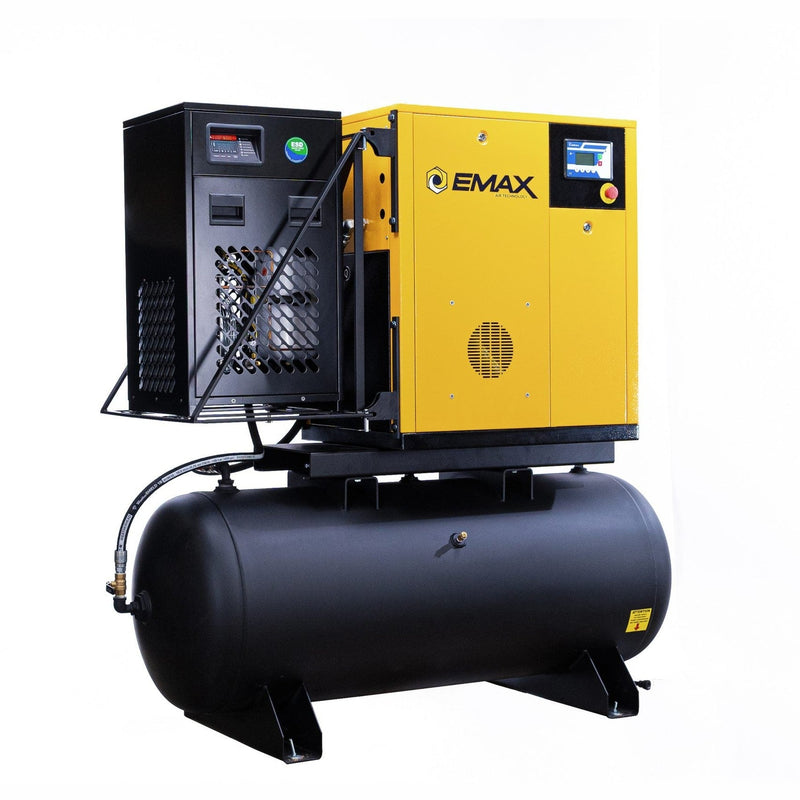

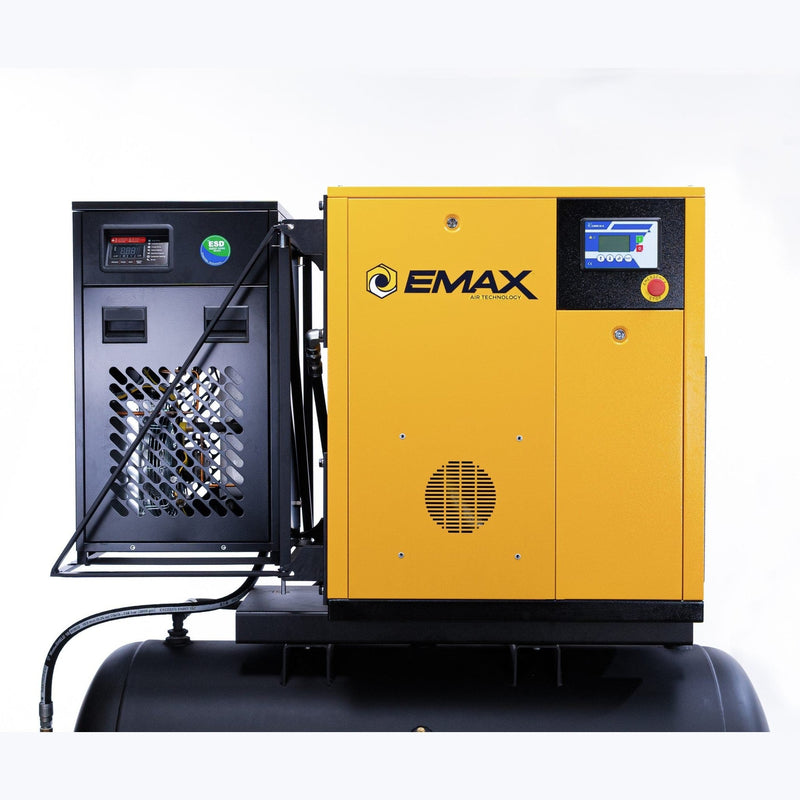

The EMAX ERVK100001 10 HP rotary screw air compressor is designed for shops that need continuous compressed air throughout the workday. Its oil-injected rotary screw air end delivers 45 CFM at up to 167 PSI and is engineered for a 100% duty cycle, allowing it to run through extended cycles without the cool-down periods required by piston compressors. The complete package includes a 120-gallon horizontal receiver tank, 58 CFM refrigerated air dryer, and factory-installed connections for a ready-to-use compressed air system.
The integrated dryer removes moisture from compressed air before it reaches your tools and air lines, helping reduce rust, water buildup, and contamination in finished work. A dual-timer automatic drain clears condensate from the tank on a schedule you control, while the swing-arm dryer mount allows the dryer to move away from the cabinet for easier maintenance access. The Smart Air PLC control system adds remote management through Wi-Fi or ethernet, allowing you to adjust pressure, schedule operation, monitor performance, and receive maintenance alerts from connected devices.
Built for automotive repair facilities, professional garages, and light-industrial shops, the ERVK100001 is a strong choice for operations that require dependable airflow and advanced control features. The multi-belt V-belt drive, cooling system, and estimated 100,000-hour air-end life help support long-term operation with reduced vibration, efficient power transfer, and consistent performance during demanding applications.
Features
Smart Air PLC controls
The digital Smart Air PLC control system allows operators to adjust pressure manually or remotely and schedule automatic start and stop times for each day of the week. It monitors key operating data, including oil pressure, oil temperature, running hours, and tank pressure, while displaying a Hertz readout during operation. The system also provides maintenance alerts for filter and oil changes. Built-in soft start and low-oil shutdown functions help protect the motor and compressor.
Networked auto-demand operation
The Smart Air system allows up to 50 Smart Air compressors to be connected through a single Ethernet cable. Linked units can automatically coordinate operation and respond to air demand, allowing shops to expand compressed-air capacity while improving energy efficiency and reducing unnecessary operation.
Rotary screw air end
The oil-injected rotary screw air end uses matched male and female rotors to deliver smooth, continuous airflow. Designed for up to a 100% duty cycle, it provides reliable performance for demanding applications and has an estimated air-end service life of 100,000 hours.
58 CFM refrigerated air dryer
The factory-mounted refrigerated dryer cools compressed air to condense and remove moisture before it reaches the air system. A condenser coil and cooling fan release heat extracted from the air stream, helping provide cleaner, drier air while reducing rust, water buildup, and contamination in tools, lines, and finished work.
Swing-arm dryer mount
The refrigerated dryer is mounted on a swing arm that pivots away from the compressor cabinet, creating easier access for maintenance and servicing. EMAX uses this swing-arm design across its 5 HP to 20 HP package models.
Dual-timer auto drain
The electric dual-timer auto drain automatically removes collected condensate from the tank according to a customizable schedule. Drain intervals can be adjusted from 1 to 45 minutes, with adjustable open duration settings. An integrated air muffler helps minimize discharge noise.
Multi-belt V-belt drive
The multi-belt drive system uses wider B- and C-width V-belts to distribute load across a larger surface area. This improves grip, reduces belt tension on the motor and compressor bearings, and helps minimize noise and vibration for a durable, low-maintenance drive system.
Cooling system
The split-bar radiator and circulating fan cool both the compressor oil and the discharged compressed air before it reaches the tank. This helps reduce operating temperatures, minimize wear, and limit excess moisture within the air system for improved reliability.
Specifications
| EMAX ERVK100001 Rotary Screw Air Compressor Specifications |
| Compressor type |
Oil-injected rotary screw |
| Horsepower |
10 HP |
| Air delivery |
45 CFM |
| Maximum pressure |
167 PSI |
| Tank size |
120 gallons |
| Tank orientation |
Horizontal |
| Pump stage |
Single-stage |
| Duty cycle |
100% (continuous) |
| Drive |
Multi-belt V-belt (2 belts) |
| Motor |
ODP (open drip-proof), 1,750 RPM |
| Voltage |
230V (±10%) |
| Phase |
Single-phase |
| Full-load amps (1.15 service factor) |
38.3 A |
| Recommended breaker |
45 A |
| Integrated air dryer |
Refrigerated, 58 CFM |
| Tank drain |
Automatic, dual-timer electric (1–45 min) |
| Oil capacity |
1.33 gallons |
| Estimated air-end life |
100,000 hours |
| Uncrated weight |
660 lb |
| Service kit |
SKIT001AWB |
| Confirm your shop's electrical service before installation. |
Warranty
EMAX provides separate warranty coverage for the rotary screw compressor and the refrigerated dryer.
The rotary screw compressor includes a 1-year standard warranty against defects in materials and workmanship, covering the rotary screw pump, electric motor, and all components. The warranty also includes one year of labor coverage from an authorized technician.
The refrigerated dryer carries its own 1-year standard warranty covering parts, materials, and workmanship, with one year of warranty labor included.
Extended coverage is available through EMAX’s maintenance-based programs. By following the required EMAX SMART OIL maintenance schedule, customers can qualify for extended compressor coverage, including a limited lifetime warranty on the rotary screw pump, along with additional coverage for the motor and other components. The refrigerated dryer warranty can also be extended to 3 years.
Eligibility for these extended warranty programs requires completing scheduled oil and filter changes using genuine EMAX SMART OIL and following the recommended maintenance procedures.
FAQ
Can it run continuously?
Yes. The oil-injected rotary screw air end is designed for a 100% duty cycle, allowing it to operate continuously without the cool-down periods required by traditional piston compressors.
Does it include an air dryer?
Yes. The package includes a factory-mounted 58 CFM refrigerated air dryer that removes moisture from compressed air before it reaches downstream air lines and tools, helping protect equipment and finished work from water contamination.
What maintenance does it need?
The unit ships with factory break-in oil and filters, which should be replaced after the first 600 hours of operation. After that, EMAX recommends changing the oil and filters annually or every 4,000 hours, whichever comes first, using genuine EMAX SMART OIL.
Following this maintenance schedule is also required to qualify for EMAX’s extended warranty and limited lifetime warranty programs.
Can I connect more than one unit?
Yes. The Smart Air control system allows up to 50 Smart Air compressors to be connected through Ethernet. Linked compressors can automatically synchronize operation and respond to air demand, allowing compressed-air capacity to expand as shop requirements grow.
