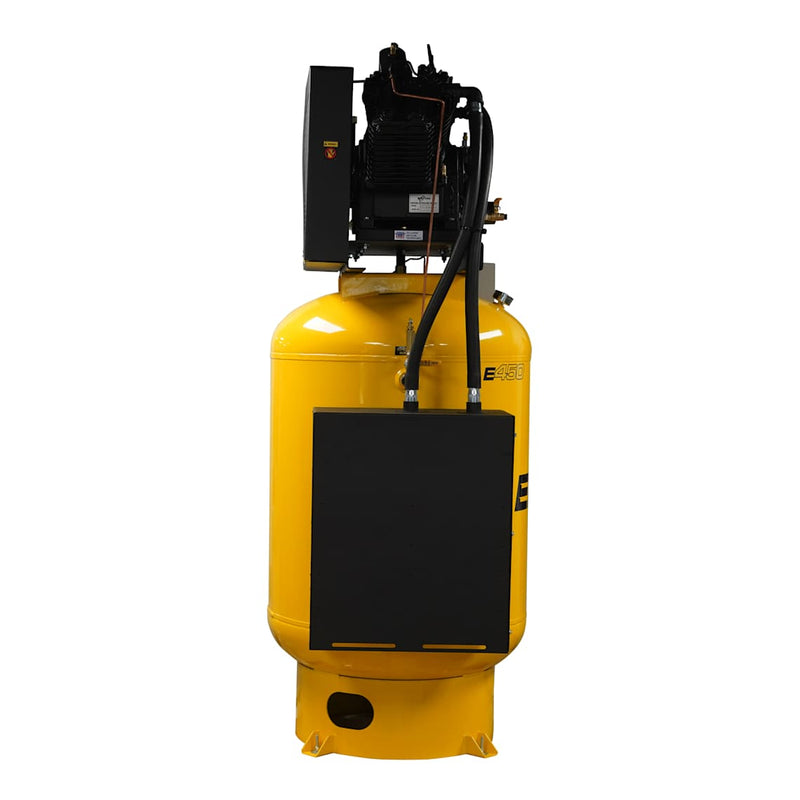

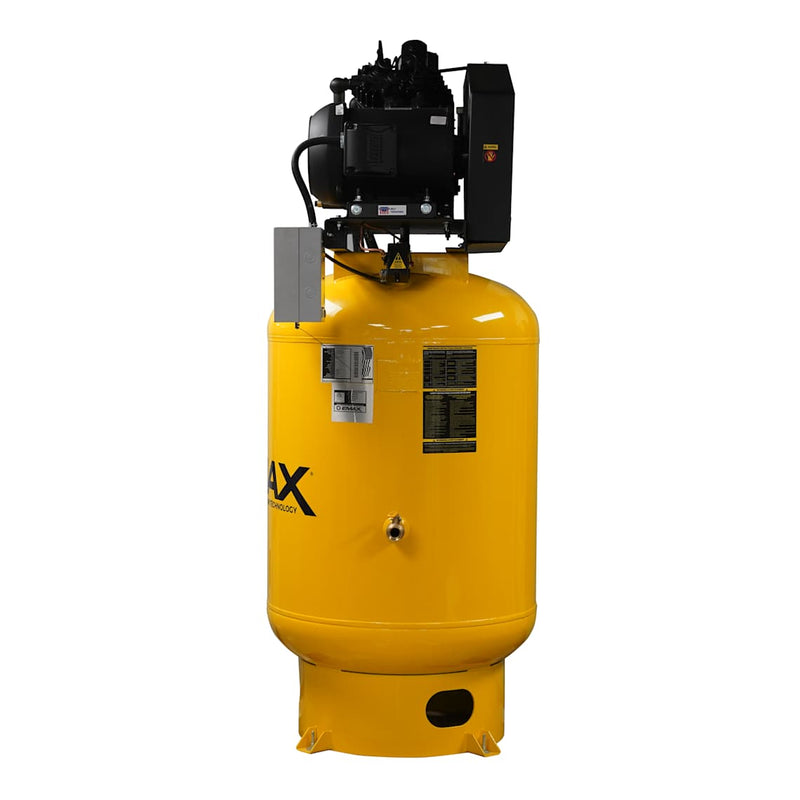

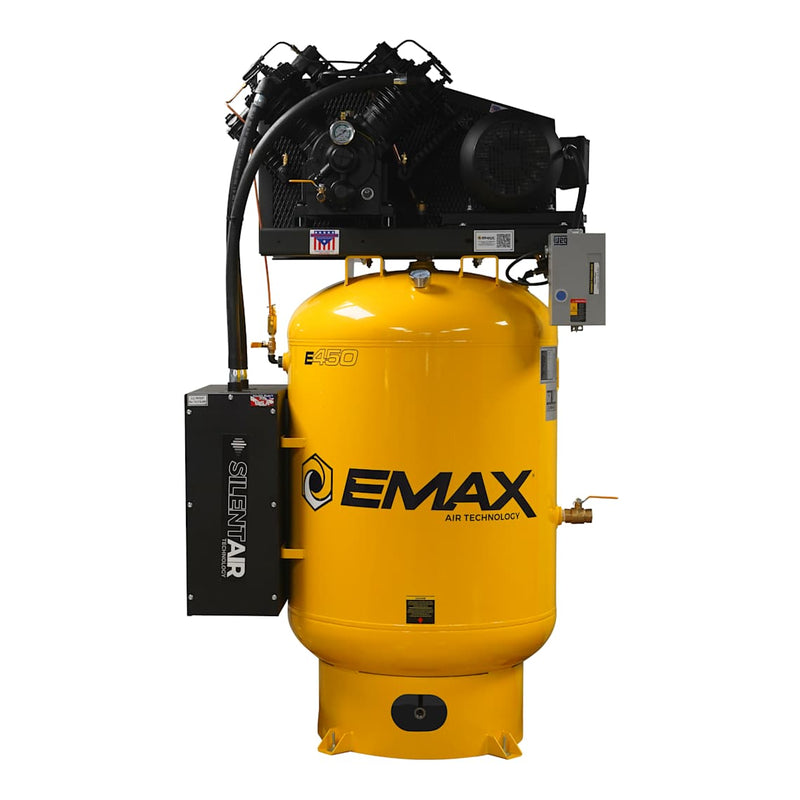

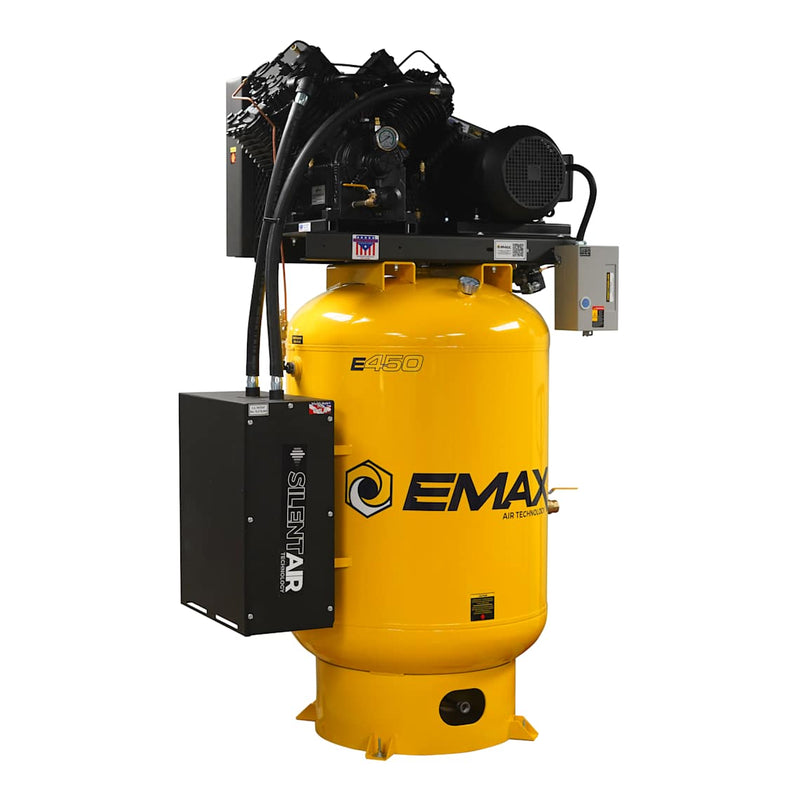

The EMAX Silent Air ESPR10V120V3-460 is a 10 HP, 120-gallon two-stage piston air compressor designed for continuous shop and light-industrial applications. Its belt-driven, pressure-lubricated pump delivers 38 CFM at up to 175 PSI, powered by 460V three-phase electricity through a 25-amp circuit. Built for demanding environments, it combines a TEFC motor, Silent Air enclosure, and a pump rated for an estimated 70,000 hours of operation. Requires freight delivery due to its 913 lb uncrated weight.
The two-stage pump uses a spin-on oil filter system to maintain clean lubrication at the bearings, helping extend component life during long operating cycles. A built-in radiator aftercooler cools compressed air before it enters the tank, reducing moisture buildup that can damage air tools and shop piping. The automatic timed tank drain removes collected condensate on a schedule, reducing routine maintenance while helping keep the air system cleaner.
Designed for high-demand automotive and industrial applications, the ESPR10V120V3-460 is a strong fit for professional repair shops, fabrication facilities, paint operations, and businesses running tools that require consistent airflow. The Continuous Run function helps maintain performance during extended jobs like blasting, grinding, and resurfacing by reducing frequent motor starts, while the 120-gallon ETL, ASME, and CRN certified tank provides the capacity needed for sustained shop operation.
Features
-
Two-stage pressure-lubricated pump: Includes a spin-on oil filter and EMAX-rated 70,000-hour estimated pump life for reliable heavy-duty operation.
-
Radiator aftercooler: Cools compressed air and removes moisture before it reaches the storage tank.
-
Automatic timed tank drain: Removes condensate on a preset schedule to simplify maintenance.
-
Continuous Run function: Provides steady airflow for demanding, high-consumption applications.
-
Silent Air enclosure: Reduces operating noise by enclosing the pump, aftercooler, and intake system.
-
TEFC motor: Built for demanding shop environments, including dusty and humid conditions.
-
Belt tensioner system: Allows quick and accurate belt and pulley alignment.
-
Shop-ready installation: Includes a mounted magnetic motor starter and anti-vibration isolator pads.
-
Certified 120-gallon vertical tank: Meets ETL, ASME, and CRN standards for safe operation.
Specifications
| EMAX Silent Air Industrial ESPR10V120V3-460 Specifications |
| Horsepower |
10 HP |
| Tank size |
120 gallons |
| Tank orientation |
Vertical |
| Pump type |
Two-stage piston, pressure-lubricated |
| Pump model |
APP4V1043TP |
| Air delivery |
38 CFM |
| Air delivery at max pressure |
34 CFM at 175 PSI |
| Maximum pressure |
175 PSI |
| Motor |
10 HP TEFC electric |
| Voltage |
460V (±10%) |
| Phase |
3-phase |
| Duty cycle |
60% |
| Recommended breaker |
25 A |
| Full-load amps (1.15 service factor) |
14.1 A |
| Peak / locked-rotor amps |
85.4 A |
| Motor speed |
1,740 RPM |
| Pump speed |
730 RPM |
| Belts |
2 |
| Drive |
Belt drive |
| Tank outlet |
1" |
| Tank drain |
Automatic (timed) |
| Estimated pump life |
70,000 hours |
| Certifications |
ETL, ASME, CRN |
| Weight (uncrated) |
913 lb |
| Maintenance service kit: EFKIT008AWBS. Requires a dedicated 460V three-phase circuit installed by a licensed electrician per NEC and local codes. |
Warranty
The ESPR10V120V3-460 includes EMAX’s 1-year standard warranty covering defects in materials, workmanship, and parts from the date of delivery, along with one year of warranty labor from an authorized technician. EMAX also covers ground freight for warranty parts during the first six months.
The warranty can be extended up to 5 years when the unit is registered and maintained according to EMAX’s extended-warranty program using EMAX SMART OIL. Maintenance requires replacing the factory break-in oil within the first 70 hours of operation, then changing the oil every 6 months or 1,000 hours (whichever comes first) while maintaining the proper oil level.
FAQ
What are the electrical requirements?
The compressor requires 460V three-phase power, draws 14.1 full-load amps (1.15 service factor), and requires a dedicated 25-amp circuit. Installation should be completed by a licensed electrician according to NEC and local electrical codes.
Does it include an air dryer?
No. The ESPR10V120V3-460 is a standalone compressor. Its radiator aftercooler removes a significant amount of moisture, but a refrigerated air dryer is recommended for moisture-sensitive applications such as painting or plasma cutting.
How is it installed?
The compressor must be installed on a flat, level concrete surface using rubber anti-vibration pads (maximum 1/4-inch thickness). EMAX recommends 3/8-inch wedge anchors measuring 3.5 inches long, with at least 15 inches of clearance around the unit for proper airflow and service access. The installation area should remain between 35°F and 110°F.
