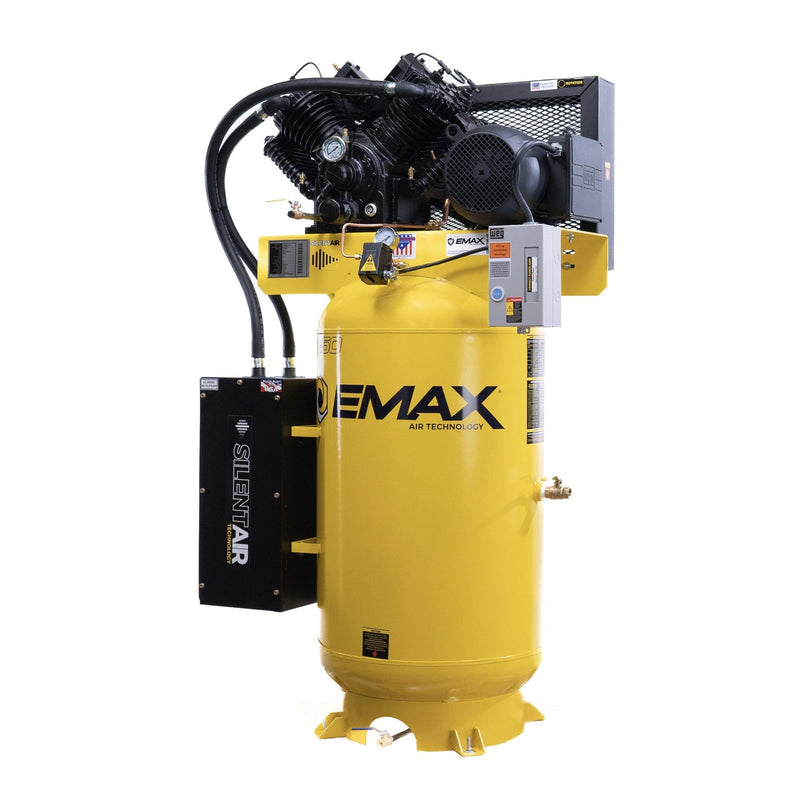

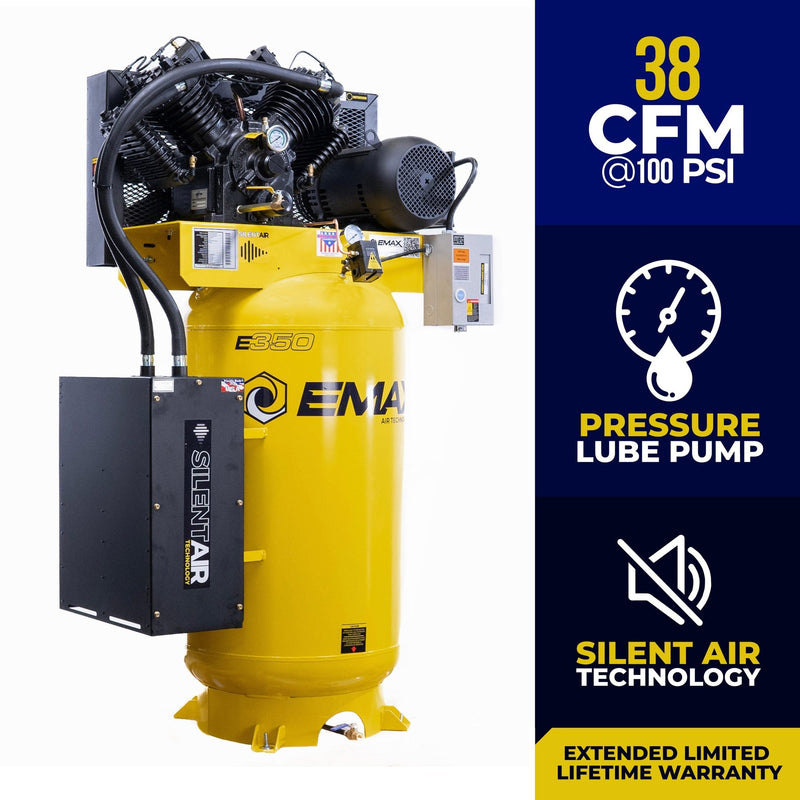

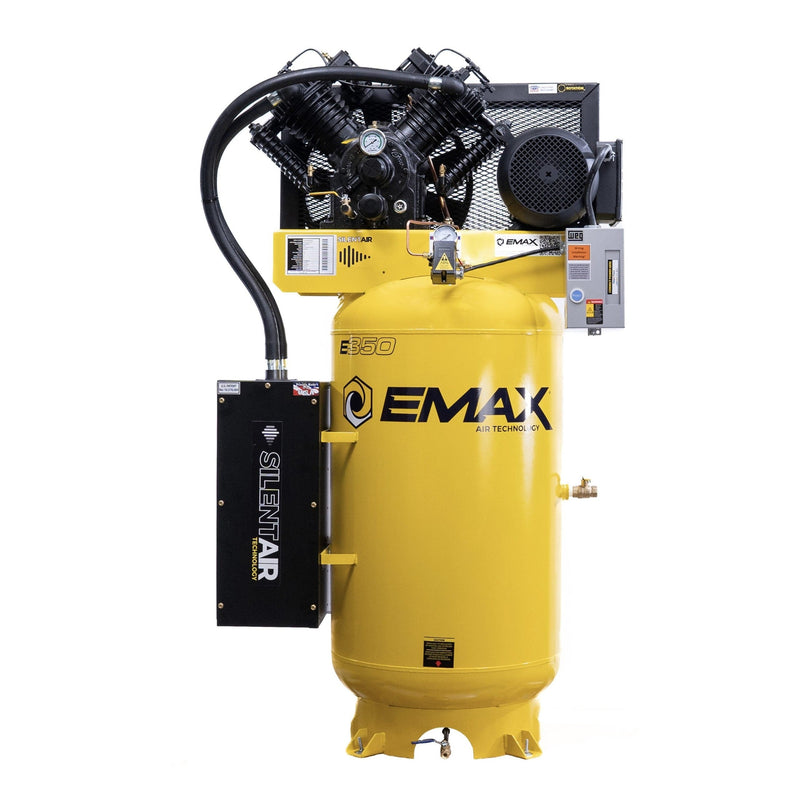

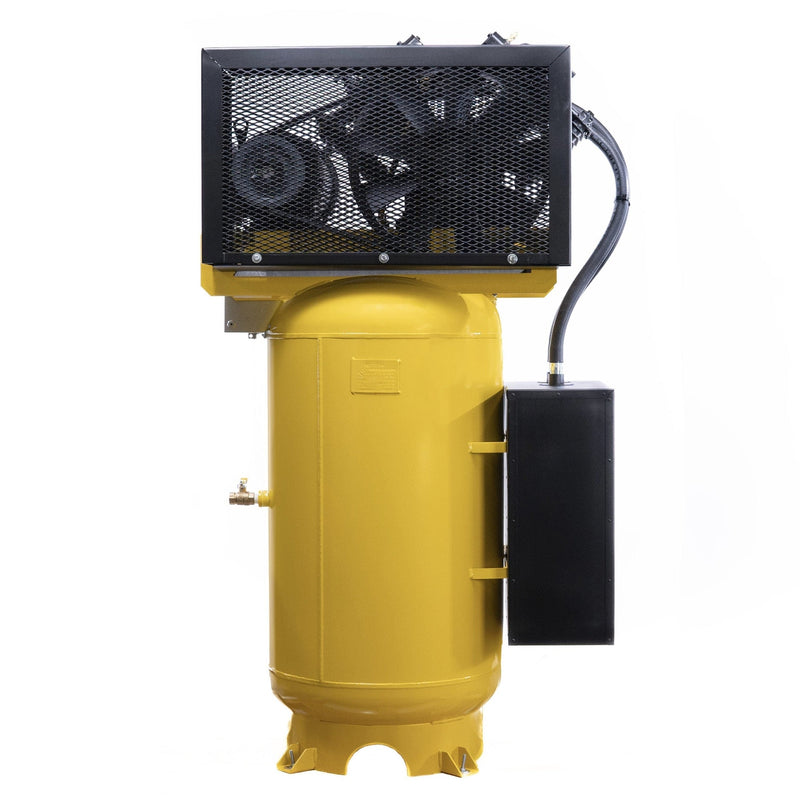

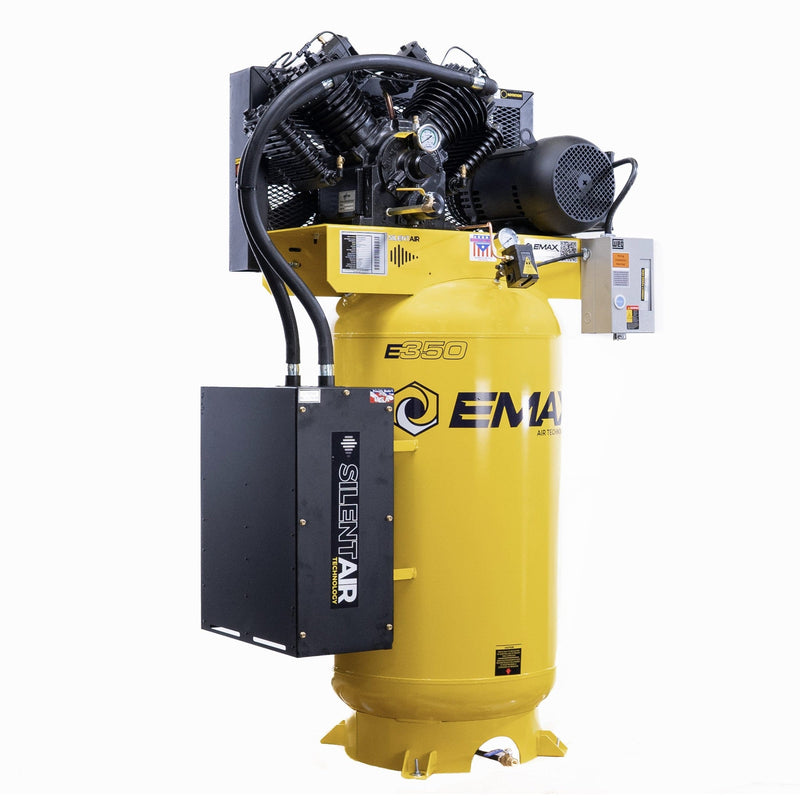

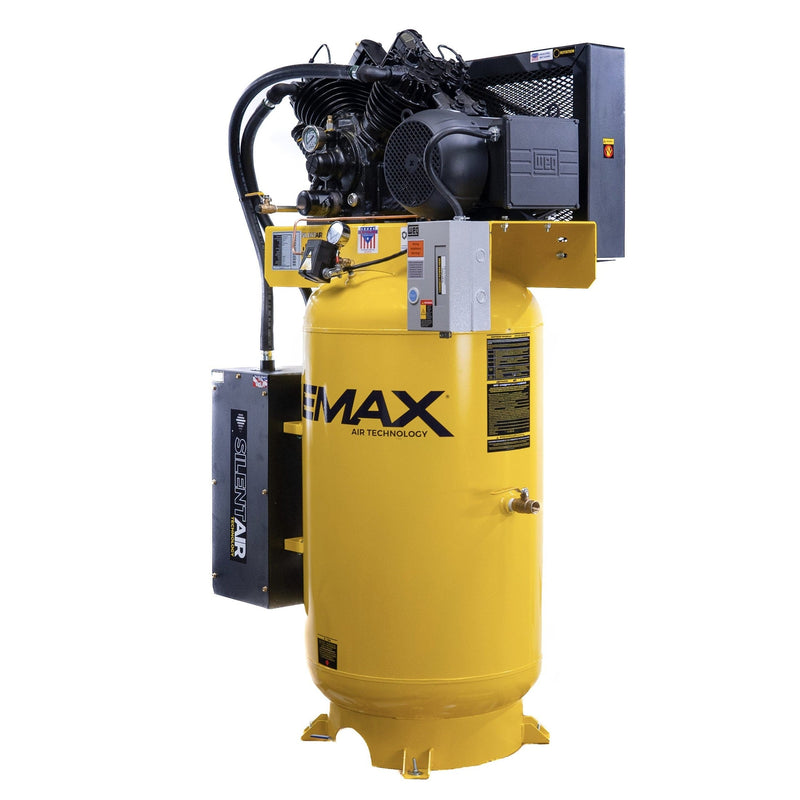

The EMAX ES10V080V1 is a 10 HP two-stage industrial air compressor with an 80-gallon vertical tank, delivering 38 CFM at 100 PSI and up to 175 PSI for demanding shop applications. Powered by 230V single-phase electricity, it combines a magnetic starter, ETL/ASME/CRN certified tank, and vibration isolator pads with a pressure-lubricated pump designed for long service life. Its standout feature is the Silent Air™ intake silencer, which reduces compressor noise by up to 50% while maintaining easy access for routine maintenance.
The compressor’s all-cast-iron, pressure-lubricated pump is built for high-duty-cycle operation. A gear-driven oil pump continuously feeds lubricant to critical bearing points, while the spin-on automotive-style oil filter keeps the system cleaner during extended use. The cast iron crankcase, cylinders, heads, crankshaft, and high-pressure piston provide the durability needed for repeated compression cycles, while the 70,000-hour estimated pump life helps reduce long-term replacement costs. The multi-belt drive system and cast iron flywheel also improve power transfer, reduce vibration, and support reliable operation.
Designed for professional automotive shops, fabrication facilities, and industrial users that depend on consistent compressed air, the ES10V080V1 is suited for applications such as grinding, sanding, painting, blasting, and running air-powered tools throughout the workday. The 60% duty cycle, head unloader compatibility, and serviceable pump components make it a practical choice for operations that need dependable airflow without the noise and maintenance demands of lower-grade compressors.
Features
Pressure-Lubricated Pump
A gear-driven oil pump delivers continuous pressurized lubrication to bearings and high-friction components for improved cooling and extended pump life. Rifle-drilled crankshafts and connecting rods provide direct oil flow, while the spin-on oil filter and liquid-filled pressure gauge simplify maintenance and monitoring.
Oil Pump Assembly
Includes a bleeder valve for quick priming, adjustable pressure regulator, gear-driven pump, pressure gauge, and spin-on filter for reliable lubrication and easier oil service.
100% Cast Iron Construction
Major pump components, including the crankcase, cylinders, cylinder heads, connecting rods, crankshaft, and high-pressure piston, are built from cast iron for durability under demanding, high-duty-cycle operation.
Precision-Machined Cast Iron Cylinders
CNC-machined and precision-honed cylinders provide accurate tolerances, reduced oil carryover, improved heat dissipation, and extended piston-ring life with deep cooling fins.
Cast Iron Cylinder Heads
Heavy-duty cast iron heads provide strong gasket sealing, better torque retention, and increased durability compared with aluminum designs.
Heavy-Duty Pistons and Connecting Rods
Cast iron high-pressure pistons and rebuildable connecting rods with replaceable bearing inserts are designed for long service life. Rifle-drilled oil passages maintain continuous lubrication to critical components.
Four-Ring Piston Design
Two compression rings and two oil-control rings improve sealing, reduce blow-by, and minimize oil carryover for longer ring life.
CNC-Machined Disc Valves
Precision-machined concentric disc valves provide reliable sealing, durability, and quick serviceability compared with traditional reed-style valves.
Cast Iron Flywheel
A heavy-duty cast iron flywheel reduces amp draw, improves energy efficiency, extends belt life, and provides additional cooling through integrated fins.
Multi-Belt Drive System
B-width belts provide increased grip, reduced belt tension, lower vibration, and longer service life for the motor and compressor components.
Head Unloaders
Available for higher-duty-cycle applications, head unloaders reduce motor load during unloaded operation, lowering electrical demand and reducing wear on the motor and starter components.
Specifications
| EMAX ES10V080V1 Specifications |
| Horsepower |
10 HP |
| Tank Size |
80 Gallon |
| Tank Orientation |
Vertical |
| Compressor Type |
Piston, Two-Stage |
| Pump Type |
Pressure Lubricated |
| Pump Model |
APP4V1043TP |
| CFM |
38 CFM at 100 PSI |
| CFM at Max PSI |
34 CFM |
| Max Pressure |
175 PSI |
| Voltage |
230V (±10%) |
| Phase |
Single-Phase |
| Motor Type |
ODP (Open Drip Proof) |
| Motor RPM |
1,740 |
| Pump RPM |
800 |
| Belt Count |
2 |
| Full Load Amps (1.15 SF) |
52.9 A |
| Locked Rotor / Peak Starting Amps |
270 A |
| Recommended Breaker |
60 A |
| Magnetic Starter |
Included |
| Outlet Size |
3/4" |
| Tank Drain |
Manual |
| Duty Cycle |
60% |
| Oil Capacity |
2 Quarts |
| Estimated Pump Life |
70,000 hours |
| Certifications |
ETL, ASME, CRN |
| Service Kit |
EFKIT008AWBS (sold separately) |
| Uncrated Dimensions (L × W × H) |
39" × 25" × 75" |
| Crated Dimensions (L × W × H) |
48" × 46" × 87" |
| Uncrated Weight |
749 lb |
| Crated Weight |
898 lb |
Warranty
EMAX includes a 1-year standard warranty covering defects in materials, workmanship, and parts from the date of delivery, with one year of warranty labor provided by an authorized technician. Warranty parts are shipped with ground freight covered for the first six months. Standard technical support is available at no additional cost during and after the warranty period.
The warranty can be extended up to 5 years when the unit is registered and maintained according to EMAX requirements using EMAX SMART OIL™. Maintenance includes replacing the break-in oil within the first 70 hours of operation, followed by oil changes every 6 months or 1,000 hours, whichever comes first. The recommended service kit is EFKIT008AWBS (sold separately). Operating the compressor with insufficient oil or using non-approved oil will void warranty coverage.
Documents
Piston Compressor Manual (PDF) · Warranty Statement (PDF)
This compressor ships freight on a pallet. To schedule delivery or ask about your shop's electrical and placement requirements, contact support@carliftsupply.com or call 877-600-5227.
