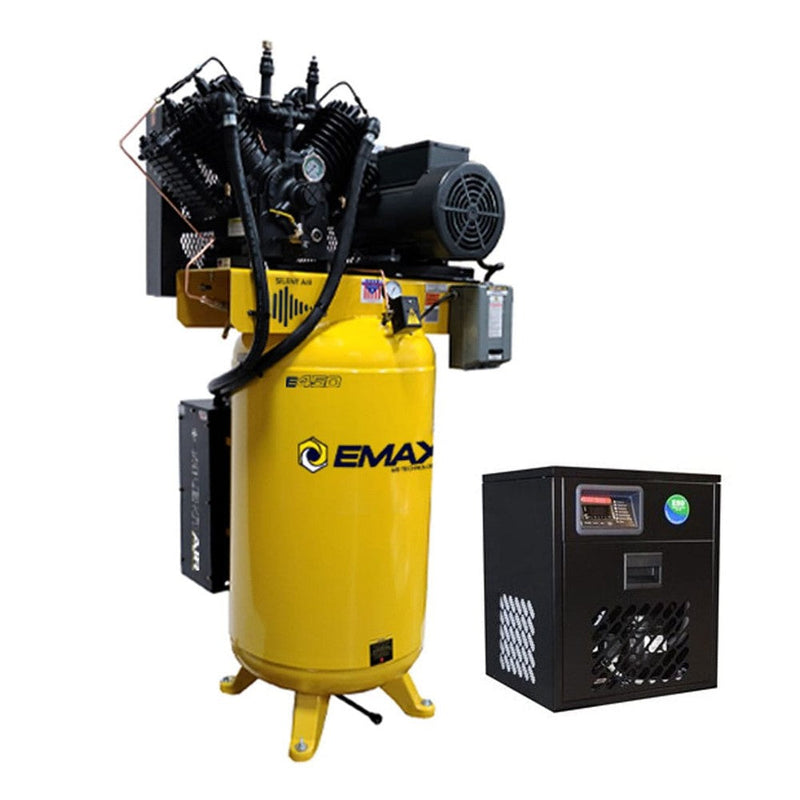

EMAX 10 HP 80-Gallon Two-Stage Air Compressor ESP10V080V3PK-208

The EMAX ESP10V080V3PK-208 is a complete 10 HP two-stage compressed air system combining an 80-gallon vertical air compressor with a 58 CFM refrigerated air dryer for professional shops requiring consistent, moisture-controlled airflow. The pressure-lubricated pump delivers 38 CFM at 100 PSI and 34 CFM at 175 PSI on three-phase power, with an estimated 70,000-hour pump life and ETL, ASME, and CRN certified construction. Its Silent Air™ intake system reduces operating noise by up to 50% while maintaining service access without a full enclosure.

The compressor’s 100% cast-iron pressure-lubricated pump is designed for demanding duty cycles where standard splash-lubricated units fall short. A gear-driven oil pump continuously feeds bearings and high-friction components, while rifle-drilled crankshafts and connecting rods deliver direct lubrication to critical areas. The spin-on oil filter helps keep contaminants out of the system, and the included continuous-run head unloader reduces repeated motor starts by unloading the compressor at maximum pressure, lowering unloaded amp draw by up to 60% and reducing wear during extended operation.

Built for automotive repair facilities, manufacturing shops, body shops, and industrial applications, the ESP10V080V3PK-208 provides a complete air solution with built-in moisture control. The 58 CFM refrigerated dryer with prefilters, automatic timed tank drain, heavy-duty cast iron flywheel, multi-belt drive, and dual-bolt belt tensioner help maintain reliable performance for air tools, painting, blasting, and other high-demand applications. Ships by freight; contact for delivery scheduling.

Features

100% Cast Iron Pump Construction
Built with cast iron crankcase, cylinders, cylinder heads, connecting rods, crankshaft, and high-pressure piston for superior durability under high-duty-cycle operation. CNC-machined and precision-honed cylinders improve break-in, reduce oil carryover, and extend piston-ring life.

Heavy-Duty Pistons and Connecting Rods
Cast iron high-pressure pistons resist heavy loads and cylinder scoring, while CNC-machined rebuildable connecting rods with replaceable bearing inserts provide long-term reliability. Four-ring piston design improves sealing, reduces blow-by, and minimizes oil carryover.

Pressure-Lubricated Oil System
A gear-driven oil pump delivers pressurized lubrication to critical bearings and components. Includes quick-prime bleeder valve, adjustable regulator, liquid-filled pressure gauge, and automotive-style spin-on oil filter for reliable operation and easier maintenance.

Cast Iron Cylinder Heads with Disc Valves
Solid cast iron cylinder heads provide strong gasket retention and durability. CNC-machined disc valves offer reliable sealing, longer service life, and easier maintenance compared with traditional reed valve designs.

Head Unloaders and Continuous Run
Automatic head unloaders reduce motor load by keeping the compressor unloaded between demand cycles. This lowers amp draw, reduces mechanical wear, and supports high-duty-cycle applications with continuous-run capability.

Heavy-Duty Flywheel and Belt Drive
A 20-inch cast iron flywheel with dual B-style belts improves cooling, reduces vibration, lowers energy consumption, and extends belt life. The dual-bolt belt tensioner maintains accurate belt alignment, while the pump riser improves airflow around the oil reservoir.

Dual-Timer Electric Auto Drain
Automatically removes moisture from the air receiver tank with adjustable drain intervals from 1–45 minutes and adjustable open duration. Includes an air muffler for quieter operation.

58 CFM Refrigerated Air Dryer
Included dryer removes moisture from compressed air with a built-in 0.001-micron prefilter and 0.005-micron coalescing prefilter for cleaner, drier air delivery.

Specifications

Warranty

The compressor includes a 1-year standard warranty covering defects in materials, workmanship, and parts from the date of delivery, with 1 year of warranty labor from an authorized technician. Registering the unit at emaxwarranty.com and following EMAX’s extended warranty plan with EMAX Smart Oil and the required maintenance schedule extends coverage up to 5 years.

The EFKIT008AWBS 5-Year Extended Warranty Kit (sold separately) is designed for 5–10 HP Silent Air electric models and includes the required components and lubricants for proper startup and scheduled maintenance.

The included refrigerated air dryer has its own 1-year standard warranty, which can be extended up to 3 years by registering for the extended warranty plan and purchasing one Airbase dryer filter replacement kit annually while following recommended maintenance procedures.

FAQ

How loud is it?

The patented Silent Air suppression system reduces operating noise by up to 50% compared with comparable compressors, delivering sound levels at or below conversational volume. Each 10 dBA reduction is perceived as approximately half as loud by the human ear.

What electrical service does it need?

The compressor requires three-phase power with a recommended 50A breaker. It operates at 27.9 full-load amps with a 1.15 service factor and has a 171A peak starting draw. The included magnetic starter and head unloaders help protect the motor during operation.

Can it run continuously?

Yes. The unit is rated for a 60% duty cycle and supports continuous-run operation for high-demand applications. When operating above a 40% duty cycle, opening the pilot valve ball valve allows the head unloaders to keep the pump running cooler between demand cycles.

What maintenance does the warranty require?

Replace the break-in oil within the first 70 hours of operation, then change the oil every 6 months or 1,000 hours, whichever comes first, using EMAX-approved Smart Oil. Maintain the proper oil level and use the EFKIT008AWBS service kit for required maintenance components.
