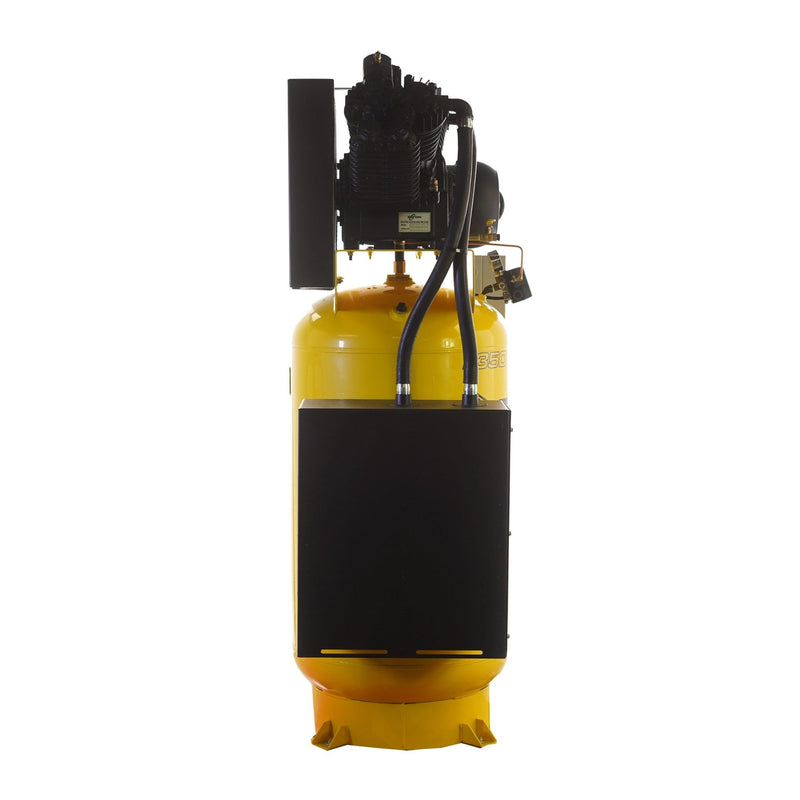

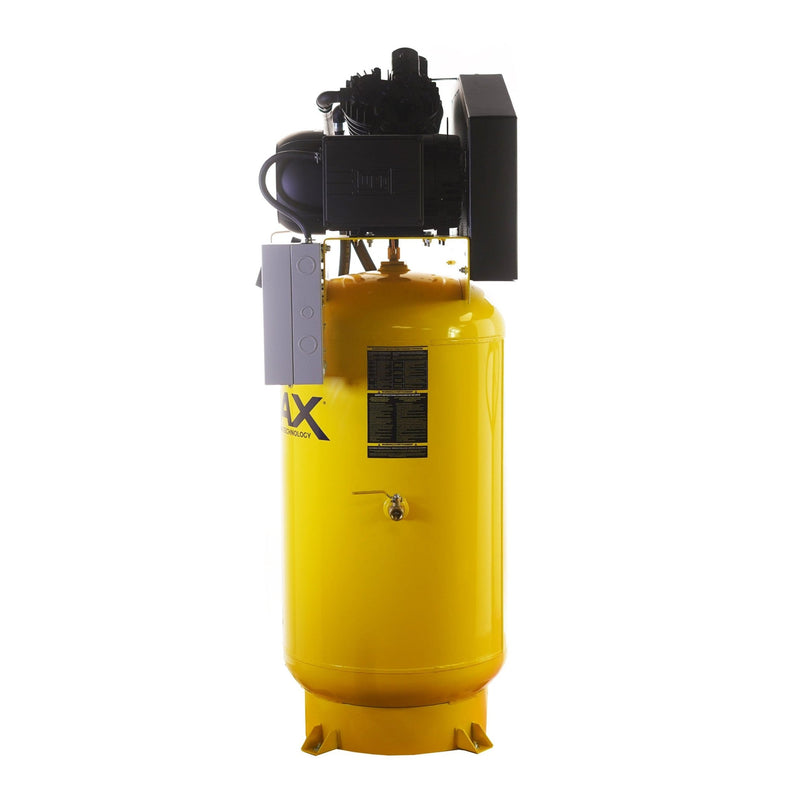

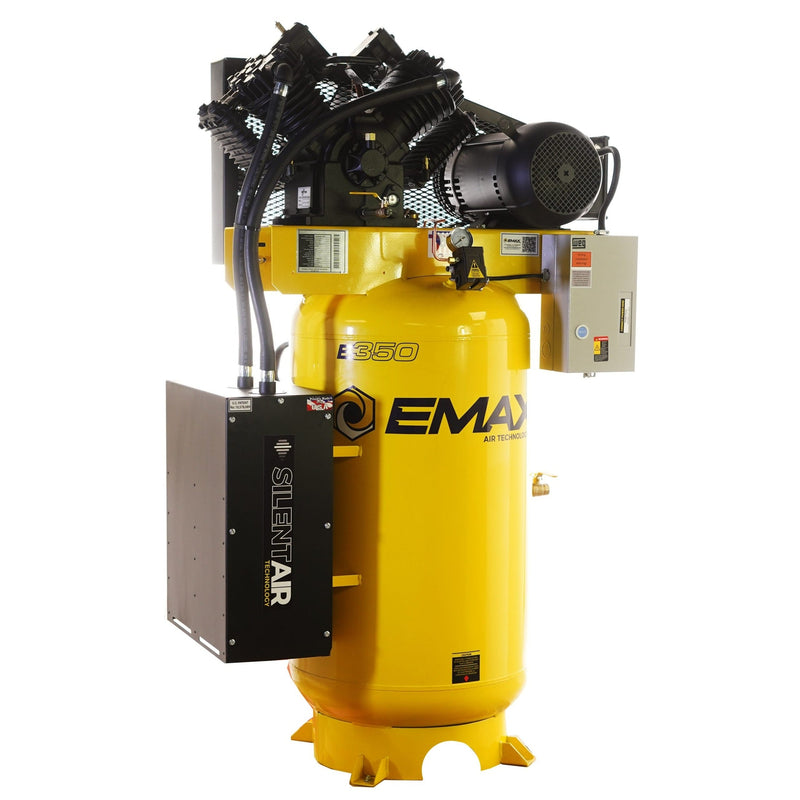

EMAX 10 HP 80-Gallon Two-Stage Air Compressor ESS10V080V1

The EMAX Silent Air ESS10V080V1 is a 10 HP two-stage piston air compressor built for shops that need dependable airflow throughout the workday. Running on 230V single-phase power, it delivers 38 CFM (34 CFM at 175 PSI maximum pressure) and stores compressed air in an 80-gallon vertical ASME-certified tank. The unit includes a factory-installed magnetic starter, vibration isolator pads, and carries ETL, ASME, and CRN certifications. Its standout feature is the Silent Air™ silencer system, which reduces operating noise by up to 50% while keeping the pump accessible for routine maintenance.

The Silent Air™ intake system uses noise-reducing baffle plates and high-capacity filter media to lower compressor sound while providing up to 1000% more filtration than standard intake setups. Unlike enclosed cabinet compressors that can make service more difficult, this external silencer design keeps the pump exposed for easier inspections and maintenance. The two-stage V-style APP4V1043TR2 pump uses splash lubrication with a 2-quart oil capacity and an estimated 50,000-hour service life, while the dual-belt drive with wider B- and C-width belts improves grip, reduces belt tension, and helps limit vibration during extended operation.

A strong fit for automotive repair shops, home garages with high air demand, fabrication facilities, and service environments using multiple pneumatic tools, the ESS10V080V1 provides the airflow capacity needed for lifts, spray equipment, grinders, sanders, and other shop equipment. The 80-gallon vertical tank, 10 HP ODP motor, and durable belt-drive system make it a practical choice for operations that need consistent compressed air without moving to three-phase power. Ships by freight; forklift or liftgate delivery is recommended.

Features

• Patented Silent Air™ Technology: Reduces operating noise by up to 50%, delivering sound levels at or below conversational volume.
• High-Capacity Intake Filtration: Uses noise-reducing baffle plates and enhanced filtration media for up to 1000% more filtration than standard intake systems.
• Two-Stage V-Style Pump: Features the APP4V1043TR2 pump design with an estimated 50,000-hour service life for reliable performance.
• Splash Lubrication System: Provides dependable pump lubrication with a 2-quart oil capacity.
• Heavy-Duty Belt Drive: Dual V-belt system uses wider B- and C-width belts for improved grip, durability, and reduced wear.
• Factory-Installed Magnetic Starter: Provides motor protection and simplified electrical installation.
• 80-Gallon Vertical Tank: ASME-certified tank with manual drain for safe, efficient air storage.
• 10 HP ODP Motor: Runs on 230V single-phase power for compatibility with a wide range of shop environments.
• Certified Construction: Meets ETL, ASME, and CRN standards.
• Vibration Isolator Pads Included: Helps reduce noise and vibration during operation.

Specifications

Warranty

EMAX covers the compressor with a 1-year standard warranty against defects in materials, workmanship, and parts from the date of delivery, including 1 year of warranty labor from an authorized technician. Warranty repair parts include ground freight coverage for the first six months, and standard technical support is available at no charge during and after the warranty period.

The standard warranty can be extended up to 5 years by registering the unit at emaxwarranty.com and following EMAX’s extended warranty maintenance plan. Requirements include using EMAX-approved oil, maintaining the correct oil level, and completing all scheduled maintenance.

Maintenance Required for Warranty Coverage

• Replace the factory break-in oil within the first 70 hours of operation.
• After break-in, change oil every 6 months or 1,000 hours, whichever comes first.
• Maintain proper oil level at all times; operating with insufficient oil will void warranty coverage.

FAQ

What electrical service does it need?

The compressor operates on 230V single-phase power and draws 52.9 full-load amps with a 1.15 service factor. EMAX recommends a 60A breaker. Locked-rotor and peak starting current is 270 amps. A factory-installed magnetic starter is included.

How loud is it?

The patented Silent Air™ system reduces operating noise by up to 50% compared with an unprotected pump, delivering sound levels at or below conversational volume. The reduction is especially noticeable in active shop environments.

Can it run continuously?

The compressor is rated for a 60% duty cycle and is not designed for continuous-run operation. The unit should be sized appropriately so operating cycles remain within the recommended duty range.

What maintenance does it require?

Replace the factory break-in oil within the first 70 hours, then change oil every 6 months or 1,000 hours. The pump holds 2 quarts of oil. Maintaining the proper oil level and using EMAX-approved oil is required to preserve warranty coverage.

How does it ship?

The compressor ships by freight on a pallet in a crated package measuring 48 × 46 × 87 inches. A forklift or liftgate-equipped delivery is recommended, along with sufficient space for the 75-inch uncrated height.

Documents

• Owner's Manual (PDF)
• Warranty Statement (PDF)
