EMAX 5 HP 80-Gallon Two-Stage Air Compressor ES05V080I1

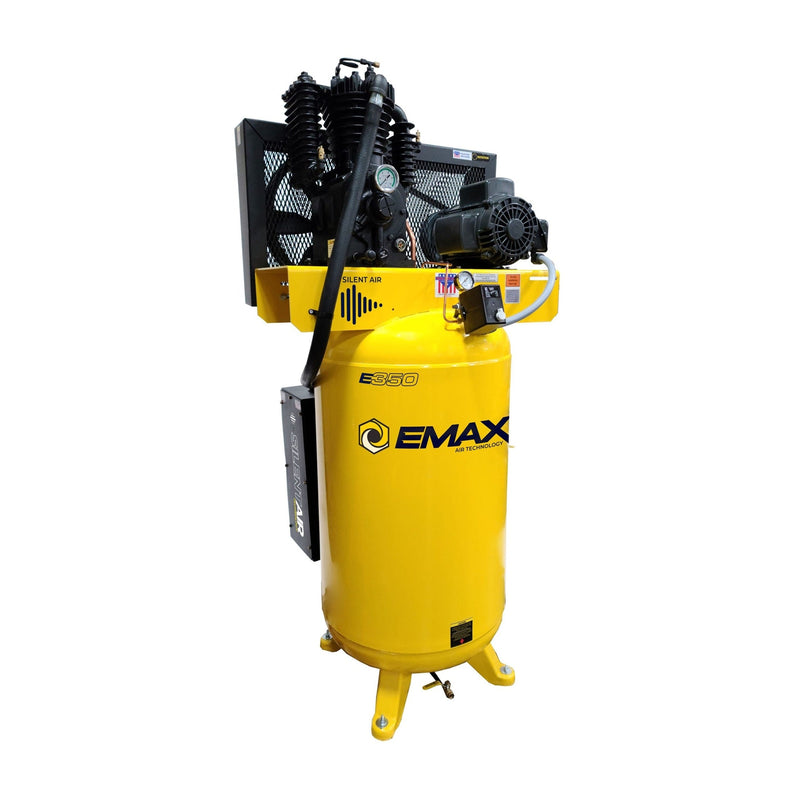

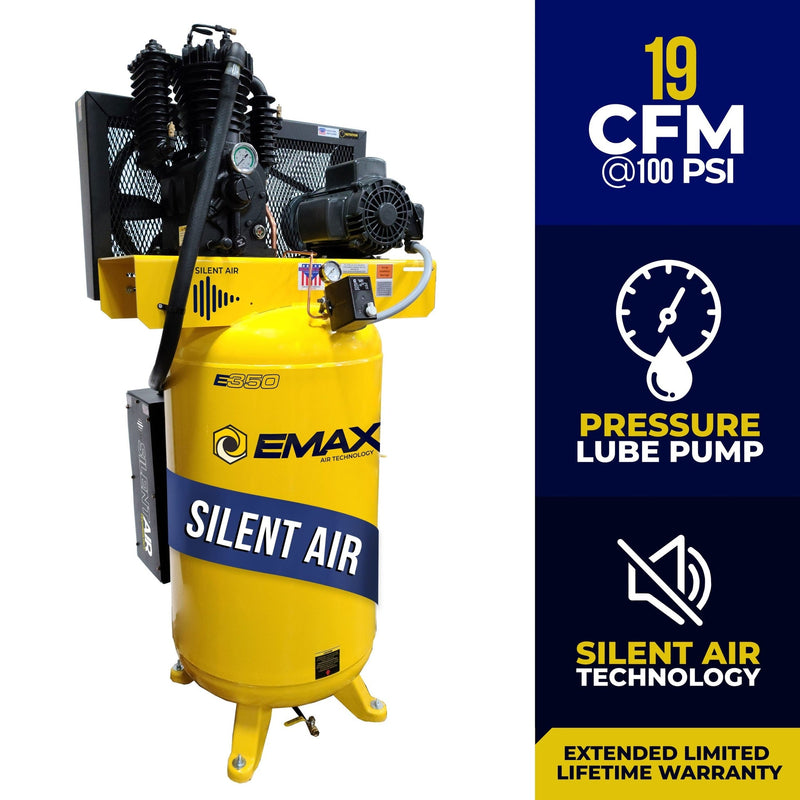

The EMAX Silent Air Industrial 5 HP ESS5V080V1 is an 80-gallon two-stage piston air compressor designed for shops that need reliable compressed air without excessive operating noise. It delivers 19 CFM at 100 PSI and 17 CFM at 175 PSI maximum pressure from a vertical ASME-coded tank, running on 230V single-phase power for easier installation in many shop environments. The built-in Silent Air™ patented intake silencer reduces compressor noise to at or below conversational volume while keeping the pump accessible for maintenance. The unit is also ETL listed, CRN registered, and includes vibration isolator pads.

The key difference is the pressure-lubricated cast-iron pump, which delivers oil through a gear-driven system directly to critical bearing points instead of relying only on splash lubrication. The crankshaft and connecting rods are rifle-drilled for targeted oil flow, while the automotive-style spin-on oil filter keeps contaminants out of the lubrication system. With an estimated 70,000-hour pump life, CNC-machined disc valves, four-ring pistons, and fully rebuildable connecting rods, this design is built to handle long operating cycles with reduced wear. The Silent Air intake system also combines noise-reducing baffle plates with high-capacity filtration for cleaner air entering the pump.

A strong choice for automotive repair shops, professional home garages, fabrication spaces, and service facilities running impact guns, sanders, grinders, spray equipment, and other pneumatic tools, the ESS5V080V1 provides industrial-level airflow in a quieter package. The 80-gallon tank, durable two-stage pump, and dual B-groove belt drive help maintain steady air delivery during demanding jobs while reducing vibration and maintenance needs.

Features

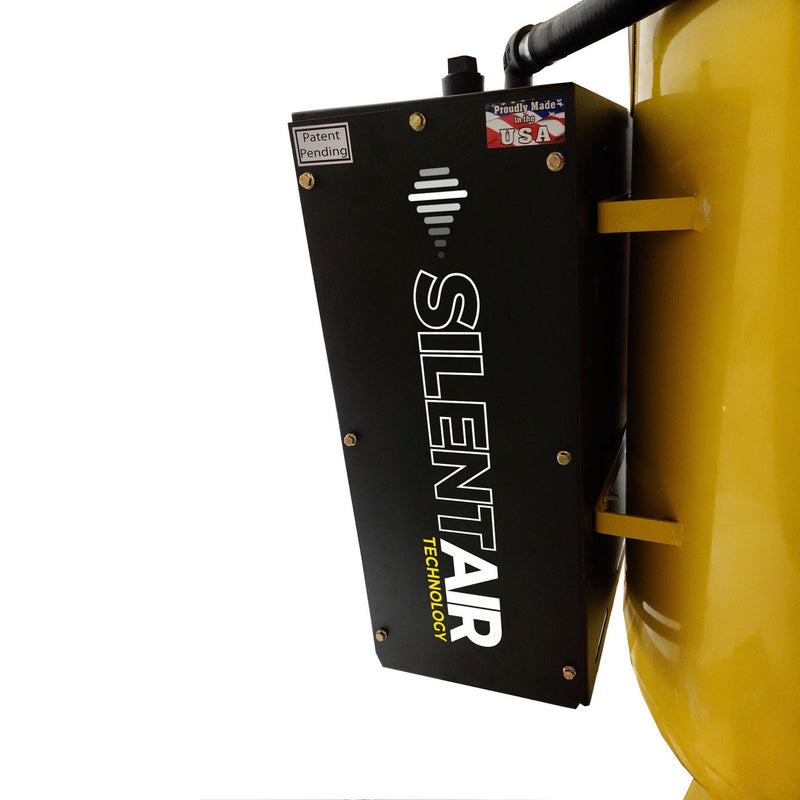

Silent Air™ Patented Noise Suppression
Reduces intake noise — the loudest source of compressor sound — using noise-reducing baffle plates and high-capacity filtration. Operates at or below conversational volume while keeping the pump accessible for service and maintenance.

Pressure-Lubricated Oil System
A gear-driven oil pump delivers pressurized lubrication throughout the pump. Rifle-drilled crankshaft and connecting rods provide direct oil flow to bearings and wrist pins, while the spin-on oil filter, pressure gauge, adjustable regulator, and bleeder valve simplify maintenance and monitoring. Oil capacity: 1.75 quarts.

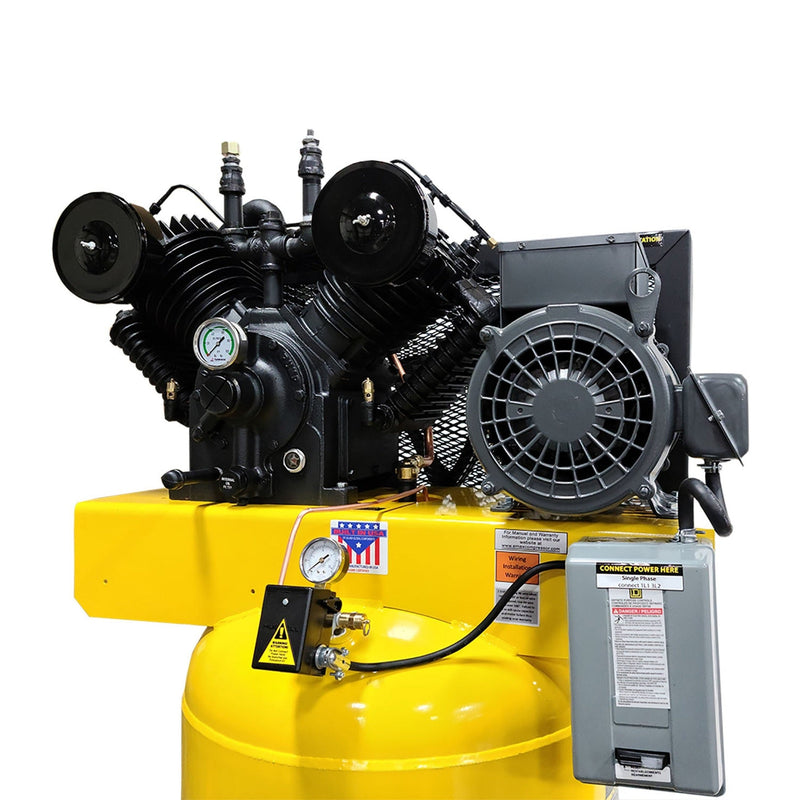

Cast Iron Pump Construction
Built with cast iron crankcase, cylinders, cylinder heads, high-pressure piston, connecting rods, and crankshaft for durability under high-duty-cycle operation. CNC-machined cylinders with precision-honed bores improve performance, reduce oil carryover, and extend component life.

Rebuildable Pistons and Connecting Rods
Cast iron high-pressure piston and CNC-machined connecting rods provide strength and long service life. Replaceable bearing inserts and wrist pins allow full rebuildability, while the four-ring piston design reduces blow-by and oil carryover.

CNC Disc Valves
Precision-machined concentric disc valves provide reliable sealing, durability, and quick servicing compared with traditional reed-style valves.

Cast Iron Flywheel and Multi-Belt Drive
A 16-inch cast iron flywheel with dual B-groove belts improves cooling, reduces amp draw, lowers vibration, and extends belt life compared with single-belt designs.

Specifications

Warranty

EMAX includes a 1-year standard warranty on Silent Air piston compressors covering defects in materials, workmanship, and parts from the date of delivery, including 1 year of warranty labor through an authorized technician. Standard technical support is available at no additional cost during and after the warranty period.

Coverage can be extended up to 5 years by registering the compressor and following EMAX’s maintenance requirements using EMAX SMART OIL™. The program requires replacing the factory break-in oil within the first 70 hours of operation, then changing oil every 6 months or 1,000 hours, whichever comes first. The EMAX 5-Year Extended Warranty Kit (EFKIT008AWBS, sold separately) is required for extended coverage.

FAQ

What power does it require?

The compressor requires 230V single-phase power (±10%). It draws 26.45 full-load amps with a 1.15 service factor and has a 135A locked-rotor starting current. A 40A breaker is recommended. The unit uses a fixed-start motor and does not include a magnetic starter, so appropriate motor protection should be installed according to local electrical codes.

How loud is it?

The Silent Air™ silencer reduces intake noise — the primary noise source on piston compressors — to at or below conversational volume, allowing normal conversation next to the unit during operation.

Can it run continuously?

The compressor is rated for a 60% duty cycle. For continuous-run or higher-duty-cycle applications, the pump supports an automatic head unloader that keeps the motor running unloaded between demand cycles, reducing repeated starts and stops.

What oil does it use, and how much?

The pump has a 1.75-quart oil capacity. It ships with factory break-in oil that must be replaced within the first 70 hours of operation. EMAX SMART OIL™ is required for the extended warranty maintenance program.

How does it ship?

The compressor ships by freight on a pallet and weighs 765 lb crated. A forklift or liftgate-equipped delivery is recommended for unloading.

To arrange freight delivery or ask about lead time, contact MGS at support@carliftsupply.com or 877-600-5227.
