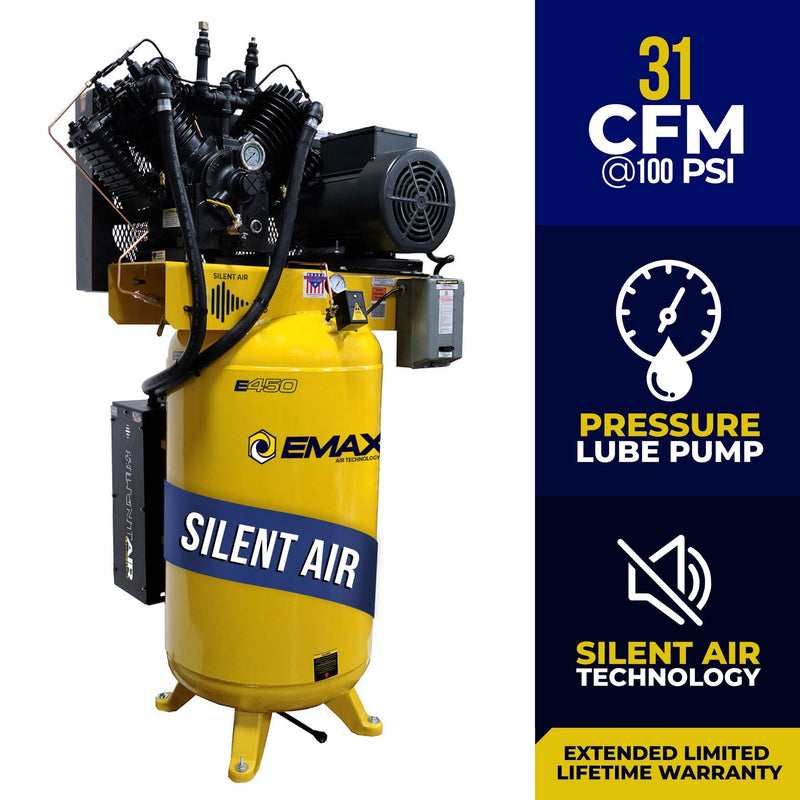

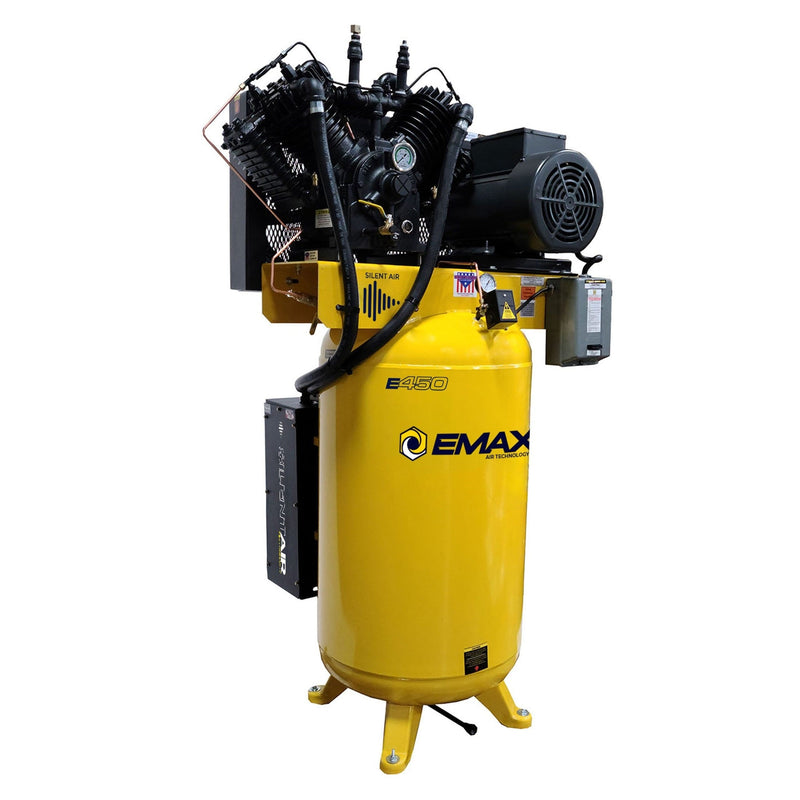

EMAX 7.5 HP 80-Gallon Two-Stage Air Compressor ESP07V080V1

The EMAX Silent Air Industrial Plus ESP07V080V1 is a 7.5 HP two-stage air compressor built for shops that need dependable airflow throughout the day. Powered by 230V single-phase electricity, it delivers 31 CFM at 100 PSI and 26 CFM at 175 PSI from an 80-gallon vertical tank, making it suitable for impact tools, grinders, sanders, plasma cutters, and other demanding applications. The pressure-lubricated 100% cast iron Eaton pump is rated for an estimated 70,000-hour service life and includes a factory-installed magnetic starter. Note: this hard-wired unit requires a dedicated 50-amp circuit.

The patented Silent Air™ noise suppression system reduces intake noise — the loudest source of piston compressor sound — with noise-reducing baffle plates and high-capacity filter media for up to 50% quieter operation while keeping the compressor accessible for maintenance. Unlike enclosed cabinet systems, the external silencer design does not block service access. Inside, the pressure-lubricated pump uses a gear-driven oil pump, drilled crankshaft and connecting rod passages, and an automotive-style spin-on oil filter to deliver clean oil directly to critical wear points, helping the compressor handle continuous-duty workloads.

Built with cast iron cylinders, cylinder heads, high-pressure pistons, rebuildable connecting rods, and CNC-machined disc valves, this compressor is designed for long-term shop use. The 20-inch cast iron flywheel, dual B/C-width belt drive, dual-bolt belt tensioner, pump riser, and automatic tank drain improve cooling, reduce vibration, and simplify maintenance. It is an excellent choice for professional automotive shops, fabrication facilities, fleet maintenance operations, and serious home garages that need high output with quieter operation.

Features

• Pressure-Lubricated Cast Iron Pump — A rear-mounted, gear-driven oil pump generates positive oil pressure and continuously feeds every bearing point, replacing splash lubrication with direct oil delivery. The crankshaft and connecting rods are rifle-drilled for targeted lubrication to high-wear areas, while a spin-on automotive-style oil filter keeps oil clean. A liquid-filled pressure gauge, bleeder valve, and adjustable regulator allow easy monitoring and adjustment. The pump is rated for an estimated 70,000-hour service life under continuous-duty conditions.
• Oil Pump Assembly — Includes a gear oil pump, bleeder valve for quick priming, liquid-filled pressure gauge for accurate readings, adjustable oil-pressure regulator, and spin-on filter for simplified maintenance.
• 100% Cast Iron Construction — Major pump components including the crankcase, cylinders, cylinder heads, connecting rods, crankshaft, and high-pressure piston are cast iron for increased rigidity, heat resistance, and durability during demanding high-duty-cycle operation. No aluminum sleeves are used beneath the paint.
• CNC-Machined Cast Iron Cylinders — Precision-machined and honed cylinders provide accurate bore concentricity, reduced oil carryover, and longer piston-ring life. Deep cooling fins maximize heat dissipation, while threaded head-bolt holes maintain proper torque and long-term gasket sealing.
• Solid Cast Iron Cylinder Heads — Cast iron heads provide stronger retention than aluminum designs and resist common head-gasket failures. The disc-valve design maintains sealing integrity without frequent retorquing and supports optional automatic head-unloader systems.
• CNC-Machined Disc Valves — Precision surface-ground concentric-ring disc valves provide reliable sealing and extended service life compared with traditional feather or reed valves. Valve inspection and replacement can be completed quickly by removing the retainer and reinstalling the valve assembly.
• Continuous-Run Head Unloader System — Included head unloaders allow the motor to continue running without repeatedly starting under load. At preset pressure, the pilot valve holds the intake valve open, reducing electrical and mechanical stress, improving cooling, and lowering unloaded amp draw by up to 60%. A connected ball valve allows true continuous-run operation for higher-duty applications.
• Cast Iron Flywheel — The heavy-duty flywheel stores kinetic energy to smooth operation, reduce amp draw, and improve efficiency. The 7.5 HP pump uses a 20-inch cast iron flywheel with two B-style belts and nine cooling fins to increase airflow across the pump.
• Cast Iron High-Pressure Piston & Rebuildable Connecting Rods — The cast iron high-pressure piston resists scoring under heavy loads, while CNC-machined cast iron connecting rods provide strength at high-stress points. Replaceable bearing inserts and wrist pins make the rod assembly fully rebuildable rather than disposable. The low-pressure piston uses aluminum for improved balance where operating stress is lower.
• Four-Ring Piston Design — Uses two oil-control rings and two compression rings to improve sealing, reduce blow-by, minimize oil carryover, and extend ring life. Rifle-drilled oil passages deliver lubrication directly to the piston pin and bearing.
• Multi-Belt V-Belt Drive & Dual-Bolt Tensioner — Wider B- and C-width belts increase contact area, reduce belt tension, lower vibration, and reduce strain on motor and bearings. The dual-bolt tensioner provides precise belt adjustment and alignment without requiring pry bars.
• Pump Riser Cooling System — The raised pump mounting plate allows 360-degree airflow from the flywheel across the oil reservoir and beneath the pump for improved cooling performance.
• Electric Auto Drain — A dual-timer automatic drain removes moisture from the receiver tank on adjustable 1–45 minute intervals, with adjustable open duration and an included air muffler for quieter discharge.

Specifications

Warranty

EMAX provides a 1-year standard warranty for the compressor, beginning on the date of delivery, covering defects in materials, workmanship, and parts. The warranty also includes one year of labor performed by an authorized technician. To activate warranty coverage, the compressor must be registered with EMAX.

The standard warranty can be extended to 5 years through the EMAX Extended Warranty Program by completing registration, using EMAX SMART OIL, and following the required maintenance schedule. The 5-Year Extended Warranty Kit (EMAX part number EFKIT008AWBS), sold separately, includes SMART OIL and replacement filters required for 5–10 HP Silent Air electric models.

To maintain warranty eligibility, the factory break-in oil must be replaced within the first 70 hours of operation. After that, the oil must be changed again and then replaced every 6 months or 1,000 hours of operation, whichever occurs first, using EMAX SMART OIL. The compressor oil level must be maintained at all times, as operating the unit with insufficient oil will void the warranty.

Documents

Piston Compressor Manual (PDF)

Warranty Statement (PDF)

This compressor ships freight on a pallet (912 lb crated). To schedule delivery or confirm the 230V single-phase electrical requirement for your shop, contact support@carliftsupply.com or call 877-600-5227.
