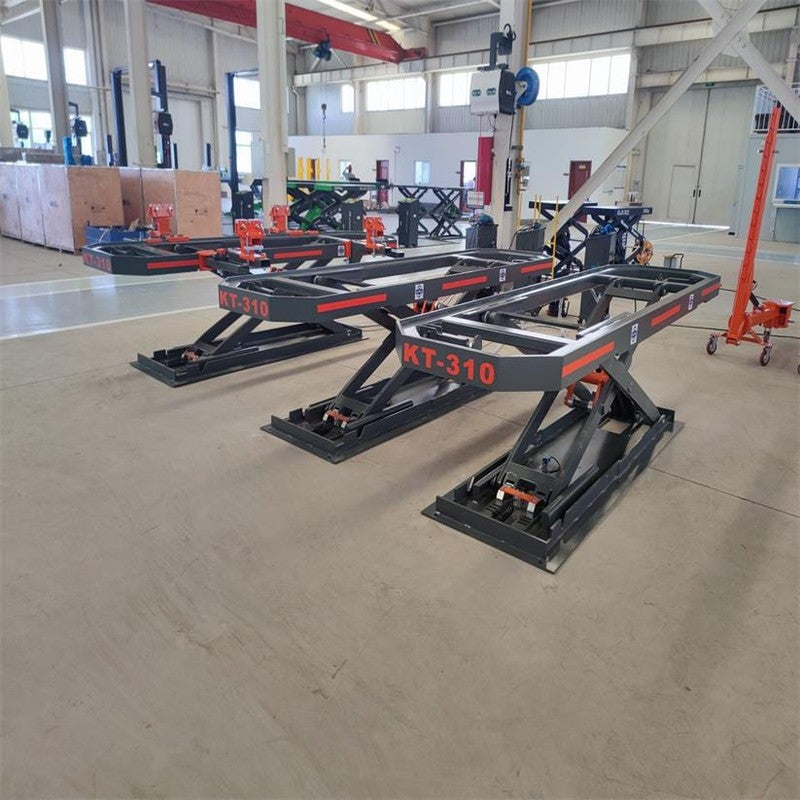

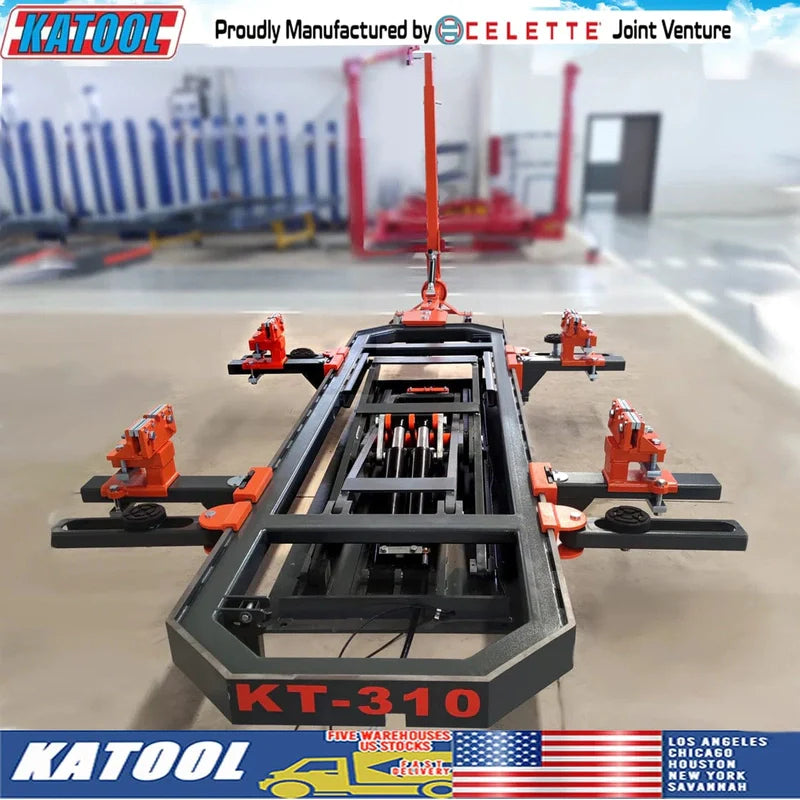

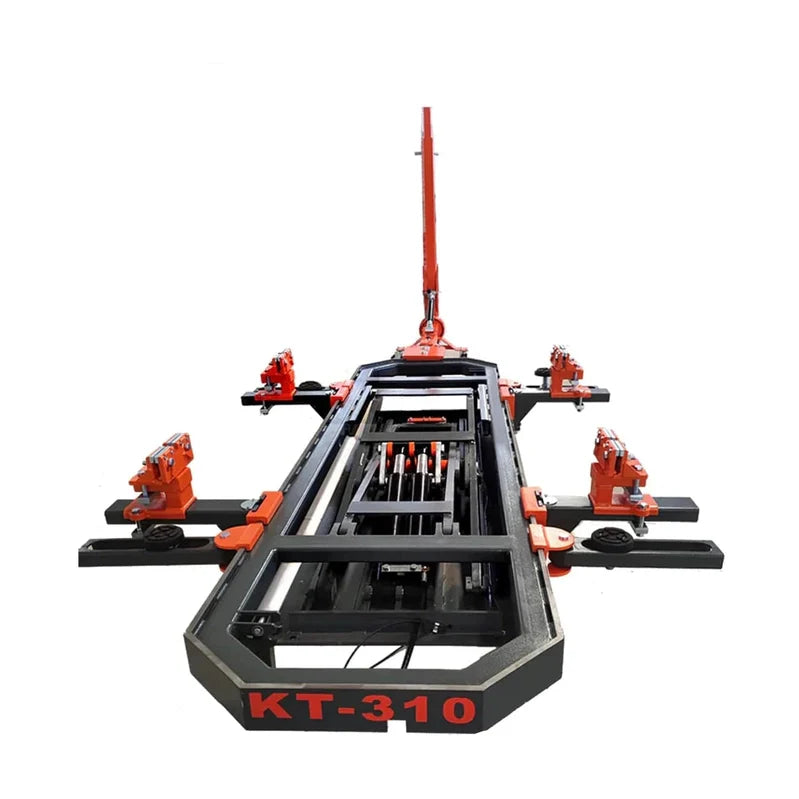

The Katool KT-310 is a compact bench frame machine built for fast collision repair on small and medium vehicles, with a 60KN (6.1-ton) pulling capacity and a drive-on height of just 110mm — low enough to load most vehicles without ramps. What sets it apart at this size and price point is its dual function: the four adjustable lifting arms rotate 180 degrees, converting the bench into a scissor lift capable of raising nearly all vehicle types. That's two pieces of equipment in one footprint. It's CE certified and built from cold high-alloy rectangular steel tubing with upgraded welding throughout.
The 9-grade locking system lets you set the pulling tower at precise heights rather than working with fixed positions, and the bench supporter gives you a reference point for installing the tower at the exact height the repair requires. The flexible moving tower covers a wide working area without repositioning the vehicle. Clamp setup is intentional here — the quick-fix jaws lock down with just two screws, which cuts the time between jobs. The heavy-duty main clamps are designed to install and remove quickly, keeping your workflow moving rather than fighting the equipment between pulls.
The KT-310 is a strong match for small and mid-size body shops that handle a steady stream of minor to moderate collision work but don't have the floor space or budget for a full-size frame bench. It's also worth considering for independent technicians setting up a first shop or expanding capability without adding a second dedicated lift — the scissor lift function means the bench earns its floor space even when it's not being used for frame work. For high-volume operations, it works well as a dedicated quick-repair station alongside a larger machine.
Features
- CE certified for verified safety and compliance standards.
- Low 110mm drive-on height for easy vehicle access and loading.

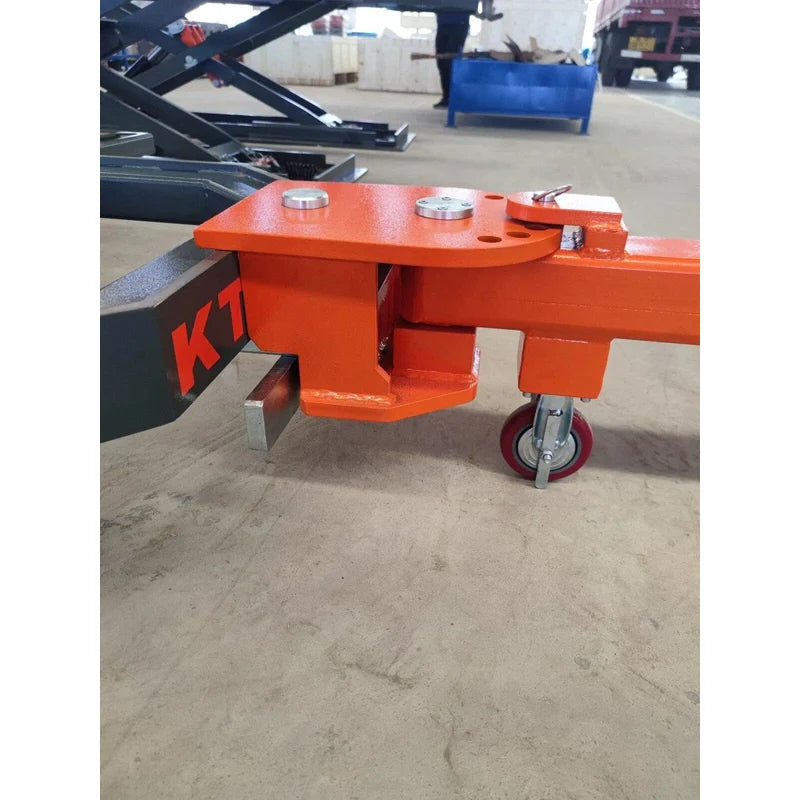

- Flexible, mobile tower design with quick-lock fixing and a wide working area, delivering 60KN of durable pulling power.
- 9-level locking system allows the tower to be set and secured at a range of different working heights.

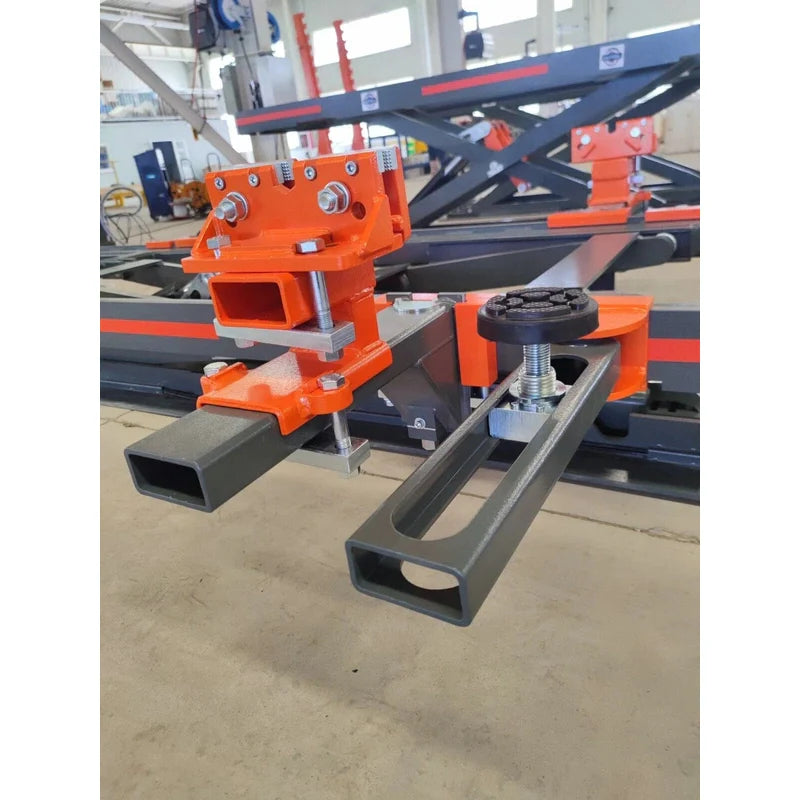

- Specially designed quick-fix jaw clamps that can be secured with just two screws for fast and simple setup.

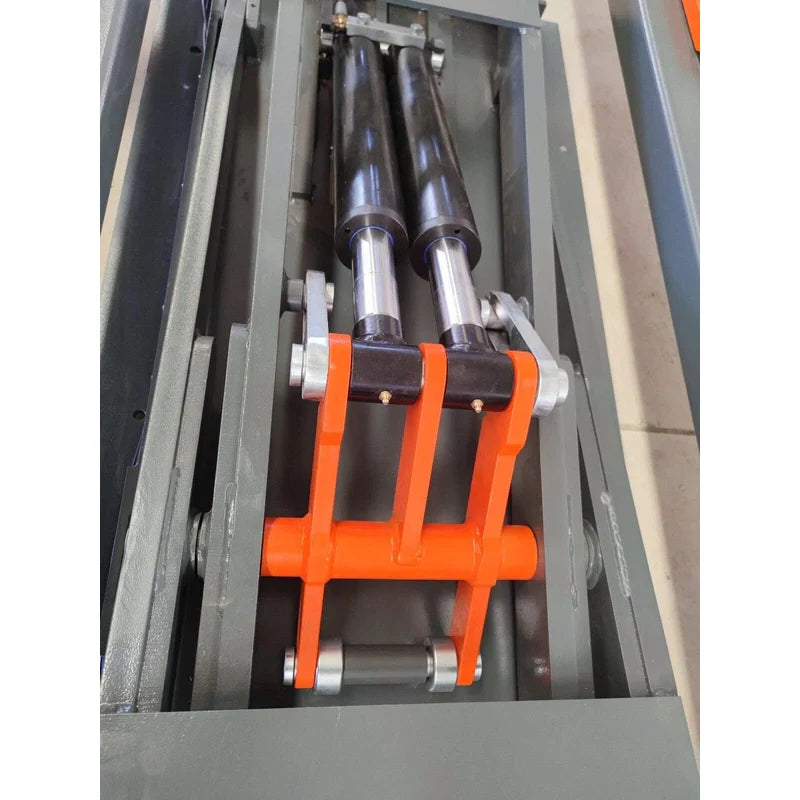

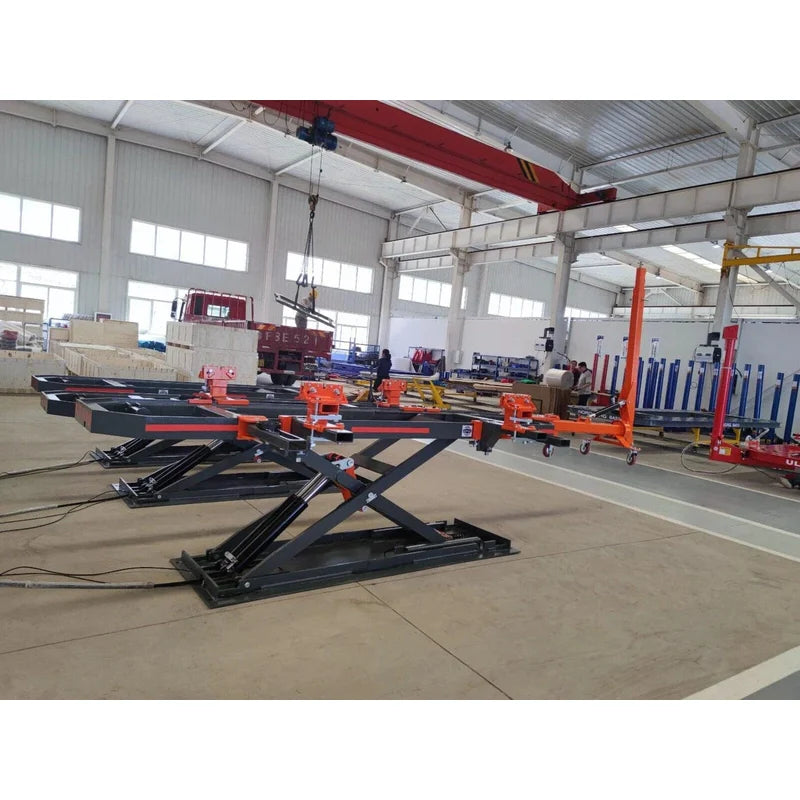

- Four adjustable lifting arms rotate up to 180 degrees when the bench is configured as a scissor lift, accommodating nearly all vehicle types.
- Includes a bench supporter to precisely locate the correct height for installing pulling towers.
- Heavy-duty main clamps are fully adjustable and designed for quick, tool-friendly installation and removal.
- Ideal for fast, efficient repairs on small to medium vehicles — a space-saving, cost-effective solution for any shop environment.
Specifications
| Frame Length |
130.8 Inch |
| Frame Width |
34.5 Inch |
| Frame Height |
4.3 to 67 Inch |
| Max Push Power for Pulling Tower |
60KN |
| Rated Voltage |
220V |
| Working Range of Pulling Tower |
360 Degrees |
| Max Load Bearing |
7000 lbs (CE Certified) |
Warranty
Katool provides a limited one-year (12-month) warranty covering all parts and product defects at no charge. A 2-year extended warranty plan is also available for any Katool or M&E automotive equipment.
What's Covered: All cylinders, power units, motors, displays, and electronics are included. Vehicle lifts also receive an additional three-year (36-month) warranty on structural components.
Warranty Conditions:
- Claims must be submitted within the active warranty period.
- The warranty is non-transferable and requires the original order number along with proof of purchase from Katool or an authorized vendor.
- Approved claims will receive replacement parts at no cost, including free shipping.
Important Notes:
- All claims are subject to review and approval by Katool's warranty and service department.
- Photos and/or videos of the defect may be required to process a claim.
- Do not disassemble any equipment before the issue has been assessed and a determination has been made.
- Equipment that falls outside the warranty policy will not be covered — the buyer assumes responsibility for replacement parts and associated shipping costs.
- Labor is not covered under this warranty.
Resources
For more detailed information and guidance, you can download the following:
