The Katool KT-4H110 is an 11,000-lb four-post lift that runs on a standard 110V/60Hz outlet — no electrical upgrades required for most home garages and shops. It's CE approved and independently tested to 115% dynamic and 150% static load capacity, so the rated limit reflects real-world verification, not just a spec sheet number. An optional 220V configuration is also available for shops that prefer it.

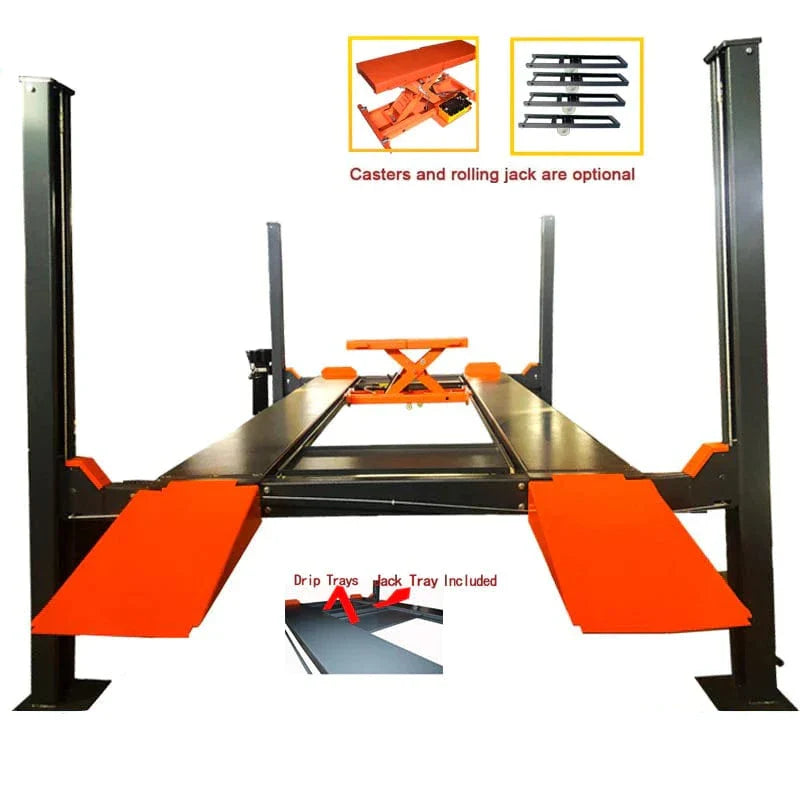

Where the KT-4H110 stands out is in its layered approach to safety. A single-point manual safety lock release drops all four columns simultaneously, while each column also carries an independent mechanical lock with both a primary and secondary locking mechanism — two separate retention points per post. That redundancy matters when you're spending time under a vehicle. The power-side column installs on either side, front, or rear, which gives you real flexibility when you're working around existing shop layout constraints. Non-skid diamond-plate platforms and adjustable safety lock ladders handle the day-to-day stability, and the lift ships with two drip trays and a jack tray already included. A caster kit and rolling jacks are available separately for shops that need to reposition the lift or work with a rolling jack alongside it.

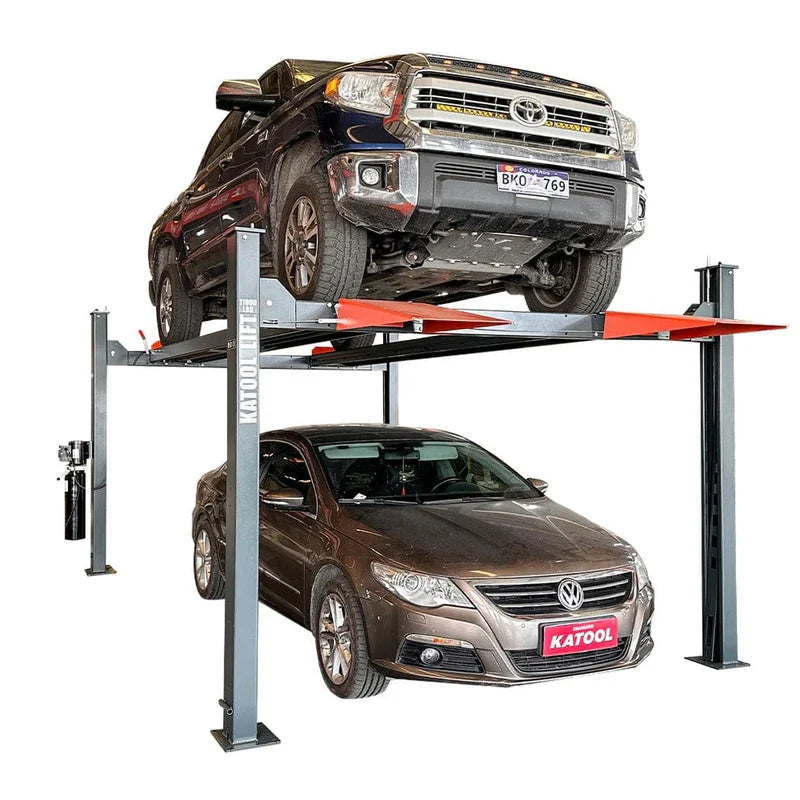

The KT-4H110 is a practical choice for home garage builds where 110V operation means no electrician before first use, independent repair shops that need a dependable four-post with certified safety ratings, and fleet or dealership environments where an 11,000-lb capacity covers the full range of vehicles in rotation. The flexible power column placement also makes it easier to fit into shops where the layout doesn't leave much room to negotiate.

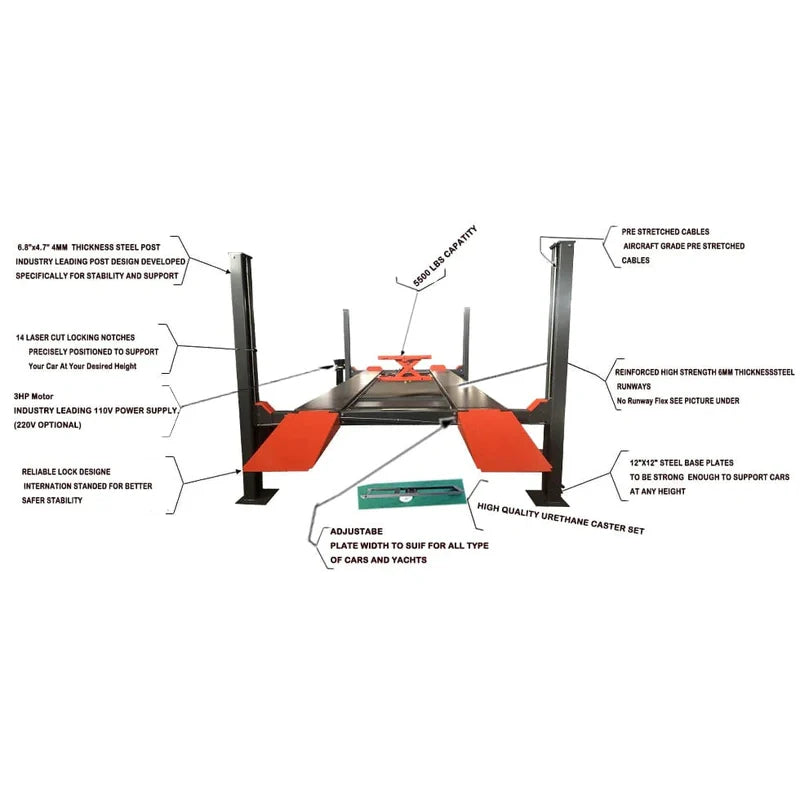

Features
-
11,000 lb Lifting Capacity: Built to handle heavy-duty vehicles with confidence and ease.
-
CE Approved and Certified: Meets strict 115% dynamic and 150% static load capacity standards for verified safety and compliance.
-

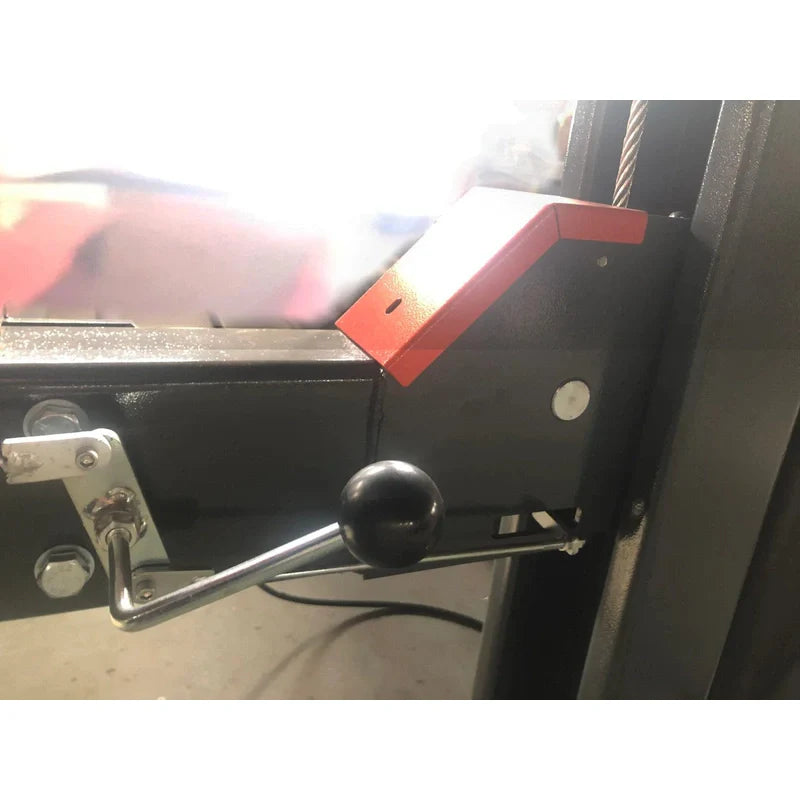

Single-Point Manual Safety Lock Release: Delivers secure, controlled lifting operations from a single, conveniently located release point.
-

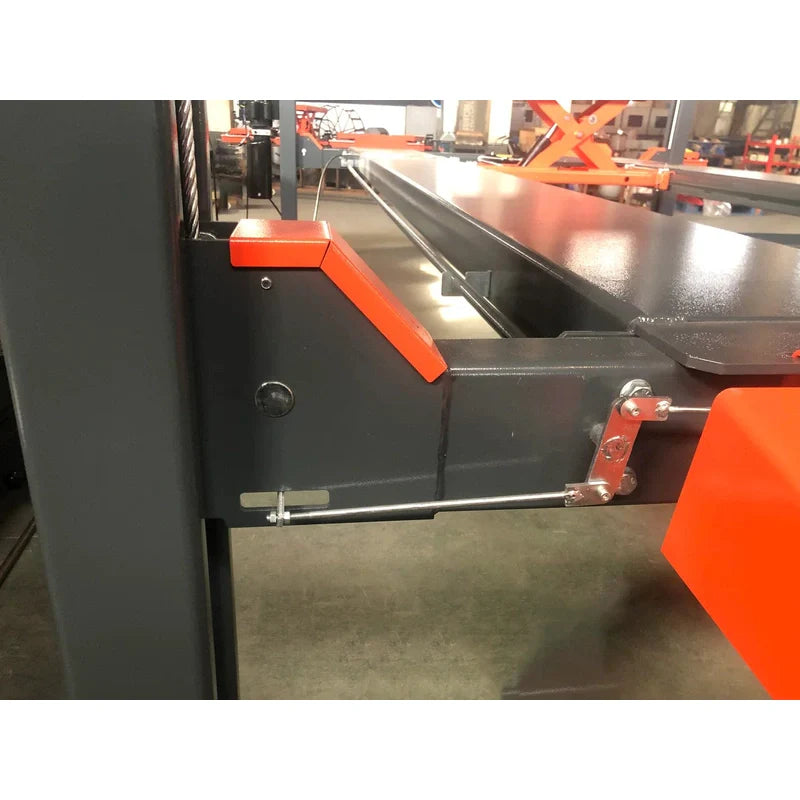

Four Mechanical Locking Devices: Each equipped with both primary and secondary safety locks for an added layer of protection on every lift.
-
Flexible Powerside Column: Supports installation on either side, the front, or the rear to accommodate a variety of shop layouts.
-
Non-Skid Coated Platforms: Textured, slip-resistant surfaces paired with adjustable safety lock ladders for enhanced stability and security during operation.
-

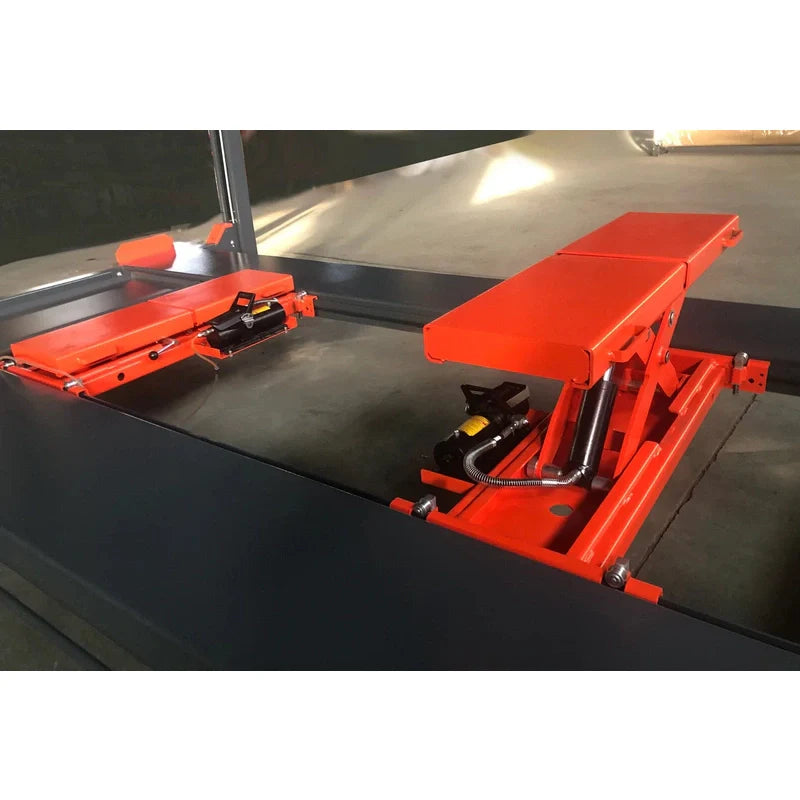

Optional Add-Ons: Caster kit for improved mobility and rolling jacks for additional lifting functionality, both available separately.
-
Versatile Hydraulic System: Available in 110V/60Hz/1PH as standard, with an optional 220V/60Hz/1PH configuration for reliable and efficient performance.
-
Convenient Accessories Included: Comes with two drip trays and a jack tray for a cleaner, more organized workspace.

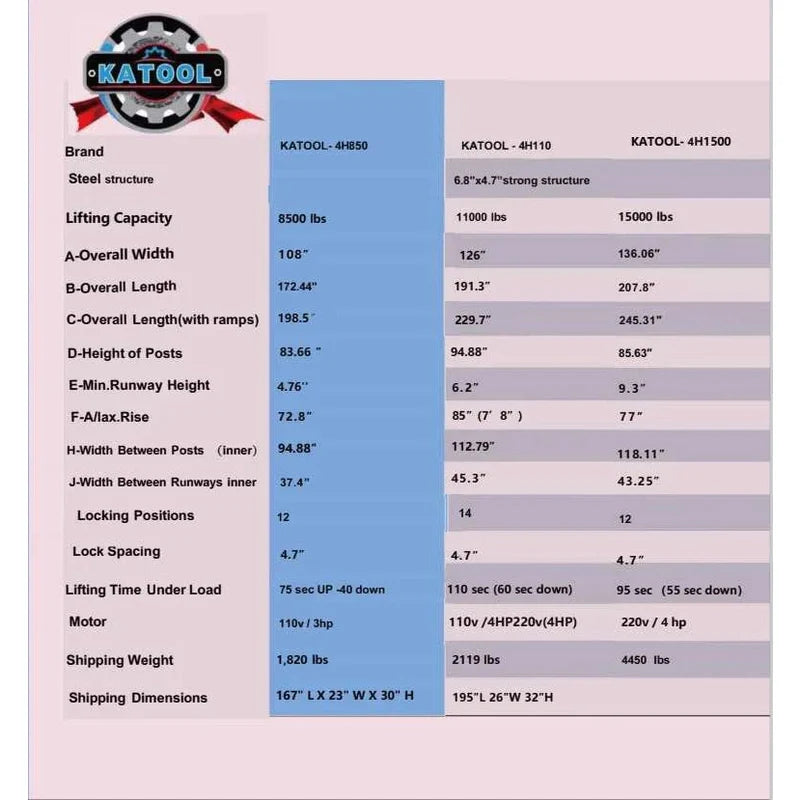

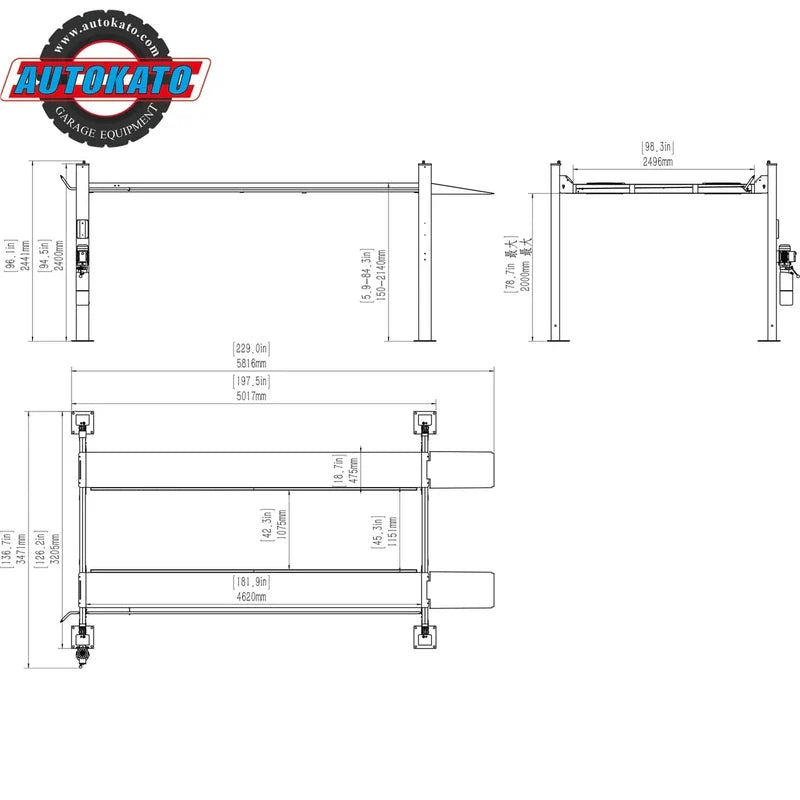

Specifications
| Lifting Capacity |
11,000 lbs (4,990 kg) |
| Max. Lifting Height |
84.25" (2,140 mm) |
| Lifting Time |
83s Up / 40s Down |
| Height of Posts |
94.88" (2,410 mm) |
| Width Overall |
126" (3,200 mm) |
| Length Overall |
229.73" (5,835 mm, with ramps) |
| Inside Columns |
112.81" (2,865 mm) |
| Min. Runway Height |
6.2" (157 mm) |
| Motor |
110VAC/60HZ/1PH |
| Net Weight |
2,116 lbs (960 kg) |
Resources
For detailed installation instructions, safety guidelines, and operating procedures, please refer to the Katool KT-4H110 User Manual. Click the link below to download:
Download User Manual (PDF)
Warranty
Katool backs the KT-4H110 with a 1-year limited warranty covering all parts and product defects, plus an additional 3-year warranty on structural lift components. Extended warranty plans (2 years) are also available for purchase.
Warranty Conditions:
- Claims must be submitted within the active warranty period and are non-transferable.
