Katool KT-4H850 8,500lbs Heavy Duty 4 Post lift

The Katool KT-4H850 is an 8,500-lb four-post lift that runs on a standard 110V/60Hz outlet — no electrical upgrades required for most home garages. It's CE approved and load-tested to 115% dynamic and 150% static capacity, with the same dual-layer safety system found on the heavier lifts in this lineup. An optional 220V configuration is available for shop environments that prefer it. Note: requires a minimum 3.93" (100mm) concrete floor rated at 3,000 PSI.

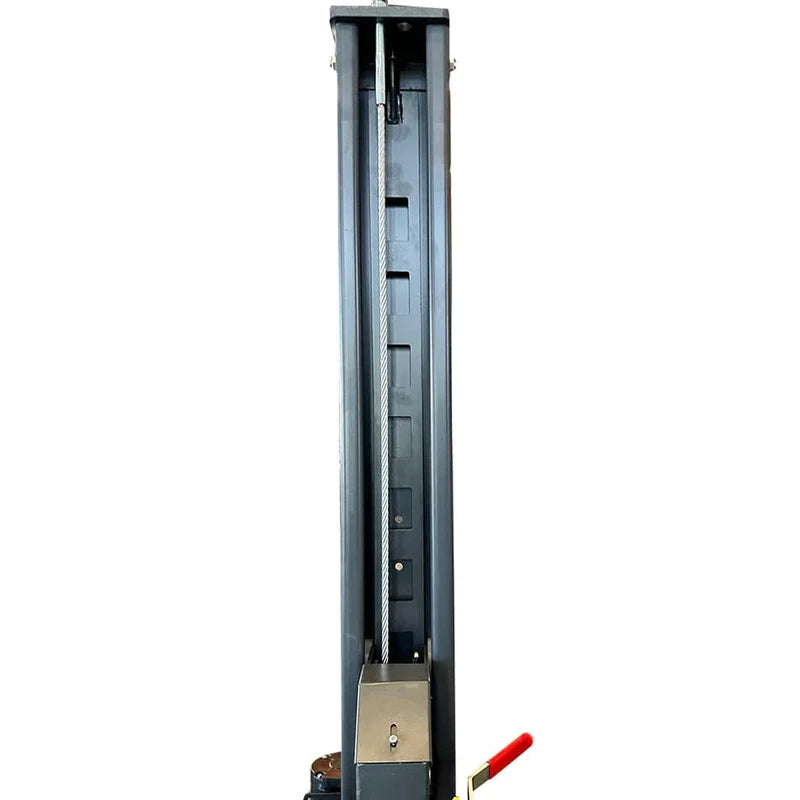

The safety setup follows a consistent pattern: a single-point manual safety lock release drops all four columns simultaneously, while each column carries independent mechanical locks with both a primary and secondary locking point. The caster kit is included — not an add-on — which means you can reposition the lift within your garage without a full teardown. Two drip trays and a jack tray ship with the lift, so you're not sourcing accessories before you can start working. The power-side column installs on either side, front, or rear, and the non-skid diamond-plate platforms and adjustable safety lock ladders handle stability across different vehicle types.

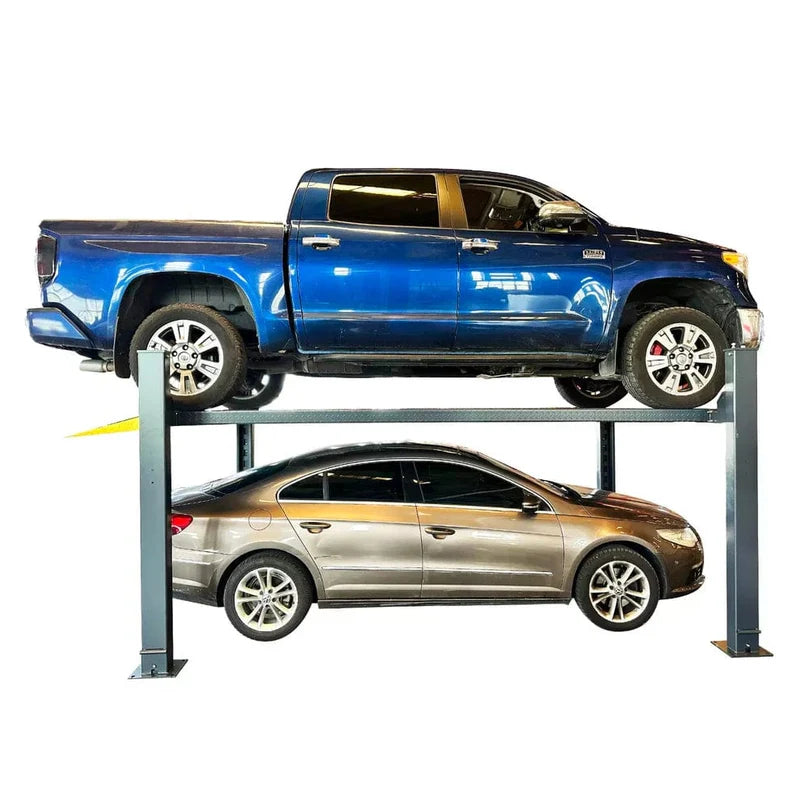

At 8,500 lbs, the KT-4H850 covers the full range of passenger cars, crossovers, and lighter trucks — and the 110V operation makes it the most practical starting point for home garage builds that don't have a dedicated 220V circuit. It's also a solid fit for small independent shops that handle primarily passenger vehicles and want a certified four-post without the overhead of a higher-capacity machine, and for enthusiasts and collectors who need reliable storage lift capability alongside a working lift function.

Features

• 8,500 lb Lifting Capacity: Built to handle a wide range of robust vehicles with confidence and ease.
• CE Approved and Certified: Meets rigorous 115% dynamic and 150% static load capacity standards for verified safety and compliance.

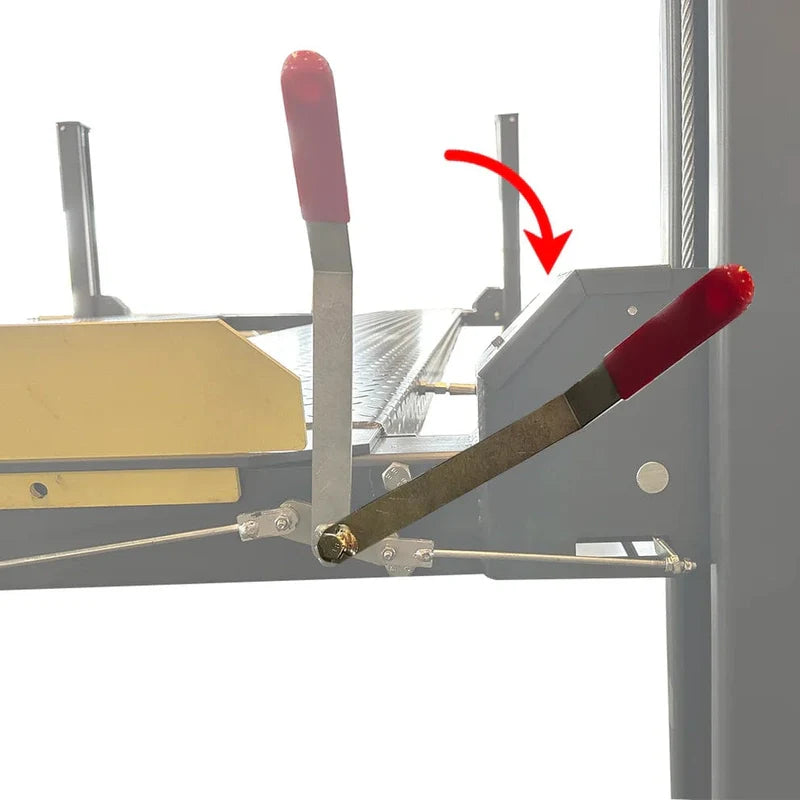

• Single-Point Manual Safety Lock Release: Provides secure, controlled lifting operations from a single, conveniently located release point.
• Four Mechanical Locking Devices: Each unit features both primary and secondary safety locks for an enhanced level of protection on every lift.
• Flexible Powerside Column: Supports installation on either side, the front, or the rear to suit a variety of shop and garage layouts.

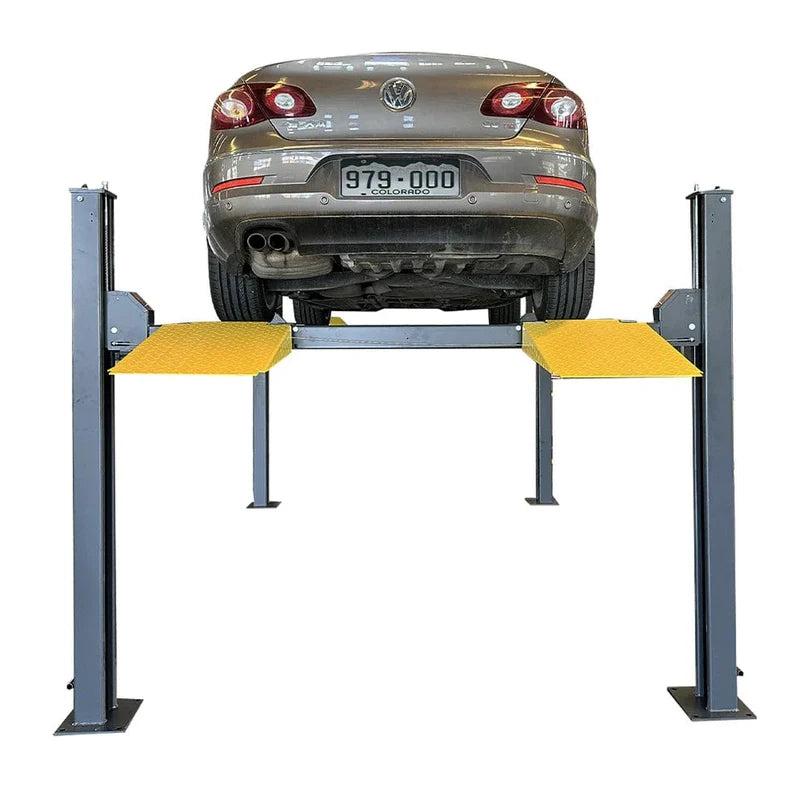

• Non-Skid Diamond Platforms: Textured, slip-resistant surfaces provide reliable stability and safety for vehicles during operation.

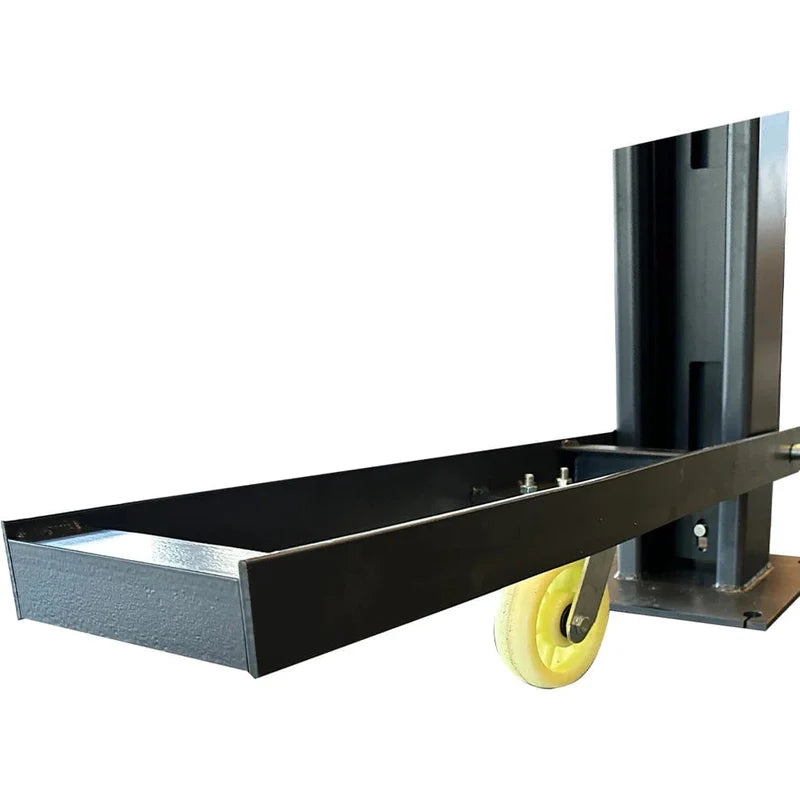

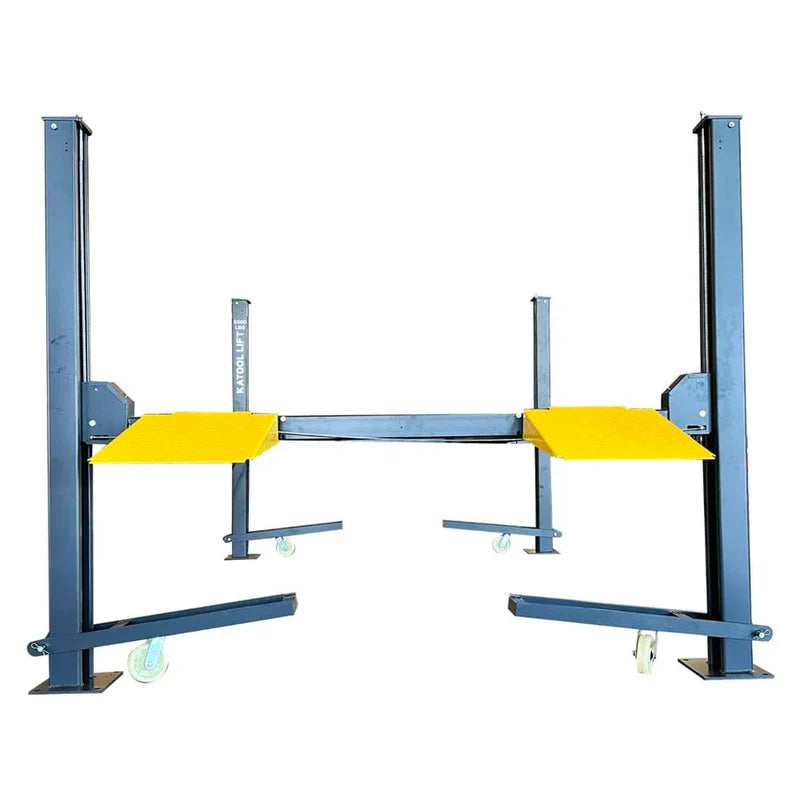

• Caster Kit Included: Allows the lift to be easily repositioned anywhere in your garage or workspace for optimal placement.

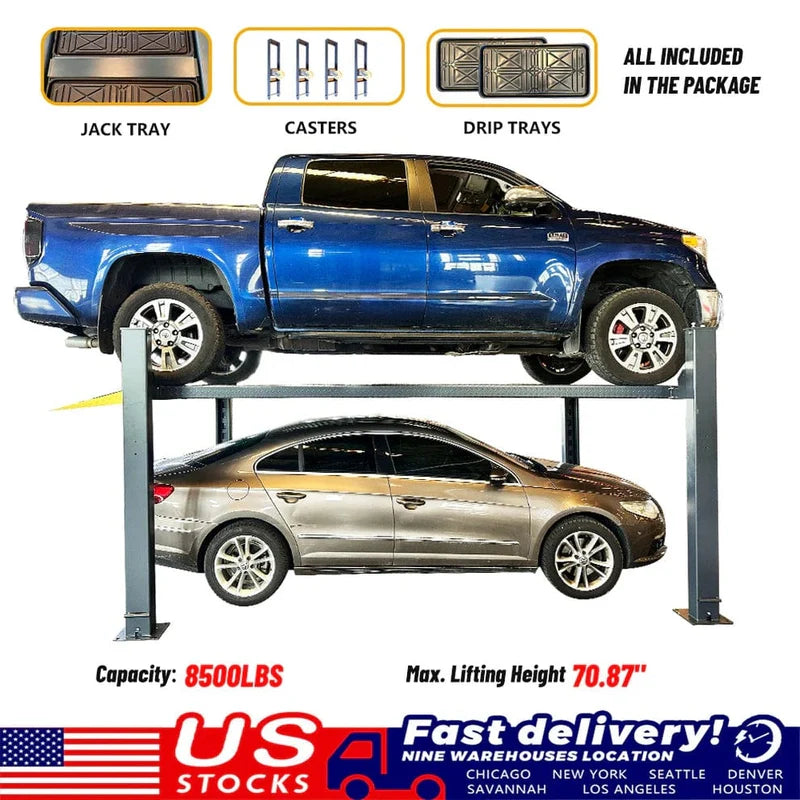

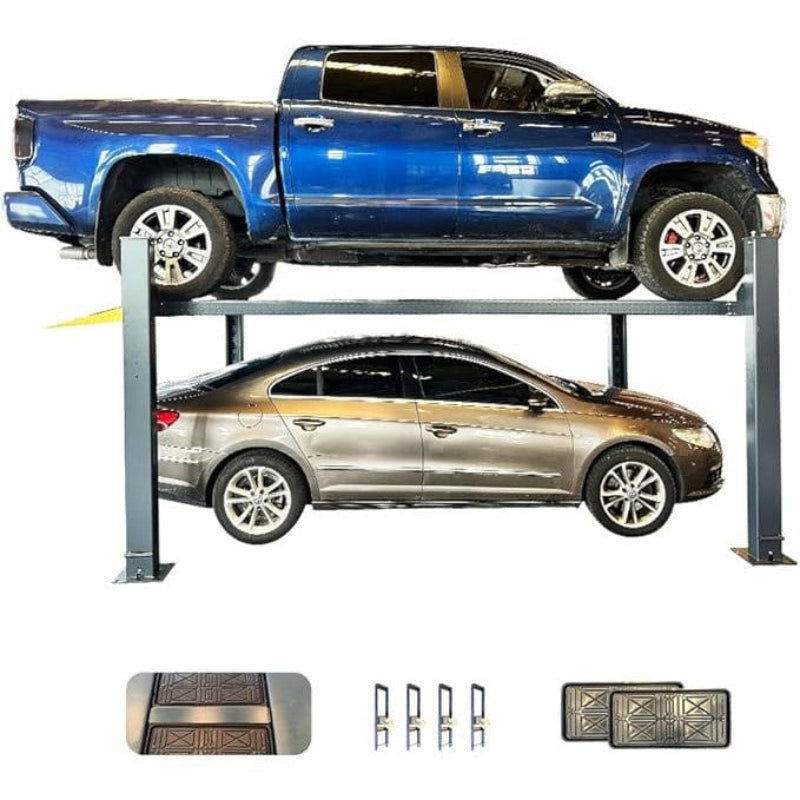

• Convenient Accessories Included: Comes with two drip trays and a jack tray for a cleaner, more organized work environment.
• High-Quality Hydraulic System: Available in 110V/60Hz/1PH as standard, with an optional 220V/60Hz/1PH configuration for flexible and efficient performance.

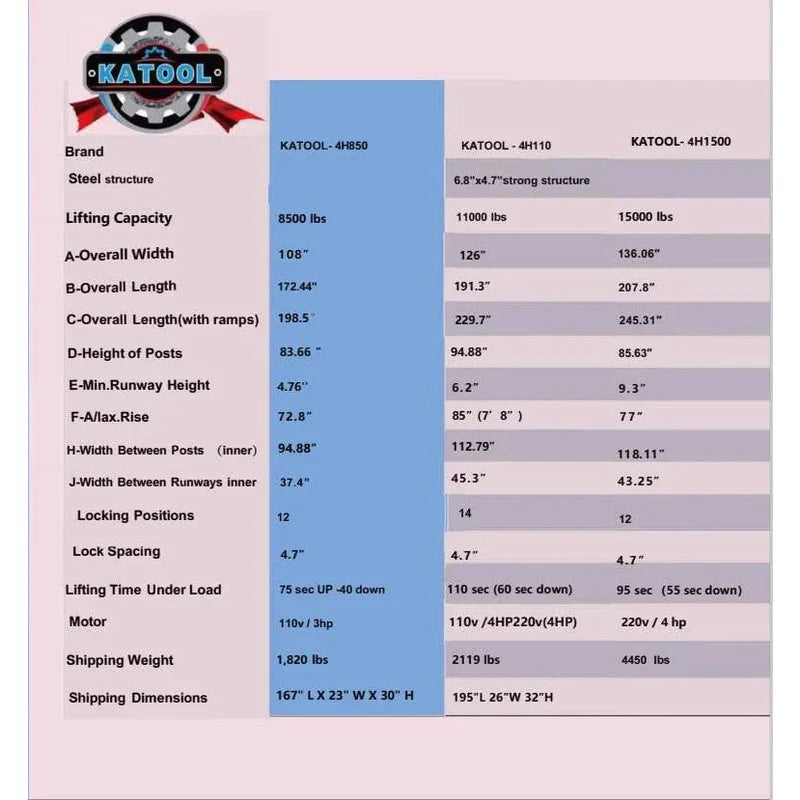

Specifications

User Manual

For detailed installation instructions, safety guidelines, and operating procedures, please refer to the Katool KT-4H850 User Manual. Click the link below to download:

Download User Manual (PDF)

Warranty

Katool backs its products with a 1-year limited warranty covering all parts and product defects, along with an additional 3-year warranty on structural components for vehicle lifts. Optional 2-year extended warranty plans are available for purchase.

What's Covered:

• Cylinders, power units, motors, displays, and electronics.
• Structural components for vehicle lifts.

Warranty Conditions:

• Claims must be submitted within the active warranty period and are non-transferable.
• Approved claims receive replacement parts at no cost, including free shipping.
• Labor costs are not covered under this warranty.
• Equipment must not be disassembled prior to warranty review and approval.

All claims are subject to review by Katool's warranty and service department. Supporting documentation, such as photos or videos of the defect, may be requested as part of the approval process.
