The Katool KT-4M110PA delivers 11,000 lbs of lifting capacity in a four-post alignment lift with reinforced steel runways and an 84.5" maximum lifting height. It includes a 7,000-lb rolling bridge jack, aluminum approach ramps, and a pneumatic lock release, giving you a more complete service setup than a lift-only package. The lift reaches full height in about 50 seconds and runs on 110V or 220V single-phase power, making it suitable for both home garages and professional shops.

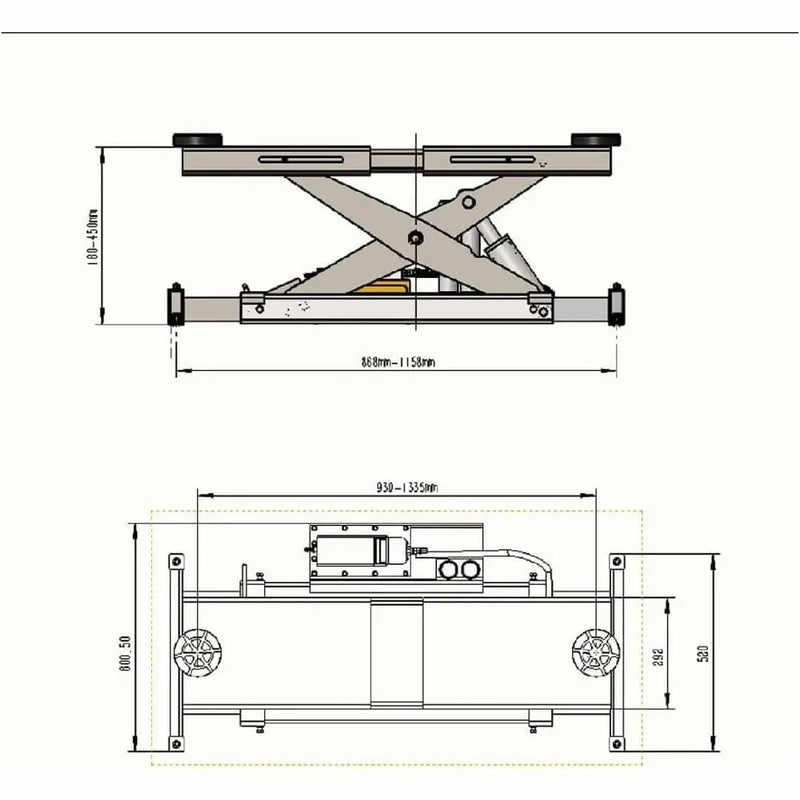

The included rolling bridge jack lets you raise the wheels completely off the runways for brake, tire, and suspension work without moving the vehicle to another lift. Its air-hydraulic foot pump provides convenient operation, while the pneumatic lock release uses an in-line air filter and regulator for smoother lowering. The lightweight aluminum ramps also make drive-on loading easier and are simple to reposition when needed.

The KT-4M110PA is a strong fit for home garages, automotive repair shops, alignment facilities, and detailing operations that need both undercarriage access and a stable four-post platform. The combination of an 11,000-lb lift, included 7,000-lb rolling jack, and flexible 110V/220V power makes it practical for servicing cars, trucks, and SUVs without requiring a separate bridge jack purchase.

Features

• 11,000-lb lifting capacity — Heavy-duty reinforced steel runways provide stable, reliable support for cars, trucks, and SUVs.
• 84.5" maximum lifting height — Provides generous clearance for inspections, repairs, alignments, and detailing.
• Included 7,000-lb rolling jack — Lifts vehicle wheels off the runways for convenient brake, tire, and suspension service.
• Pneumatic lock release — Air-operated safety lock release allows for smoother and faster lowering.
• 110V/220V single-phase power — Flexible electrical setup makes the lift suitable for both home garages and professional shops.
• Approximately 50-second rise time — Quickly reaches full height to keep service work moving efficiently.
• Lightweight aluminum approach ramps — Easy to install, reposition, and use during vehicle loading.

A rolling caster kit for repositioning the lift is available separately and is not part of the standard package.

Specifications

FAQ

What vehicles can it lift?

The KT-4M110PA has an 11,000-lb lifting capacity and is designed for cars, trucks, and SUVs. Always verify that the vehicle's weight is within the lift's rated capacity before operation.

How much clearance does it provide underneath?

The lift reaches a maximum height of 84.5", providing ample under-vehicle clearance for inspections, repairs, alignments, and other service work.

Does it include a rolling jack?

Yes. The lift includes a 7,000-lb rolling bridge jack, along with three drip trays, one lift tray, and aluminum approach ramps.

What electrical power does it require?

The single-phase power unit supports both 110V and 220V, providing flexible installation options for home garages and professional automotive shops.

How fast does it lift a vehicle?

The KT-4M110PA reaches its maximum lifting height in approximately 50 seconds, helping reduce wait time and keep service work moving efficiently.
