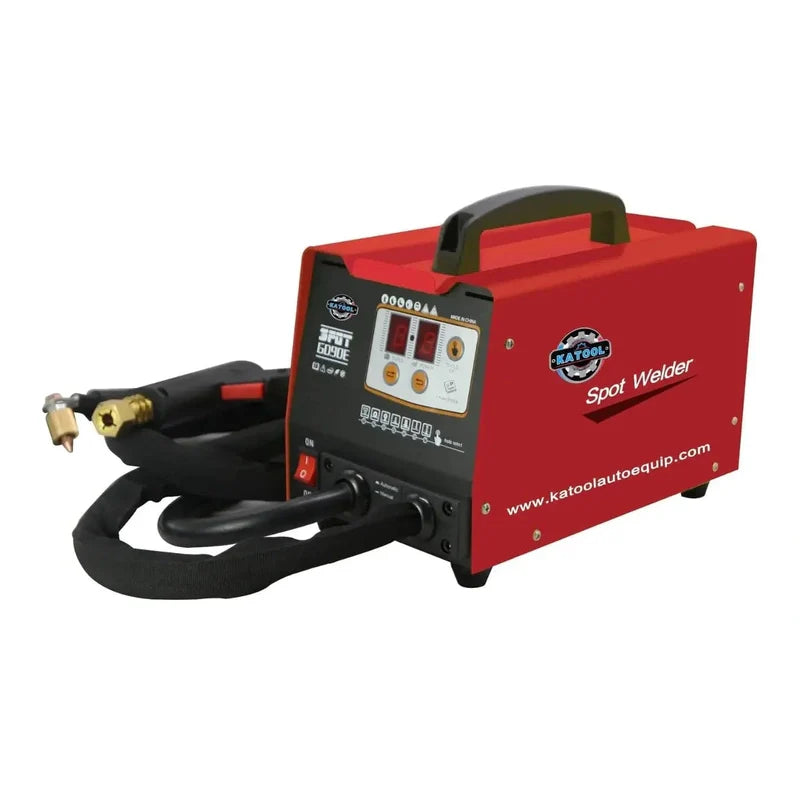

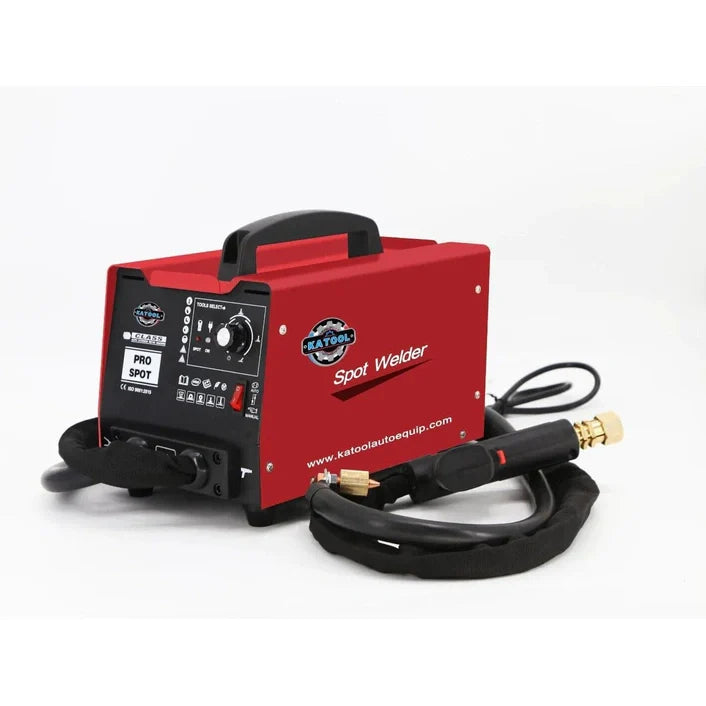

The Katool PRO Body Spot Welder Dent Puller is a dual-function tool that handles both stud welding and dent pulling from a single unit — one welding gun and one dent puller, each working with their own standard accessories so you're not reconfiguring between tasks. The core design priority is minimal surface damage: the small-spot welding pattern is specifically engineered to avoid burning through to the rust-proof coating on the reverse side of the panel, which matters when working on exterior body surfaces where collateral damage creates more repair work than the original dent.
Heat management is handled passively through side ventilation ports rather than a fan, combined with automatic overheating protection that cuts the unit before burnout occurs. That combination allows for extended continuous use without monitoring the machine's temperature — useful during longer body repair sessions where stopping to cool down breaks your workflow. The design keeps the unit compact and practical for day-to-day shop use rather than occasional tasks.
Application-wise, the PRO covers the core range of auto body dent work: dent forming, sheet metal repair, and general body damage correction, as well as broader metal deformation repairs beyond automotive. That range makes it a versatile bench tool rather than a single-purpose puller.
A solid fit for auto body technicians handling regular panel repair work, collision shops that need a reliable spot welder/puller without the footprint of a full welding station, and technicians newer to body repair who want a dual-function tool that's straightforward to operate without sacrificing the weld quality that protects panel surfaces.
Features
-
Precision Spot Welding: Produces small, clean weld spots that protect the rust-proof coating on the reverse side of the panel — making it a reliable choice for both professionals and beginners alike.
-

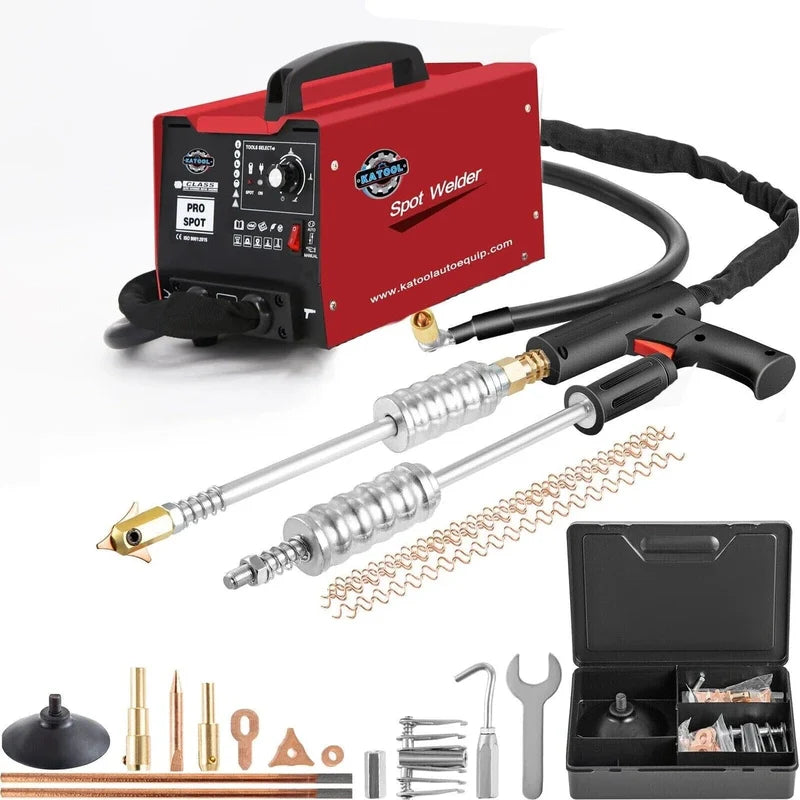

Dual-Function Design: Comes with one dent puller and one welding gun, allowing both functions to be performed simultaneously with their respective accessories — saving time on switching and keeping your workflow moving efficiently.
-
Rapid Heat Dissipation: Side ventilation holes enable fast, effective heat dissipation, while the automatic overheating protection function allows for extended continuous use without the risk of burnout — delivering a reliable, high-efficiency performance.
-
Versatile Applications: A go-to tool for the automotive repair industry, suitable for dent forming, sheet metal repair, and general body damage restoration. Also effective for a broad range of other metal deformation repair tasks beyond automotive use.
Specifications
- Model: PRO
- Input Voltage: 110V
- Input Power: 3KW
- Output Voltage: Carbon Rod Heating AC3V-5V; Meson Melting AC1V-7V; Touch Welding AC1V-7V
- Maximum Input Current: 20 A
- Regular Working Hours: Automatic Mode Program Setting
- Work Stalls: 7 Modes Available
- Single-sided Welding Thickness: 0.02 - 0.05 in / 0.6 - 1.2 mm
- Vacuum Suction: 397 lbs / 180 kg

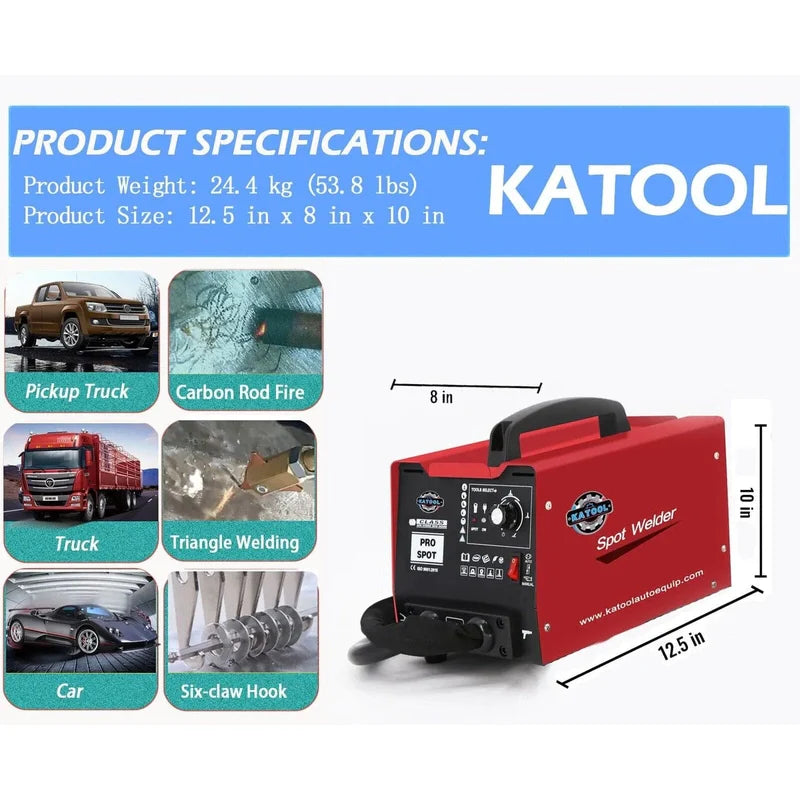

- Dimensions: 8" x 12.5" x 10" / 20.5 x 32 x 25.5 cm
- Weight: 53.8 lbs / 24.4 kg
Warranty
Katool provides a limited one-year (12-month) warranty covering all parts and product defects at no charge. A 2-year extended warranty plan is also available for any Katool or M&E automotive equipment.
What's Covered:
- Cylinders, power units, motors, displays, and electronics.
- Vehicle lifts receive an additional three-year (36-month) warranty on structural components.
Warranty Conditions:
- Claims must be submitted within the active warranty period.
- The warranty is non-transferable and requires the original order number along with proof of purchase from Katool or an authorized vendor.
- Approved claims will receive replacement parts at no cost, including free shipping.
Important Notes:
- All claims are subject to review and approval by Katool's warranty and service department.
- Photos and/or videos of the defect may be required to process a claim.
- Do not disassemble any equipment before the issue has been assessed and a determination has been made.
- Equipment that falls outside the warranty policy will not be covered — the buyer assumes responsibility for replacement parts and associated shipping costs.
- Labor is not covered under this warranty.
