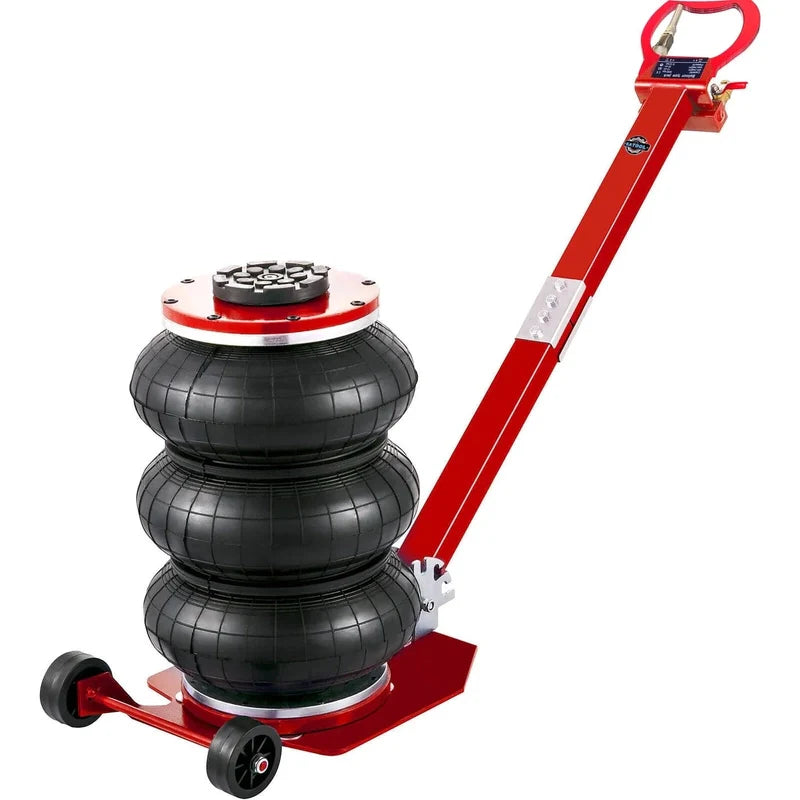

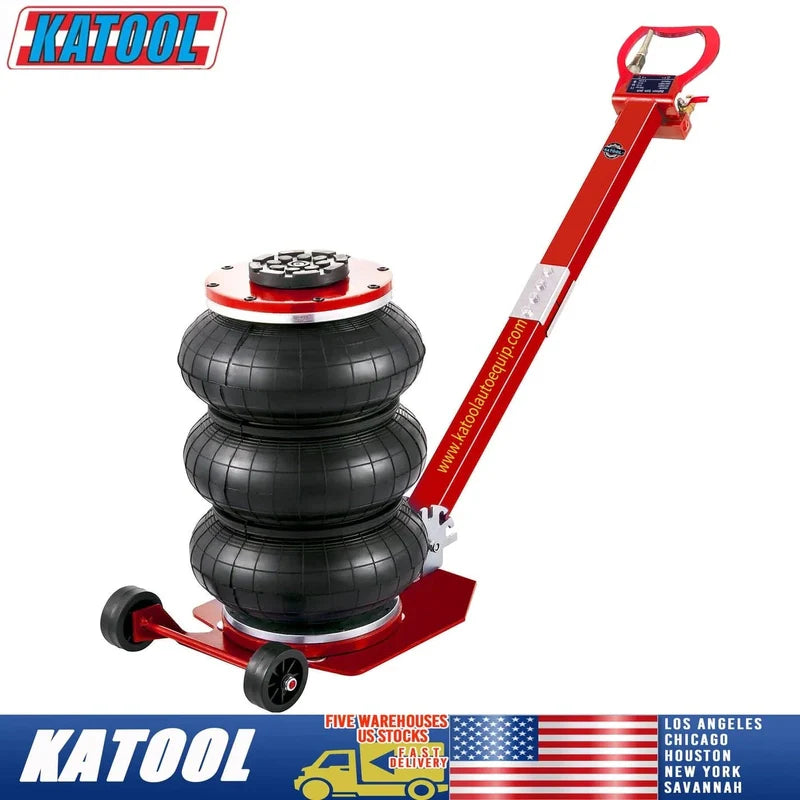

The Katool 5-Ton Pneumatic Bag Jack is a triple-bag air jack rated at 5 tons (11,000 lbs) — enough capacity to handle full-size trucks, heavy SUVs, and commercial vans that exceed what a standard floor jack or lighter air jack can safely manage. It lifts from 5.9 to 15.75 inches in 3 to 5 seconds on compressed air, with no manual pumping involved. Note: requires an air compressor delivering 8 to 10 atm of pressure for proper operation.
The triple-bag construction is what allows this jack to reach 11,000 lbs in a compact, low-profile form. Three stacked air chambers distribute the load and provide stable, controlled inflation — the result is a lift that rises evenly under heavier vehicles without the wobble you can get from single-bag designs under high loads. The long handle and dual casters let you slide the jack into position from standing height, which matters more with heavier vehicles where the clearance is tighter and repositioning is less forgiving. Open the valve, and the jack is at working height in a few seconds — far less physical effort than a hydraulic floor jack cycling through the same lift repeatedly across a full workday.
The 5-Ton Bag Jack is a natural fit for body shops handling trucks and commercial vehicles where lift speed and ground clearance matter, fleet maintenance operations running heavier vans and light trucks that outpace a 3-ton jack's safe range, and mobile mechanics who need high-capacity ground-level lifting without hauling a heavy floor jack to the job. It also works well as a primary quick-lift tool in shops where the vehicle goes on a lift afterward — get it in the air fast, position it, move on.
Features
- A versatile lifting range of 5.5–15.75 inches ensures effortless adaptation to virtually any vehicle height, providing easy, reliable access for a wide range of repair and maintenance tasks.
- Simply connect to an air compressor, open the valve, and your vehicle reaches the desired height in as little as 5 seconds. Unlike traditional mechanical jacks, this airbag design eliminates repetitive, physically demanding operation — saving valuable time and effort.

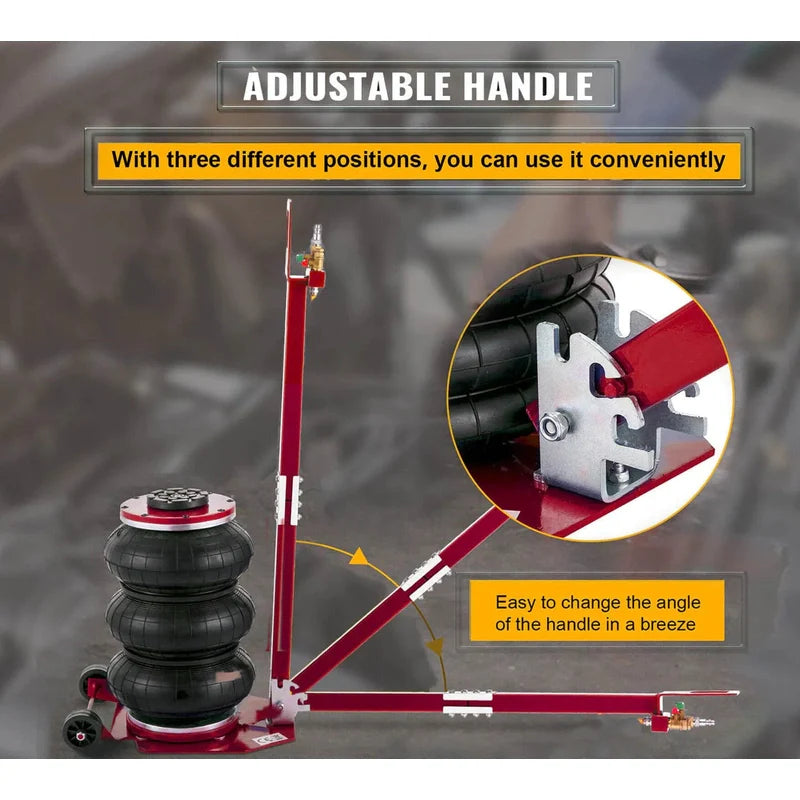

- A long handle and dual casters provide smooth, effortless maneuverability, making it easy to position the jack under any vehicle without unnecessary strain or discomfort.
Specifications
-
Lifting Height Range: 5.9-15.75 inches
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
