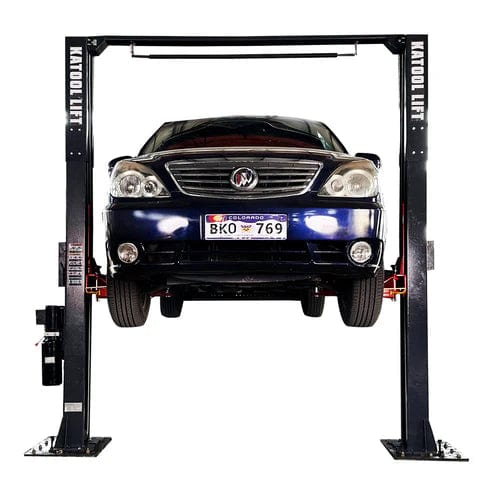

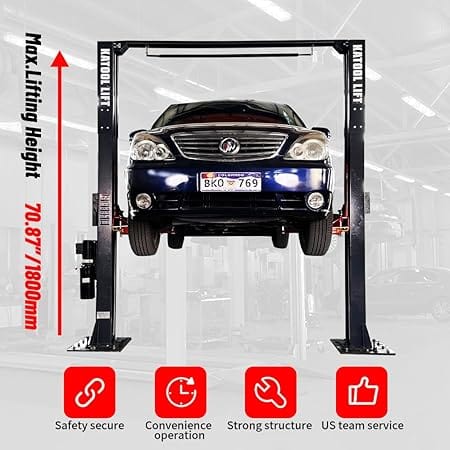

This 12,000-lb two-post lift is built for shops and facilities that need higher capacity than the standard 10,000-lb class — handling full-size trucks, larger SUVs, and heavier commercial vehicles without approaching the rated limit. The single-point lock system releases all locking positions simultaneously, keeping the workflow clean without managing each arm independently. At a maximum lift height of 70.87" (1,800mm) and a minimum arm height of 4.25" (110mm), it covers the range from low-clearance passenger vehicles to tall trucks in a single setup. Note: requires a minimum 6" concrete floor rated at 3,000 PSI, and delivery requires a forklift or suitable unloading equipment on site — plan accordingly before your order ships.

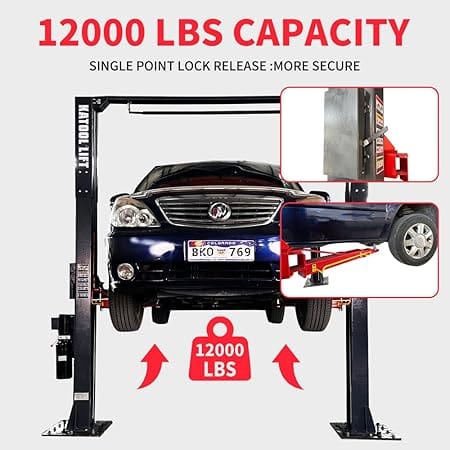

The 4.25" minimum arm height means the lift can reach under vehicles with limited ground clearance without the adapter stacking that shorter arms require. The single-point lock release is a practical time-saver in a busy bay — one motion sets or releases all four arm positions rather than working column by column. At 12,000 lbs, the lift handles the full weight range of most light commercial vehicles, making it more versatile across a mixed-vehicle operation than a standard-capacity two-post.
A strong fit for factory workshops and fleet operations running heavier vehicles, automotive repair shops that regularly service trucks and larger SUVs, and automobile dealerships and 4S stores where a wide range of vehicles need to move through service bays efficiently. The 12,000-lb rating also makes it worth considering for any shop that's outgrown a 10,000-lb lift and needs the extra headroom without stepping up to a commercial-only machine.
Specifications
Resources
For more detailed information and guidance, you can download the following:
