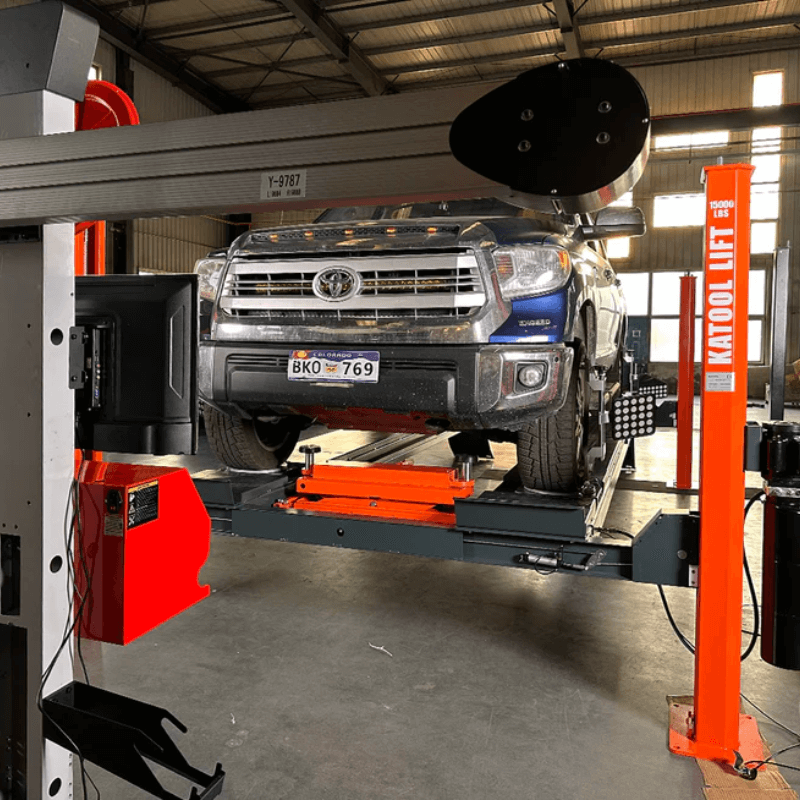

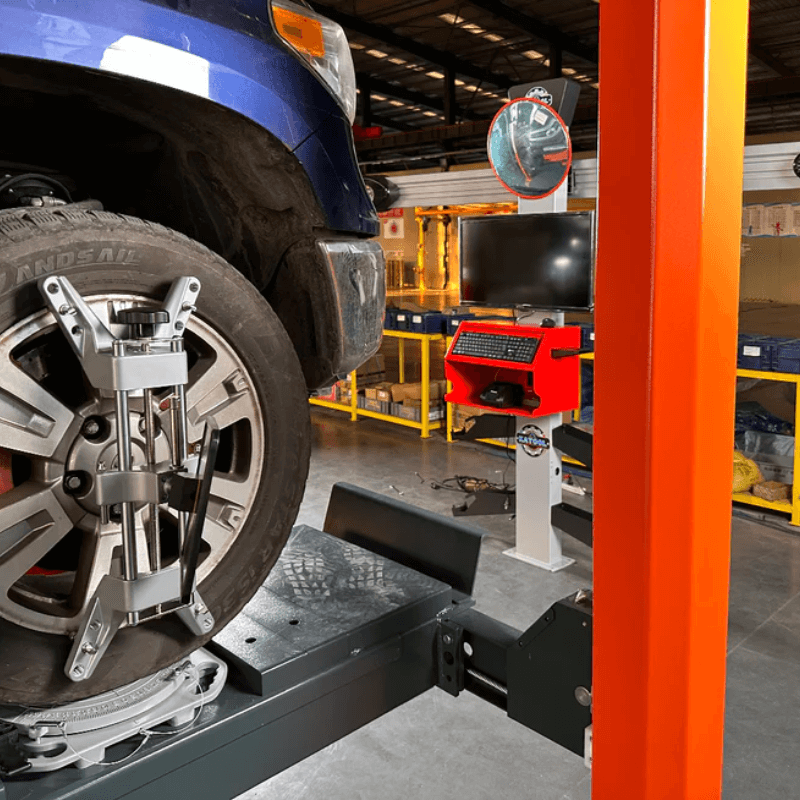

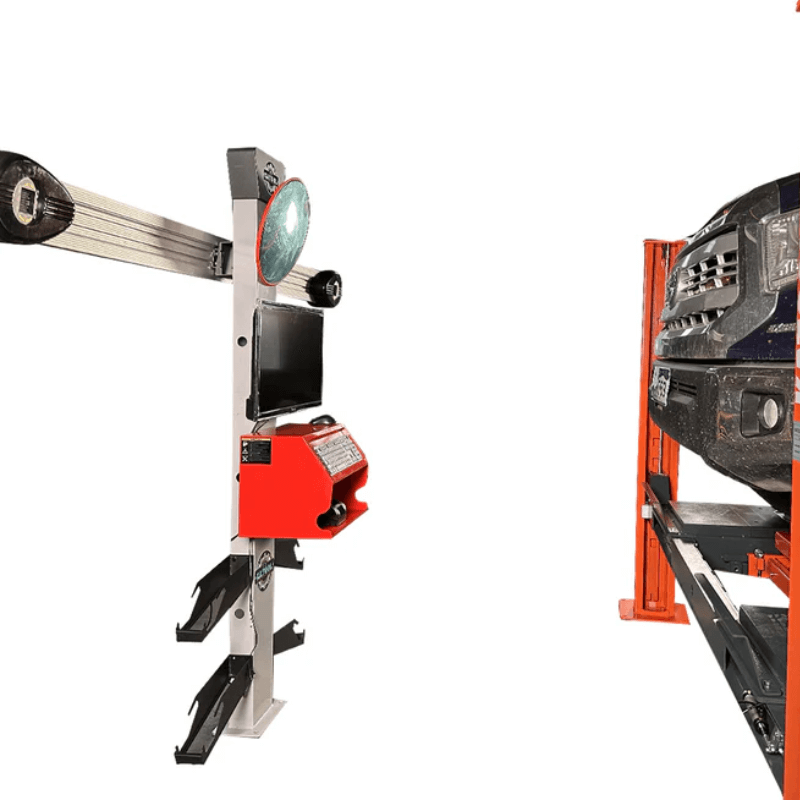

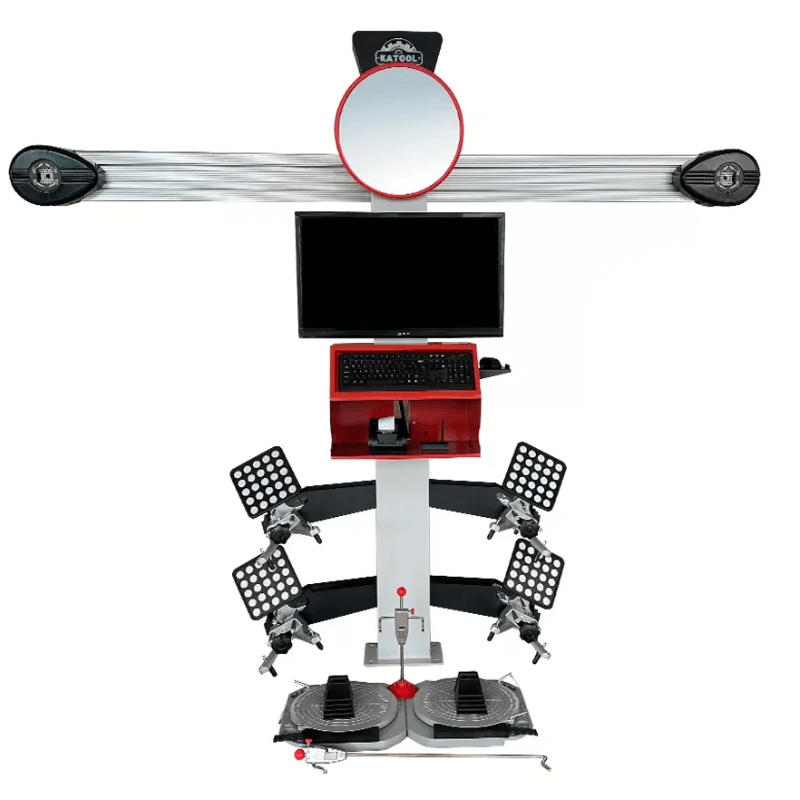

Katool KT-AV533 3D Wheel Alignment Machine

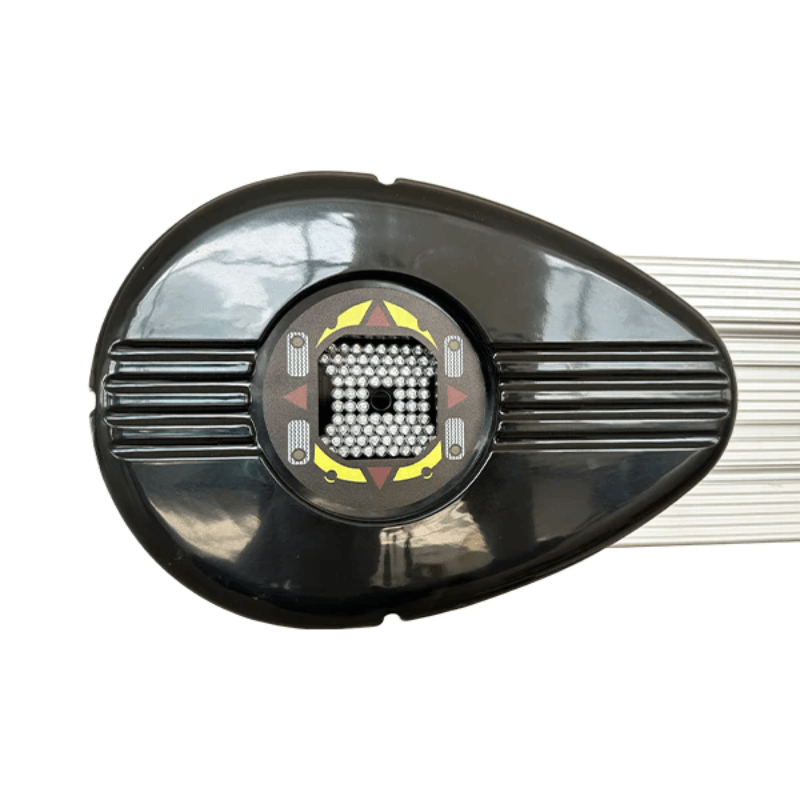

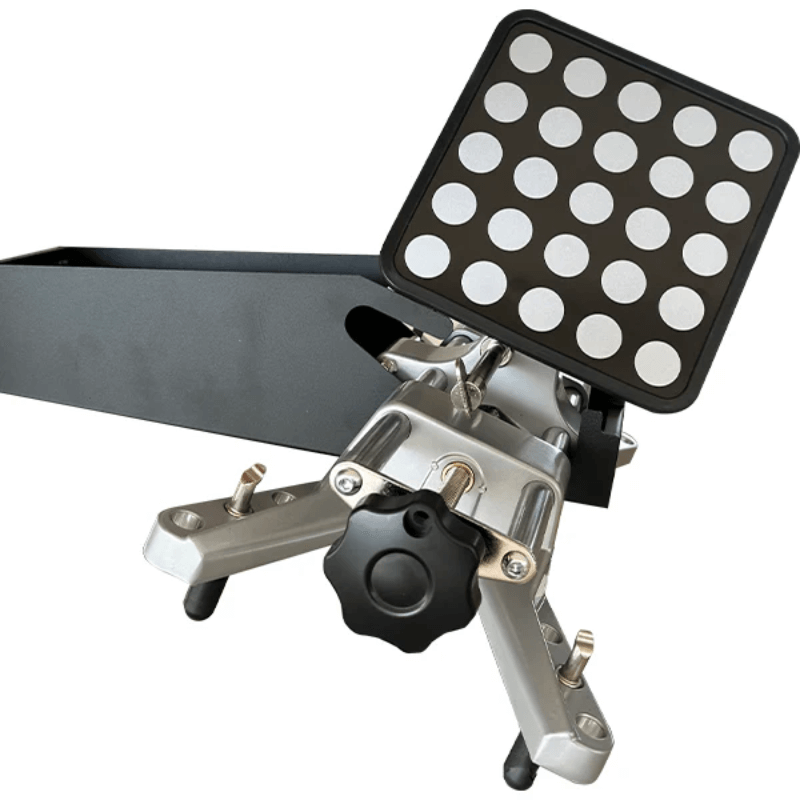

The Katool KT-AV533 is a 3D wheel alignment system designed for daily use in professional shop environments. Built on 3D imaging technology, it measures the full set of alignment parameters needed for front and rear service: total toe, single-wheel toe, camber, kingpin angle, thrust angle, and axis angle. The compact footprint keeps it practical for shops where floor space is already spoken for.

The measurement range covers what technicians need for standard alignment work across modern vehicles — not just a toe-and-go setup, but the complete picture of suspension geometry. Having kingpin angle and axis angle in the parameter set means the system can support more thorough diagnostic work, not just correction of obvious pull complaints. That kind of data helps identify underlying suspension issues before they become repeat alignment visits.

The KT-AV533 fits repair shops and tire service centers that need a reliable alignment system without the footprint or cost of a top-tier commercial unit, alignment-focused service bays that run consistent volume and need accurate results with minimal setup time, and independent shops adding alignment as a service line who want a capable system that doesn't require a dedicated large-format installation.

Features

• Professional-grade 3D wheel alignment system engineered for precise, reliable measurements and accurate adjustments.
• Improves overall alignment consistency, helping to minimize errors and reduce the need for repeat corrections.
• Compact, space-efficient design makes it easy to position and integrate into any professional shop environment.
• Well-suited for a variety of service settings including repair shops, tire centers, and dedicated alignment bays.
• Measures all critical alignment angles — including toe, camber, thrust angle, and kingpin angles — for comprehensive service capability.
• Built to support fast, efficient, and modern alignment service workflows in high-volume shop environments.

Specifications

• Length: 39.6 inches
• Width: 25.6 inches
• Height: 35.4 inches
• Weight: 143.3 lbs
• Air Pressure: 70 MPa
• Hydraulic Pushing Force: 50 KN

Warranty

Katool provides a limited one-year (12-month) warranty covering all parts and product defects at no charge. A 2-year extended warranty plan is also available for any Katool or M&E automotive equipment.

What's Covered:

• Cylinders, power units, motors, displays, and electronics.
• Vehicle lifts receive an additional three-year (36-month) warranty on structural components.

Warranty Conditions:

• Claims must be submitted within the active warranty period.
• The warranty is non-transferable and requires the original order number along with proof of purchase from Katool or an authorized vendor.
• Approved claims will receive replacement parts at no cost, including free shipping.

Important Notes:

• All claims are subject to review and approval by Katool's warranty and service department.
• Photos and/or videos of the defect may be required to process a claim.
• Do not disassemble any equipment before the issue has been assessed and a determination has been made.
• Equipment that falls outside the warranty policy will not be covered — the buyer assumes responsibility for replacement parts and associated shipping costs.
• Labor is not covered under this warranty.
