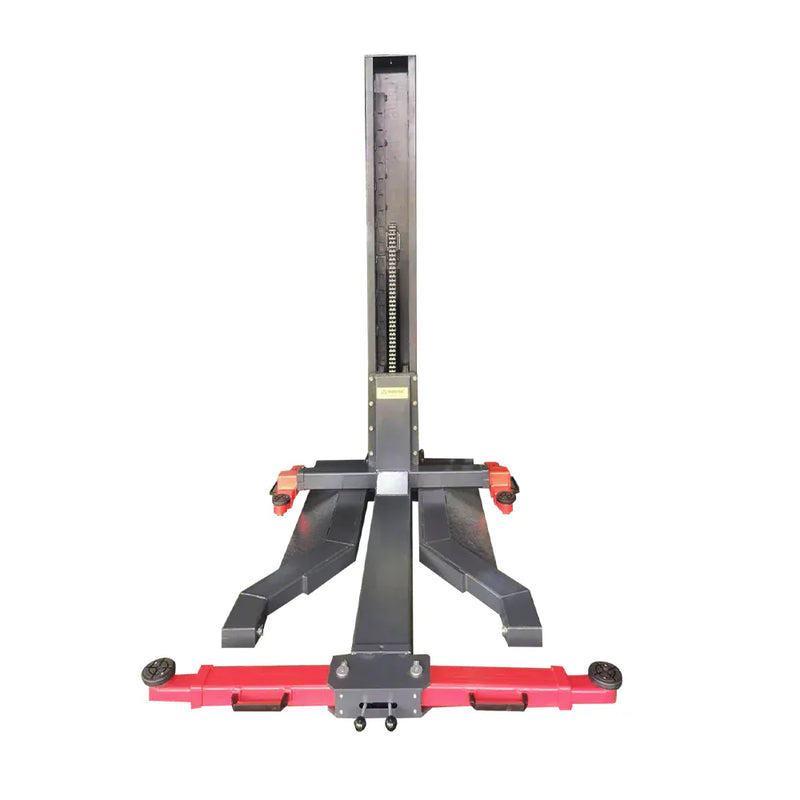

Katool KT-SPL700 7,000 lb Single Post Lift

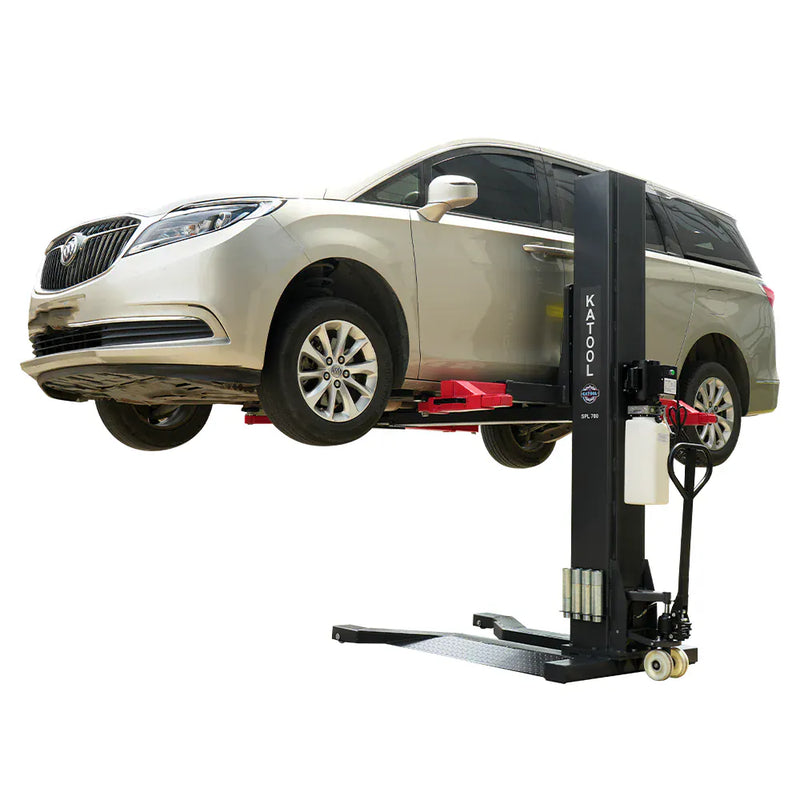

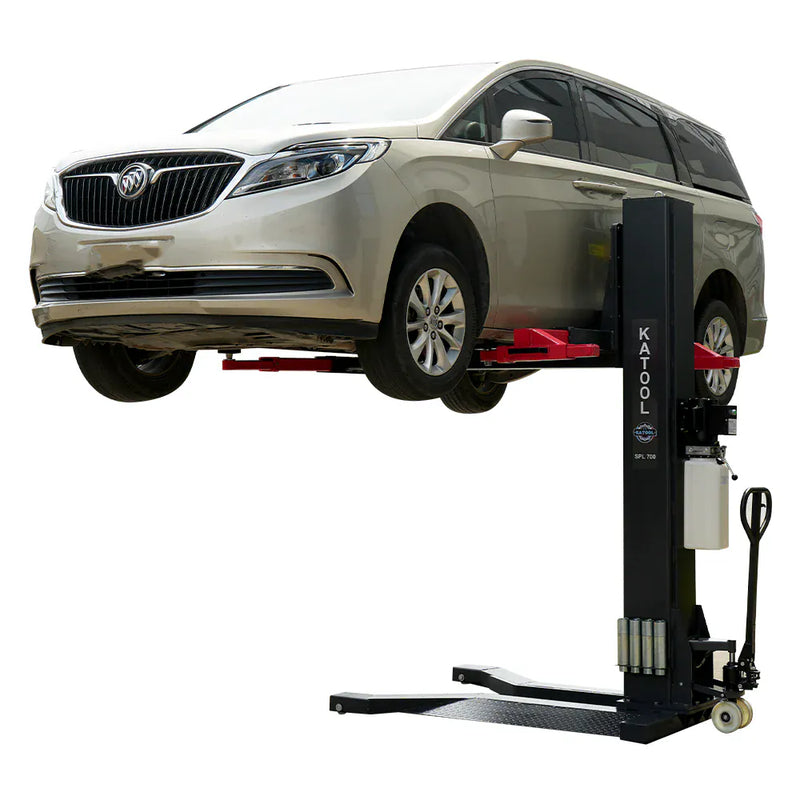

The Katool KT-SPL700 is a 7,000 lb (3,175 kg) portable single-post lift designed for shops, home garages, and mobile technicians who need full undercarriage access without the permanent floor commitment of a two-post or four-post installation. The single-column design leaves all four wheels and the entire undercarriage exposed at once — the access geometry that makes it practical for tire, brake, suspension, and exhaust work, not just oil changes. It runs on 110V single-phase, 30-amp service, so it drops into most existing home garage and small-shop electrical setups without a panel upgrade. Note: hydraulic operation requires 3–5 gallons of AW32 or AW46 fluid, sold separately, and initial offloading from the freight truck requires a forklift — the unit ships at approximately 1,900 lbs.

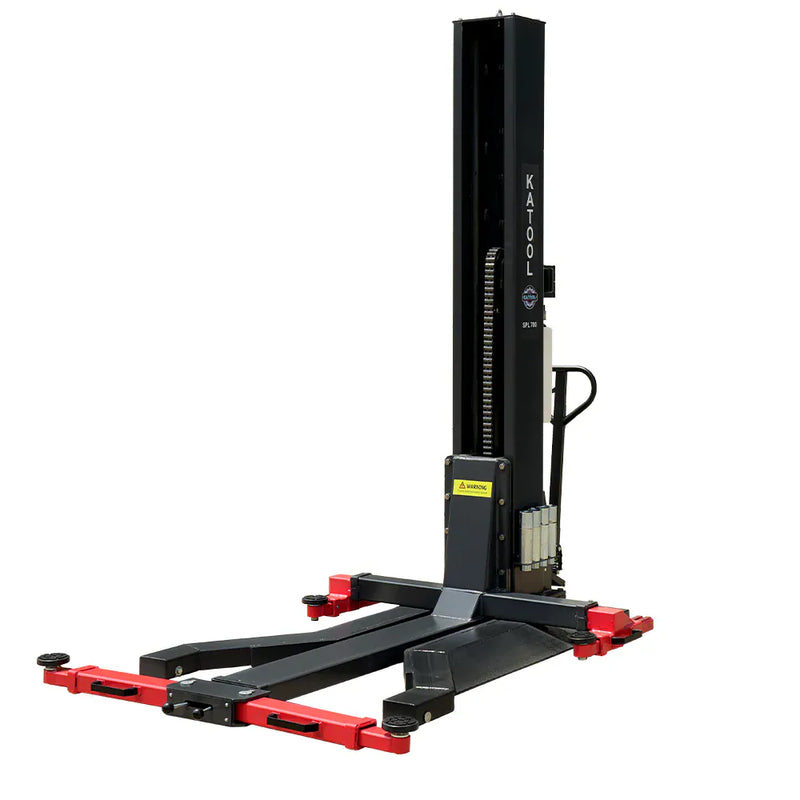

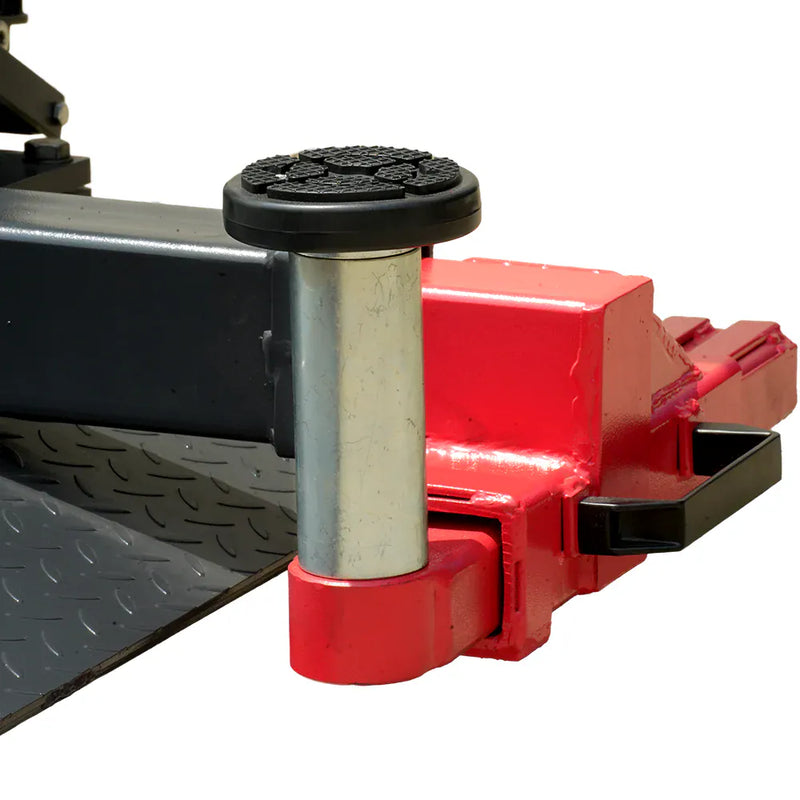

The low-profile drive-on platform with diamond-plate decking accommodates low-clearance vehicles, and the adjustable lifting pad reach covers the width range from compact sedans through full-size light trucks. Maximum lifting height is 71⅔ inches, with 68 inches of clearance under the pads at full height. Eight stackable truck adapters are included — four at 2.75" and four at 6" — for setting pad height on trucks and vans without sourcing additional hardware. An automatic safety lock engages at every lift position, so the vehicle is held mechanically at whatever height you're working at, not just at preset stops.

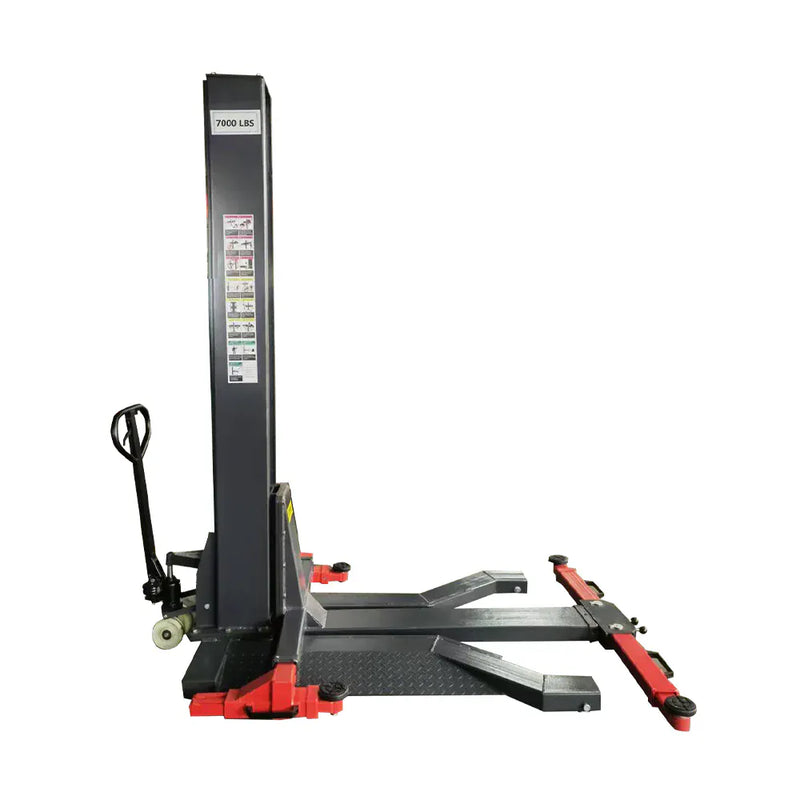

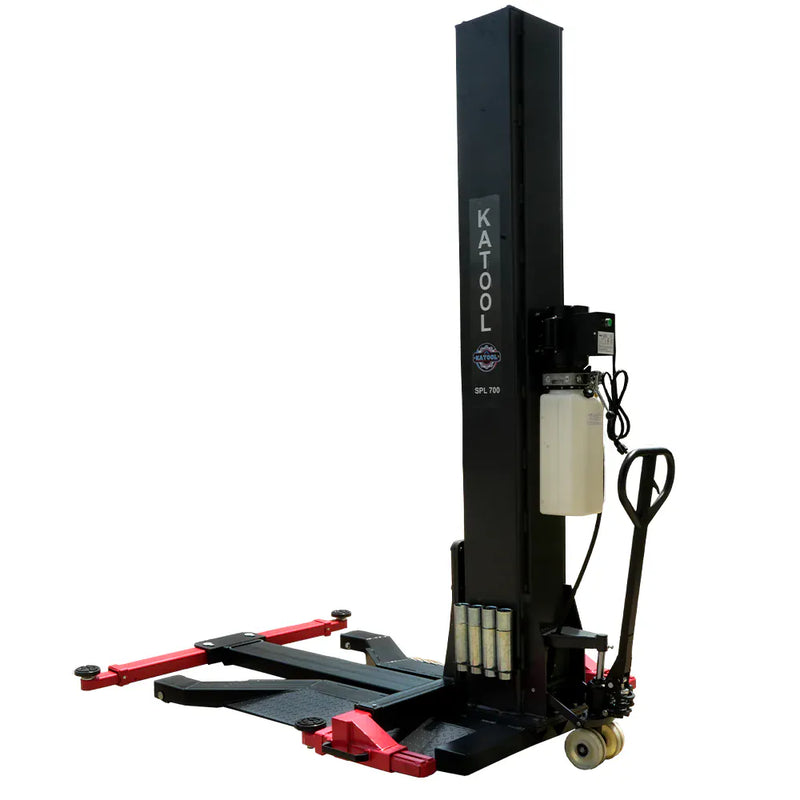

Mobility is built into the design: caster wheels and an integrated pump handle let a single technician roll the unit between bays without assistance. That portability makes the KT-SPL700 a practical fit for home garage owners who can't dedicate floor space to a fixed lift, mobile technicians who need a lift they can load and transport, and multi-bay shops that want a supplemental lift they can position where the work is rather than where the anchor bolts are.

Features

• 7,000 lb (3,175 kg) lifting capacity, sized for sedans, SUVs, and light trucks
• 71⅔" maximum lifting height with 68" clearance under the pads
• Single-post design provides unobstructed access to all four wheels and the full undercarriage simultaneously
• Drive-on diamond-plate platform with low-profile arms for easy loading of low-clearance vehicles
• Adjustable lifting pad reach accommodates a wide range of vehicles from sedans to full-size light trucks
• Runs on 110V single-phase, 30A power — no electrical service upgrade required
• Caster wheels and integrated pump handle allow single-technician repositioning
• Automatic safety lock engages at every lift position for secure, reliable holds

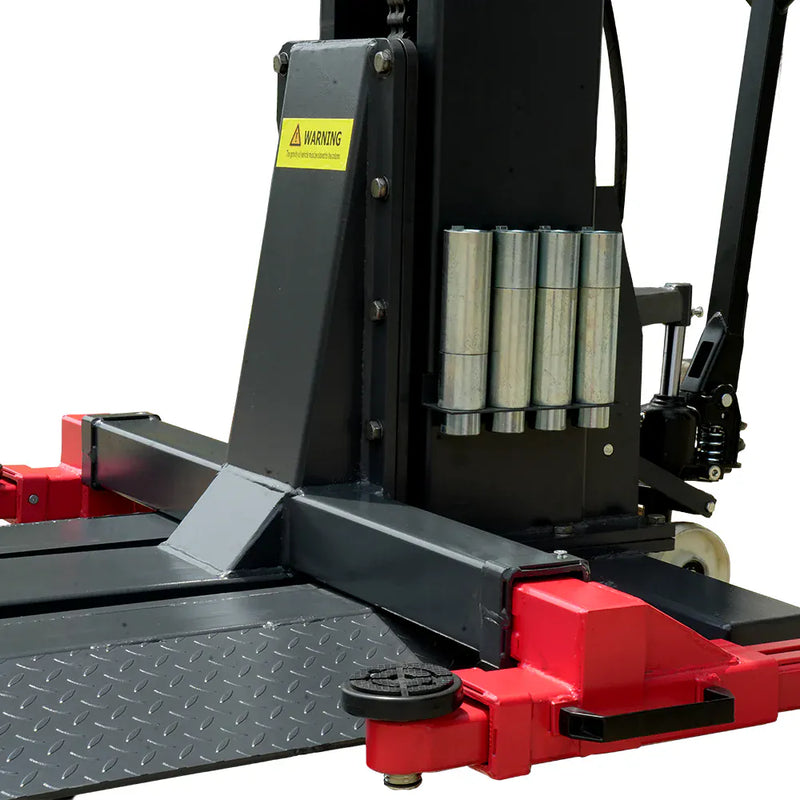

• Includes four 2.75" and four 6" stackable truck adapters with a 2" peg size
• Hydraulic operation; compatible with AW32 or AW46 fluid (3–5 gal, sold separately)
• Shipping weight approximately 1,900 lbs
