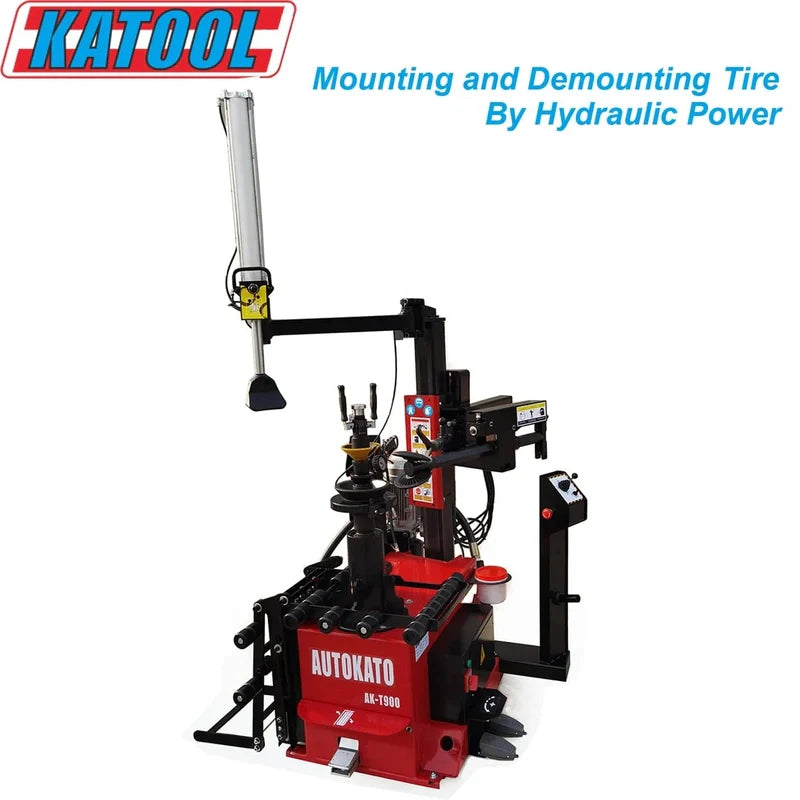

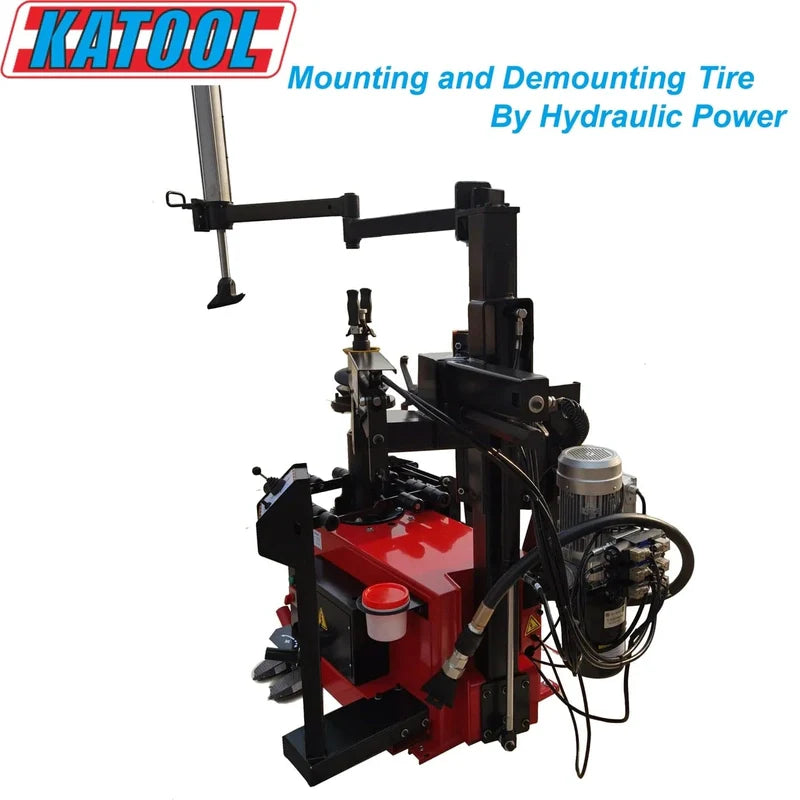

The Katool KT-T900 Center Post Tire Changer Machine is built for shops that need reliable, hydraulic-powered tire service without slowing down on modern wheel types. Its all-hydraulic system delivers consistent control across a wide range of passenger car wheels, while the center-post design keeps operation stable and efficient. At this price and category level, what really stands out is how it combines a lever-less mounting system with assist technology to make difficult tires more manageable. Note: requires a properly reinforced shop floor and standard commercial air supply for full pneumatic operation.

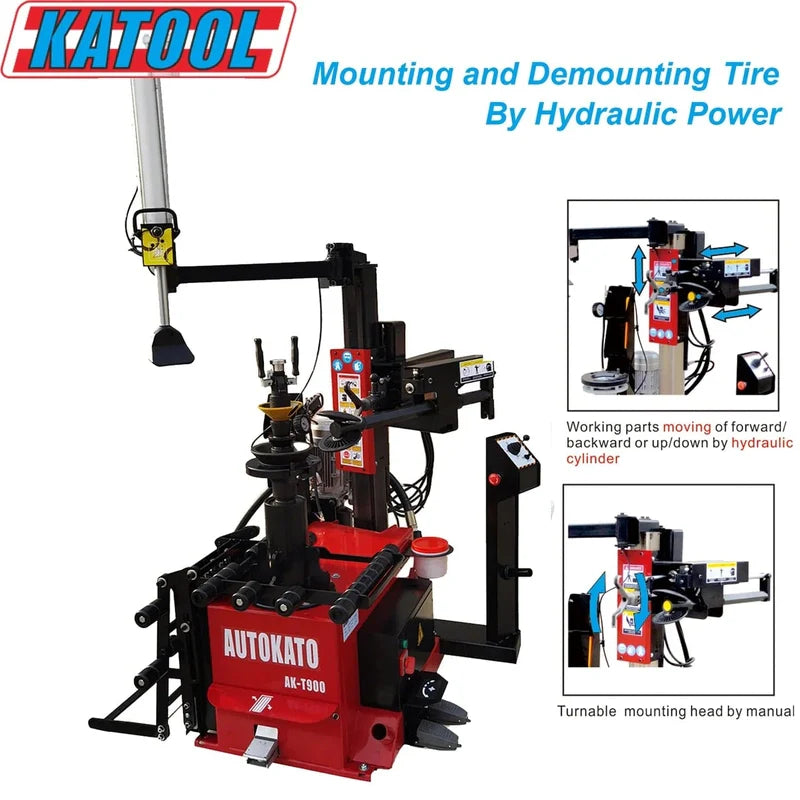

The machine is designed to simplify real-world tire work, especially when dealing with tight sidewalls or performance setups. The built-in top assist arm provides extra force and positioning support when handling run-flat and low-profile tires, reducing the effort needed from the operator. The stainless steel mounting head, paired with a protective plastic cover, helps minimize rim contact and lowers the risk of cosmetic damage during mounting and demounting. A wheel lift assistant further reduces physical strain, making it easier to position heavier wheel assemblies quickly and safely.
This unit is a strong fit for tire shops, automotive repair centers, and performance garages that handle a steady volume of vehicles and need equipment that keeps up with daily use. It’s also a practical upgrade for serious home garage builders who want shop-level capability when working on modern cars and aftermarket wheels.
Features
- Fully hydraulic power system designed to handle all types of car wheels with ease and precision.

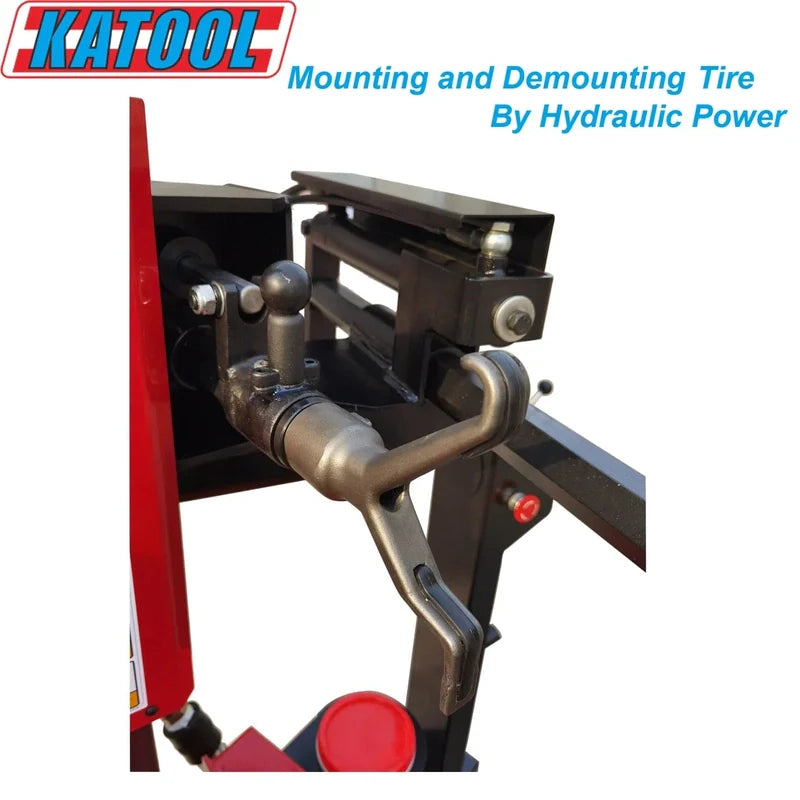

- Built-in top assist arm makes it simple to mount and dismount even difficult run-flat and low-profile tires.
- Lever-less design with a stainless steel mounting head and protective plastic cover to help prevent rim damage.
- Integrated wheel lift assistant device reduces manual effort and improves operational efficiency.
- High-quality motor with pure copper winding ensures strong performance, low defect rate, and extended service life.
- Optimized motor system provides increased power output, faster heat dissipation, and long-term durability.
-
High-quality air filtration system helps maintain clean airflow and extends the lifespan of internal components.
Specifications
| Max wheel diameter: |
47" / 1200 mm |
| Max wheel width: |
16" / 406 mm |
| Wheel clamp: |
12"-30" |
| Power supply: |
110V / 1PH / 60HZ |
| Gear Box Motor power: |
1.5KW / 2HP |
| Hydraulic power: |
1.1KW / 1.5HP |
| Rotation speed: |
6.8r/min |
| Air Pressure: |
0.8-1.0Mpa(116-145psi) |
| Net weight: |
188KG / 414lbs |
Warranty
Katool provides a limited 1-year (12-month) warranty on all parts, covering manufacturing defects at no additional cost.
An optional 2-year extended warranty plan is available for all Katool and M&E automotive equipment.
Warranty Coverage Includes:
- Cylinders, power units, motors, displays, electronics, and other key components
- Vehicle lifts include an additional 3-year (36-month) structural warranty (structural components only)
Warranty Conditions:
- Claims must be submitted within the valid warranty period
- Warranty is non-transferable and requires proof of purchase (original order number) from Katool or an authorized/registered vendor
- Replacement parts are provided at no cost, including free shipping
Important Notes:
- All warranty claims are subject to approval by the warranty/service department
- Photos and/or videos of the defect may be required for evaluation
- Equipment must not be disassembled prior to inspection or authorization
- Items outside warranty coverage will not be eligible for free replacement; parts and shipping costs will be the responsibility of the buyer
- Labor costs are not included under warranty coverage
