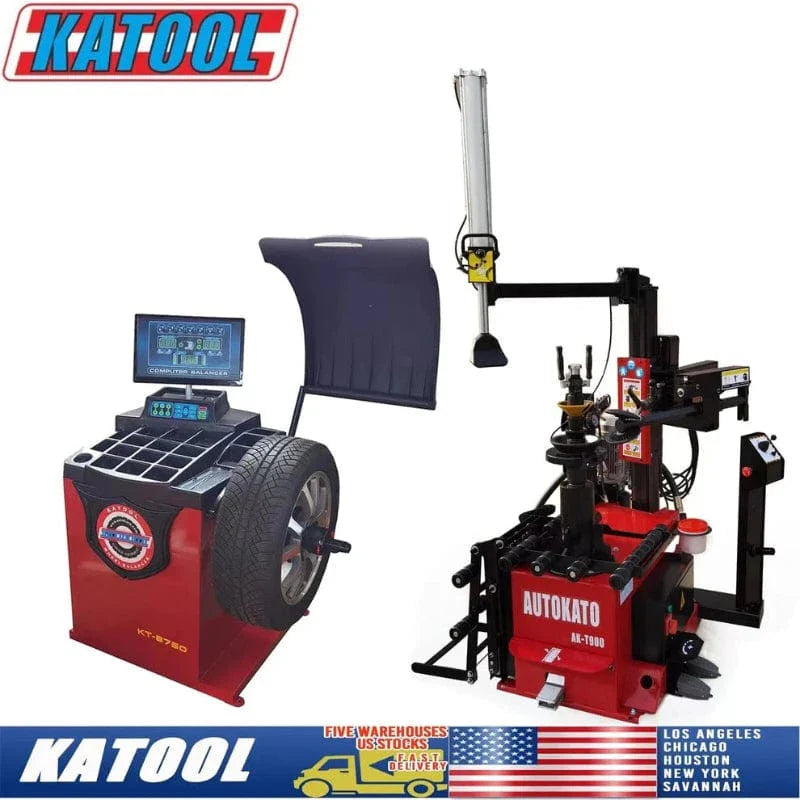

The Katool KT-T900 and KT-B750 is a matched tire changer and wheel balancer combo sized for professional tire shops that need speed, capacity, and accuracy across a full range of passenger and light commercial wheels. The T900 handles wheels up to 47 inches in diameter and 16 inches wide on a 2 HP motor with a 1.5 HP hydraulic system; the B750 balances rims up to 30 inches in diameter and 15 inches wide to ±1g accuracy in 7 seconds. Both machines are built around pure copper-wound motors selected for lower defect rates, faster heat dissipation, and longer service life under continuous shop use.
The T900's leverless design — stainless steel mounting head with an included plastic rim protector — removes the main source of alloy wheel damage during mounting and demounting. A built-in top assist arm handles run-flat and low-profile tires that a standard tilt-back machine struggles with, and a wheel lift assist device reduces the physical strain of handling heavier wheels repeatedly through a shift. On the balancer side, the B750's automatic measurement ruler inputs the A and D values without manual entry, cutting setup time per wheel. The φ36mm quench-hardened shaft handles wider, heavier wheels without flex, and the 3mm steel body with 8mm sensor mounting boards keeps vibration out of the measurement. A built-in self-calibration and fault diagnosis program runs without memory parameters, so the machine stays accurate without technician intervention between calibrations.
This combo is purpose-built for high-volume tire shops processing a steady mix of passenger cars, light trucks, and low-profile fitments where both speed and rim protection matter. It's also a strong fit for dealership service departments and independent shops looking to replace aging equipment with a matched pair that shares the same build standard across both machines.
Features
Tire Changer T900 — Features
- Full hydraulic power system compatible with all car wheel types
- Built-in top assist arm handles difficult run-flat and low-profile tires with ease
- Leverless design with a stainless steel mounting head and included plastic rim cover for scratch-free operation
- Integrated wheel lift assist device for effortless tire handling
- High-quality motor with pure copper windings for fast heat dissipation, low defect rate, and extended service life
- High-quality filtration system for consistent, reliable hydraulic performance
Wheel Balancer B750 — Features
- Automatic measurement ruler for hands-free A and D value input
- Heavy-duty 3mm steel body with solid welding and minimal vibration for a stable platform
- All-in-one pressure sensor mounted on an 8mm thick base and side board for stable, high-precision readings
- Pure copper winding motor delivers greater power, faster heat dissipation, and a longer service life
- φ36mm quench-hardened shaft thread for superior strength and durability
- Advanced moisture-proof, dust-proof, and anti-static computer board for enhanced long-term reliability
- Multiple balance modes tailored to different rim types for precise, accurate balancing
- Built-in fault diagnosis and double-sided self-calibration eliminates the need for manual memory parameters
- Selectable units for Ounce/Gram and MM/Inch measurements
- High-quality integrated power board ensures stable, consistent performance
- Extended shaft accommodates wider wheels
- Optional wheel guard available
Specifications
Tire Changer T900 Specifications:
|
Max wheel diameter:
|
47" / 1200 mm |
|
Max wheel width:
|
16" / 406 mm
|
|
Wheel clamp:
|
12"-30"
|
|
Power supply:
|
110V / 1PH / 60HZ
|
|
Gear Box Motor power :
|
1.5KW / 2HP
|
|
Hydraulic power :
|
1.1KW / 1.5HP
|
|
Rotation speed:
|
6.8r/min
|
|
Air Pressure :
|
0.8-1.0Mpa(116-145psi)
|
|
Net weight :
|
188KG / 414 lbs
|
Wheel Balancer B750 Specifications:
|
Rim Diameter:
|
<30"
|
|
Wheel Width:
|
3"-12"
|
|
Wheel Diameter:
|
<880mm
|
|
Balancing Speed:
|
180rpm
|
|
Power Supply:
|
120V 1PH
|
|
Motor Power:
|
0.25KW
|
|
Rim Center Hole Dia.:
|
<135mm
|
|
Wheel Weight:
|
<65KG
|
|
Balancing Accuracy:
|
±1g
|
|
Measuring Time:
|
7S
|
Warranty
Katool offers a limited one-year (12-month) warranty on all parts and product defects at no charge. An extended 2-year warranty plan is also available for any Katool or M&E automotive equipment.
What's Covered
Cylinders, power units, motors, displays, electronics, and related components. Vehicle lifts receive an additional three-year (36-month) warranty covering structural components.
Warranty Conditions
- Claims must be submitted within the active warranty period
- Warranty is non-transferable and requires the original order number and proof of purchase from Katool or an authorized vendor
- Approved replacement parts are provided at no cost, with free shipping included
